Concatenated type Electro-Permanent Magnetic Chuck(Controller sold separately.)

Product NO: EEPM-C

Price range: ¥368,000 through ¥471,000

Product name
Product NO
L×W×H
Price
Stock
Quantity
Concatenated type Electro-Permanent Magnetic Chuck(Controller sold separately.)
EEPM-2030C
440×190×70mm
¥368,000

This is a back-order item

Concatenated type Electro-Permanent Magnetic Chuck(Controller sold separately.)

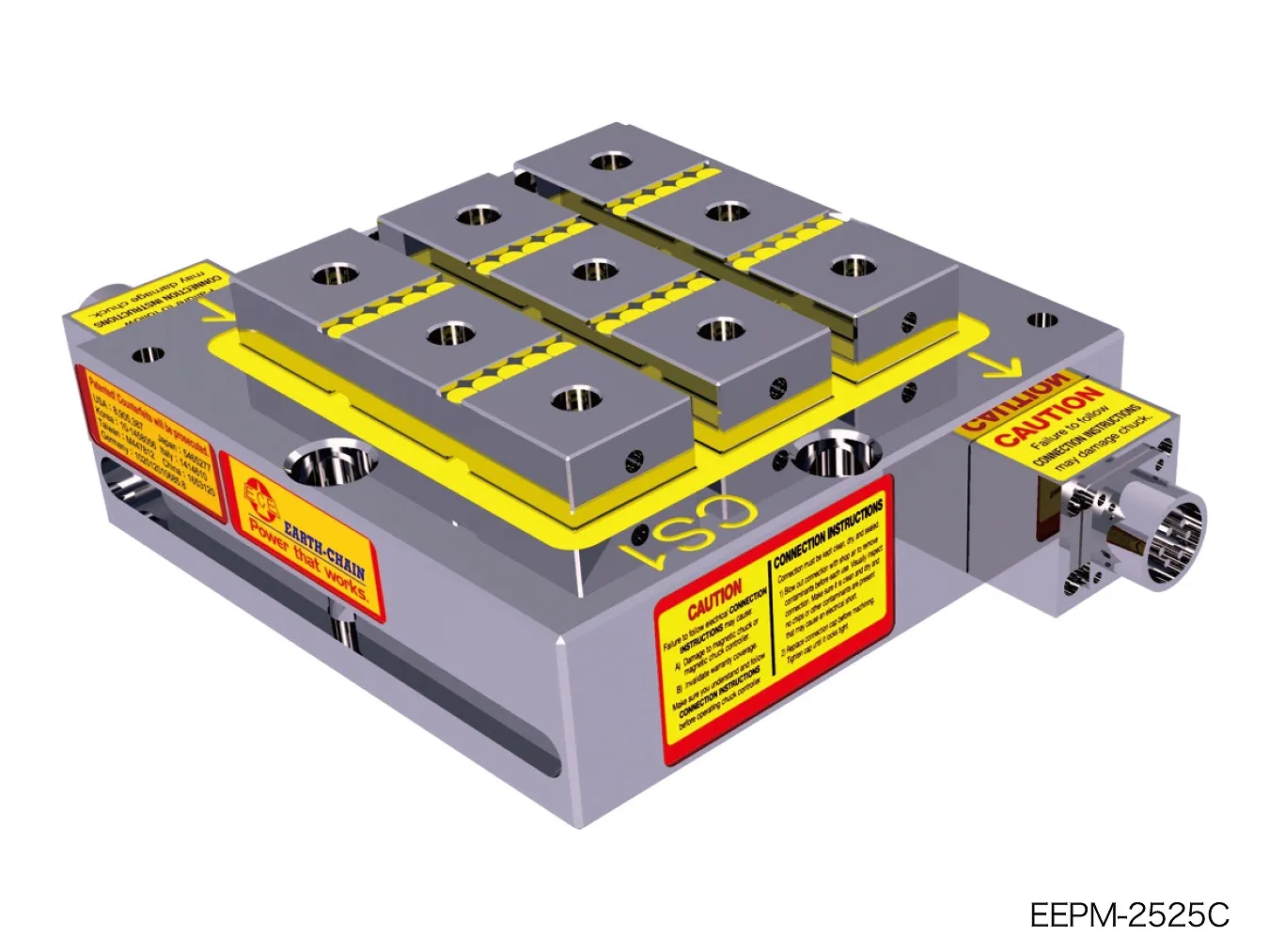

EEPM-2525C
380×250×70mm
¥391,000

This is a back-order item

Concatenated type Electro-Permanent Magnetic Chuck(Controller sold separately.)

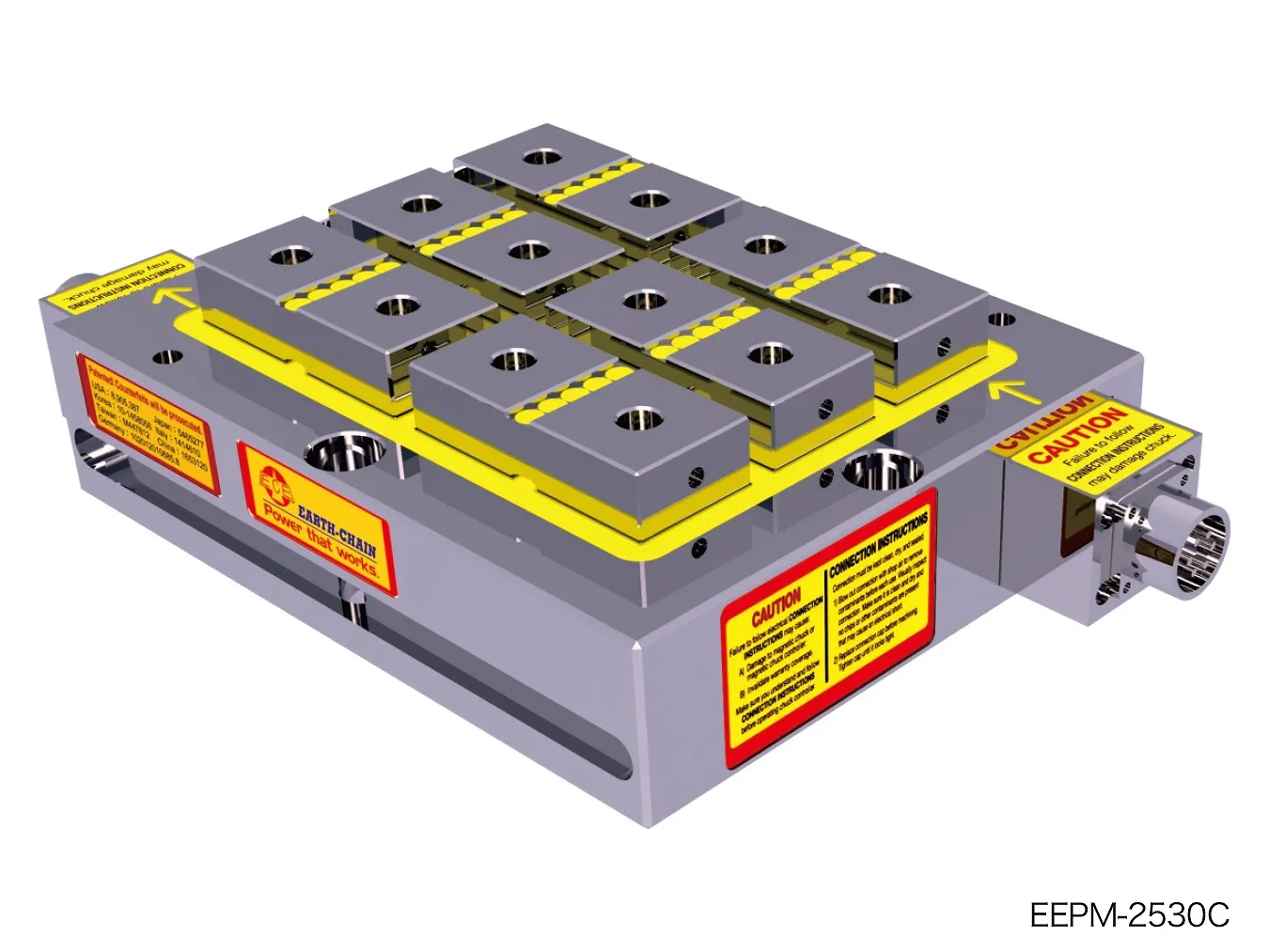

EEPM-2530C
440×250×70mm
¥471,000

This is a back-order item

Specification

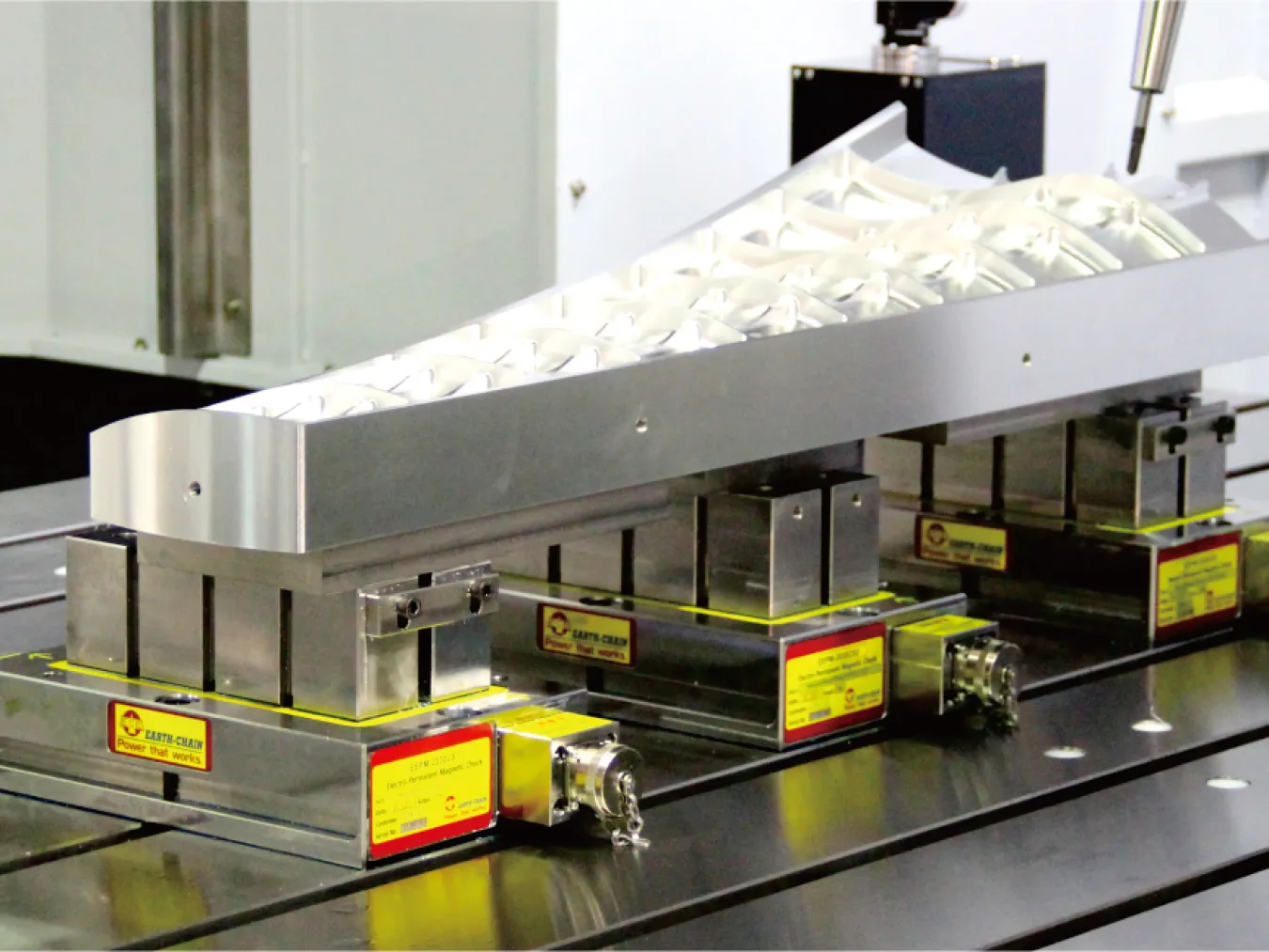

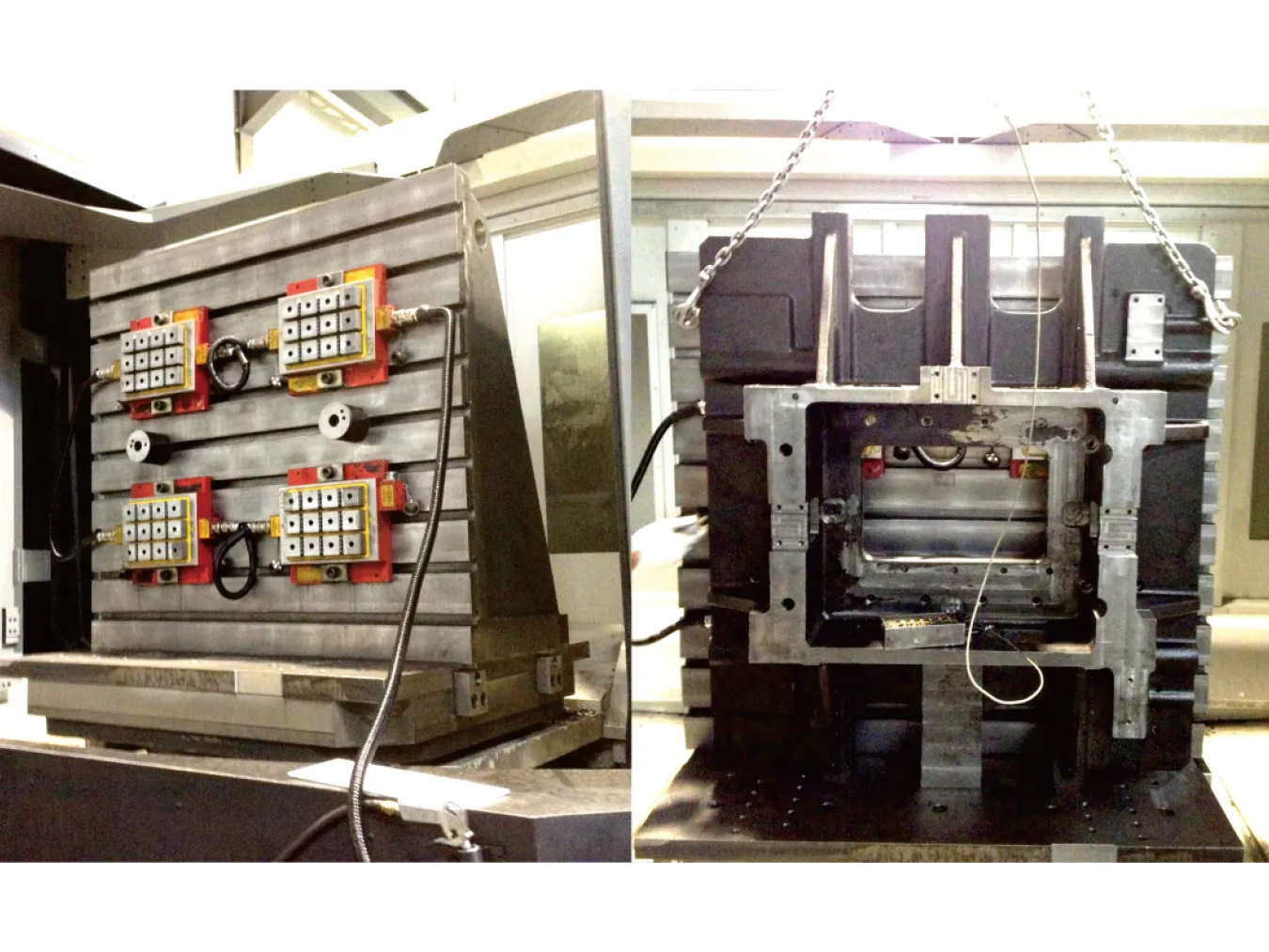

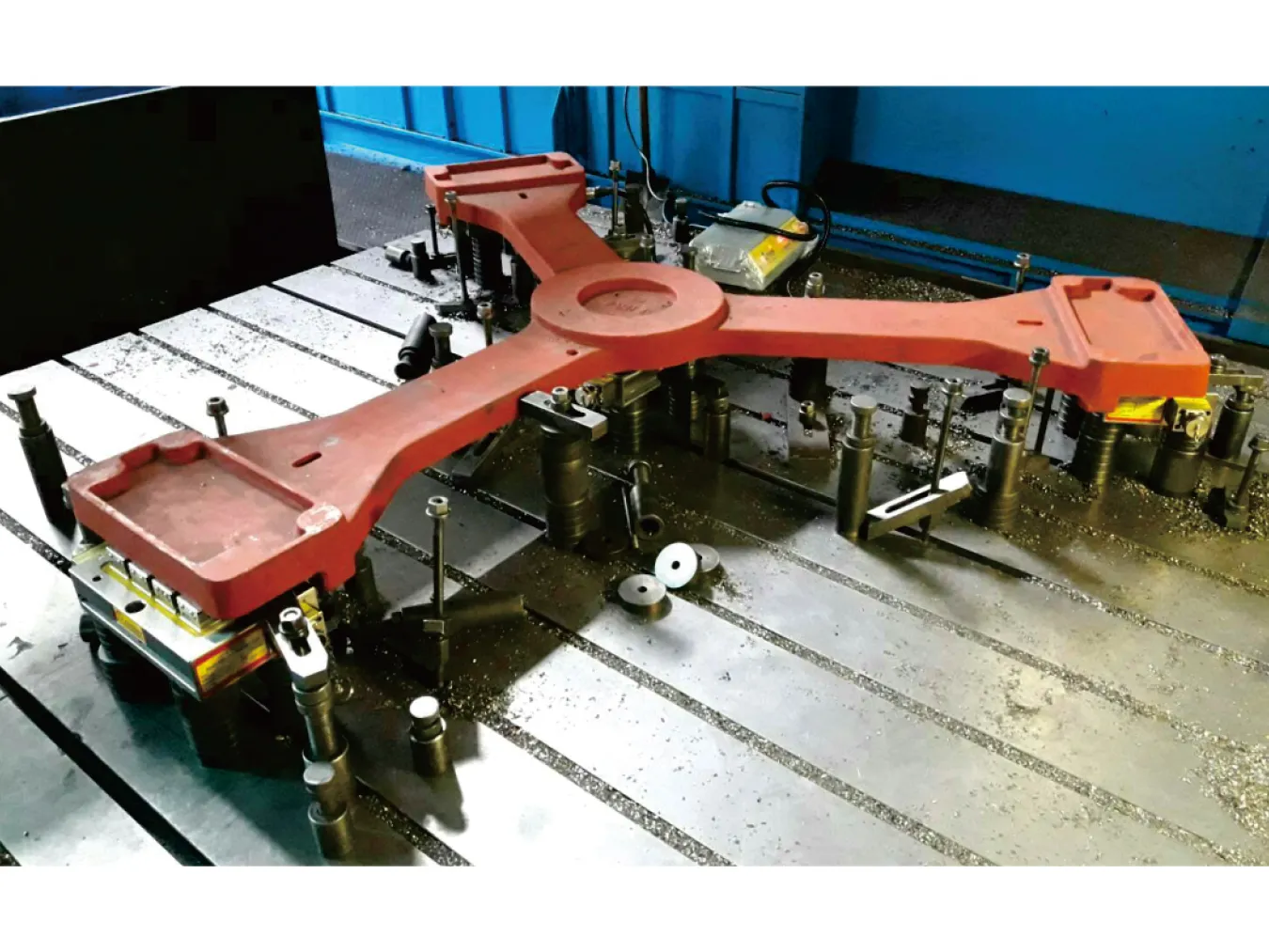

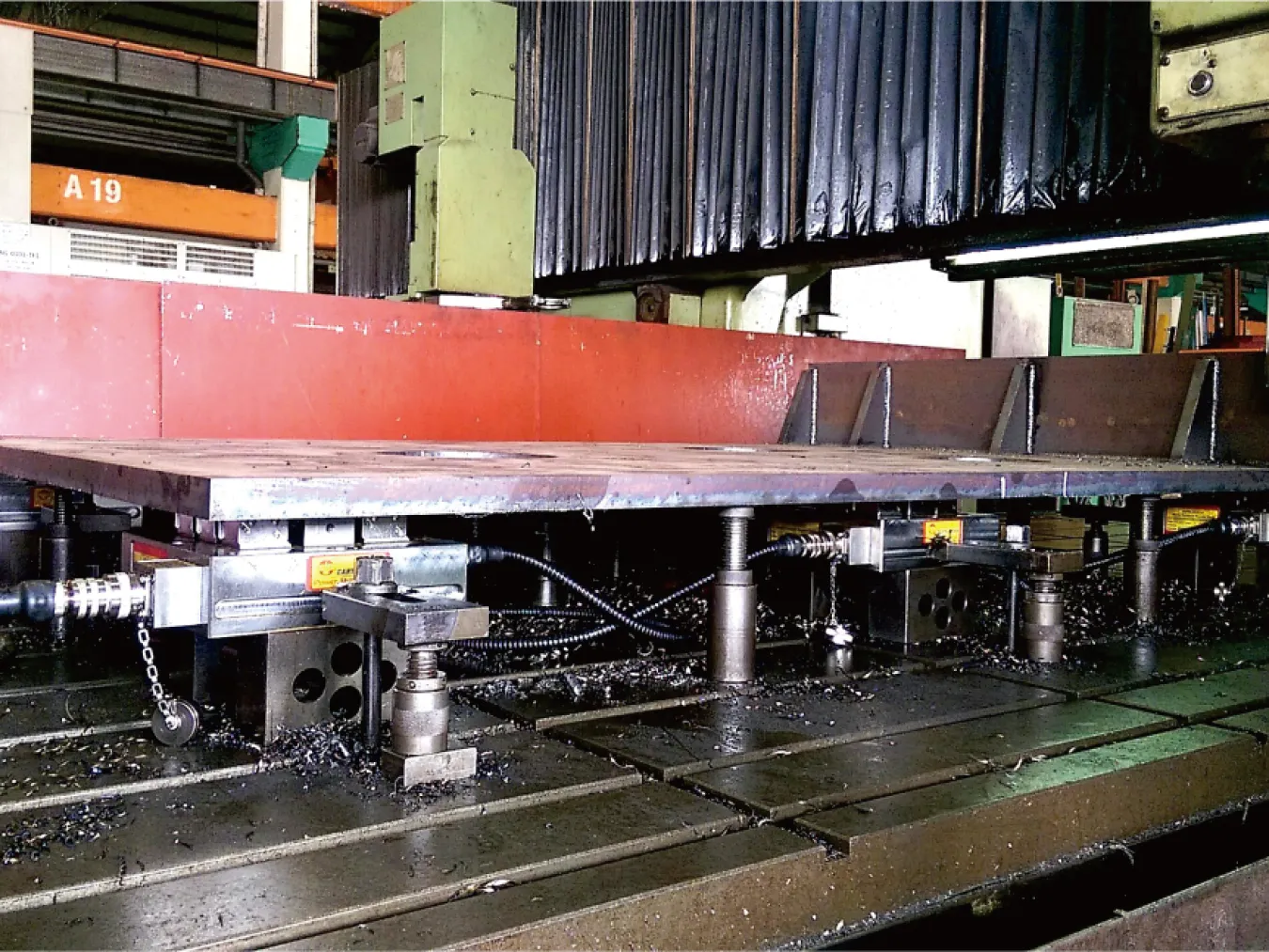

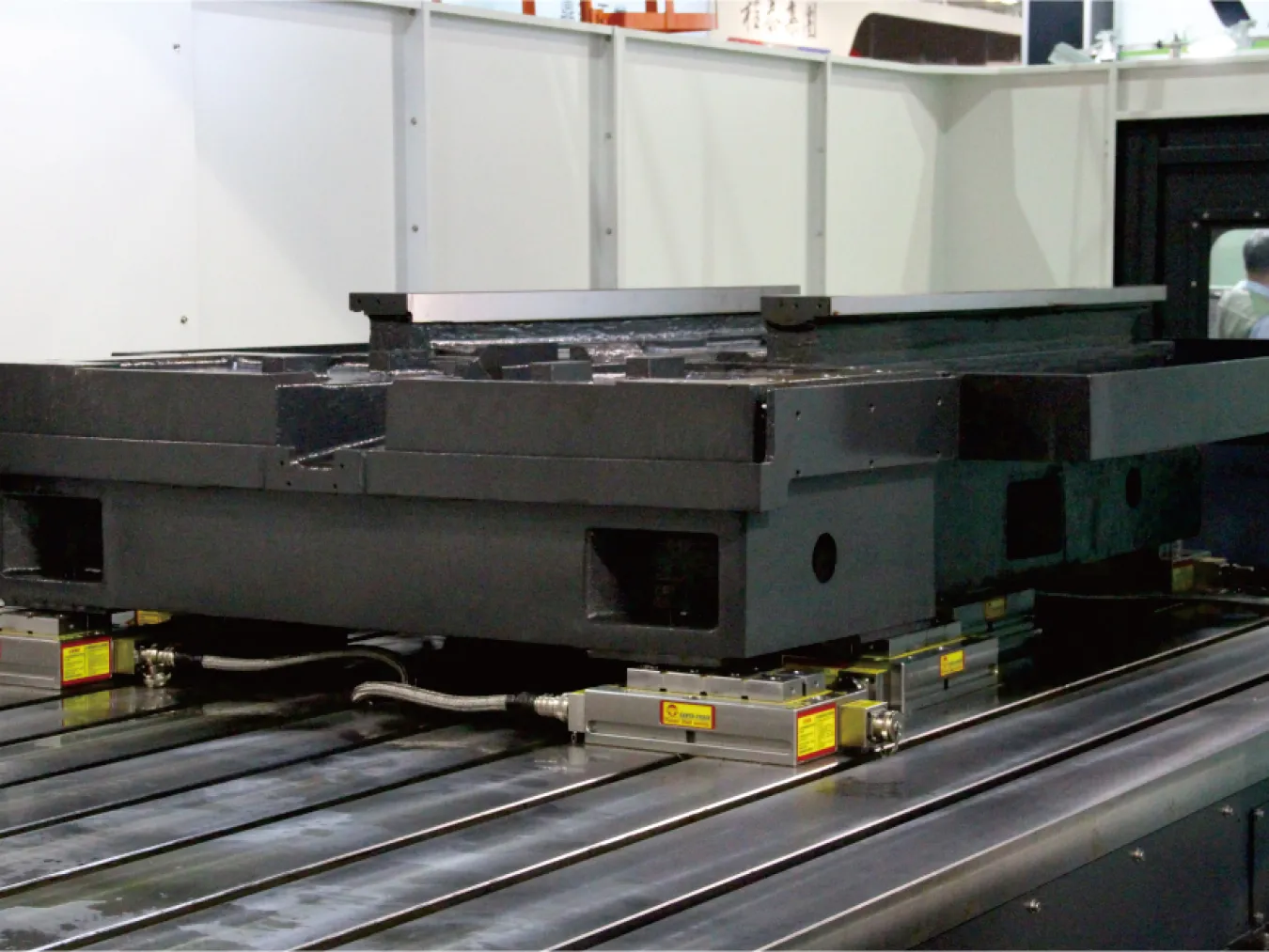

●By connecting multiple modular units, the system expands to enable clamping of even larger-scale workpieces.

Product Specifications (Variations)

unit：mm

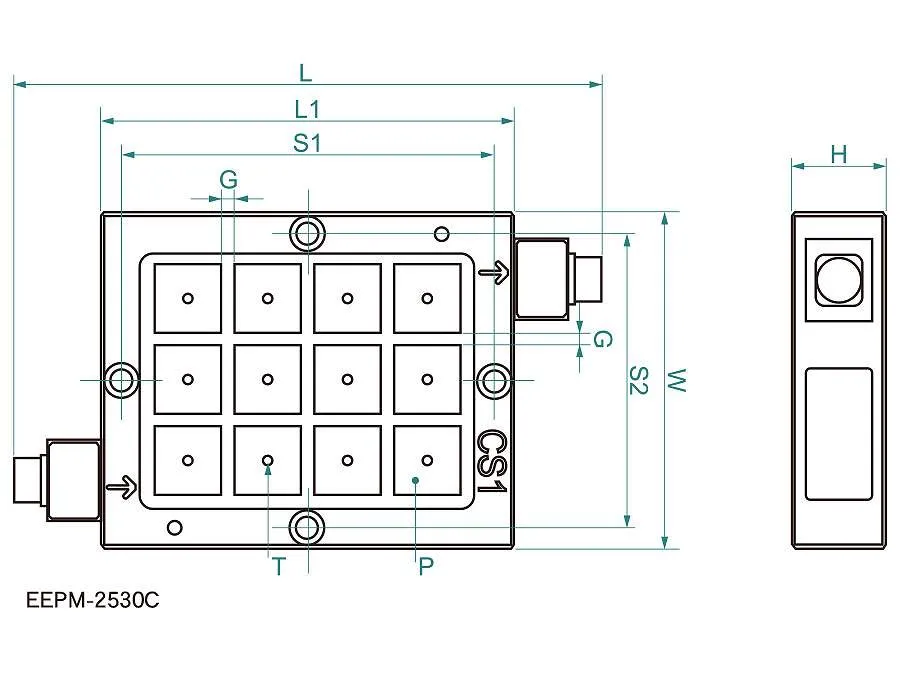

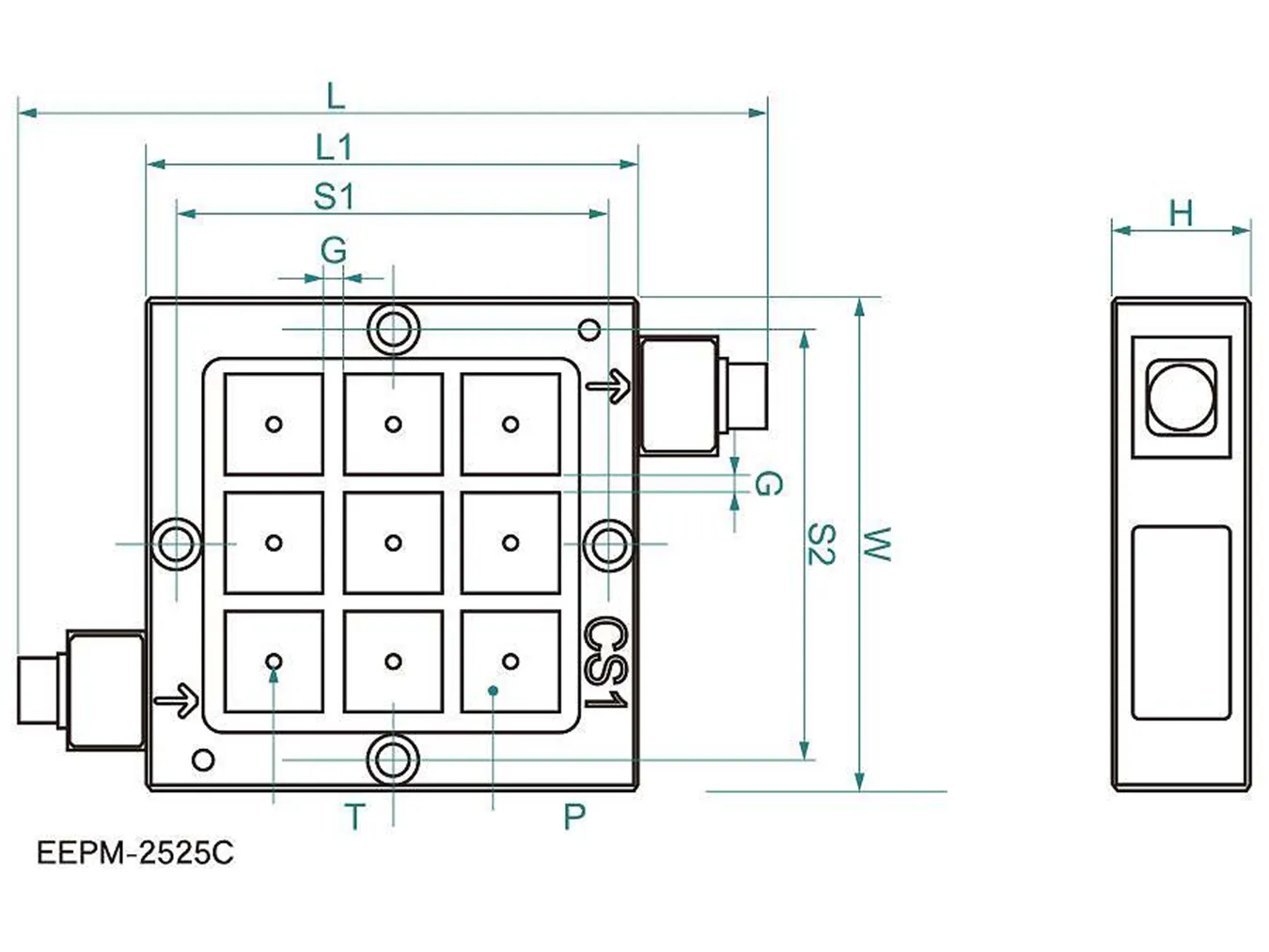

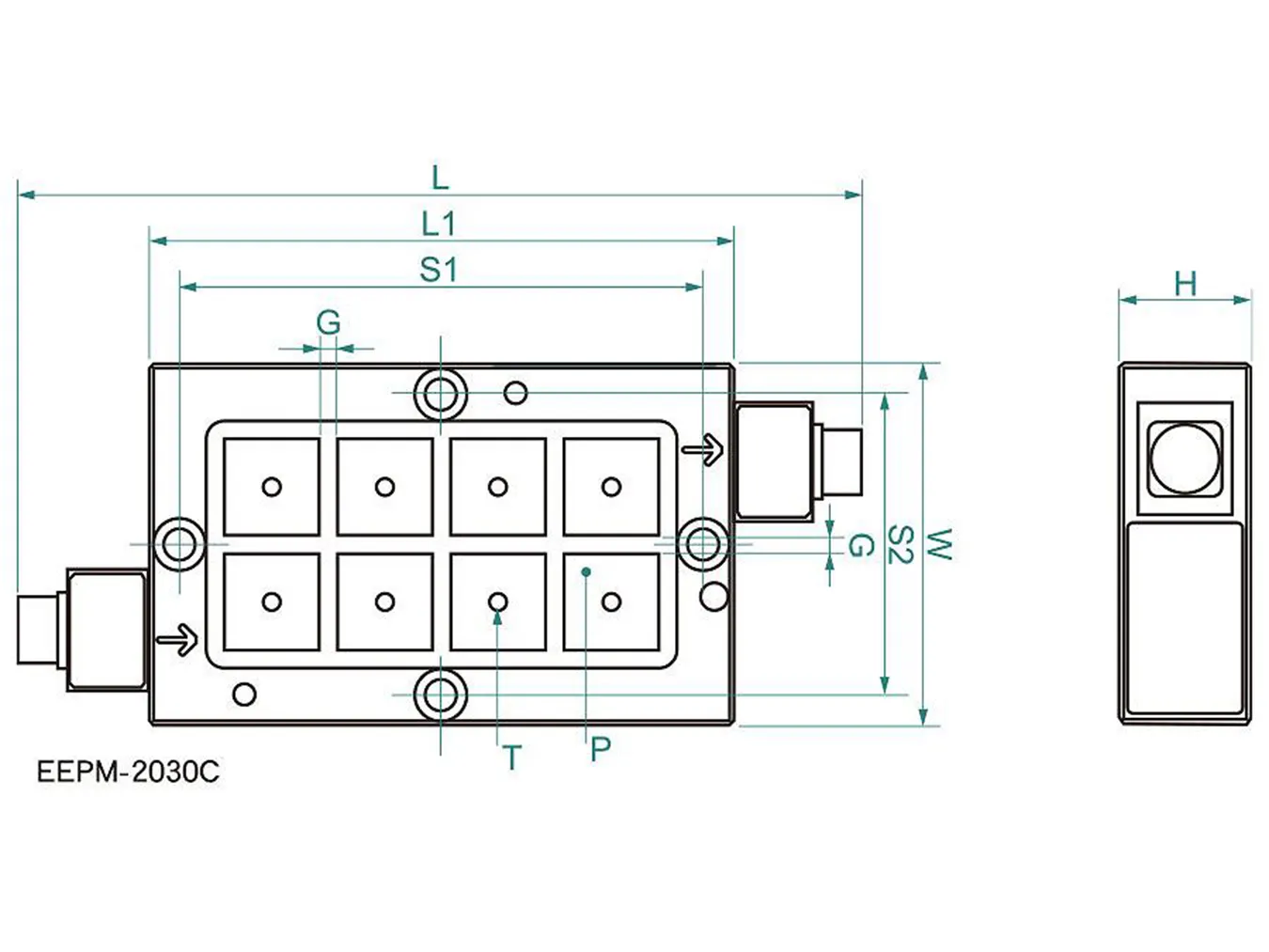

Product NOPower supplyWLL1S1S2HTPitch（G）Magnetic Pole（P）Number of magnetic polesClamping forceNet Weight（kg）
EEPM-2030Csingle phase220V19044031028016070M81050×5082500Kgf33.5
EEPM-2525Csingle phase220V25038025022022070M81050×5092800Kgf35
EEPM-2530Csingle phase440V25044031028022070M81050×50123750Kgf44
