Electro-Permanent Magnetic Chuck
Price range: ¥621,000 through ¥2,817,000
Specification
Total Chuck Clamping Force: 2.61 to 15.66 tons
Magnetic force per 4 poles: 580 kg
Ideal for machining small workpieces (15 mm or thicker).
Product Specifications (Variations)

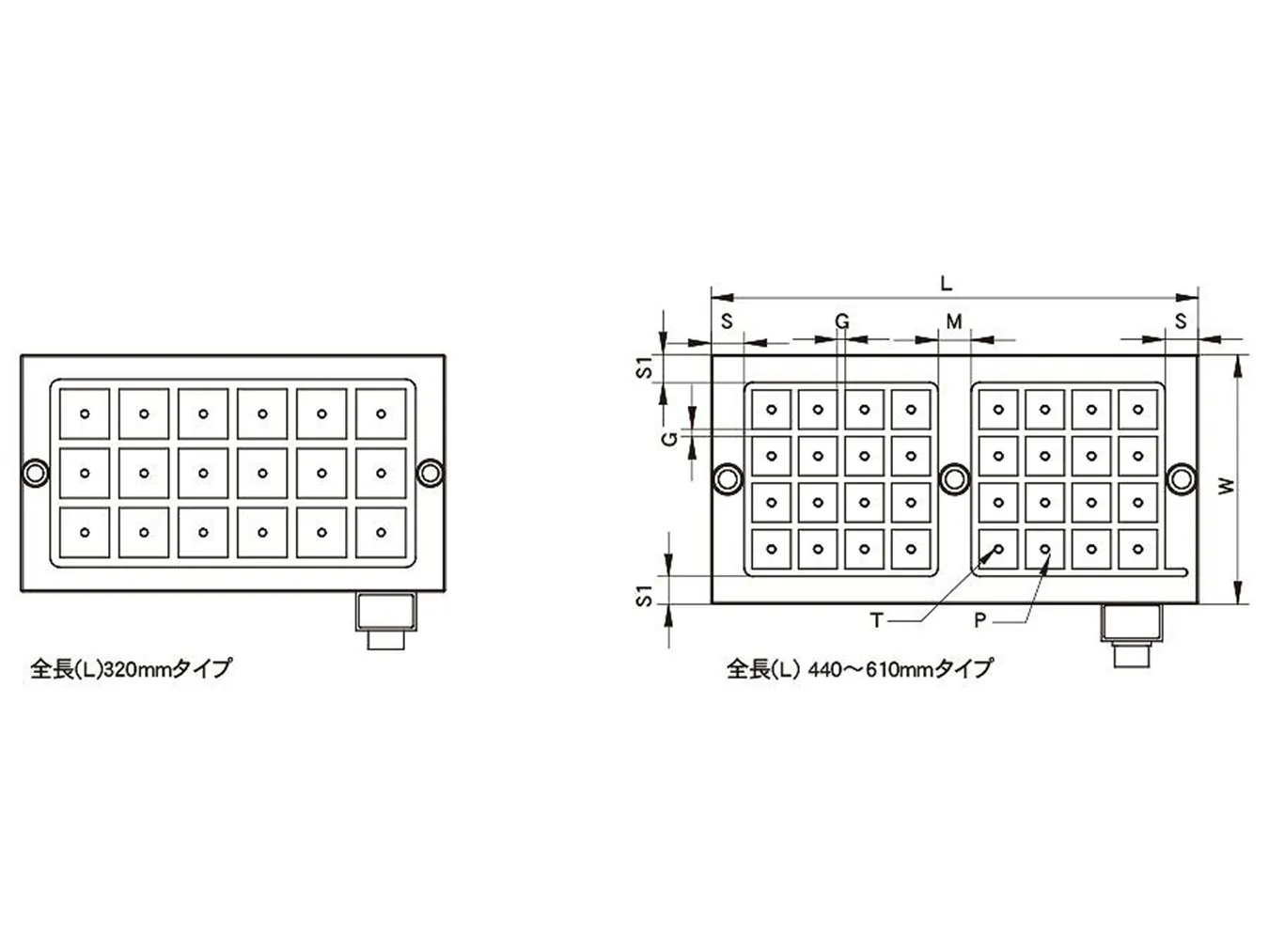

unit：mm| Product NO | W | L | S | S1 | M | T | PitchＧ | Number of magnetic poles | Total holding power（TON） | weight（kg） | current | Controller (included) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EEPM-1530A | 185 | 320 | 30.5 | 26 | - | M6 | 7 | 18 | 2.61 | 23 | 18A | C1 |
| EEPM-2540A | 225 | 440 | 30 | 25 | 30 | M6 | 7 | 32 | 4.64 | 39 | 30A | C1 |
| EEPM-2560A | 225 | 610 | 31 | 25 | 30 | M6 | 7 | 48 | 6.96 | 54 | 26A | C2 |
| EEPM-3030A | 310 | 320 | 30.5 | 25.5 | - | M6 | 7 | 36 | 5.22 | 39 | 26A | C1 |
| EEPM-3040A | 310 | 440 | 30 | 25.5 | 30 | M6 | 7 | 48 | 6.96 | 53 | 25A | C2 |
| EEPM-3060A | 310 | 610 | 31 | 25.5 | 30 | M6 | 7 | 72 | 10.44 | 74 | 31A | C2 |
| EEPM-4040A | 435 | 440 | 30 | 25 | 30 | M6 | 7 | 72 | 10.44 | 75 | 31A | C2 |
| EEPM-4050A | 435 | 525 | 30.5 | 25 | 30 | M6 | 7 | 90 | 13.05 | 90 | 24A | C4 |
| EEPM-4060A | 435 | 610 | 31 | 25 | 30 | M6 | 7 | 108 | 15.66 | 104 | 26A | C4 |
| EEPM-4080A | - | - | - | - | - | - | - | - | - | - | - | - |
Product Features
Increase Machining Efficiency While Reducing Fixturing Costs
Problem
Increase Machining Efficiency and Reduce the Need for Dedicated Fixtures
Conventional power vises allow only two units to be mounted on the machine table, restricting simultaneous machining to two workpieces.
While dedicated fixtures can improve productivity, their manufacturing and maintenance costs are high. Reducing these fixture-related costs has become an important challenge for manufacturers.
Solution

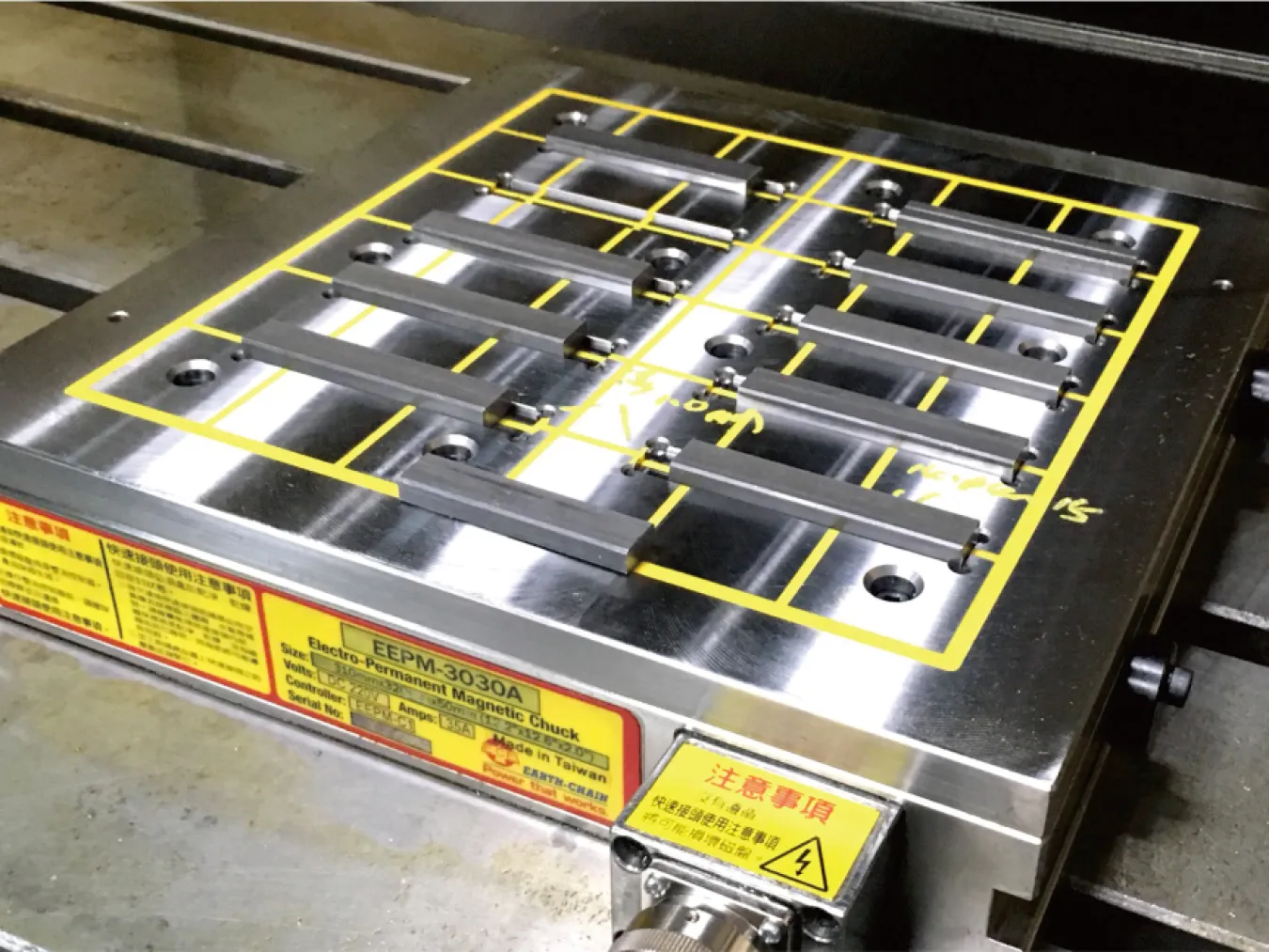

Magnetically Clamp Multiple Workpieces at Once with an Electro-Permanent Magnetic Chuck!
With conventional power vises, only two workpieces could be machined simultaneously. By introducing an electro-permanent magnetic chuck, up to six workpieces can now be machined at the same time, increasing machining efficiency by a factor of three.
Eliminating the need for dedicated fixtures and switching to an electro-permanent magnetic chuck has dramatically reduced fixture manufacturing costs.
In addition, fixture interference issues have been eliminated, providing greater machining flexibility and improved accessibility.
Eliminate Fixture Interference
Problem
Reduce Fixture Interference and Minimize the Use of Dedicated Fixtures
The workpiece is first clamped from the side and aligned before machining the top surface. It is then clamped from above to machine the side surfaces.
Although dedicated fixtures have been used to improve machining efficiency, the cost of designing and manufacturing these fixtures is substantial. Reducing these fixture-related costs has become an important challenge.
Solution
Reduce Setup Time and Fixture Costs with an Electro-Permanent Magnetic Chuck
By using an electro-permanent magnetic chuck, the workpiece is securely held by magnetic force from below, enabling five-sided machining.
Because both face machining and side machining can be performed without changing the clamping setup, machining efficiency is dramatically improved.
Furthermore, replacing dedicated fixtures with an electro-permanent magnetic chuck has significantly reduced fixture manufacturing costs.
Features and Construction
Features of Electro-Permanent Magnetic Chucks
・Structural Diagram
The chuck features a combination of high-holding-force neodymium magnets and lower-holding-force Alnico magnets.
The magnetic polarity of the Alnico magnets is reversed by an electric current flowing through coils wound around them.
As illustrated in the magnetic circuit above, this configuration generates a powerful magnetic holding force of 1,250 kg per four poles at the chuck surface.

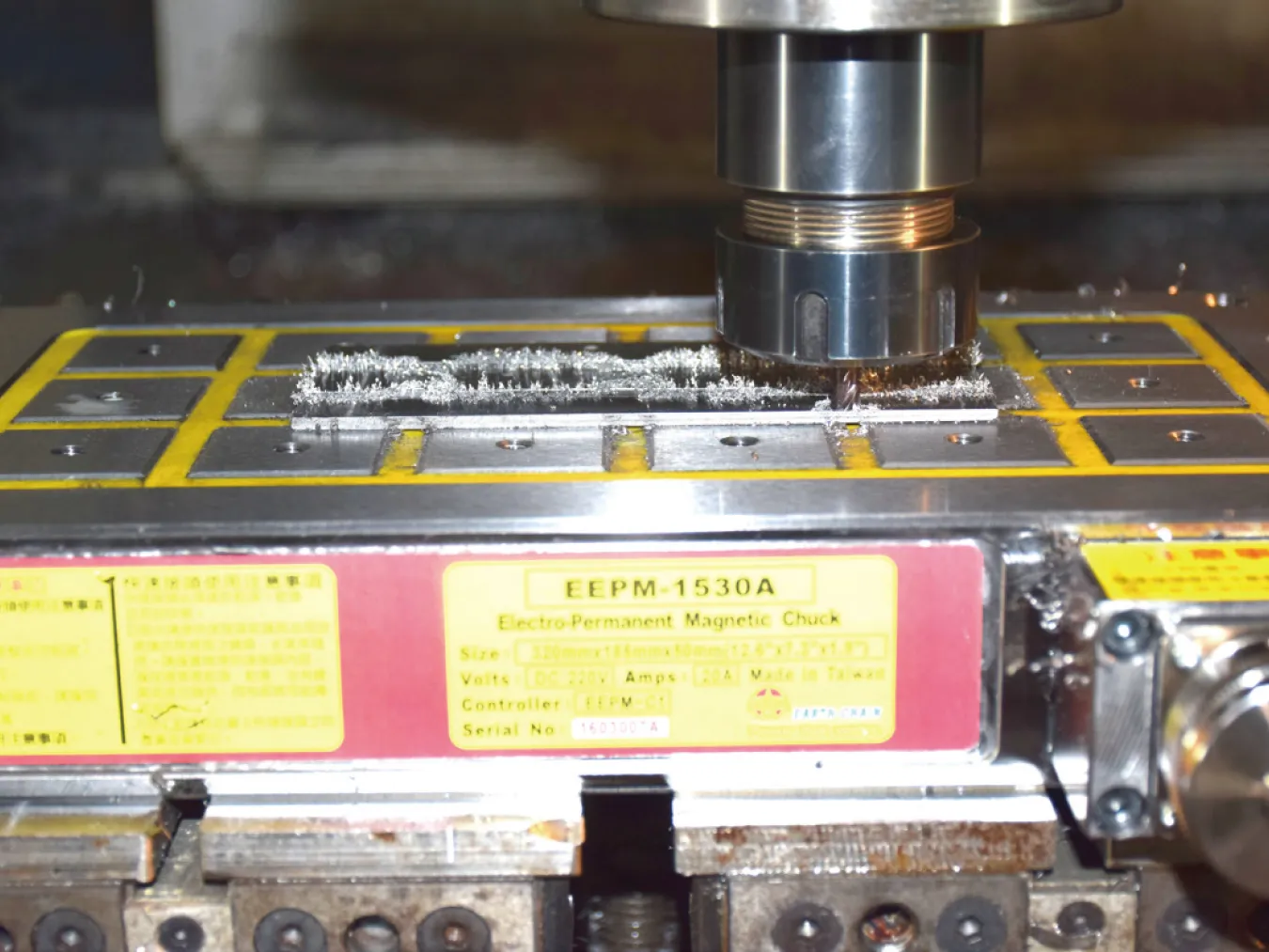

No Risk of Chips Adhering to the Workpiece Due to Magnetic Force
・Magnetic Flux of the Electro-Permanent Magnetic Chuck
EEPM Series Magnetic Flux Height & Recommended Workpiece Size
| Model | Magnetic pole size | Magnetic flux height | Recommended Workpiece Size | Applicable Machining Methods | Magnetic Force per Four Poles |
|---|---|---|---|---|---|
| EEPM-M | 20x20mm | 10mm | Thin workpieces (approx. 10 mm thick) | Cutting | 88kgf |
| EEPM-A | 35x35mm | 15mm | Small workpieces (15 mm thick or greater) | 580kgf | |
| EEPM-B | 50x50mm | 25mm | Medium-sized workpieces (25 mm thick or greater) | 1,250kgf | |
| EEPM-D | 70x70mm | 40mm | Large workpieces (40 mm thick or greater) | 2,800kgf |
Magnetization and Demagnetization in Just Seconds
Quick Connector Connection
①Connect the Cable
②Cable Connected
③Controller Switched On
④Magnetization (8-Level Holding Force Adjustment)
⑤Cable Disconnected, Connector Cap Installed
⑥Begin Machining Operations
