Wire EDM ER Dividing Device

Name: Wire EDM ER Dividing Device
Brand: Firstec
SKU: FT-EPF-SER
Availability: BackOrder

Product NO: FT-EPF-SER

Price range: ¥1,235,000 through ¥1,268,000

Product No

Clear

Specification

●This is a highly accurate indexing unit that uses ER-type collets.

●Commercially available DIN-standard ER collets can be used. (Collets are not included.)

●Made of stainless steel and rated IP68 for dust and water resistance.

●Equipped with dual bearings for excellent durability, enabling quick and highly accurate workpiece positioning and clamping.

●Provides indexing and rotation in 15° increments.

●Suitable for a wide range of applications, including grinding, milling, EDM, wire EDM, engraving, and inspection/measurement.

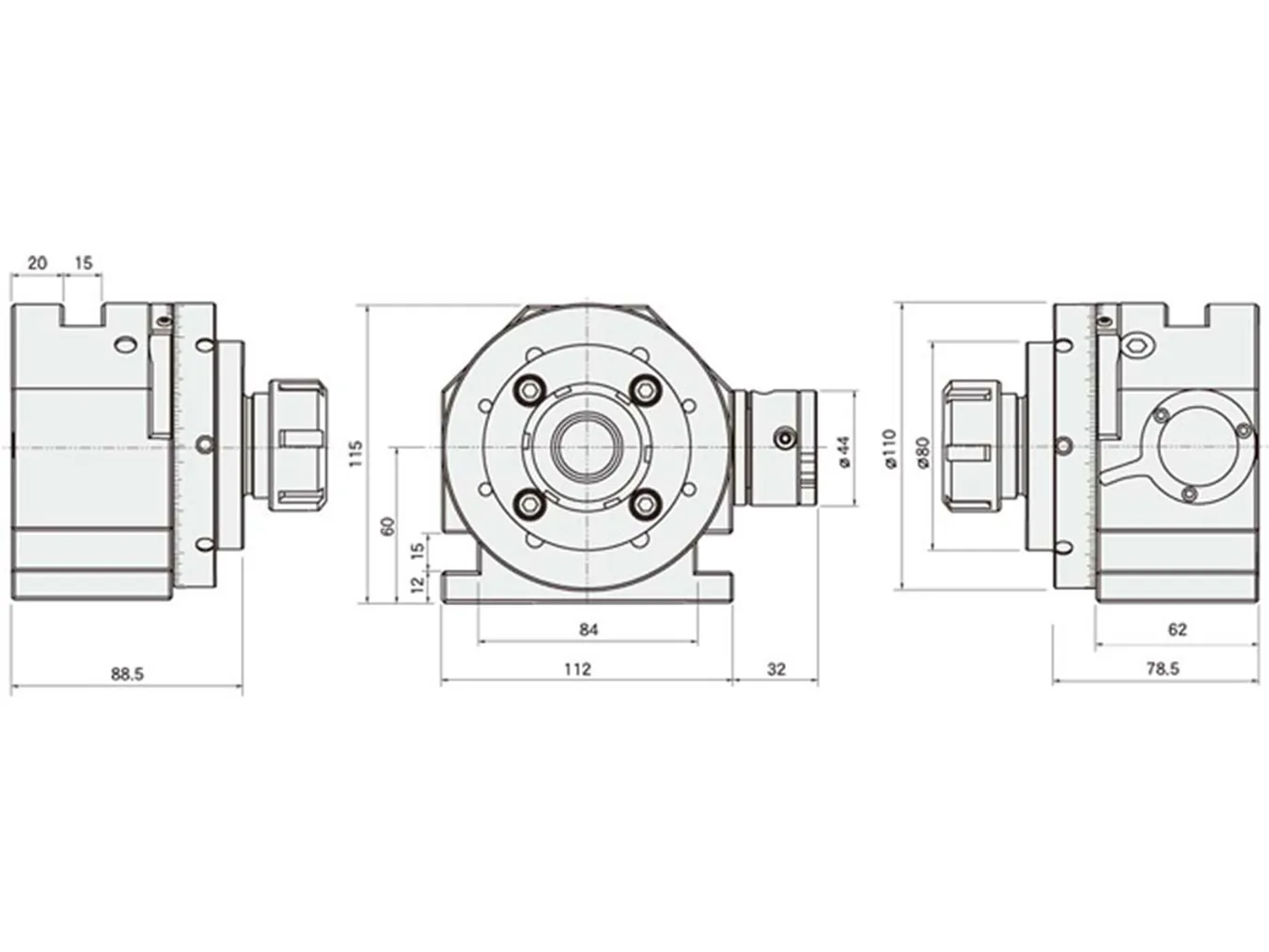

unit：mm

Product NO	Center height	Indexer tooth q'ty & accuracy	Through hole diameters	Rotational accuracy	Clamping Capacity	Standard-supplied collet	weight（kg）
FT-EPF-SER20	60±0.5mm	24、15°±5”	Ø21mm	0.003mm	2.0～13.0mm	3、4、6、8、10	6.9kg
FT-EPF-SER32	60±0.5mm	24、15°±5”	Ø21mm	0.003mm	3.0～20.0mm	4、8、12、16、20	7.0kg
FT-EPF-SER50	60±0.5mm	24、15°±5”	Ø21mm	0.003mm	12.0～34.0mm	12、18、20、30、34	7.3kg
