Wire EDM EQC Dividing Device

Product NO: FT-EPF-EQC

Price range: ¥1,940,000 through ¥2,325,000

Product name
Product NO
Gripping Section
Price
Stock
Quantity
Wire EDM EQC Dividing Device
FT-EPF-EQC50
EQC50
¥1,940,000

This is a back-order item

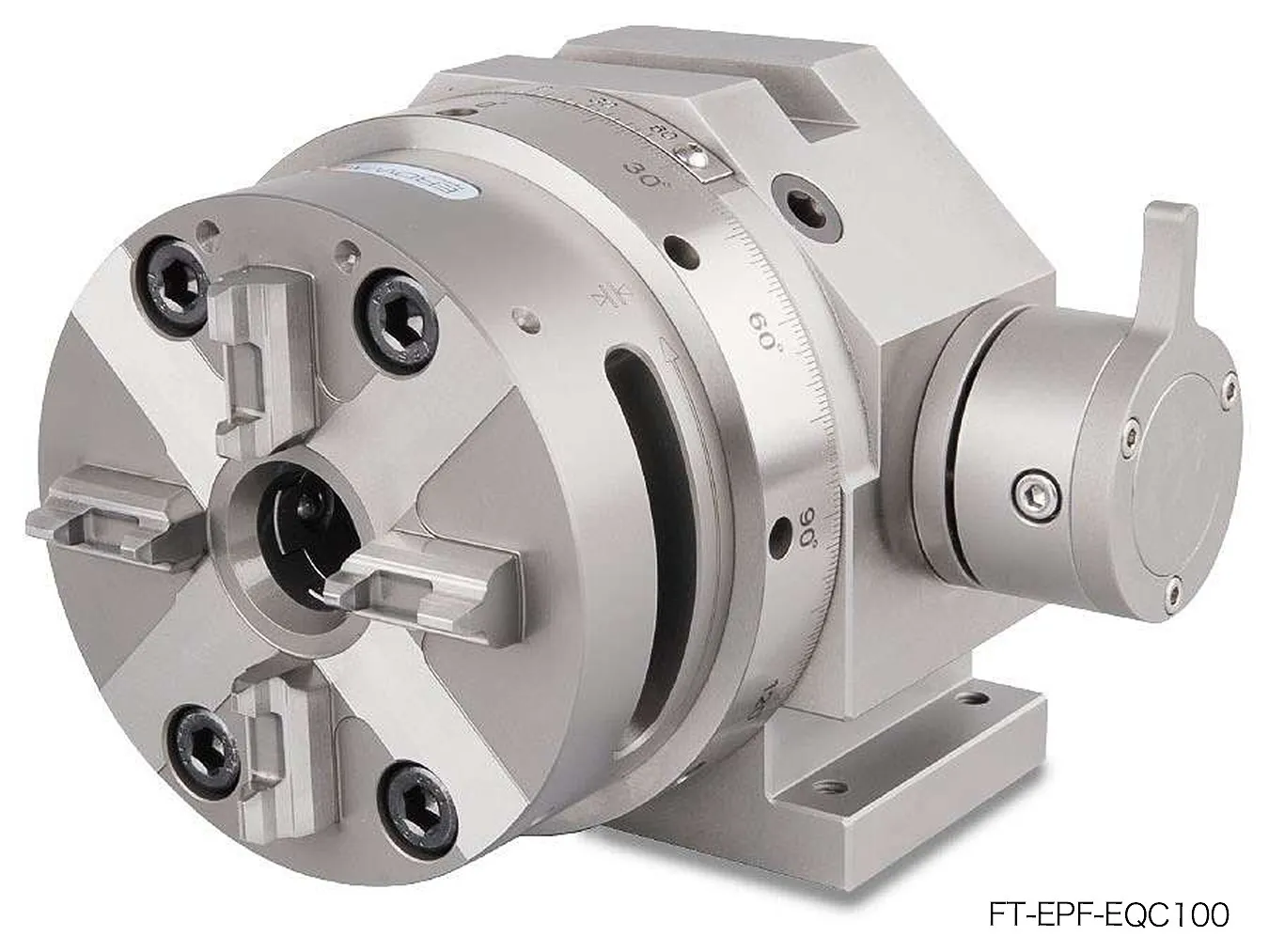

Wire EDM EQC Dividing Device
FT-EPF-EQC100
EQC100
¥2,325,000

This is a back-order item

Specification

●An Erowa quick chuck is installed.
●Made of stainless steel and rated IP68 for dust and water resistance.
●Equipped with dual bearings for excellent durability, enabling quick and highly accurate workpiece positioning and clamping.
●Provides indexing and rotation in 15° increments.
●Suitable for a wide range of applications, including grinding, milling, EDM, wire EDM, engraving, and inspection/measurement.

Product Specifications (Variations)

unit：mm
Product NOCenter heightIndexer tooth q'ty & accuracyThrough hole diametersRotational accuracyRepeat accuracyPositioning Chuckweight（kg）

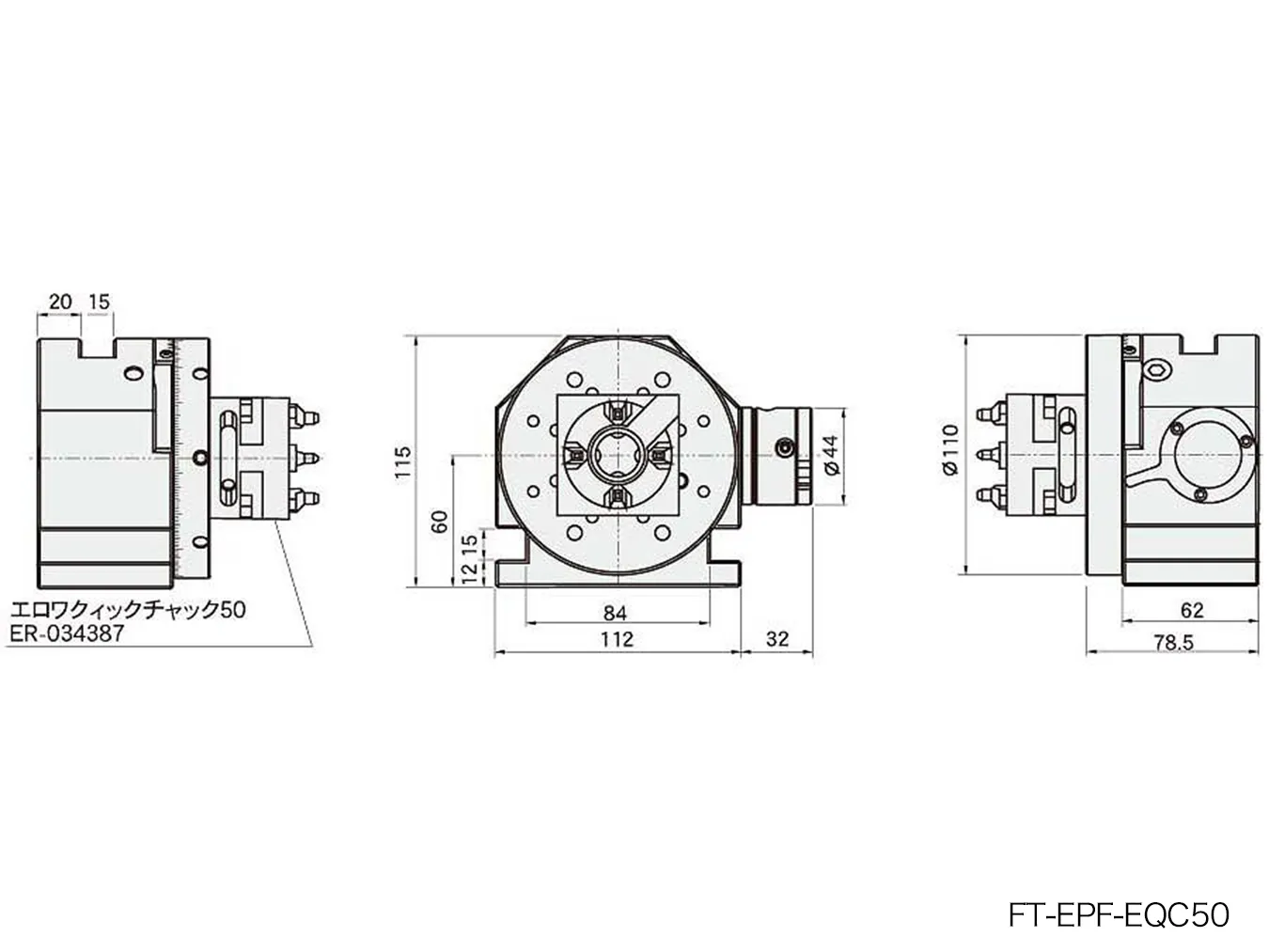

FT-EPF-EQC5060±0.5mm24、15°±5”Ø21mm0.003mm0.003mmEQC506.7kg

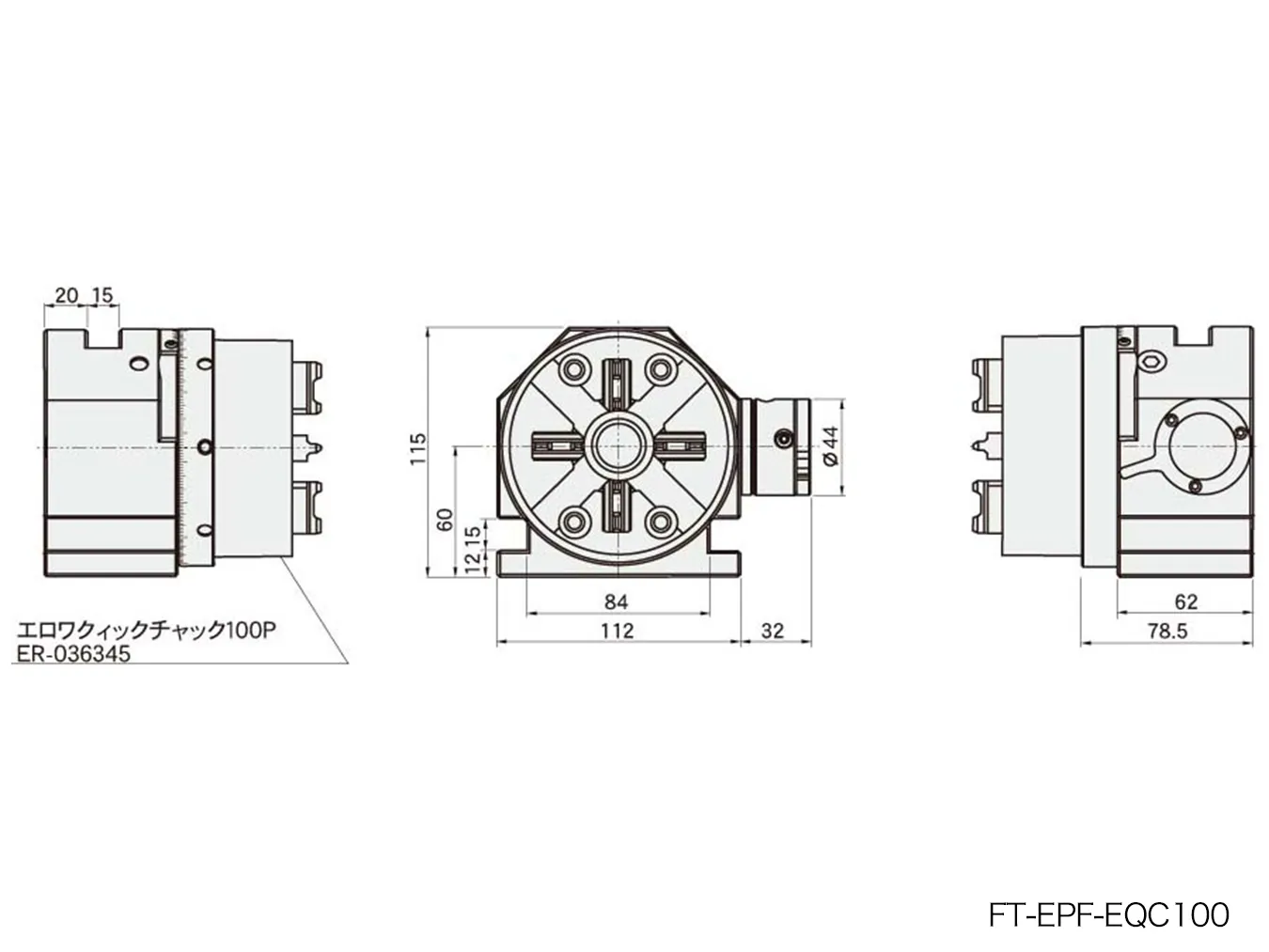

FT-EPF-EQC10060±0.5ｍｍ24、15°±5”Ø21mm0.003mm0.003mmEQC1007.3kg
