Wire EDM 3R Dividing Device

Product NO: FT-EPF-3R

Price range: ¥1,842,000 through ¥1,866,000

Product name
Product NO
Gripping Section
Price
Stock
Quantity
Wire EDM 3R Dividing Device
FT-EPF-3R24
3R24
¥1,842,000

This is a back-order item

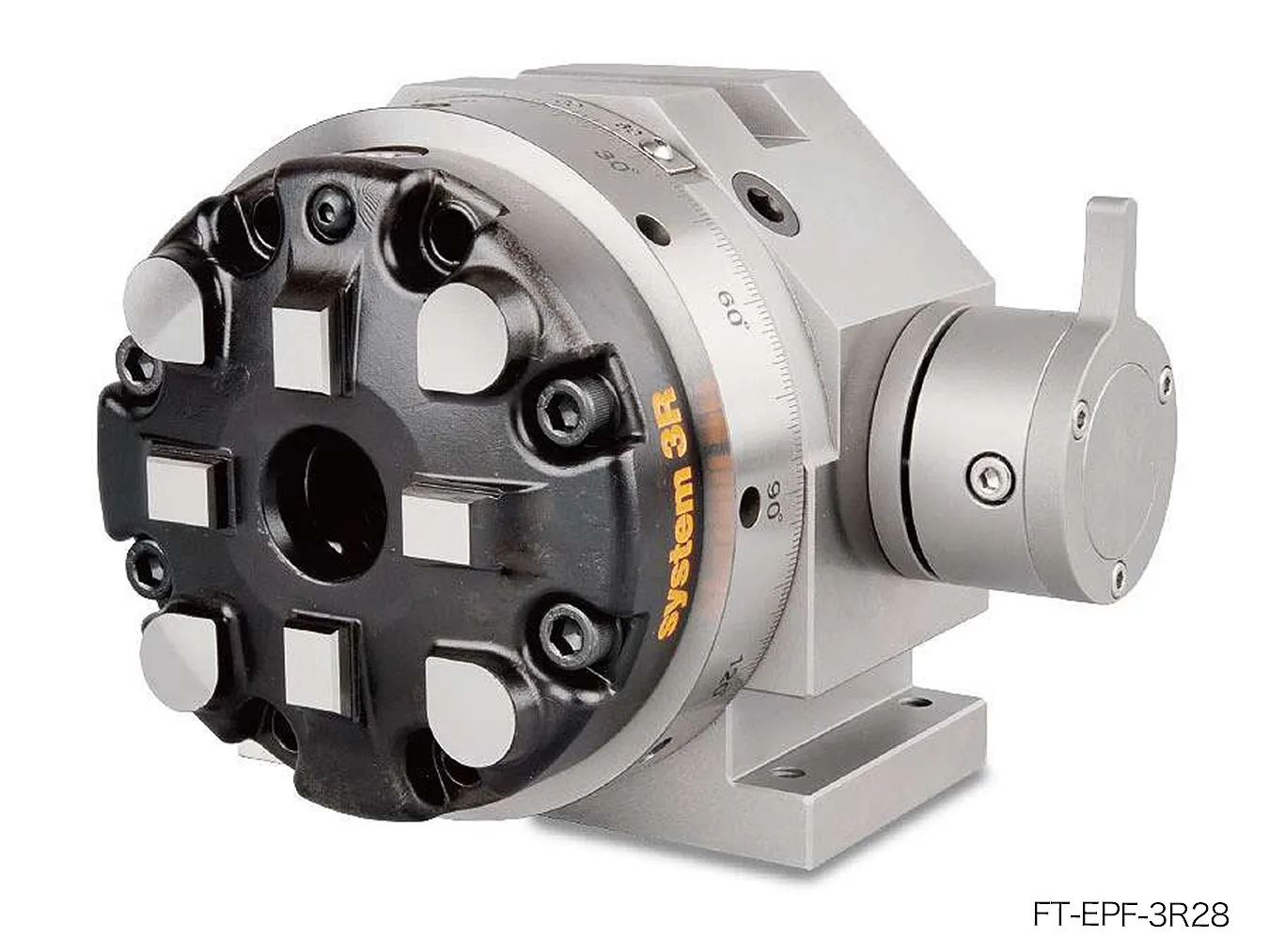

Wire EDM 3R Dividing Device
FT-EPF-3R28
3R28
¥1,866,000

This is a back-order item

Specification

●Fitted with a System 3R manual chuck.
●Made of stainless steel and rated IP68 for dust and water resistance.
●Equipped with dual bearings for excellent durability, enabling quick and highly accurate workpiece positioning and clamping.
●Provides indexing and rotation in 15° increments.
●Suitable for a wide range of applications, including grinding, milling, EDM, wire EDM, engraving, and inspection/measurement.

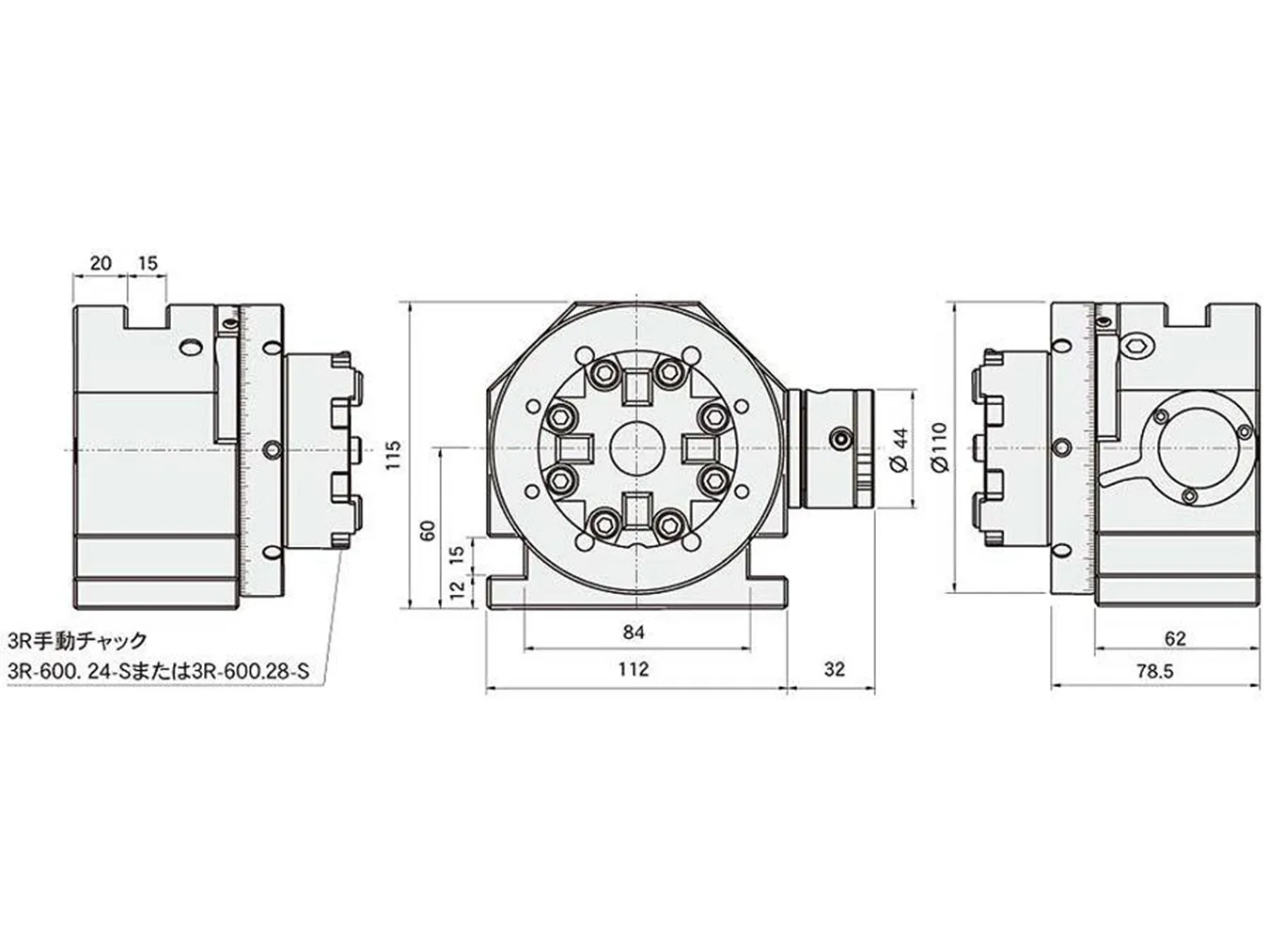

Product Specifications (Variations)

unit：mm
Product NOCenter heightIndexer tooth q'ty & accuracyThrough hole diametersRotational accuracyRepeat accuracyPositioning Chuckweight（kg）
FT-EPF-3R2460±0.5mm24、15°±5”Ø21mm0.003mm0.003mm3R247.2kg
FT-EPF-3R2860±0.5ｍｍ24、15°±5”Ø21mm0.003mm0.003mm3R287.3kg
