Longitudinal Fine-Pole Electromagnetic Chuck(controller sold separately)
Product NO: FT-ELC-BWL
Quote upon request
Specification
●Designed for use on surface grinding machines and for light machining applications.
●This electromagnetic chuck features a longitudinal pole-pitch design, making it particularly suitable for grinding and light machining of long, thin workpieces.
●Features excellent waterproof and corrosion-resistant construction.
Product Specifications (Variations)

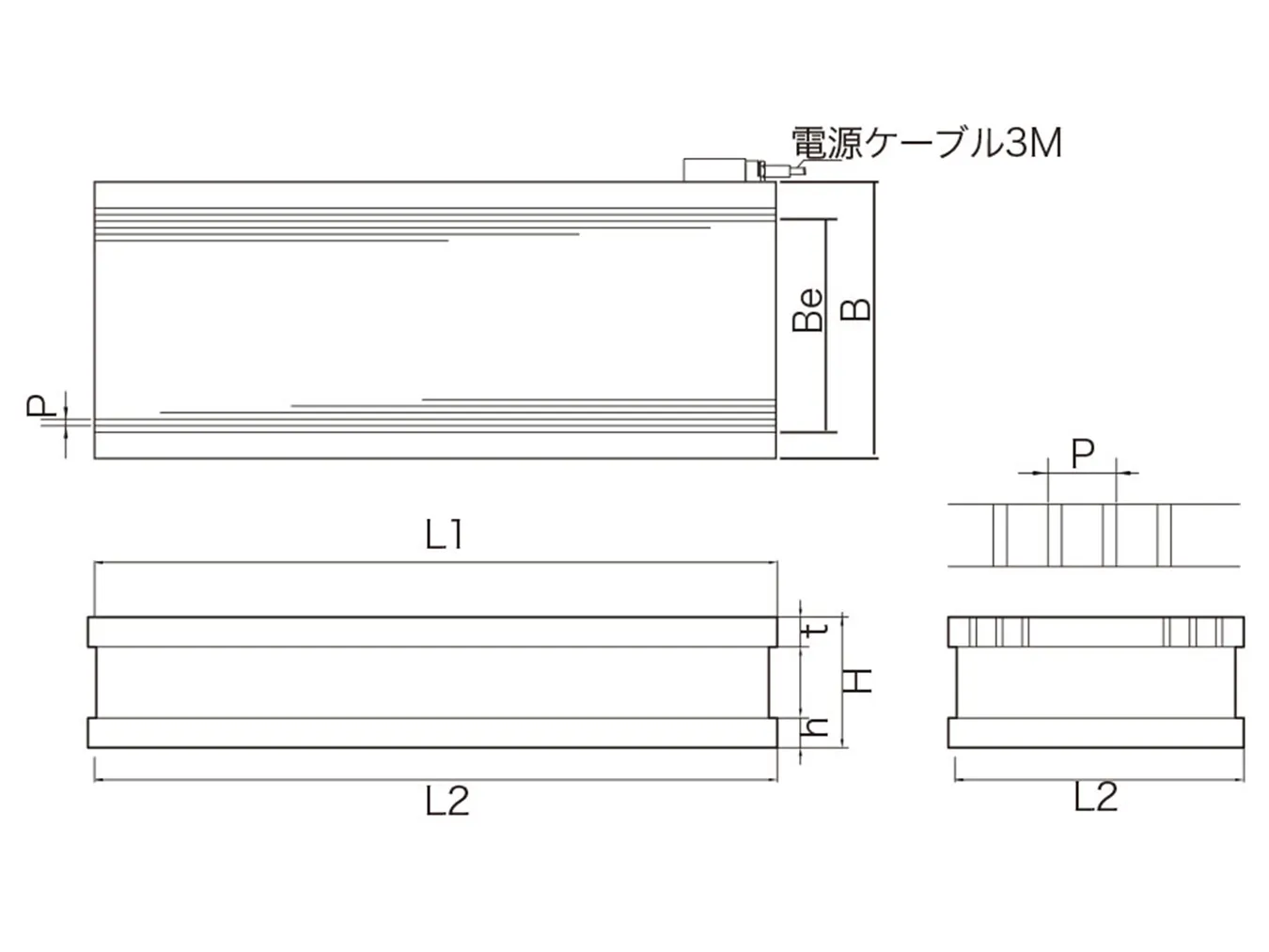

unit：mm| Product NO | Nominal Dimension | B | L1 | t | Be | Magnetic PolePitchP | B1 | L2 | h | HeightH | Voltage（VDC） | current（A） | weight（kg） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FT-ELC-1530BWL | 150×300 | 150 | 300 | 20 | 125 | 4（1+3） | 148 | 300 | 20 | 85 | 90 | 0.39 | 33 |
| FT-ELC-1535BWL | 150×350 | 150 | 350 | 20 | 125 | 4（1+3） | 148 | 350 | 20 | 85 | 90 | 0.52 | 38 |
| FT-ELC-1545BWL | 150×450 | 150 | 450 | 20 | 125 | 4（1+3） | 148 | 450 | 20 | 85 | 90 | 0.6 | 48 |
| FT-ELC-2040BWL | 200×400 | 200 | 400 | 20 | 173 | 4（1+3） | 198 | 400 | 20 | 85 | 90 | 0.69 | 57 |
| FT-ELC-2045BWL | 200×450 | 200 | 450 | 20 | 173 | 4（1+3） | 198 | 450 | 20 | 85 | 90 | 0.9 | 64 |
| FT-ELC-2050BWL | 200×500 | 200 | 500 | 20 | 173 | 4（1+3） | 198 | 500 | 20 | 85 | 90 | 1.01 | 72 |
| FT-ELC-2060BWL | 200×600 | 200 | 600 | 20 | 173 | 4（1+3） | 198 | 600 | 20 | 85 | 90 | 1.31 | 86 |
| FT-ELC-2540BWL | 250×400 | 250 | 400 | 20 | 225 | 4（1+3） | 248 | 400 | 20 | 85 | 90 | 1 | 72 |
| FT-ELC-2545BWL | 250×450 | 250 | 450 | 20 | 225 | 4（1+3） | 248 | 450 | 20 | 85 | 90 | 1.1 | 81 |
| FT-ELC-2550BWL | 250×500 | 250 | 500 | 20 | 225 | 4（1+3） | 248 | 500 | 20 | 85 | 90 | 1.33 | 90 |
| FT-ELC-3060BWL | 300×600 | 300 | 600 | 20 | 273 | 4（1+3） | 298 | 600 | 20 | 85 | 90 | 1.52 | 129 |
Related products
-
Rotary Micropitch Electromagnetic Chuck(controller sold separately)
Product NO：FT-ELC-U -
Round Star-Pole type Electromagnetic Chuck(controller sold separately)
Product NO：FT-ELCR-S -

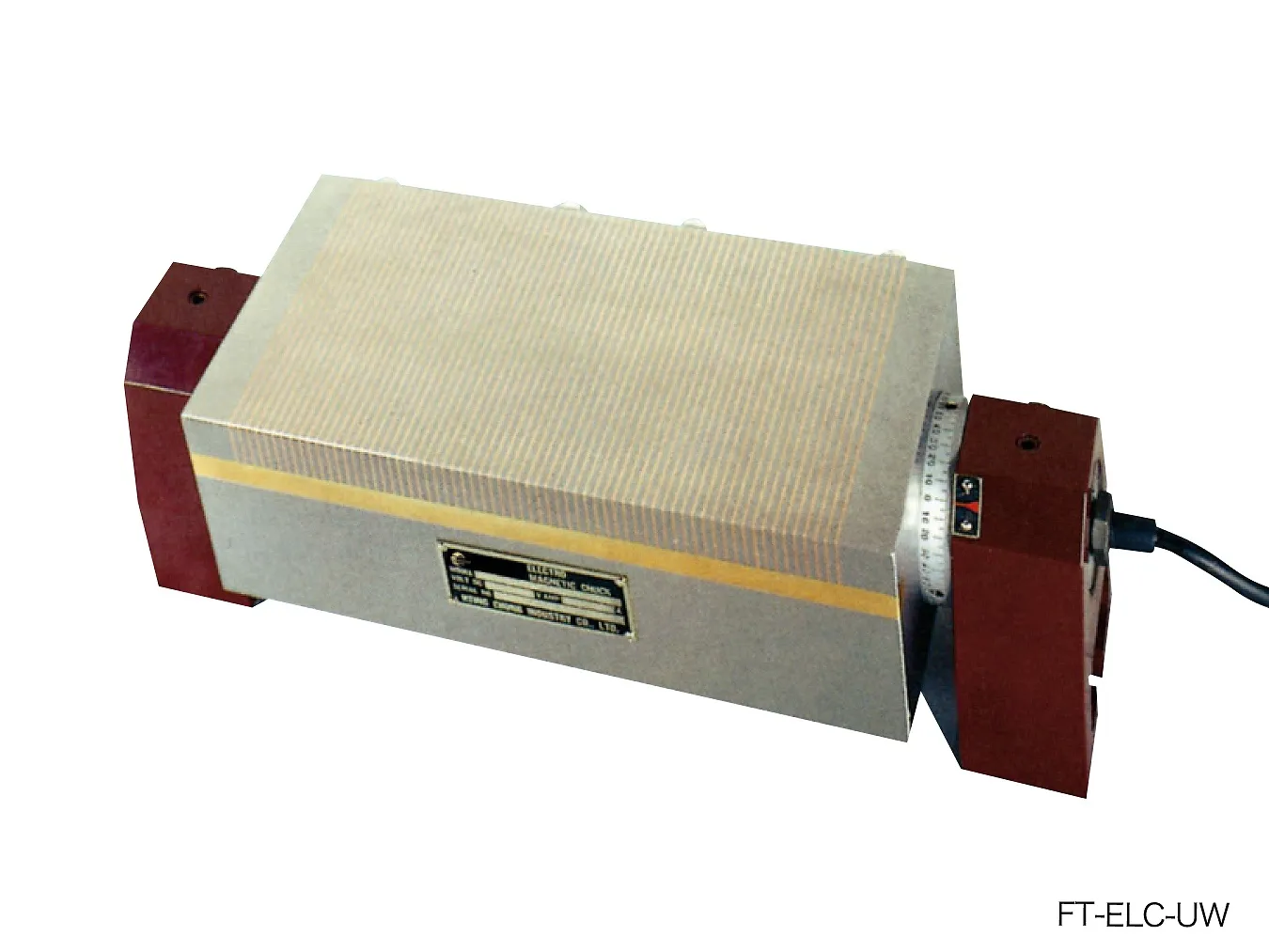

Rotary Micropitch Electromagnetic Chuck(controller sold separately)
