Precision Universal Tilting Table

Features：This fixture is composed of two parts:a table with T-slot and a swivel angle plate base, the table is capable of revolving 360°.
Material：Slewing unit FCD45/vice YK3
Hardness：HRC43-47 swiveling base / HRC58-60 vice
Heat Treatment: Quenched and tempered swivel base / Sub-zero treated vice body.
Parallelism：within 0.005mm/100mm
Swivel angle: Vernier scale 3 minutes
Table rotation angle: Vernier scale 3 minutes
Inspection Certificate: Included
Storage Case: Included

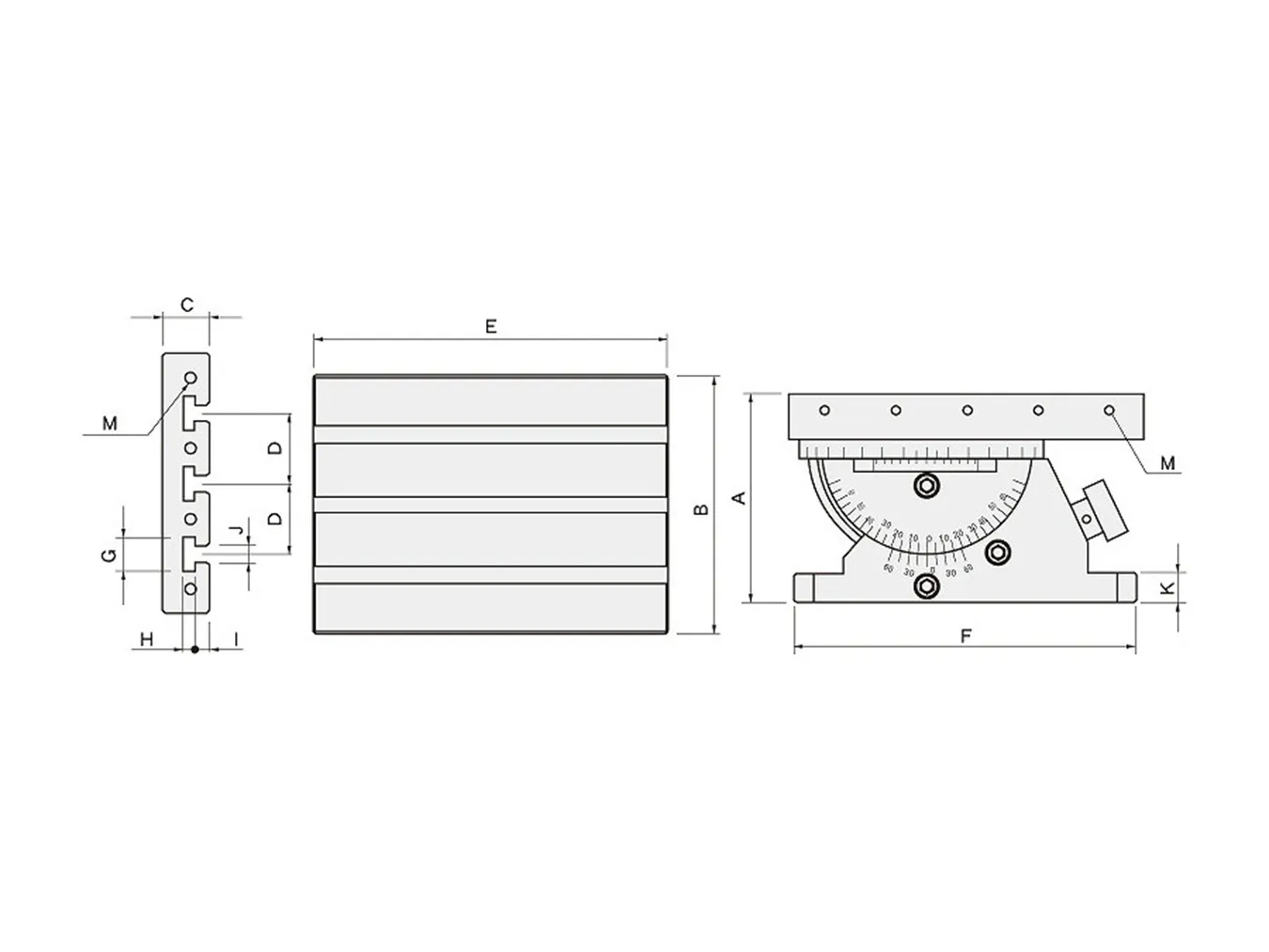

Table with T-slot assembly with swivel base for rotation and angle adjustment.
The set angle can be easily read using the main scale and vernier scale.
Minimum Vernier Reading: 3 arcminutes
Swivel Base: 360° horizontal rotation / 45° vertical tilt
