Electro-Permanent Round Magnetic Chuck

Product NO: EEPM-CIRS-B

Quote upon request

Product name
Product NO
Outer diameter × Height
Price
Stock
Quantity
Electro-Permanent Round Magnetic Chuck

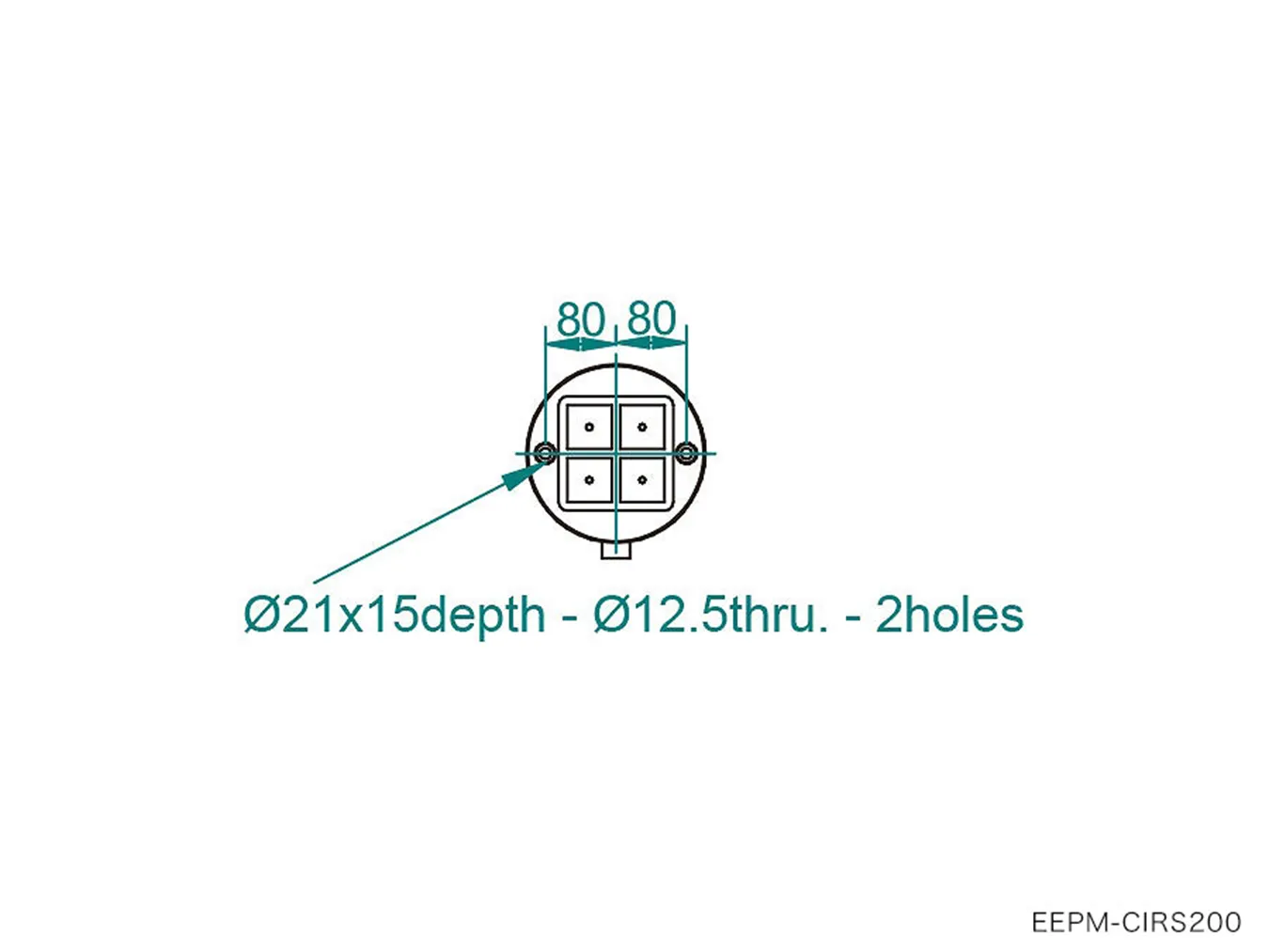

EEPM-CIRS200
Ø203×60
Quote upon request

This is a back-order item

Electro-Permanent Round Magnetic Chuck

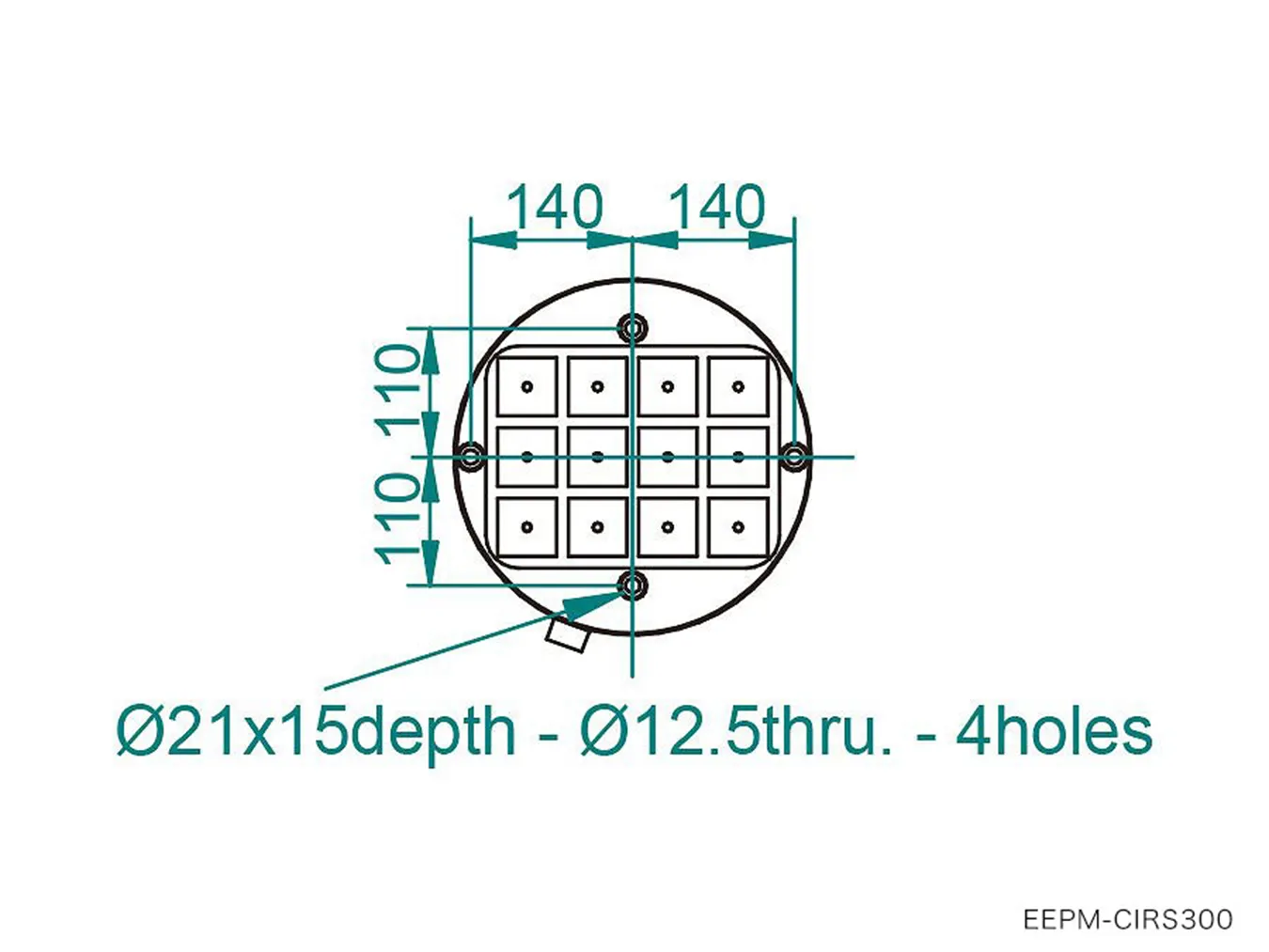

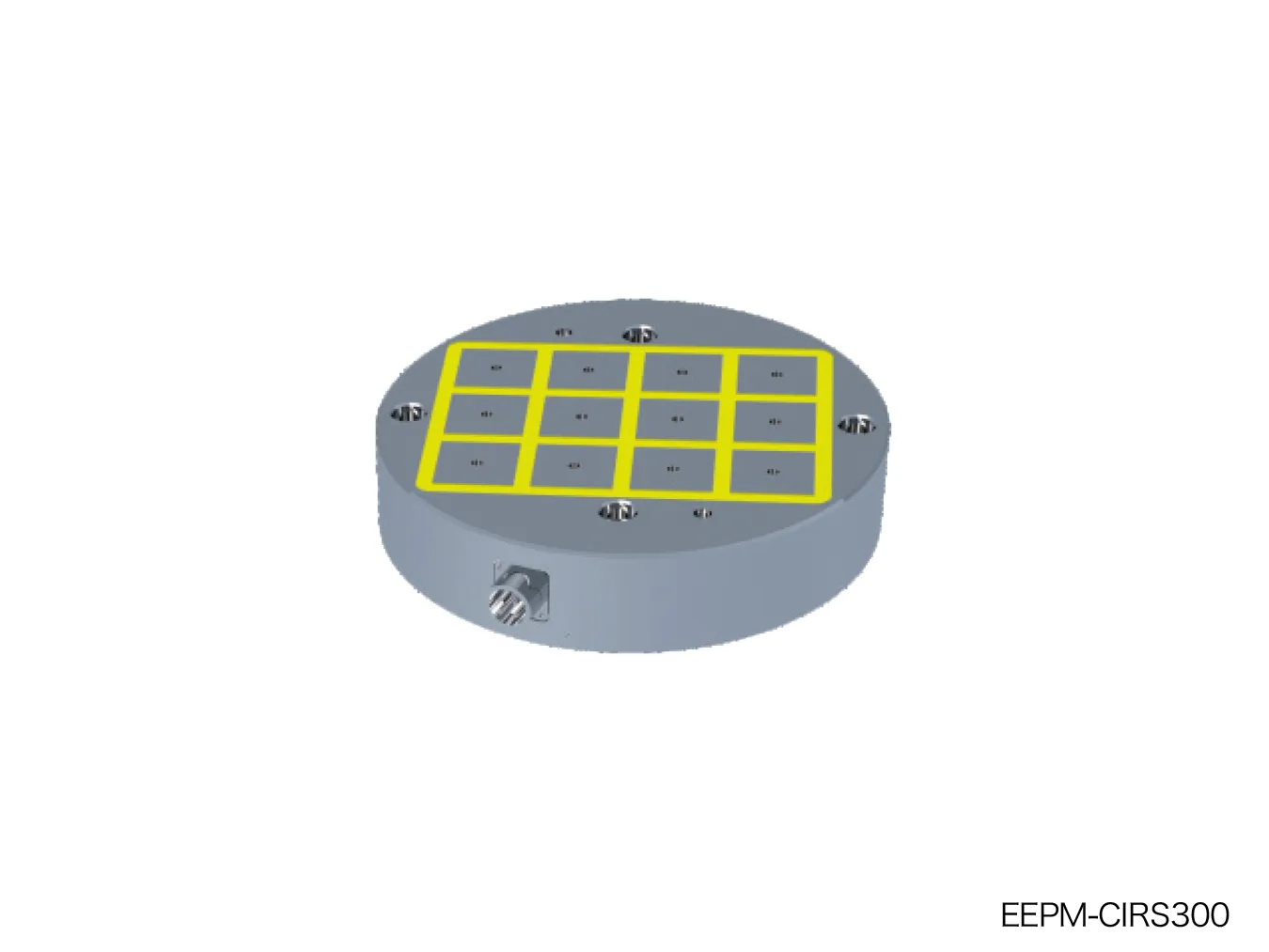

EEPM-CIRS300
Ø320×60
Quote upon request

This is a back-order item

Electro-Permanent Round Magnetic Chuck

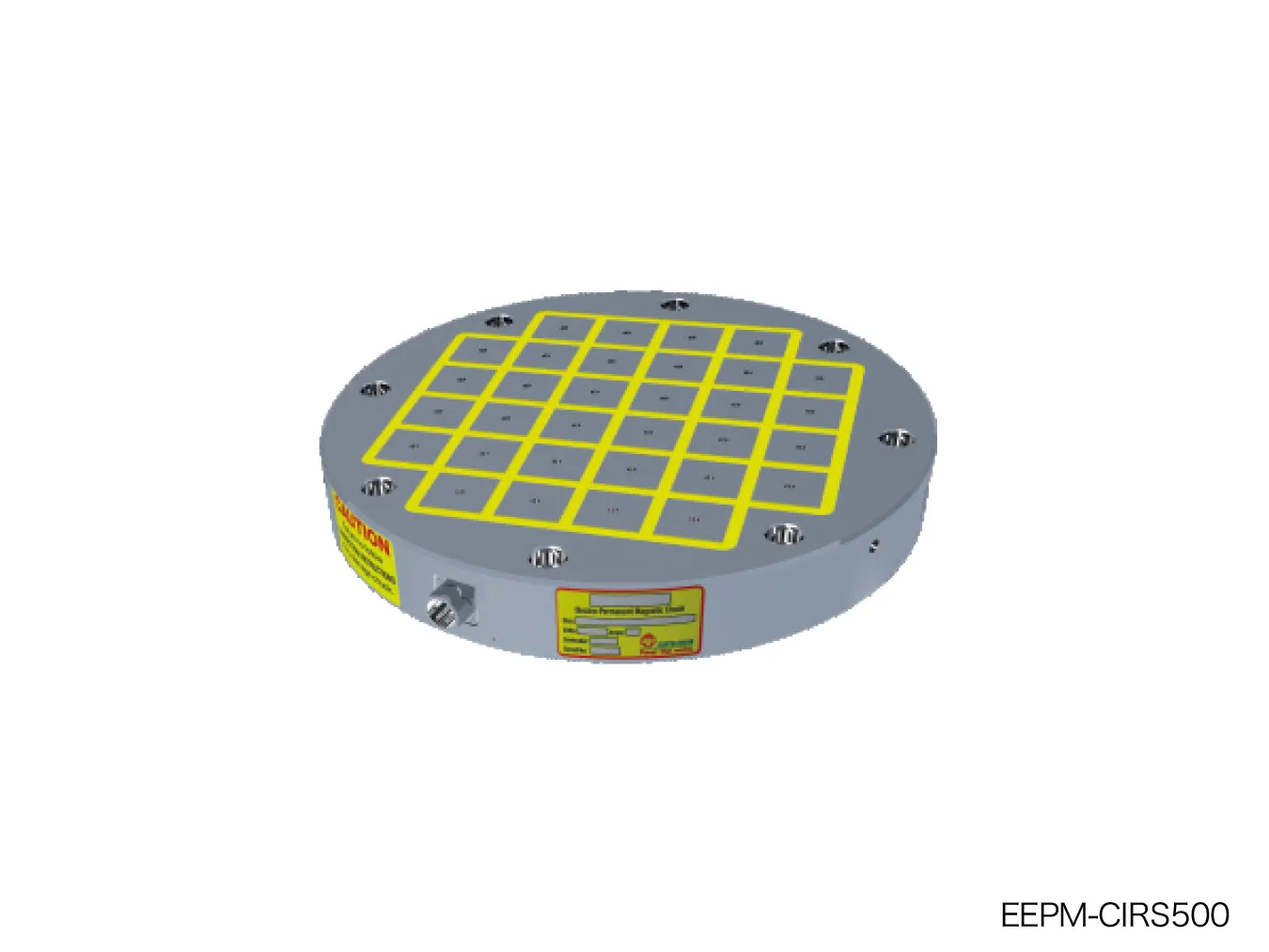

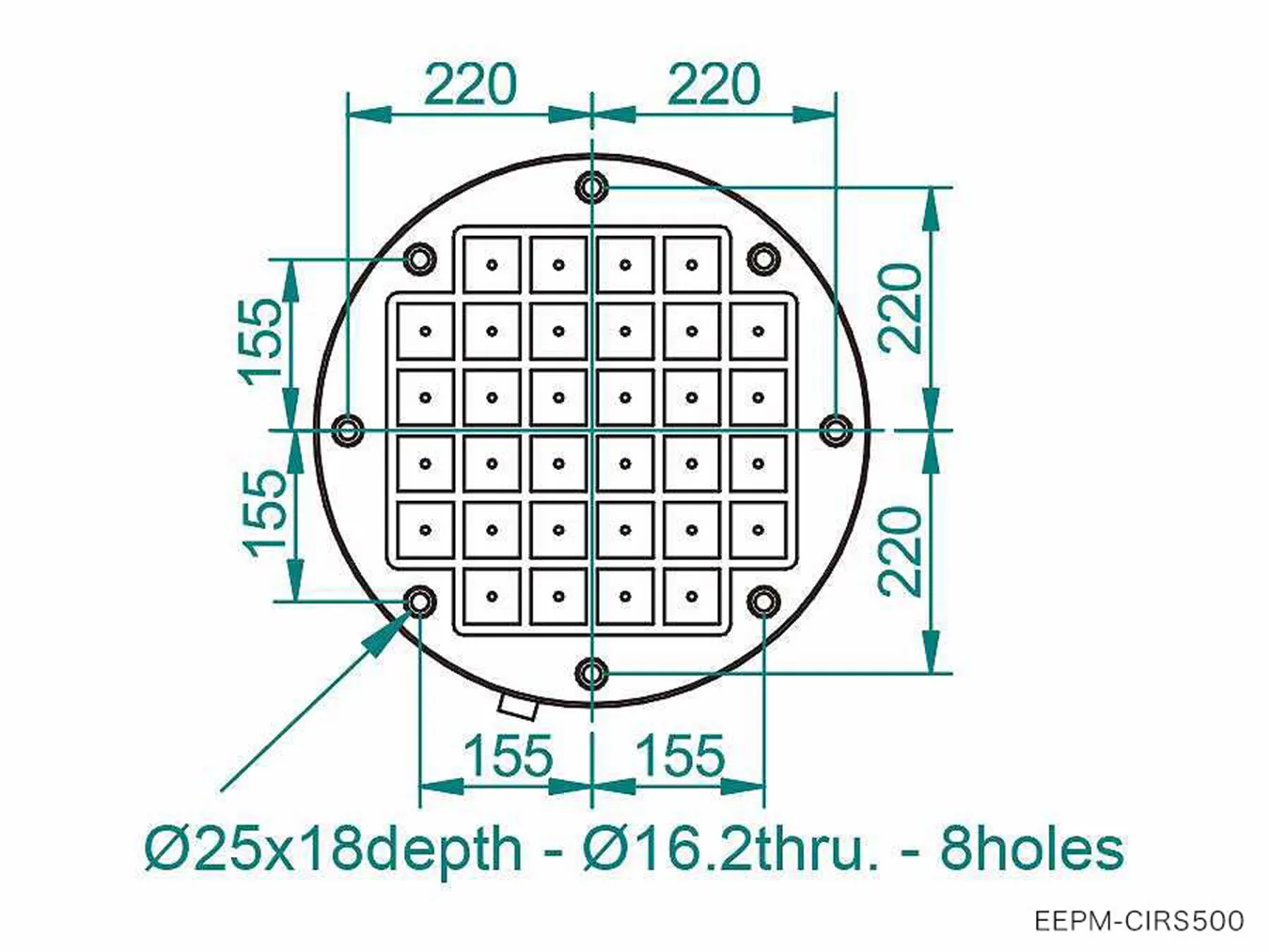

EEPM-CIRS500
Ø500×70
Quote upon request

This is a back-order item

Electro-Permanent Round Magnetic Chuck

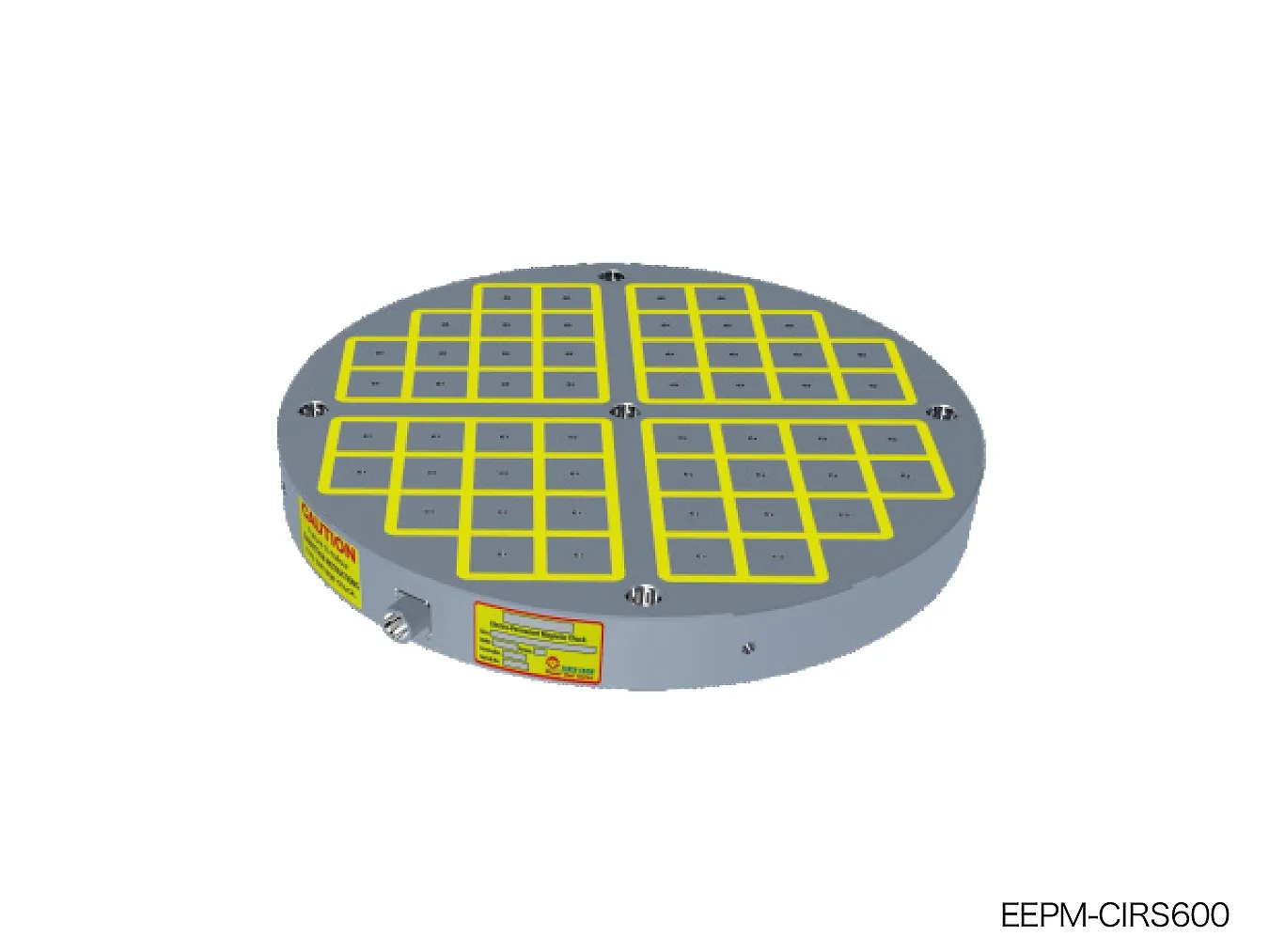

EEPM-CIRS600
Ø620×70
Quote upon request

This is a back-order item

Electro-Permanent Round Magnetic Chuck

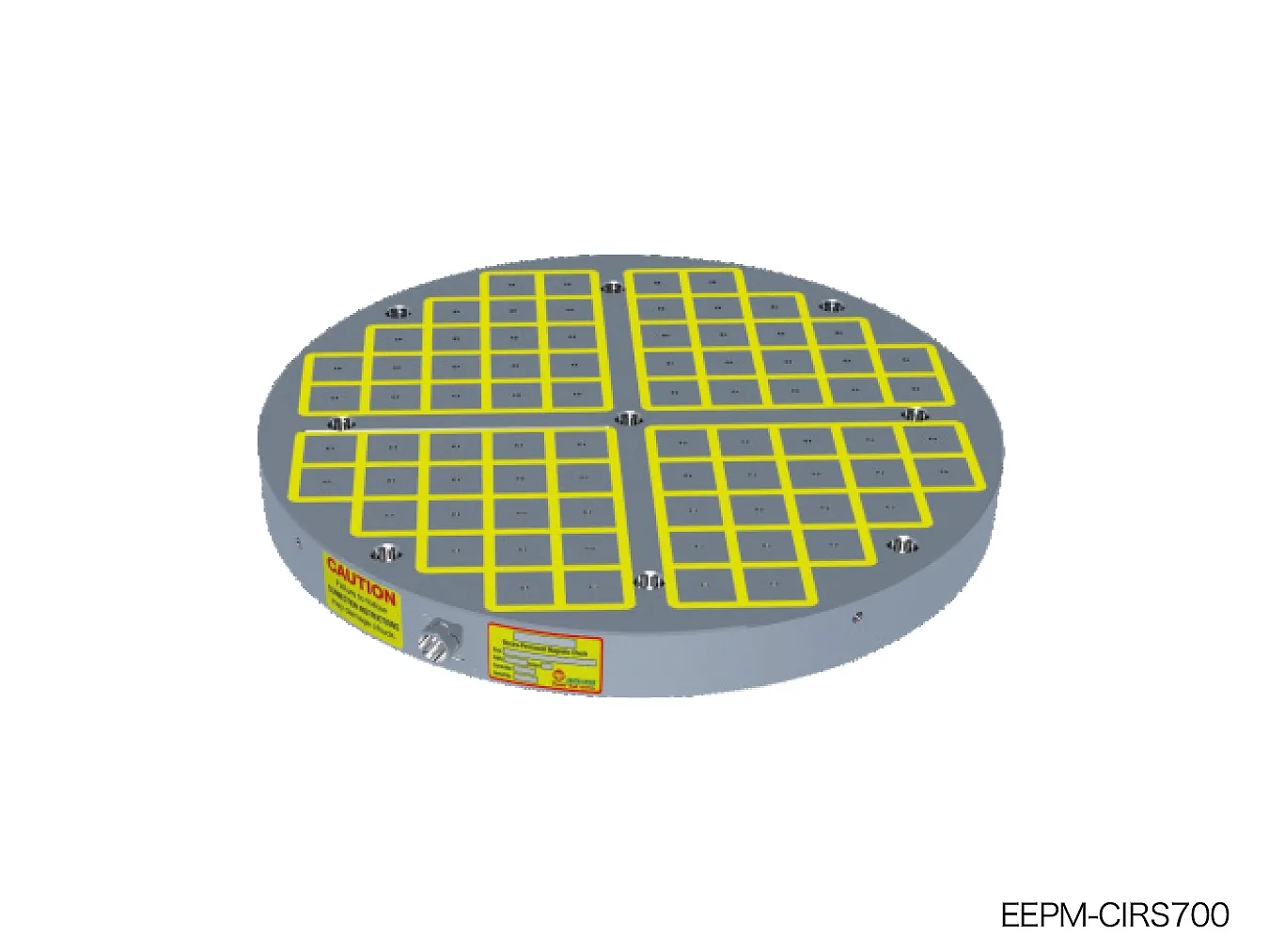

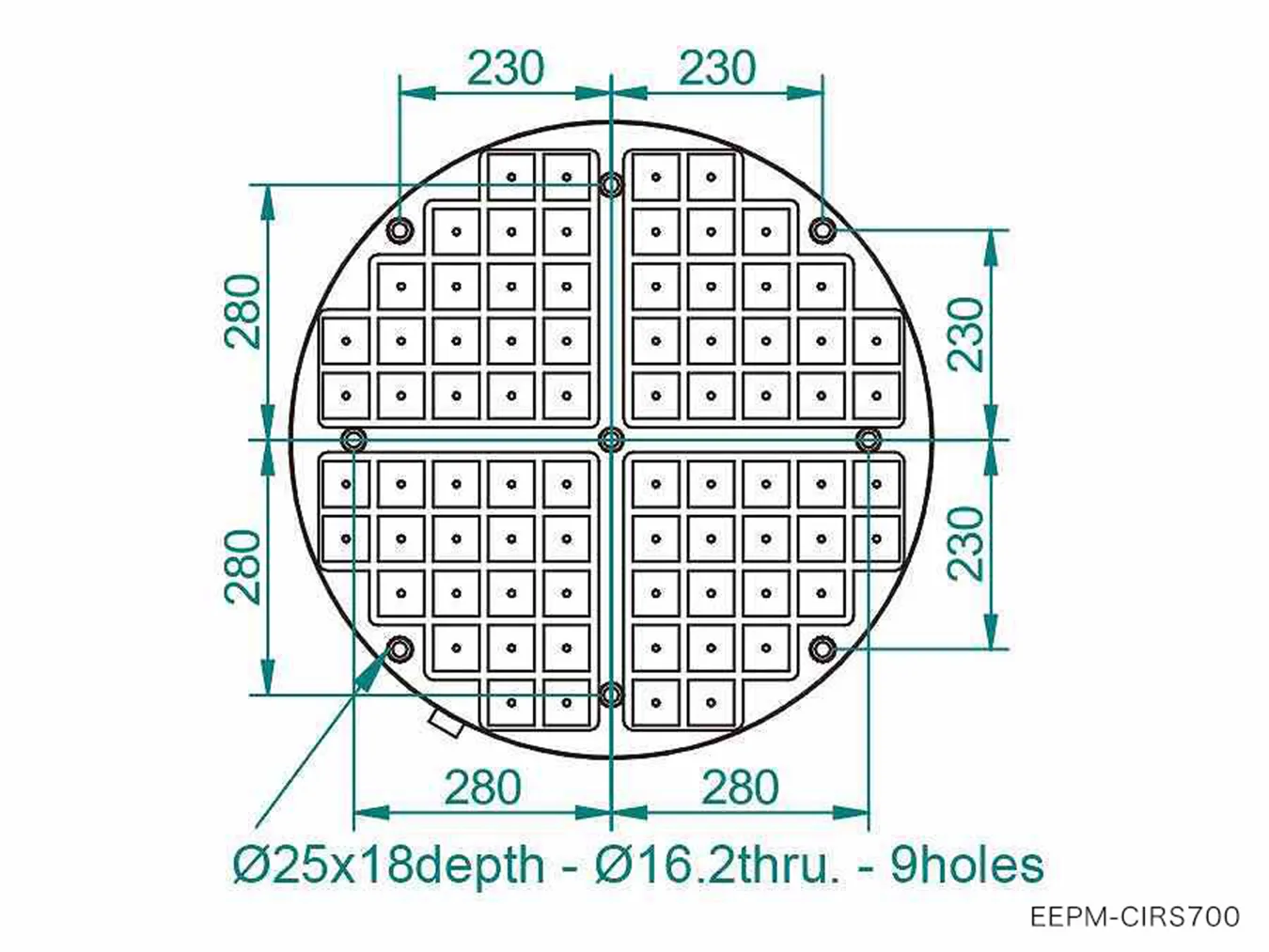

EEPM-CIRS700
Ø720×70
Quote upon request

This is a back-order item

Electro-Permanent Round Magnetic Chuck

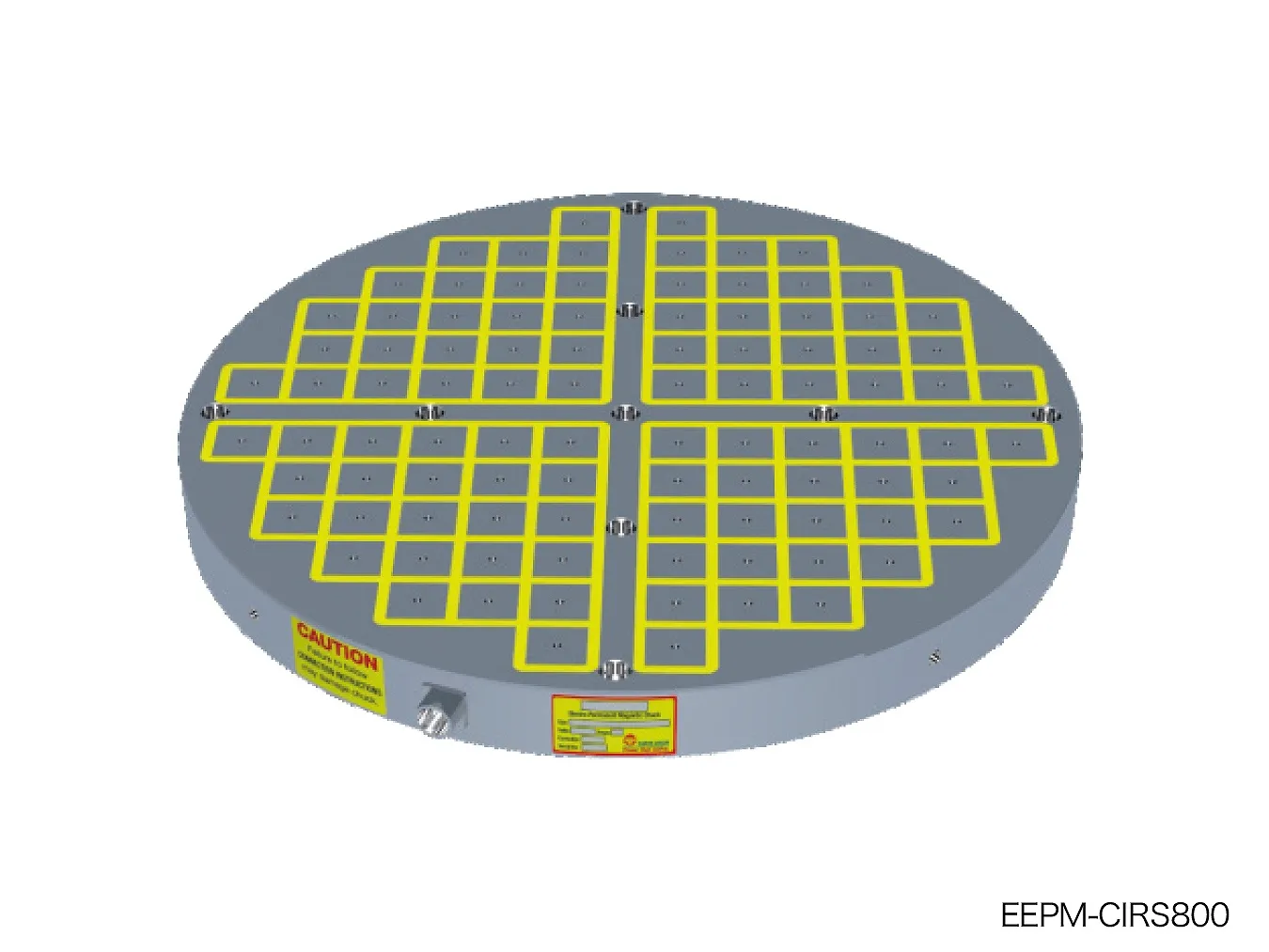

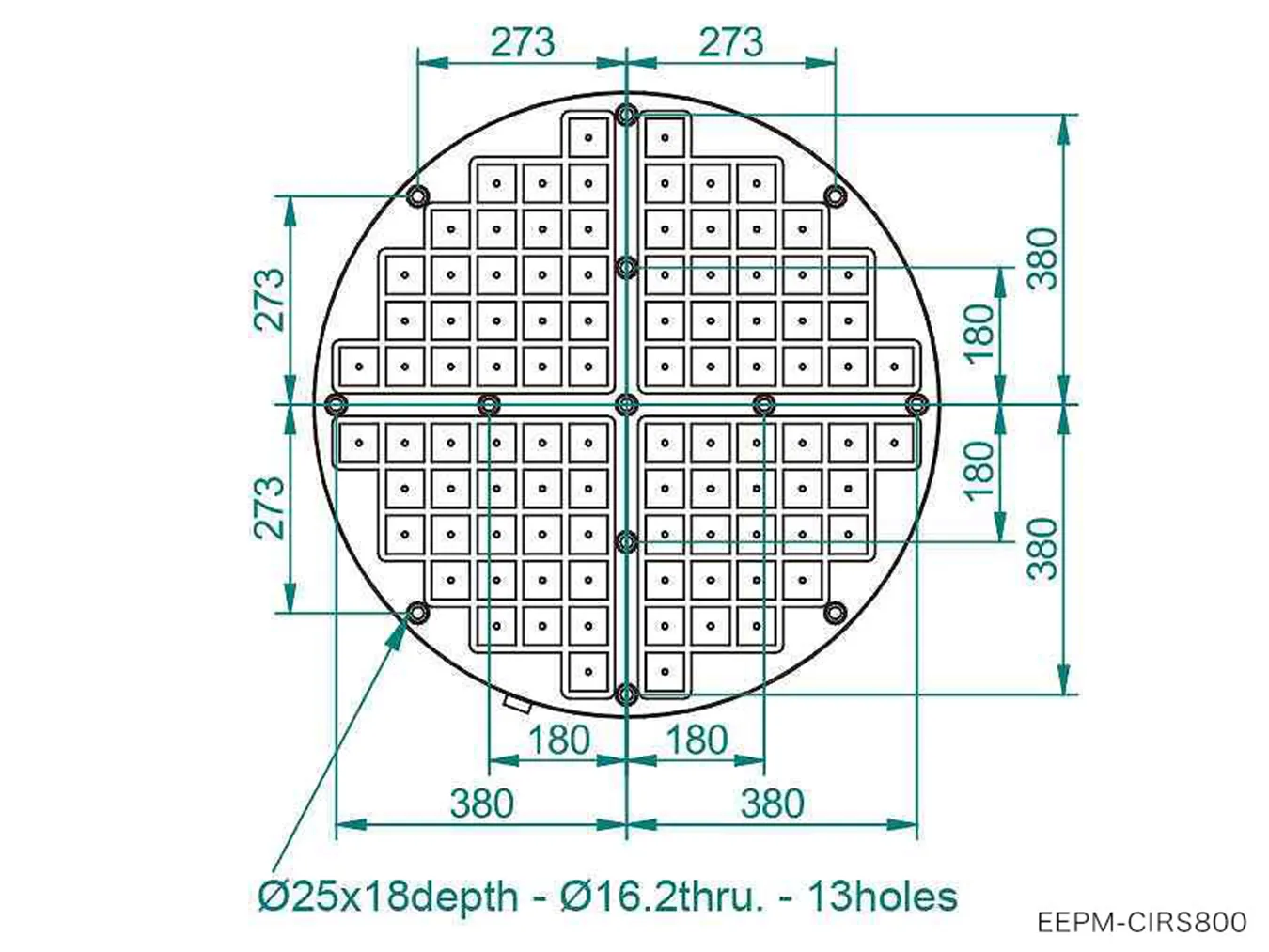

EEPM-CIRS800
Ø820×80
Quote upon request

This is a back-order item

Electro-Permanent Round Magnetic Chuck

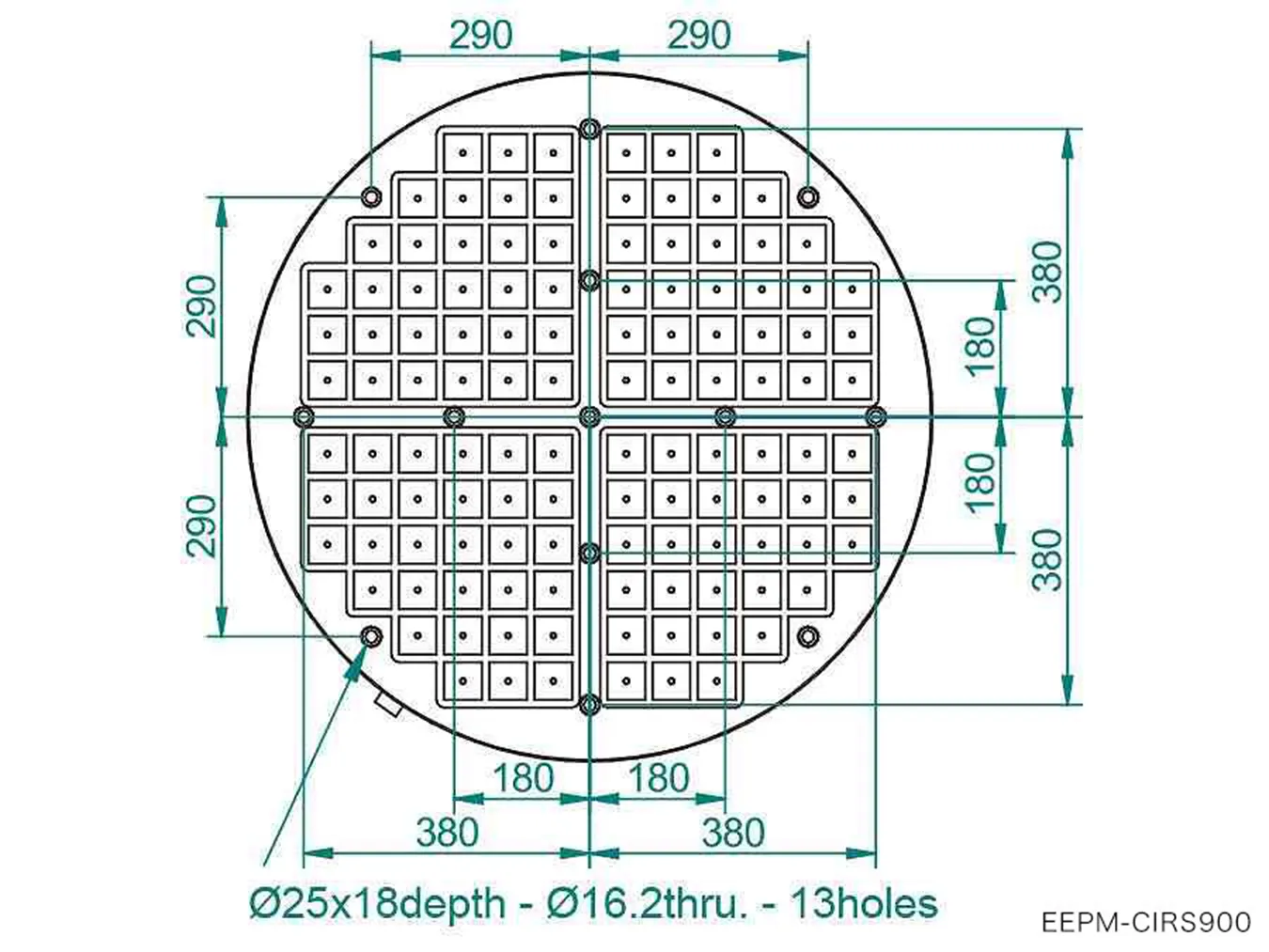

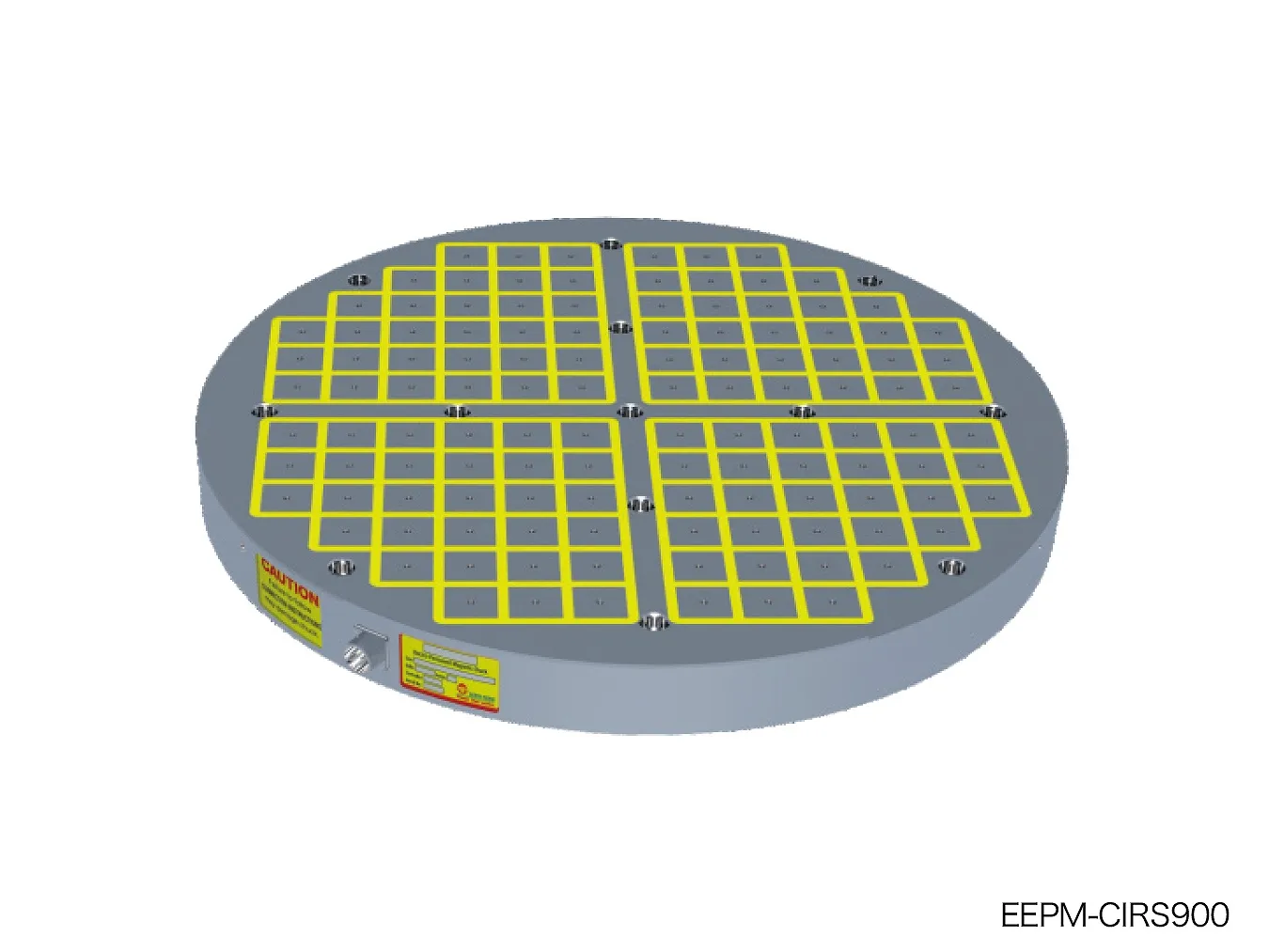

EEPM-CIRS900
Ø900×80
Quote upon request

This is a back-order item

Electro-Permanent Round Magnetic Chuck

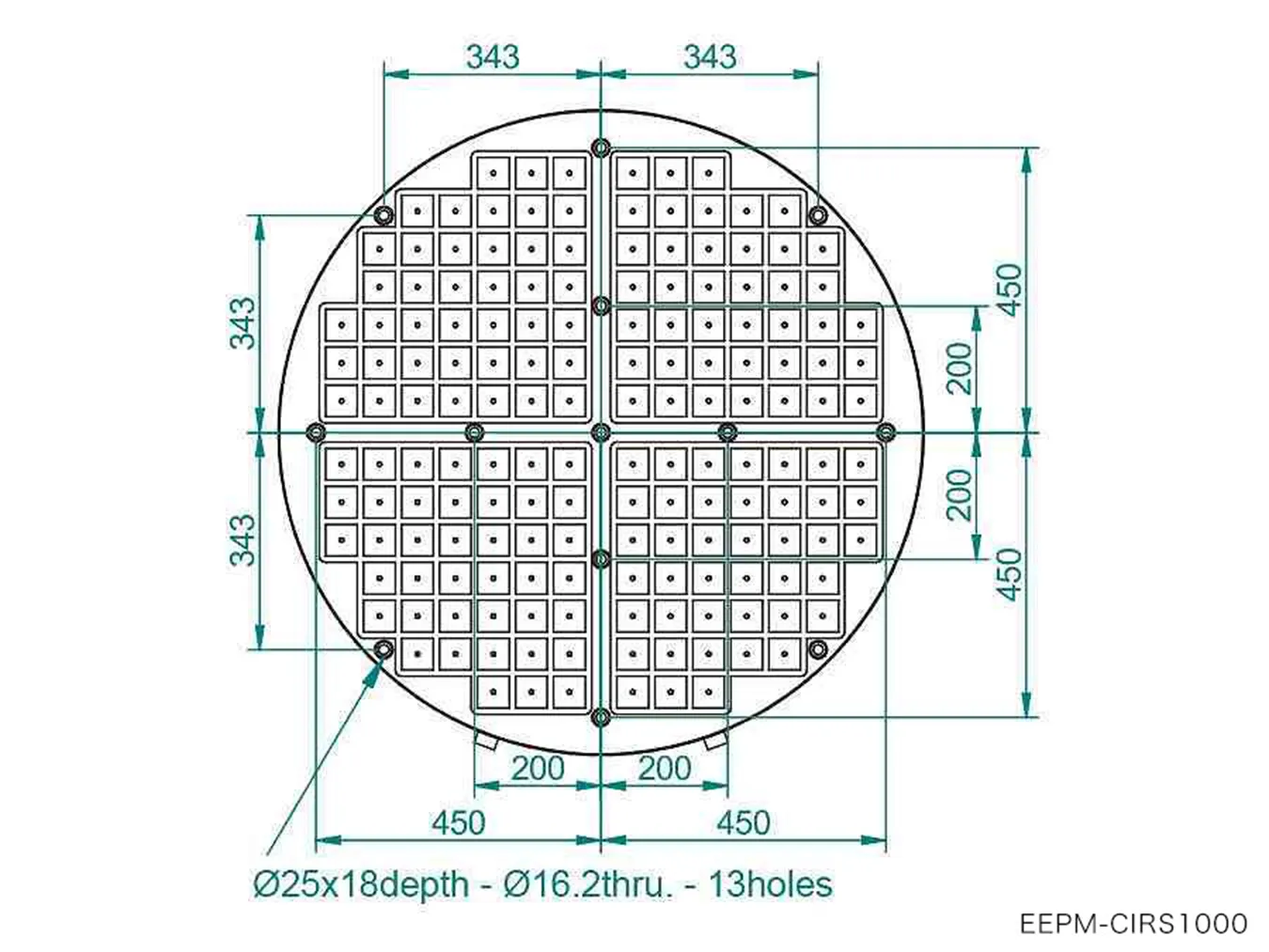

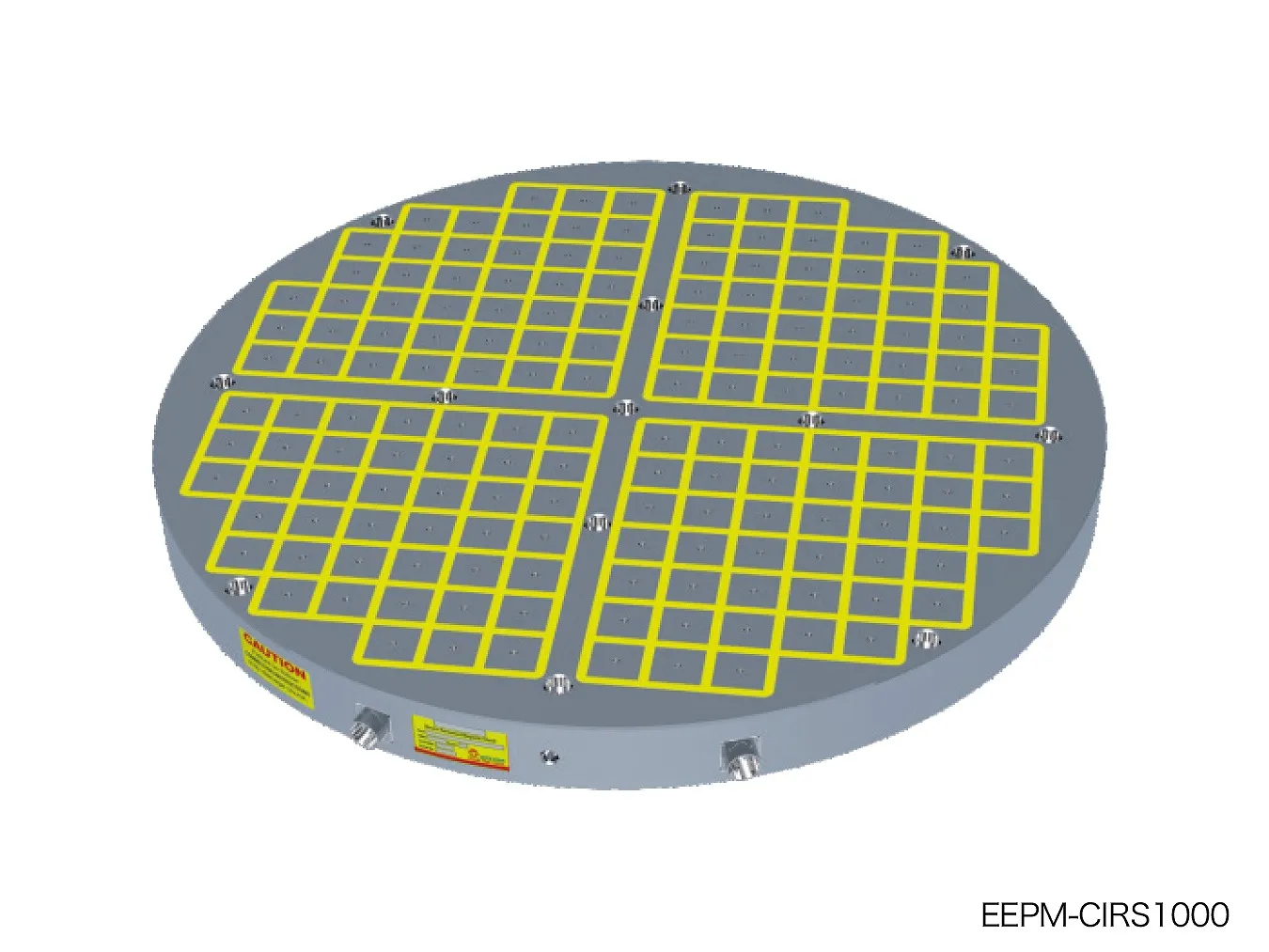

EEPM-CIRS1000
Ø1020×90
Quote upon request

This is a back-order item

Electro-Permanent Round Magnetic Chuck

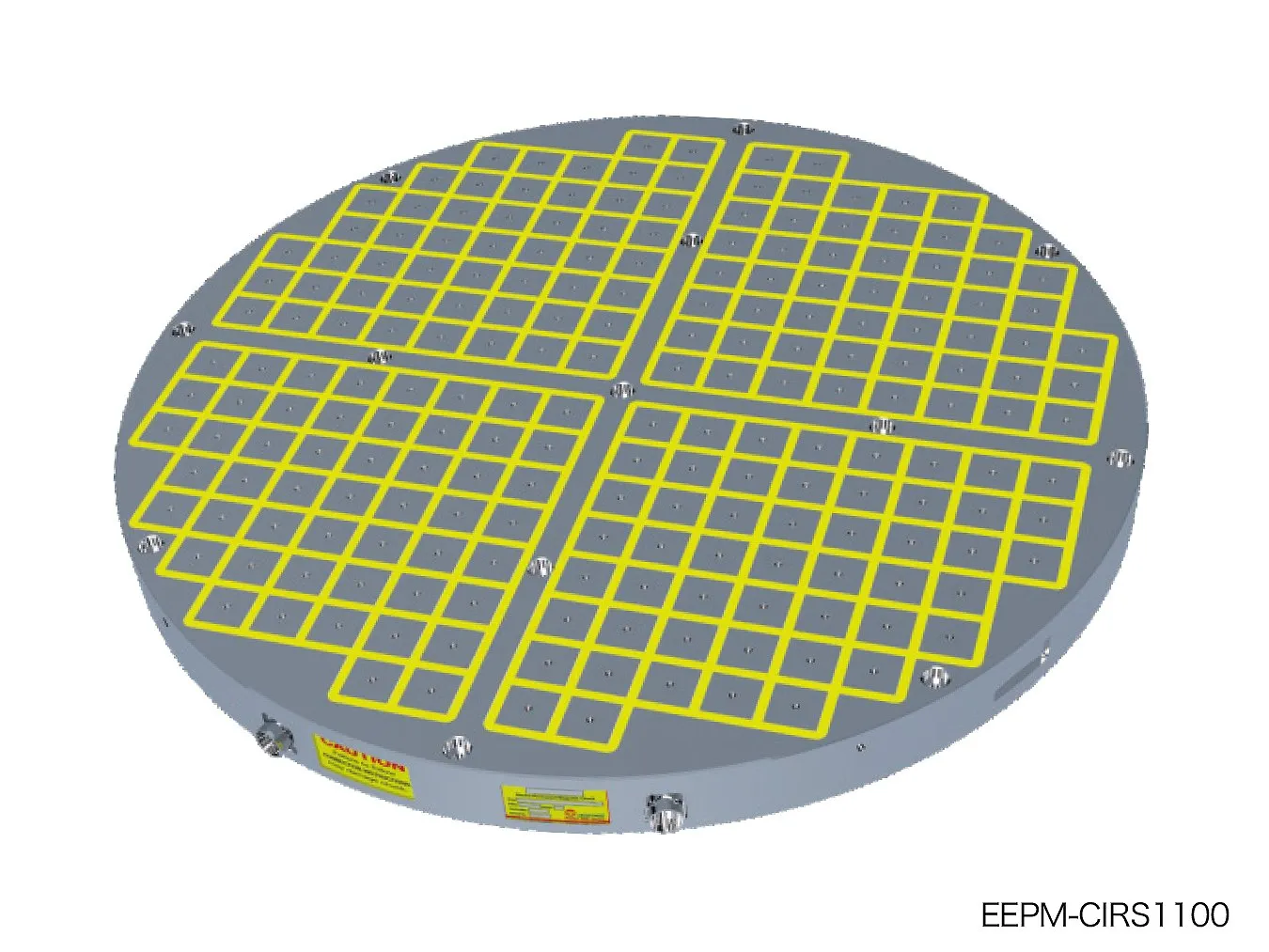

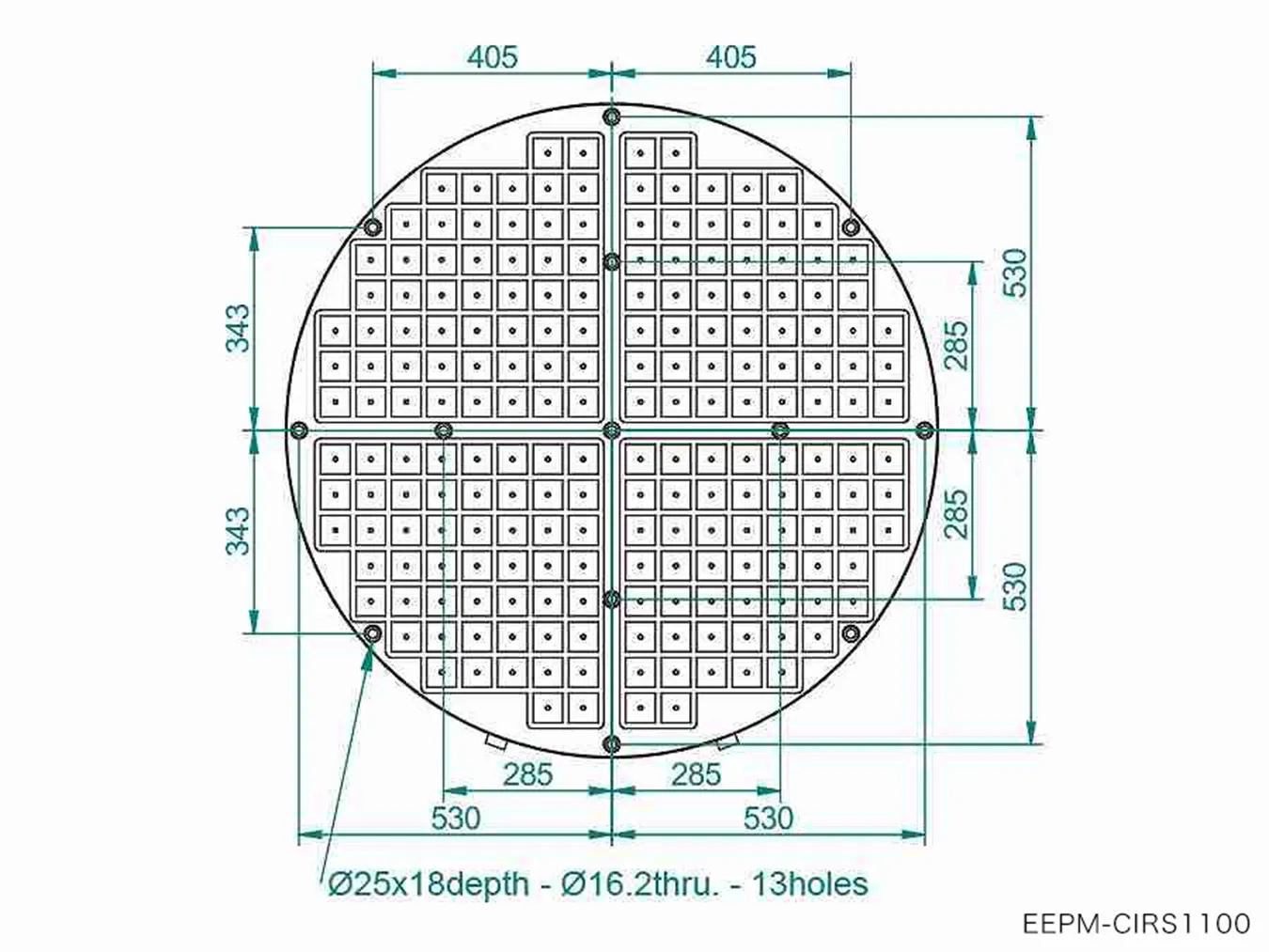

EEPM-CIRS1100
Ø1106×90
Quote upon request

This is a back-order item

Specification

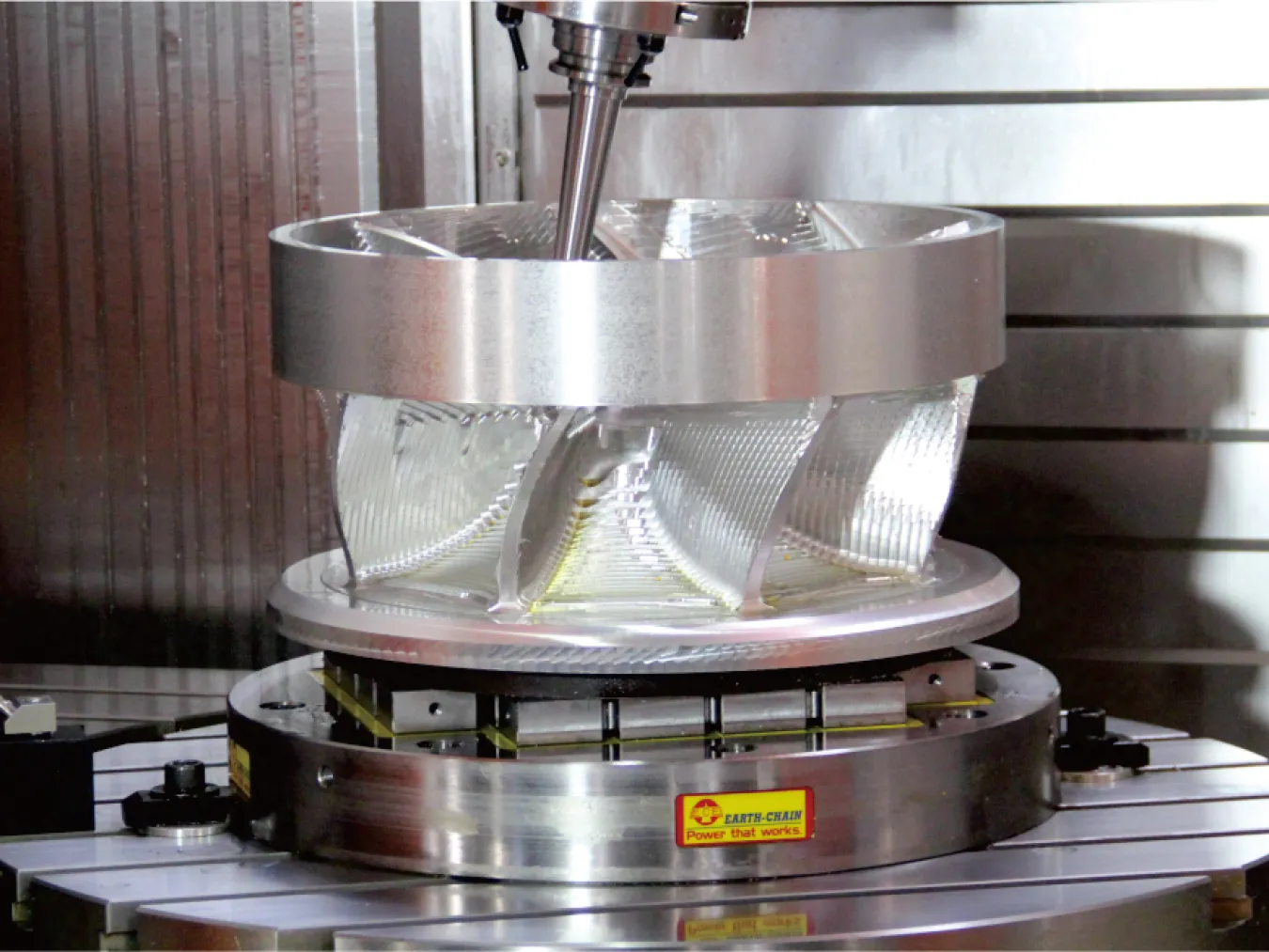

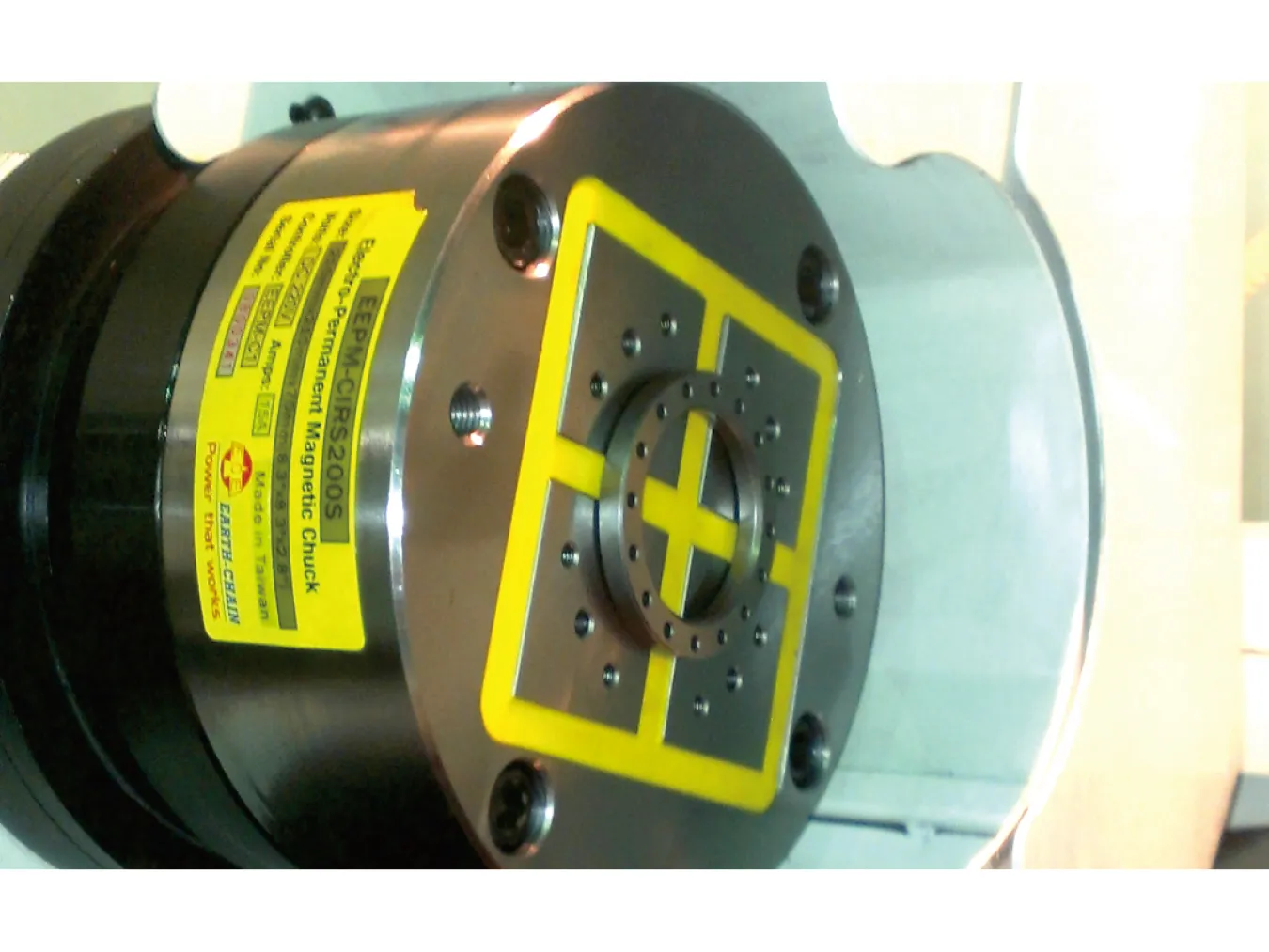

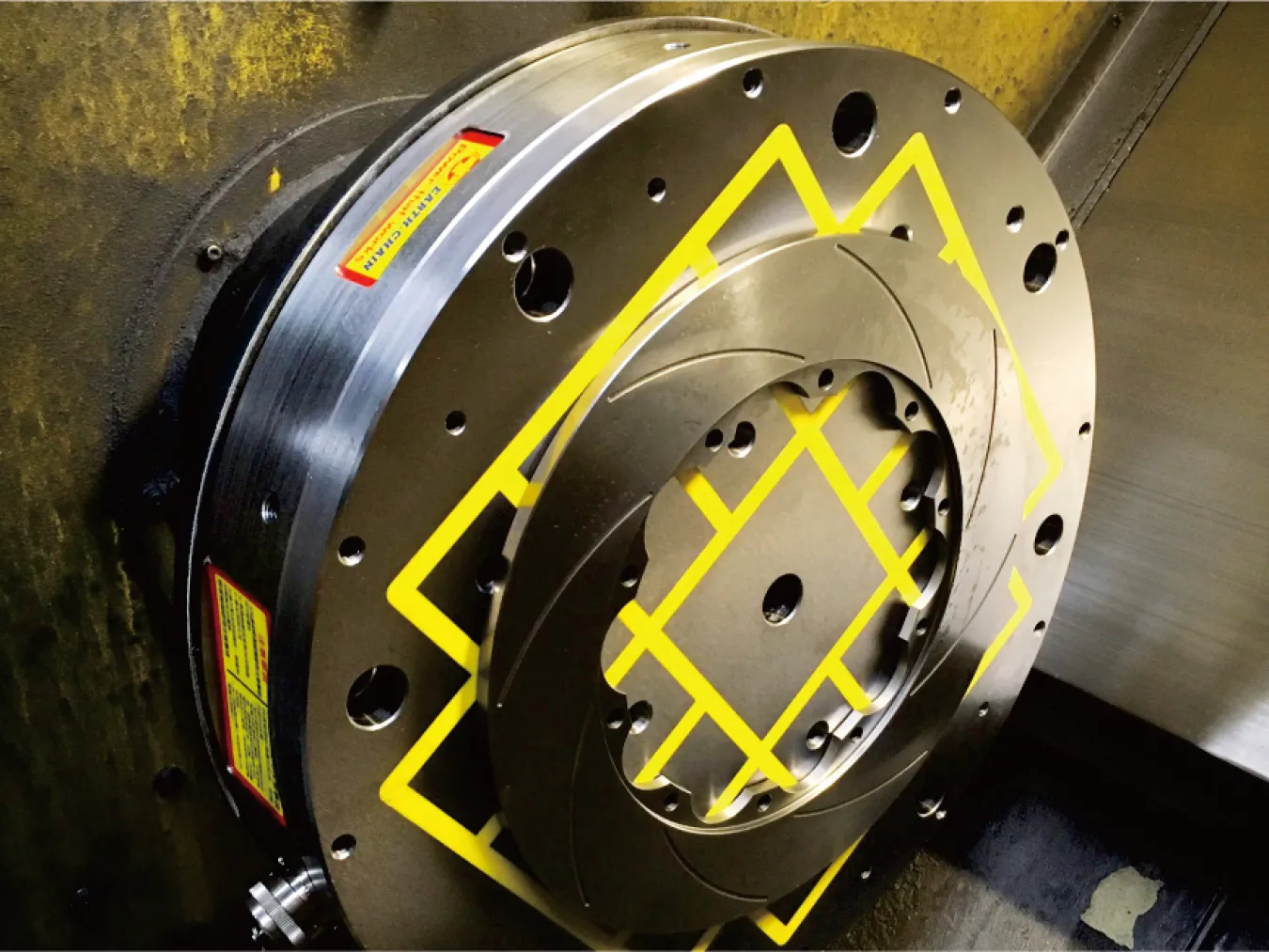

Ideal for machining small to medium-sized workpieces (25 mm or thicker) on lathes, 5-axis machining centers, and other machine tools.

【Waterproof Type】

Product Specifications (Variations)

unit：mm
Product NOOuter diameterHeightPitchNumber of magnetic polesweightcurrentController (included)
EEPM-CIRS200Ø2036010416kg15AEEPM-C1
EEPM-CIRS300Ø32060101235kg20AEEPM-C1
EEPM-CIRS500Ø50070103297kg30AEEPM-C1

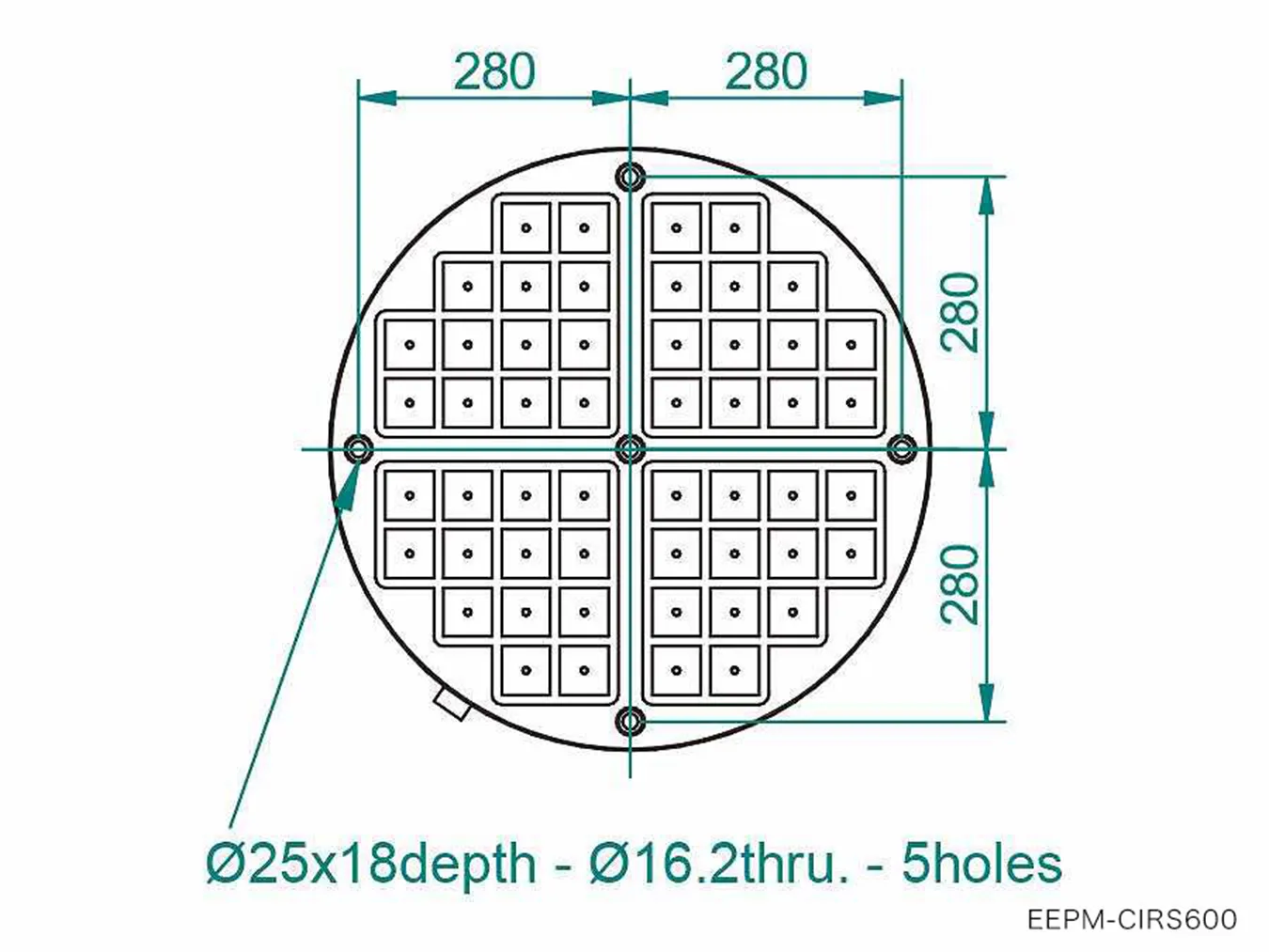

EEPM-CIRS600Ø620701052150kg21AEEPM-C2
EEPM-CIRS700Ø720701076191kg21AEEPM-C4
EEPM-CIRS800Ø820801096262kg23AEEPM-C4
EEPM-CIRS900Ø9008010120362kg33AEEPM-C4
EEPM-CIRS1000Ø10209010164464kg29AEEPM-C8
EEPM-CIRS1100Ø11069010204546kg28AEEPM-C8
