Wire EDM Ruler

Product NO: WPA

Quote upon request

Note: When requesting a quotation, please provide the model number of the machine on which the WPA will be installed, together with a drawing showing the dimensions of the worktable.

Product name
Product NO
L×W×H
Price
Stock
Quantity
Wire EDM Ruler
WPA-370
370×50×30mm
Quote upon request

This is a back-order item

Wire EDM Ruler
WPA-450
450×50×30mm
Quote upon request

This is a back-order item

Wire EDM Ruler
WPA-520
520×50×35mm
Quote upon request

This is a back-order item

Wire EDM Ruler
WPA-550
550×60×35mm
Quote upon request

This is a back-order item

Wire EDM Ruler
WPA-650
650×60×35mm
Quote upon request

This is a back-order item

Wire EDM Ruler
WPA-760
-
Quote upon request

This is a back-order item

Specification

Material：SUS440

Hardness：HRC50°～55°

Heat treatment：Vacuum Quenching and Sub-zero Treatment

Parallelism: within 0.003/100 mm

Squareness: Within 0.005/100 mm

Bolt diameter：Ｍ８

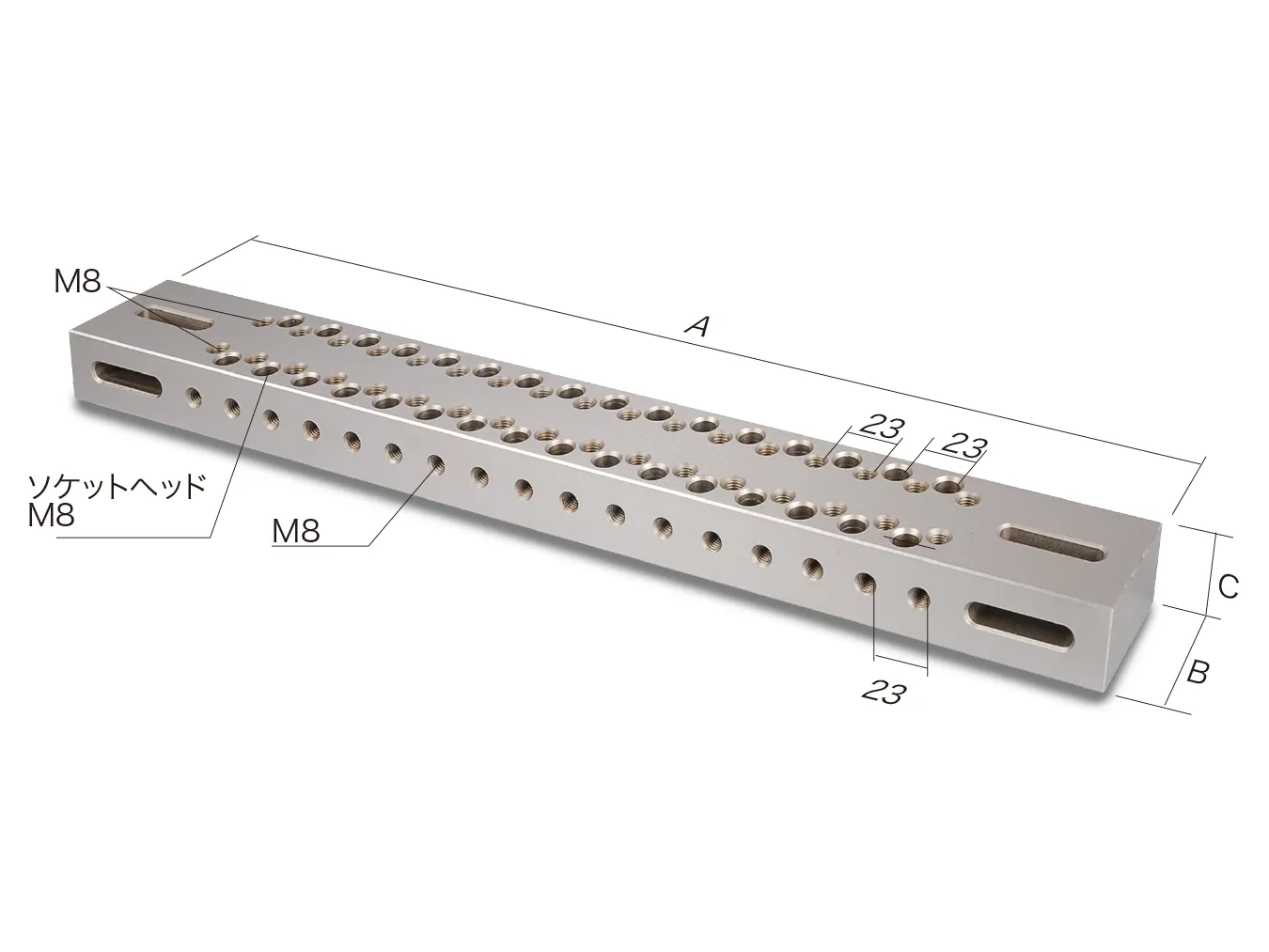

Product Specifications (Variations)

unit：mm
Product NOABCweight
WPA-37037050304.00kg
WPA-45045050305.00kg
WPA-52052050357.00kg
WPA-55055060359.00kg
WPA-650650603510.5kg

※IMPORTANT NOTE FOR QUOTATIONS:
To request a quotation, please make sure to provide the machine model number on which the WPA will be installed, along with a drawing that clearly indicates the dimensions/size of the work table.
