Wire EDM Vise

Product NO: FT-WPV280-320

Quote upon request

Product name
Product NO
Jaw (opening × depth)
Price
Stock
Quantity
Wire EDM Vise
FT-WPV280
100×50mm
Quote upon request

This is a back-order item

Wire EDM Vise
FT-WPV320
160×60mm
Quote upon request

This is a back-order item

Specification

●Adjustable in the vertical, lateral, and longitudinal directions.
●The lower stop is removable.
●A clearance of 0.5 mm is provided after adjustment to prevent interference with the wire guide assembly.
Material：STAVAX
Hardness：ＨＲＣ45°～55°
Heat treatment：Vacuum Quenching and Sub-zero Treatment
Parallelism: within 0.003/100 mm
Squareness: Within 0.005/100 mm
Includes inspection certificate
Case included

Product Specifications (Variations)

unit：mm

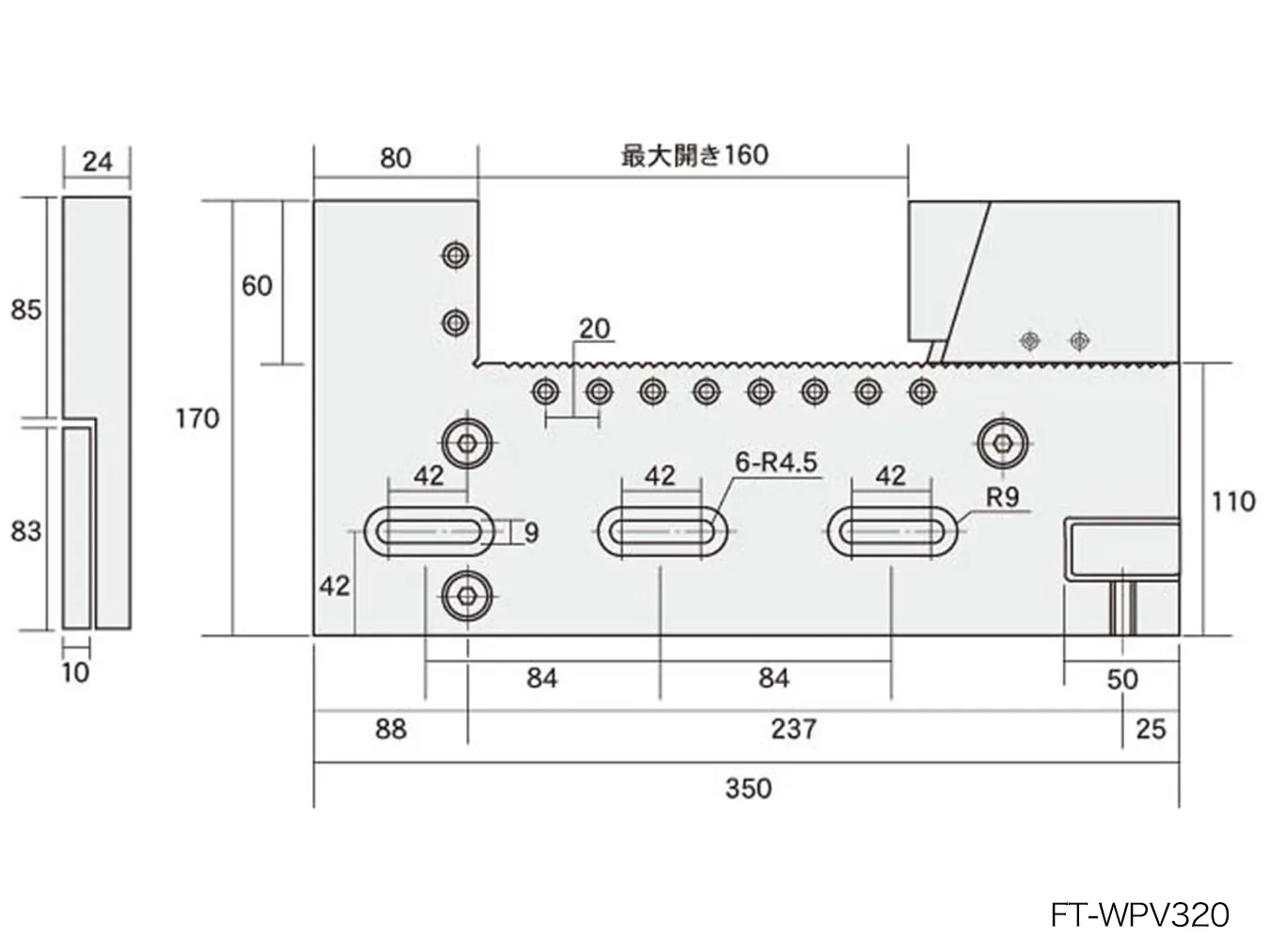

Product NOJaw openingJaw depthweight（kg）
FT-WPV280100508.5kg
FT-WPV320160608.6kg
