O-Ring I.D. Pi Tape (Steel EZ Blue)

Product NO: RTM-EZ

Quote upon request

Product name
Product NO
Measurable internal diameter
Price
Stock
Quantity
O-Ring I.D. Pi Tape (Steel EZ Blue)
RTM2EZ
300 - 600mm
¥143,000

This is a back-order item

O-Ring I.D. Pi Tape (Steel EZ Blue)
RTM2SPEZ
300 - 900mm
¥222,000

This is a back-order item

O-Ring I.D. Pi Tape (Steel EZ Blue)
RTM3EZ
600 - 900mm
¥153,000

This is a back-order item

O-Ring I.D. Pi Tape (Steel EZ Blue)
RTM3SPEZ
600 - 1200mm
¥233,000

This is a back-order item

O-Ring I.D. Pi Tape (Steel EZ Blue)
RTM4EZ
900 - 1200mm
¥184,000

This is a back-order item

O-Ring I.D. Pi Tape (Steel EZ Blue)
RTM5EZ
1200 - 1500mm
¥189,000

This is a back-order item

O-Ring I.D. Pi Tape (Steel EZ Blue)
RTM6EZ
1500 - 1800mm
¥201,000

This is a back-order item

O-Ring I.D. Pi Tape (Steel EZ Blue)
RTM7EZ
1800 - 2100mm
Quote upon request

This is a back-order item

Specification

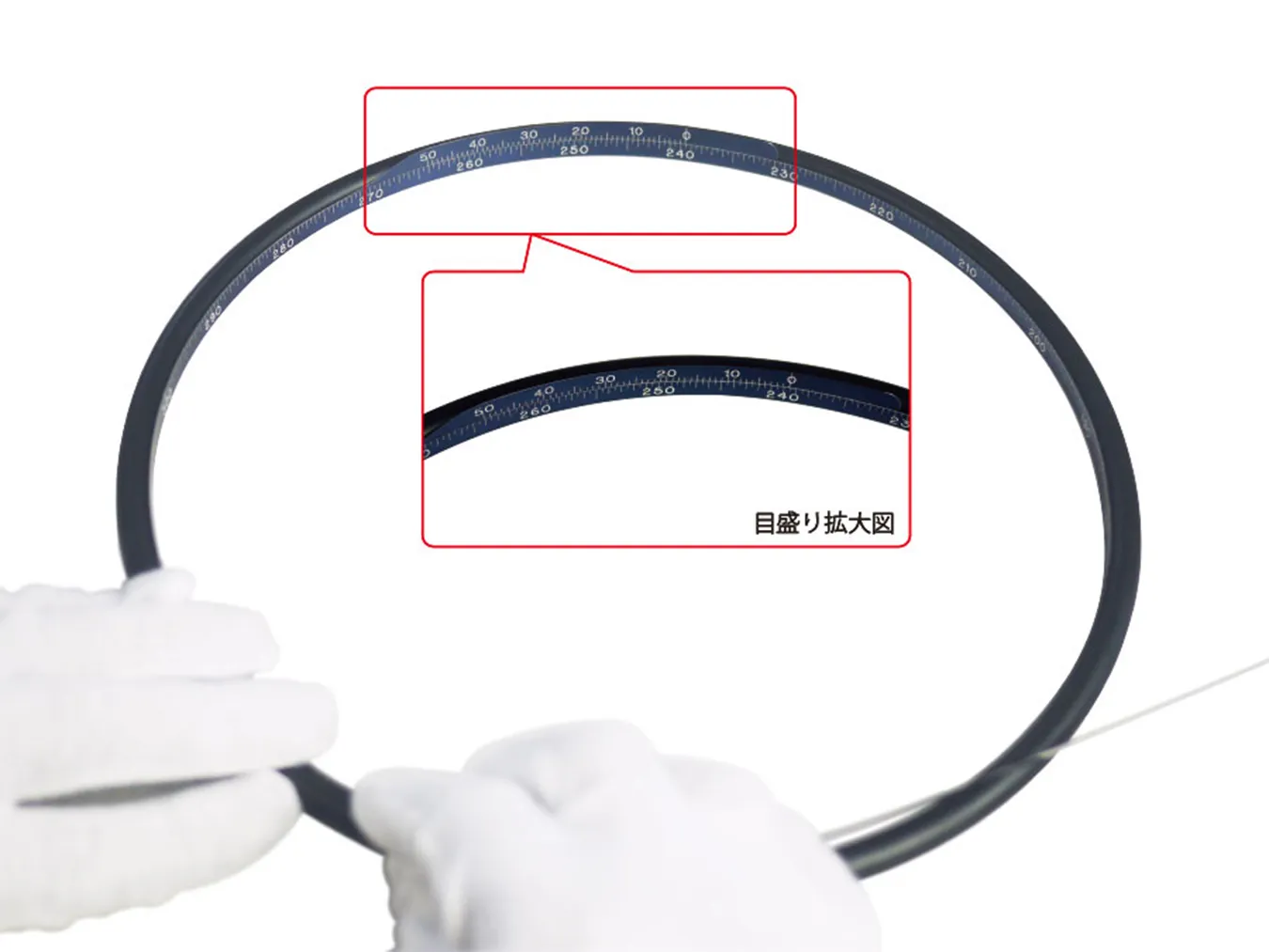

●The Pi Tape for O-ring internal diameter measurement allows accurate measurement of soft, flexible components such as O-rings by placing the workpiece on a flat surface plate or bench and fitting the tape snugly against the inside circumference.

●Readings can be taken in 0.01 mm increments, with an accuracy of ±0.09 mm for diameters up to 900 mm.

・Vernier width: 19.05 mm ・Main scale width: 9.525 mm ・Tape width: 9.525 mm ・Tape thickness: 0.254 mm

Product Specifications (Variations)

unit：mm
Product NOMeasurable range（inside diameter）accuracy
RTM2EZ300 - 600+/- 0.09mm
RTM2SPEZ300 - 900+/- 0.14mm
RTM3EZ600 - 900+/- 0.09mm
RTM3SPEZ600 - 1200+/- 0.14mm
RTM4EZ900 - 1200+/- 0.09mm
RTM5EZ1200 - 1500+/- 0.14mm
RTM6EZ1500 - 1800+/- 0.14mm
RTM7EZ1800 - 2100+/- 0.18mm
