Wire EDM Vise
Product NO: FT-WHV100-150
Quote upon request
Specification
Material：SUS440
Hardness：HRC45°～55°
Heat treatment：Vacuum Quenching and Sub-zero Treatment
Parallelism: within 0.003/100 mm
Squareness: Within 0.005/100 mm
Inspection Certificate: Included
Case included
●Featuring a hand-tightening handle, the unit allows workpieces to be clamped quickly and easily.

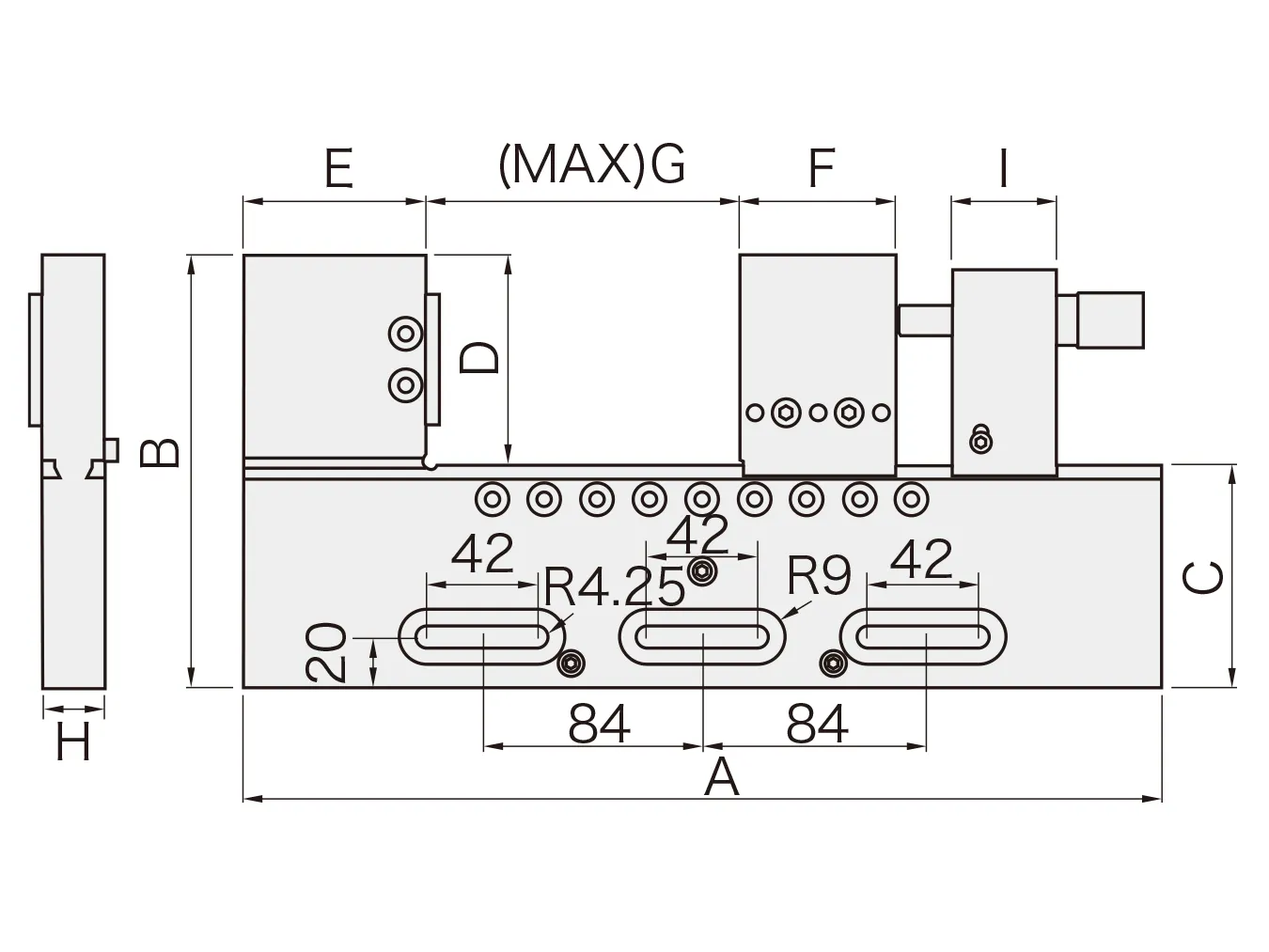

Product Specifications (Variations)
unit：mm| Product NO | A | B | C | D | E | F | G | H | I | weight（kg） |
|---|---|---|---|---|---|---|---|---|---|---|
| FT-WHV100 | 275 | 135 | 85 | 50 | 60 | 60 | 120 | 24 | 35 | 5.5kg |
| FT-WHV150 | 350 | 145 | 85 | 60 | 70 | 60 | 180 | 24 | 35 | 7.5kg |
