Wire EDM Ruler

Product NO: WPB

Quote upon request

Note: When requesting a quotation, please provide the model number of the machine on which the WPB will be installed, together with a drawing showing the dimensions of the worktable.

Product name
Product NO
L×W×H
Price
Stock
Quantity
Wire EDM Ruler
WPB-370
370×75×20mm
Quote upon request

This is a back-order item

Wire EDM Ruler
WPB-480
480×75×20mm
Quote upon request

This is a back-order item

Wire EDM Ruler
WPB-520
520×75×20mm
Quote upon request

This is a back-order item

Wire EDM Ruler
WPB-550
550×90×22mm
Quote upon request

This is a back-order item

Wire EDM Ruler
WPB-600
600×90×22mm
Quote upon request

This is a back-order item

Wire EDM Ruler
WPB-650
650×90×22mm
Quote upon request

This is a back-order item

Wire EDM Ruler
WPB-750
750×90×22mm
Quote upon request

This is a back-order item

Specification

Material：SUS440

Hardness：HRC50°～55°

Heat treatment：Vacuum Quenching and Sub-zero Treatment

Parallelism: within 0.003/100 mm

Squareness: Within 0.005/100 mm

Bolt diameter：Ｍ8

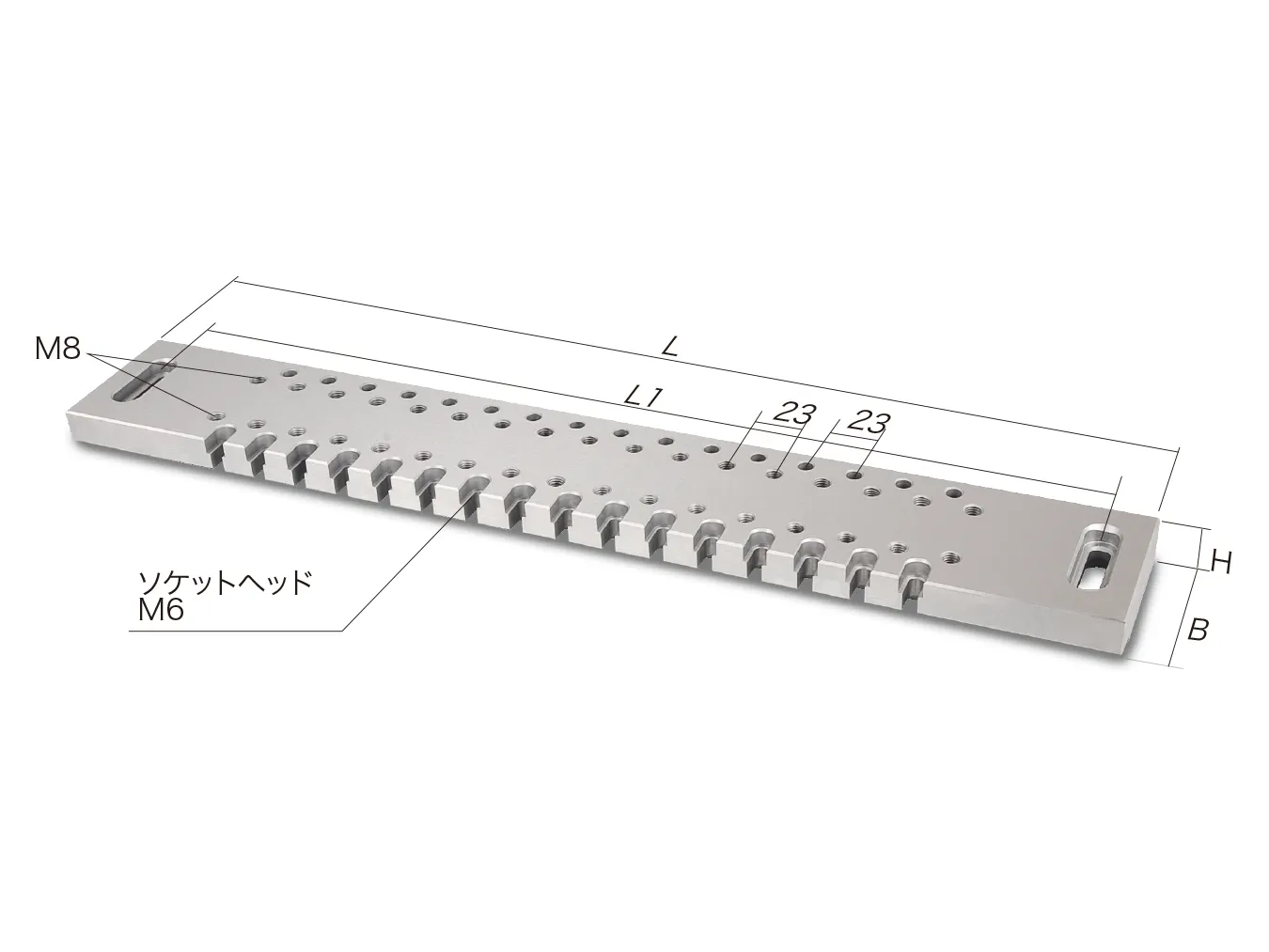

Product Specifications (Variations)

unit：mm
Product NOLL1BHweight
WPB-37037032075204.00kg
WPB-48048043075205.20kg
WPB-52052048075206.00kg
WPB-55055050090228.20kg
WPB-60060055090229.00kg
WPB-650650600902210.0kg
WPB-750750700902211.3kg

※IMPORTANT NOTE FOR QUOTATIONS:
To request a quotation, please make sure to provide the machine model number on which the WPB will be installed, along with a drawing that clearly indicates the dimensions/size of the work table.
