Stainless Steel Precision Vise
Product NO: FT-VWSUS20
Price range: ¥31,000 through ¥33,000
Custom orders (such as matched parallel sets or additional machining) are available upon request. As pricing differs from the standard models, please feel free to contact us for a quotation./n※Please note that additional machining may not be possible depending on the specific modification requirements. We appreciate your understanding in advance.
Specification
Material:SUS440
Hardness:HRC48°～55°
Parallelism: Within 0.003 mm / 100 mm
Squareness: Within 0.003 mm / 100 mm
Inspection Certificate: Included
Storage Case: Included
Model FT-VW20SUS features a grooved surface designed for thin workpieces.
Product Specifications (Variations)

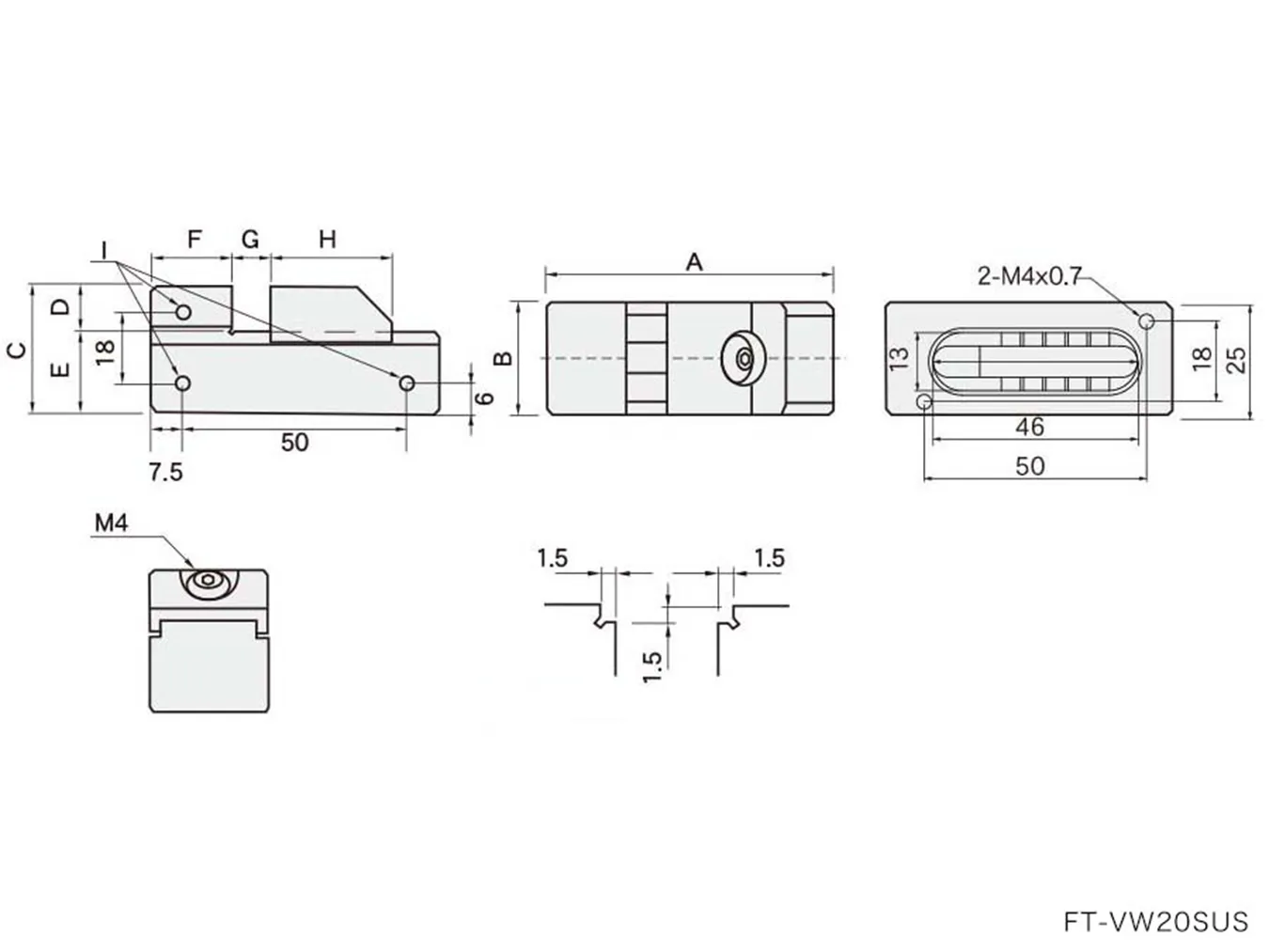

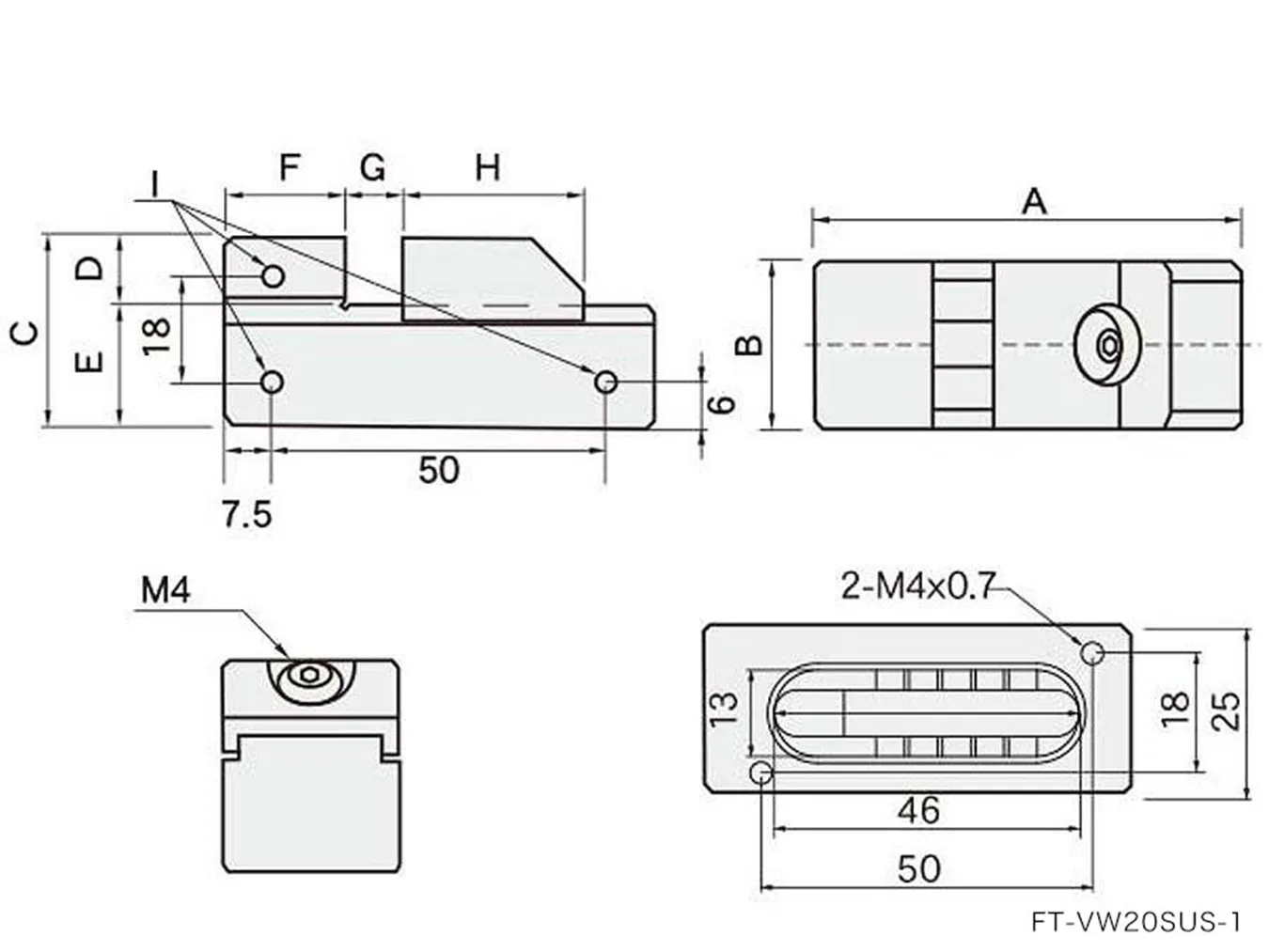

unit：mm| Product NO | A | B（Jaw width） | C | D（Jaw height） | E | F | G（Jaw opening） | H | I | weight |
|---|---|---|---|---|---|---|---|---|---|---|

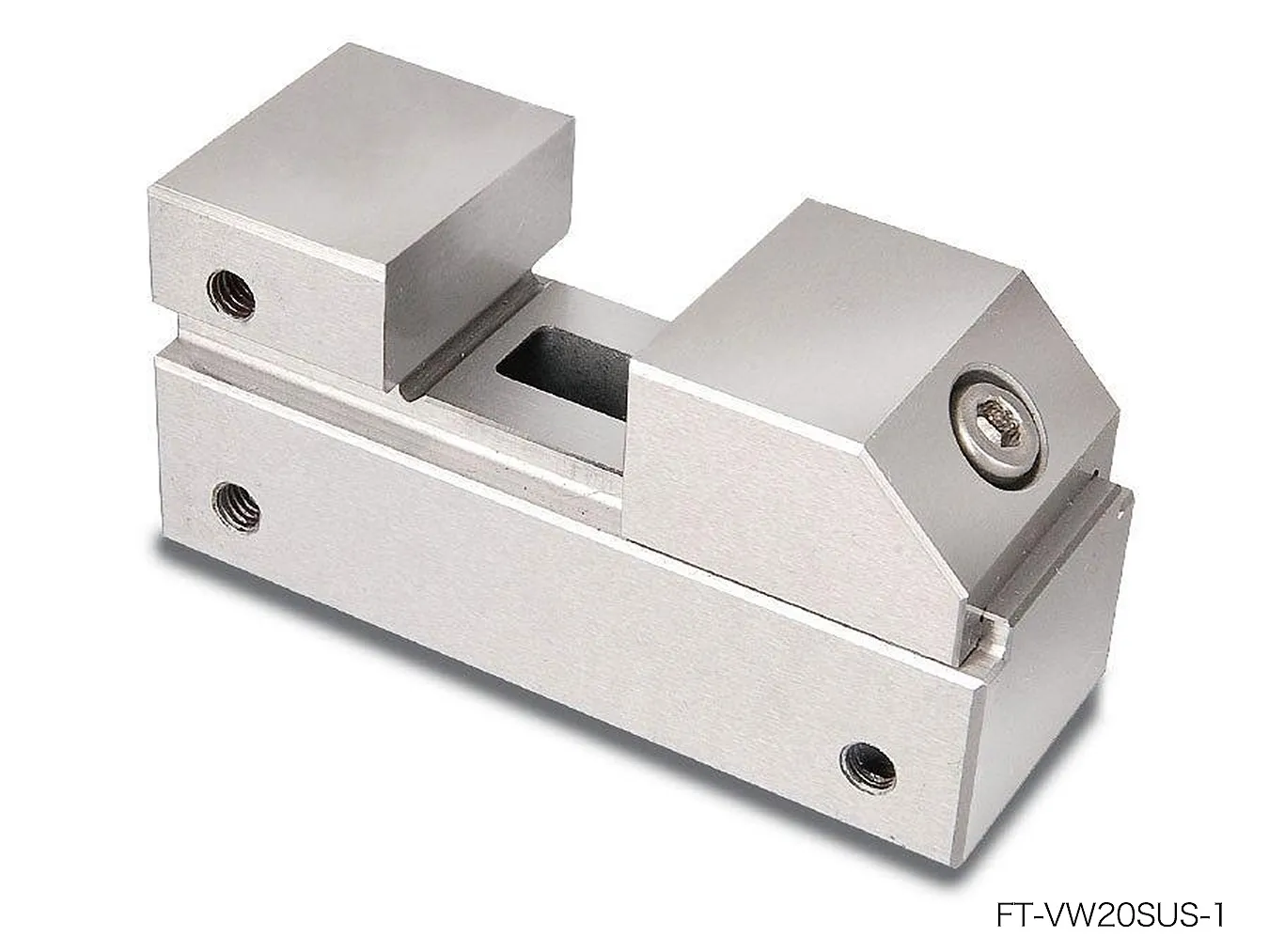

| FT-VW20SUS-1 | 65 | 25 | 32 | 12 | 20 | 20 | 0-20 | 25 | M4x0.7x8L | 0.25kg |
| FT-VW20SUS | 65 | 25 | 32 | 12 | 20 | 20 | 0-20 | 25 | M4x0.7x8L | 0.25kg |
