Stainless Steel Precision Vise
Product NO: FT-VHS
Price range: ¥110,000 through ¥265,000
Custom orders (such as matched parallel sets or additional machining) are available upon request. As pricing differs from the standard models, please feel free to contact us for a quotation./n※Please note that additional machining may not be possible depending on the specific modification requirements. We appreciate your understanding in advance.
Specification
Material：SUS440
Hardness：HRC45°～55°
Parallelism: Within 0.003 mm / 100 mm
Squareness: Within 0.005 mm / 100mm
Inspection Certificate: Included
Storage Case: Included
Product Specifications (Variations)

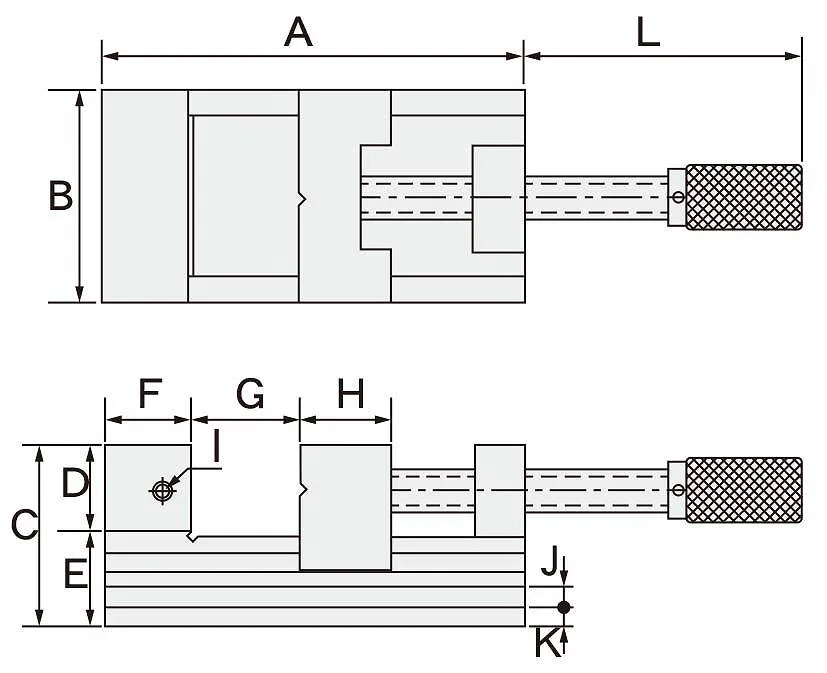

unit：mm| Product NO | A | B（Jaw width） | C | D（Jaw height） | E | F | G（Jaw opening） | H | I | J | K | L | weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FT-VHS20 | 140 | 48 | 55 | 25 | 30 | 25 | 0-70 | 40 | M6 | 6 | 7 | 115 | 2.6kg |
| FT-VHS25 | 172 | 63 | 69 | 30 | 39 | 30 | 0-85 | 50 | M6 | 8 | 9 | 129 | 4.8kg |
| FT-VHS30 | 190 | 73 | 78 | 35 | 43 | 35 | 0-100 | 50 | M6 | 8 | 10 | 142 | 6.6kg |
| FT-VHS40 | 230 | 98 | 92 | 40 | 52 | 40 | 0-125 | 60 | M8 | 10 | 12 | 171 | 13.0kg |
Related products
-
Stainless Steel Precision Vise
Product NO：FT-VWSUS -
Stainless Steel Precision Vise

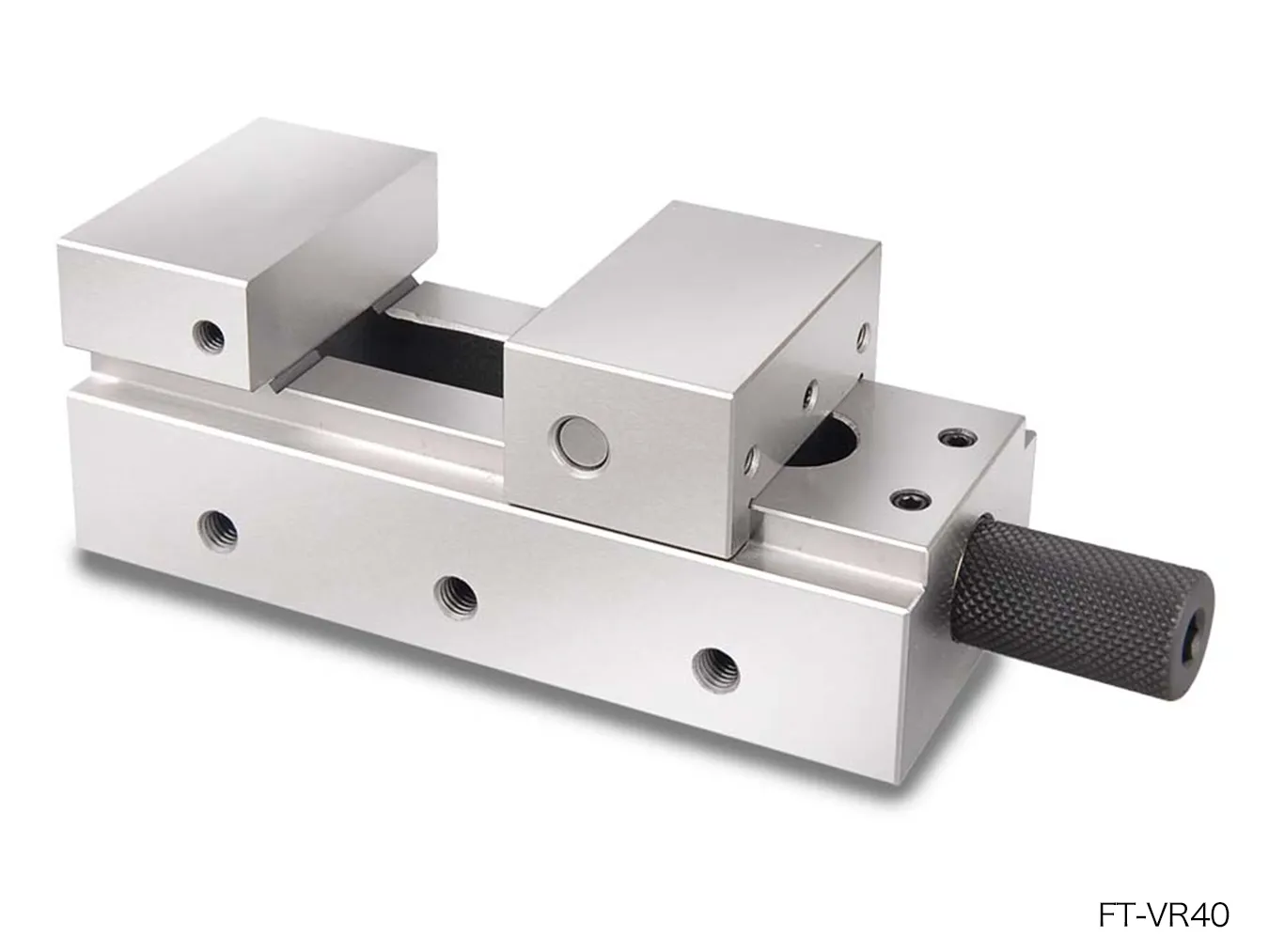

Product NO：FT-VR40 -
Stainless Steel Precision Vise

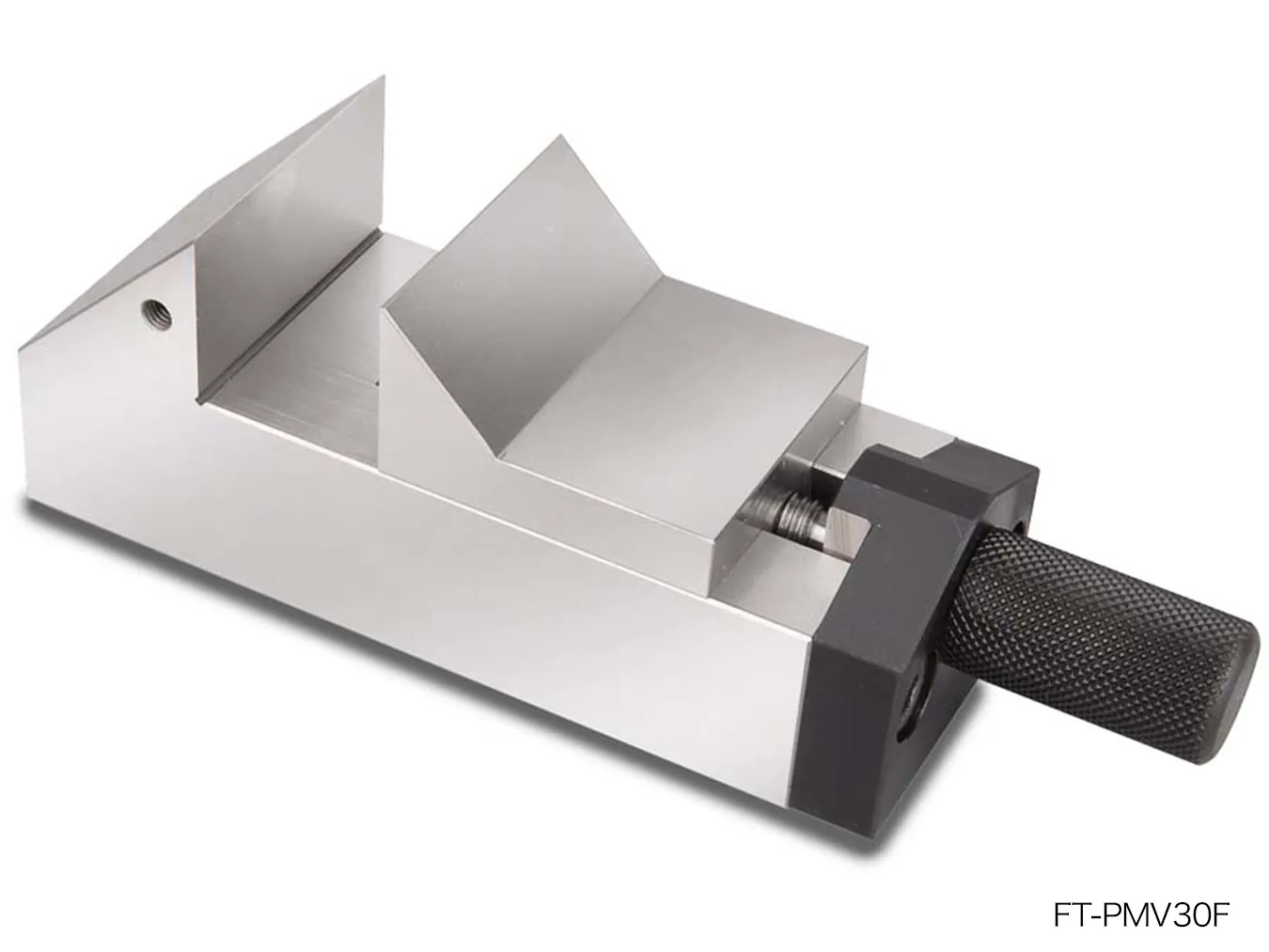

Product NO：FT-PMV30F
