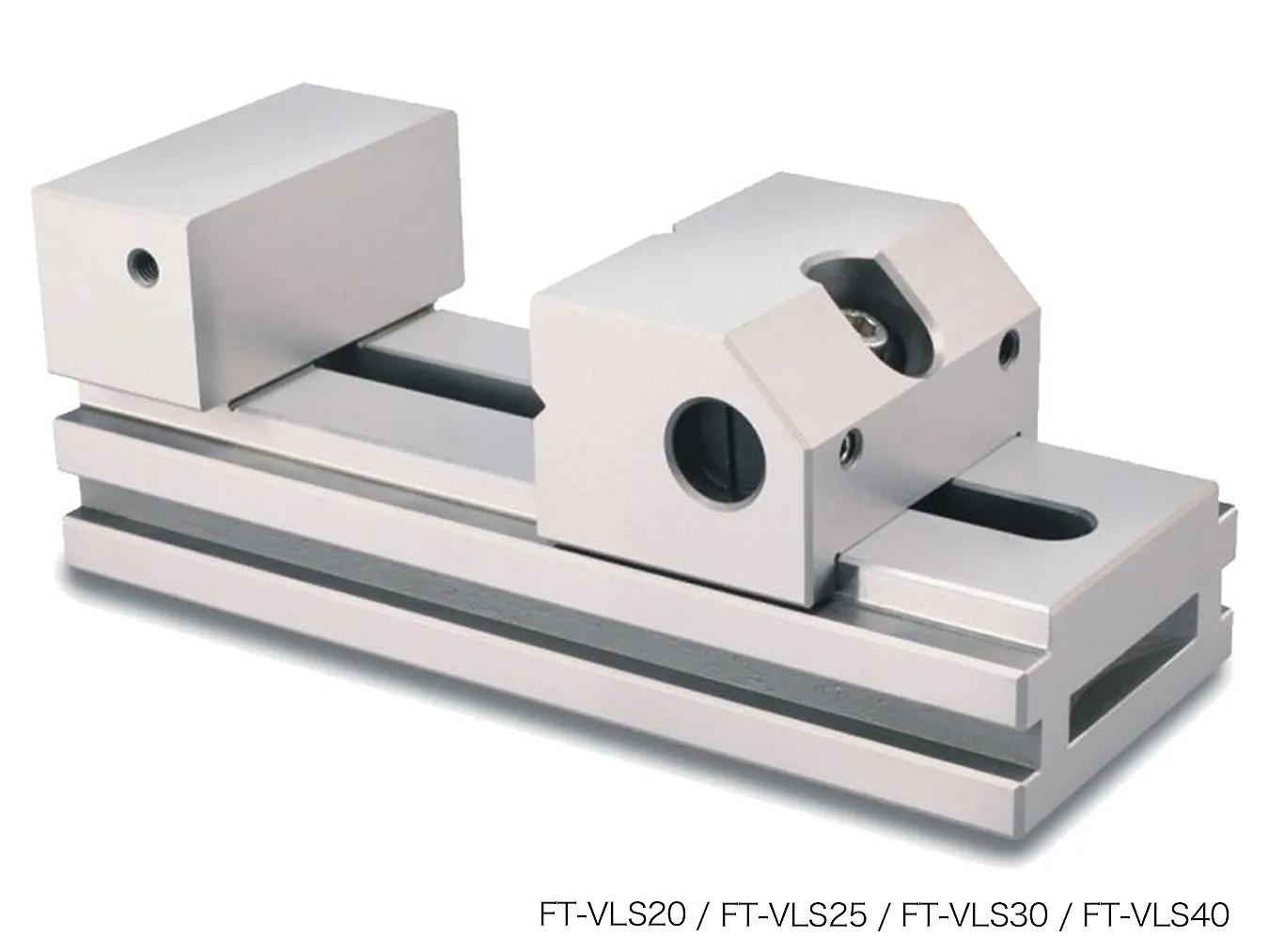

Stainless Steel Precision Vise
Product NO: FT-VLS
Price range: ¥82,000 through ¥243,000
Custom orders (such as matched parallel sets or additional machining) are available upon request. As pricing differs from the standard models, please feel free to contact us for a quotation./n※Please note that additional machining may not be possible depending on the specific modification requirements. We appreciate your understanding in advance.
Specification
Material：SUS440
Hardness：HRC45°～55°
Parallelism: Within 0.003 mm / 100 mm
Squareness: Within 0.005 mm / 100mm
Inspection Certificate: Included
Storage Case: Included
Product Specifications (Variations)

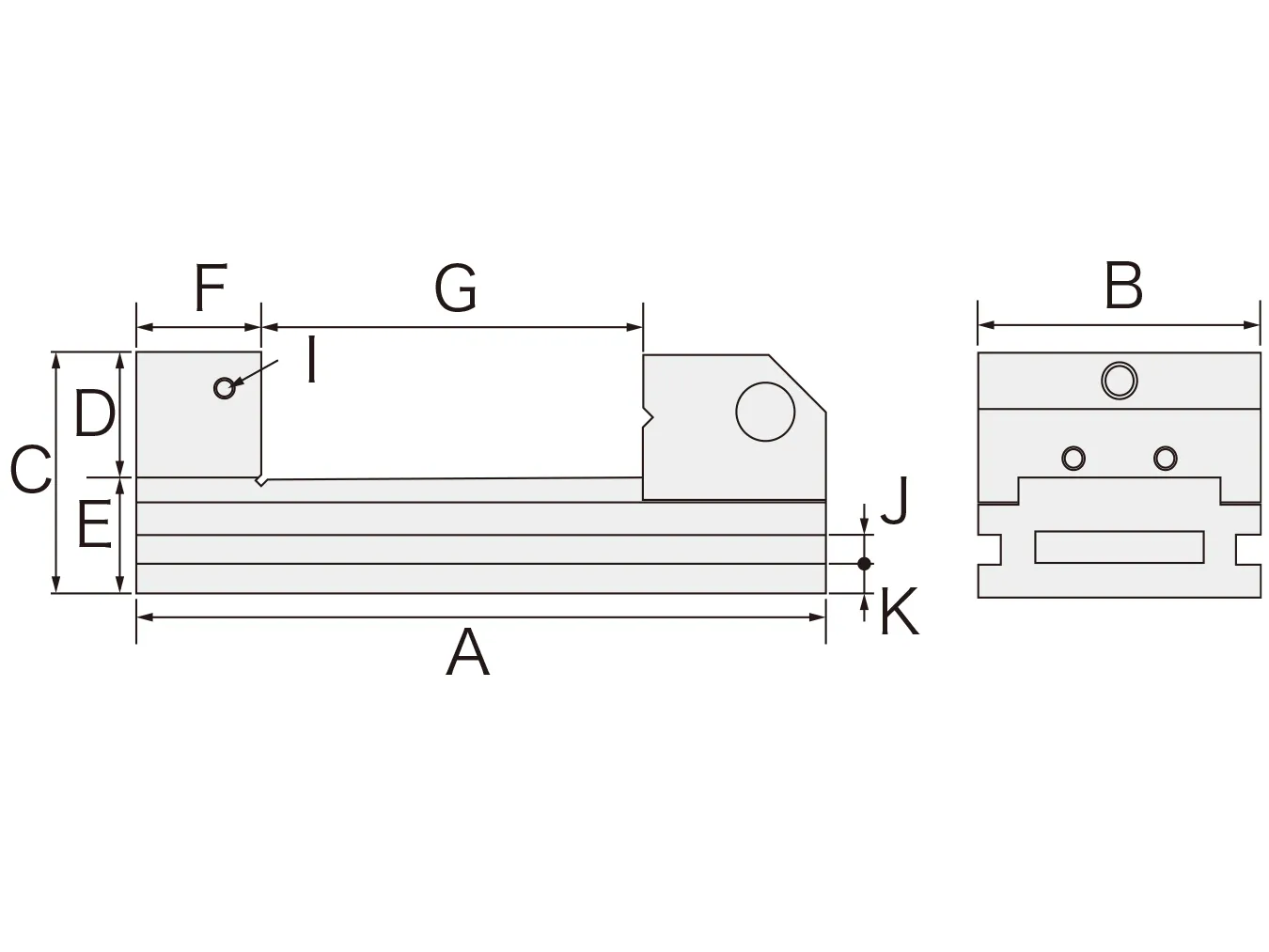

unit：mm| Product NO | A | B（Jaw width） | C | D（Jaw height） | E | F | G（Jaw opening） | I | J | K | weight |
|---|---|---|---|---|---|---|---|---|---|---|---|
| FT-VLS15 | 105 | 35 | 45 | 20 | 25 | 25 | 0-45 | M6 | 6 | 7 | 1.0kg |
| FT-VLS20 | 150 | 48 | 50 | 25 | 25 | 25 | 0-75 | M6 | 6 | 7 | 2.0kg |
| FT-VLS25 | 176 | 63 | 60 | 30 | 30 | 30 | 0-90 | M6 | 8 | 7.5 | 3.3kg |
| FT-VLS30 | 190 | 73 | 70 | 35 | 35 | 35 | 0-100 | M6 | 8 | 10 | 4.3kg |
| FT-VLS40 | 245 | 98 | 80 | 40 | 40 | 40 | 0-125 | M6 | 10 | 12 | 9.8kg |
