Precision Sine Vise
Product NO: FT-SVW
Price range: ¥80,000 through ¥184,000
The SK Precision Sine Vice utilizes gauge blocks to set highly accurate angles. Please determine the required gauge block thickness using a trigonometric function table. Kindly note that gauge blocks are not included and must be provided separately.
Specification
Features：The SK Precision Sine Vice is a high-accuracy vice crafted from genuine, SK carbon tool steel.
Material：SK2
Hardness：ＨＲＣ52°～58°
Parallelism:within 0.005mm/100mm
Squareness: Within 0.005 mm / 100mm
Maximum angle of 46° .Tolerance ± 15 sec.
Inspection Certificate: Included
Storage Case: Included

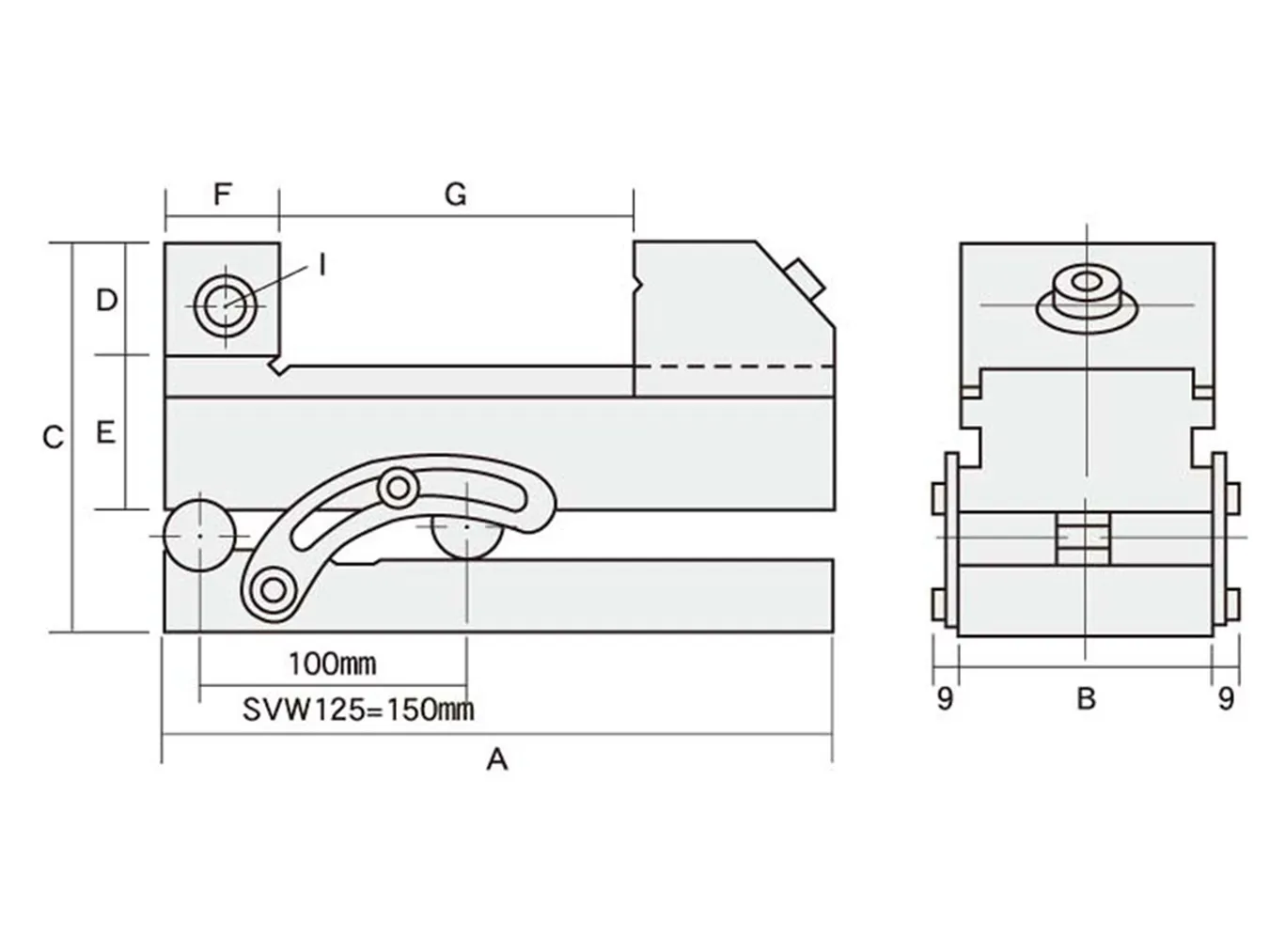

Product Specifications (Variations)
unit：mm| Product NO | A | B（Jaw width） | C | D（Jaw height） | E | F | G（Jaw opening） | I | weight |
|---|---|---|---|---|---|---|---|---|---|
| FT-SVW75 | 150 | 48 | 88.5 | 25 | 28 | 25 | 0-75 | M6 | 2.9kg |
| FT-SVW85 | 176 | 63 | 94.5 | 30 | 29 | 30 | 0-85 | M6 | 4.6kg |
| FT-SVW95 | 190 | 73 | 103.5 | 35 | 33 | 35 | 0-95 | M6 | 6.4kg |
| FT-SVW125 | 245 | 98 | 126.5 | 45 | 45 | 45 | 0-125 | M6 | 14.1kg |
