Precision Sine Vise
Product NO: FT-SVS
Price range: ¥93,000 through ¥187,000
The SK Precision Sine Vice utilizes gauge blocks to set highly accurate angles. Please determine the required gauge block thickness using a trigonometric function table. Kindly note that gauge blocks are not included and must be provided separately.
Specification
Features：The SK Precision Vice is a high-accuracy vice crafted from genuine, SK carbon tool steel.
Material
Material：SK2
Hardness：HRC52°～58°
Parallelism:within 0.004mm/100mm
Squareness: Within 0.005 mm / 100mm
Maximum angle of 46° Tolerance ± 15 sec.]
Inspection Certificate: Included
Storage Case: Included
Product Specifications (Variations)

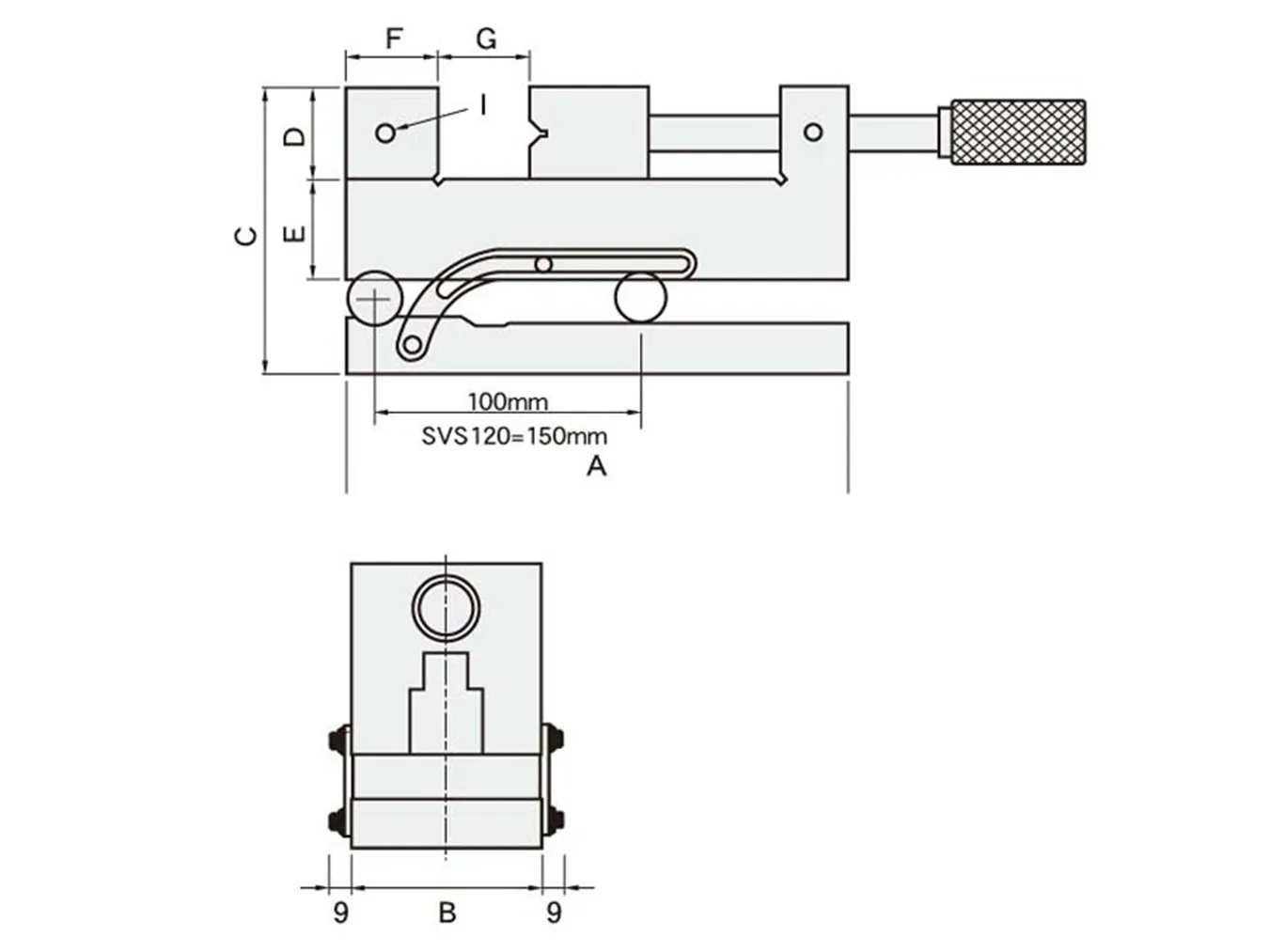

unit：mm| Product NO | A | B（Jaw width） | C | D（Jaw height） | E | F | G（Jaw opening） | I | weight |
|---|---|---|---|---|---|---|---|---|---|
| FT-SVS63 | 156 | 48 | 87.5 | 25 | 27 | 25 | 0-63 | M6 | 3.7kg |
| FT-SVS73 | 176 | 63 | 98.5 | 30 | 33 | 30 | 0-73 | M6 | 6.0kg |
| FT-SVS76 | 190 | 73 | 103.5 | 35 | 33 | 35 | 0-76 | M6 | 8.0kg |
| FT-SVS120 | 255 | 98 | 120.5 | 40 | 42 | 40 | 0-120 | M8 | 16.0kg |
