Lever chuck for precision measurement
Product NO: FT-SE
Price range: ¥108,000 through ¥190,000
Specification
●Precision lever chuck with base plate, designed for use with high-precision measuring equipment such as roundness measuring instruments and coordinate measuring machines (CMMs).
●Workpieces can be clamped simply by rotating the chuck, eliminating the need for a handle.
●The base plate can be removed, allowing the chuck to be mounted on other measuring fixtures.
●Reversible jaw design for both internal and external clamping applications.
Product Specifications (Variations)

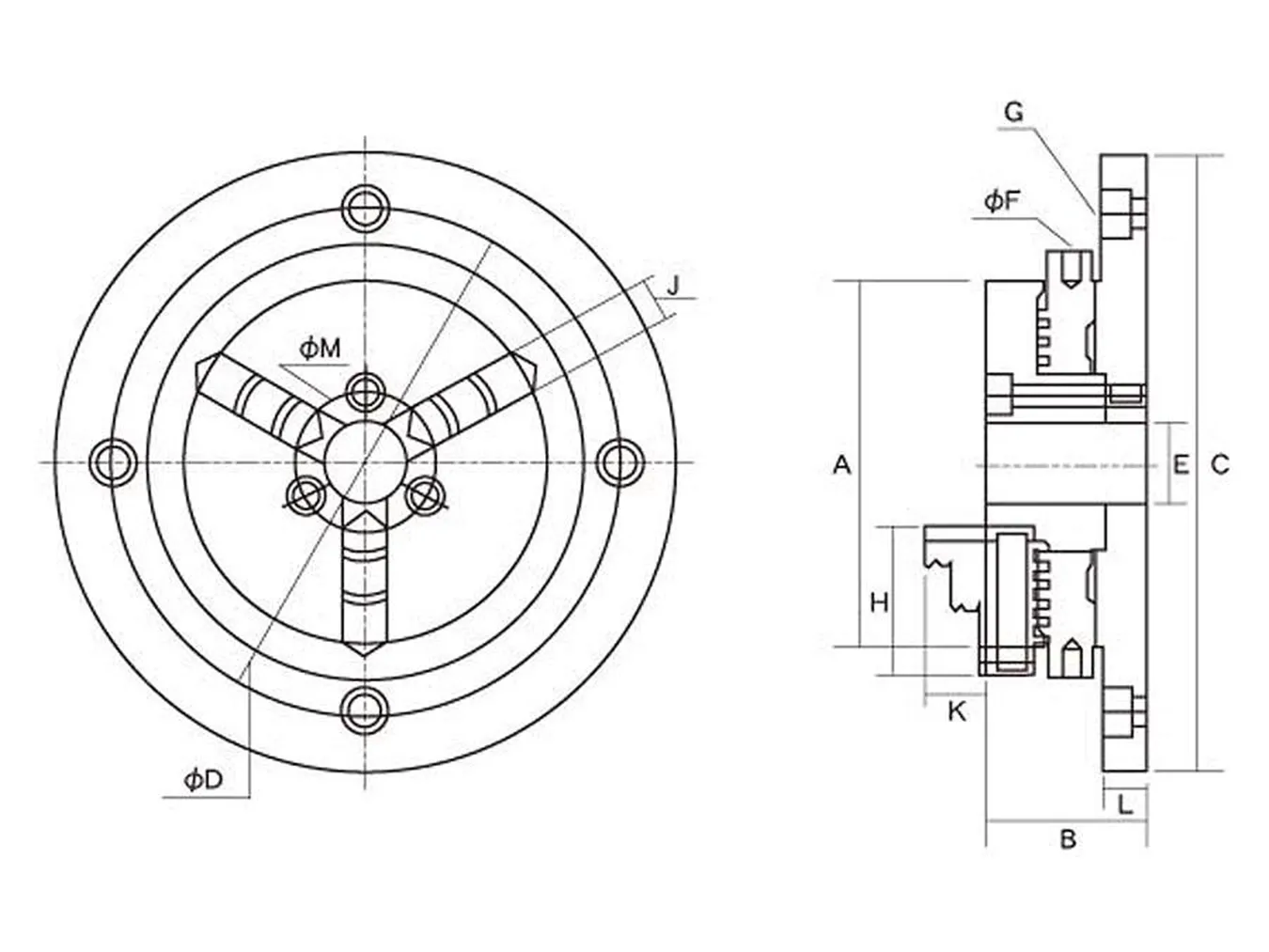

unit：mm| Product NO | A | B | C | D | E | F | G | H | J | K | L | M | Max.Gripping Diameter O.D. | Max.Gripping Diameter I.D. | weight（kg） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FT-SE02 | 63 | 28 | 118 | 100 | 16 | 4 | 4-M5ｘ0.8P | 27 | 8 | 13 | 8 | 26 | Ø0.8-Ø63 | Ø23-Ø58 | 1.2kg |
| FT-SE03 | 85 | 37 | 143 | 116 | 20 | 4 | 4-M6ｘ1P | 35 | 11 | 15 | 10.5 | 32 | Ø1-Ø81 | Ø31-Ø70 | 2.9kg |
| FT-SE04 | 110 | 39 | 168 | 140 | 26 | 5 | 4-M6ｘ1P | 42 | 14 | 19 | 10 | 40 | Ø1-Ø100 | Ø36-Ø90 | 4.3kg |
| FT-SE05 | 130 | 45 | 202 | 168 | 32 | 6 | 4-M8ｘ1.25P | 50 | 16 | 21 | 11.5 | 49 | Ø1.5-Ø116 | Ø43-Ø106 | 6.2kg |
| FT-SE06 | 160 | 52 | 248 | 208 | 50 | 8 | 4-M10ｘ1.5P | 65 | 19 | 26 | 15 | 70 | Ø1.5-Ø160 | Ø52-Ø148 | 11.1kg |
Drawing
You can download drawings for various products below.
