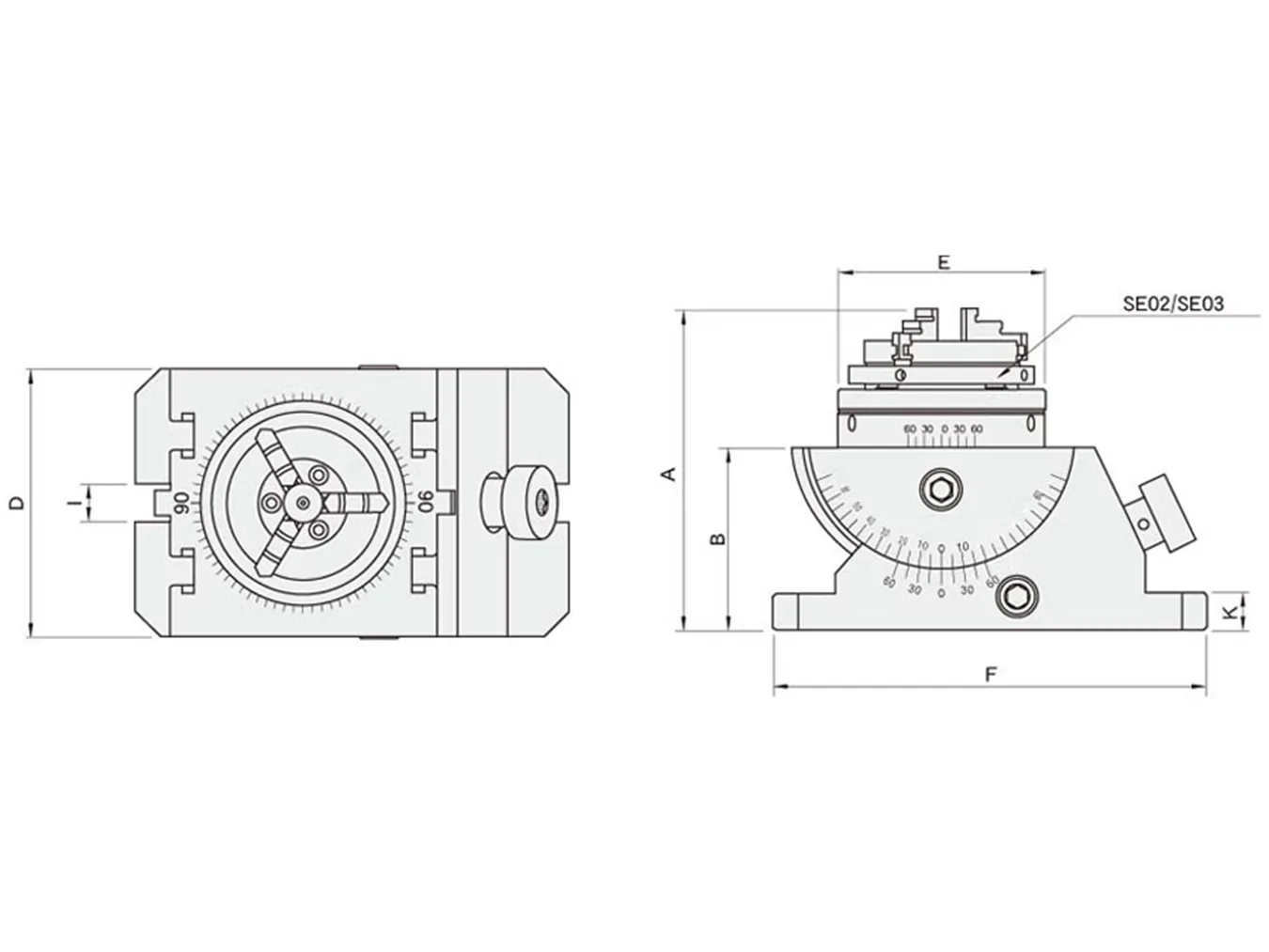

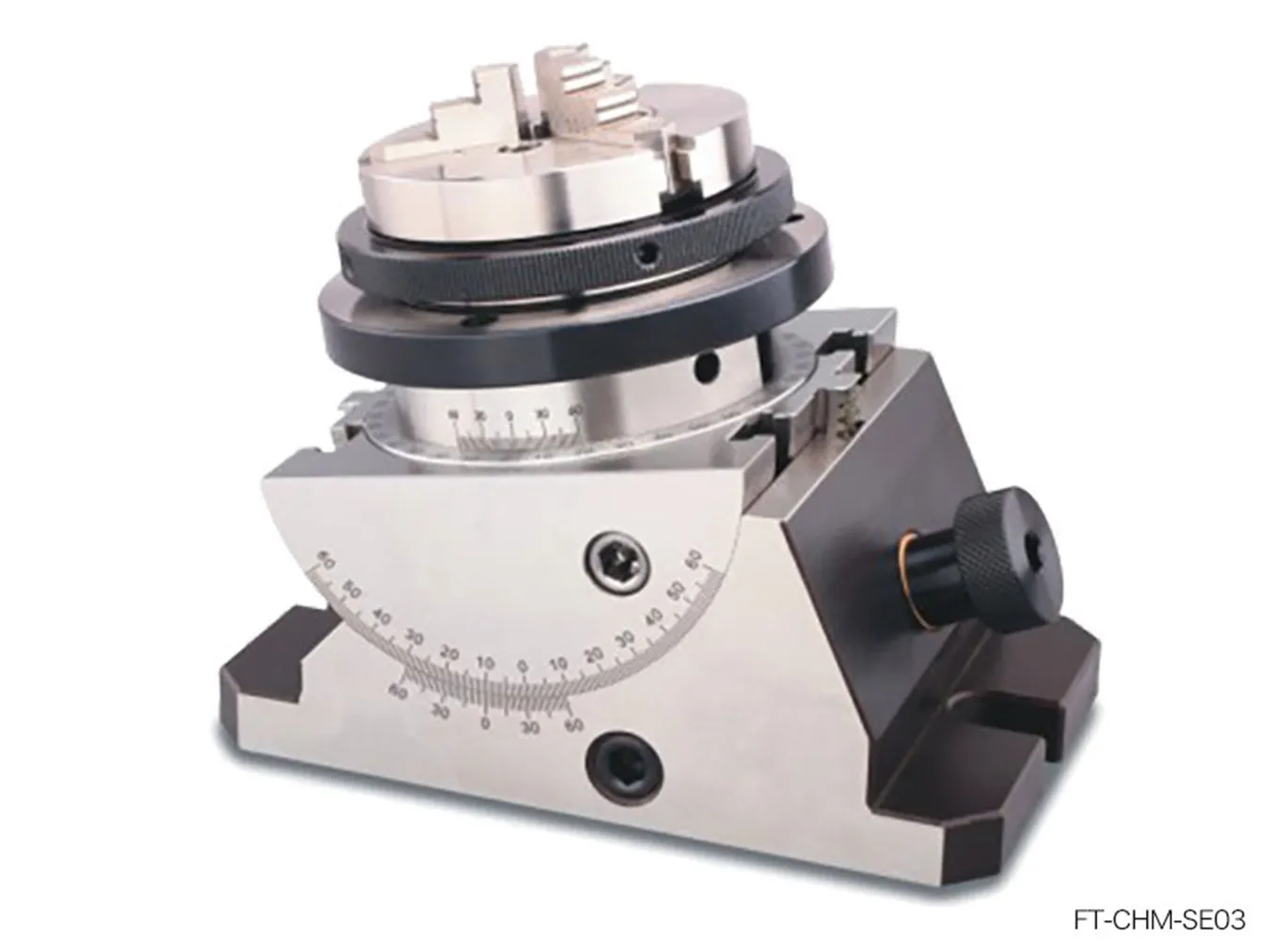

Precision Universal Thin Chuck Pedestal

Material: Swivel section: FCD45

Hardness: Swivel section: HRC 43–47

Heat treatment: Swivel section, quenched and tempered

Swivel body: Vernier scale with 3-minute graduations

●Graduated scales allow quick and easy angle setting.

●360° horizontal rotation capability.

●Tilts up to 45° in the vertical direction.

●Vernier minimum graduation: 3 minutes (3′).

●An ideal measuring fixture for holding bar-shaped and cylindrical workpieces on coordinate measuring machines (CMMs) and surface plates.
