5-axis Self Centering Vise
Product NO: FT-SCV_60-160
Price range: ¥253,000 through ¥589,000
Custom orders (such as matched parallel sets or additional machining) are available upon request. As pricing differs from the standard models, please feel free to contact us for a quotation./n※Please note that additional machining may not be possible depending on the specific modification requirements. We appreciate your understanding in advance.
Specification
Features：Compatible with optional soft jaws (sold separately).
Material：Jaw S50C/Base FCD60
Tightening torque：15kn(60N/mWhen tightened to 60 N/m)
Repeating center accuracy：within ±0.02mm
Inspection Certificate: Included
Product Specifications (Variations)

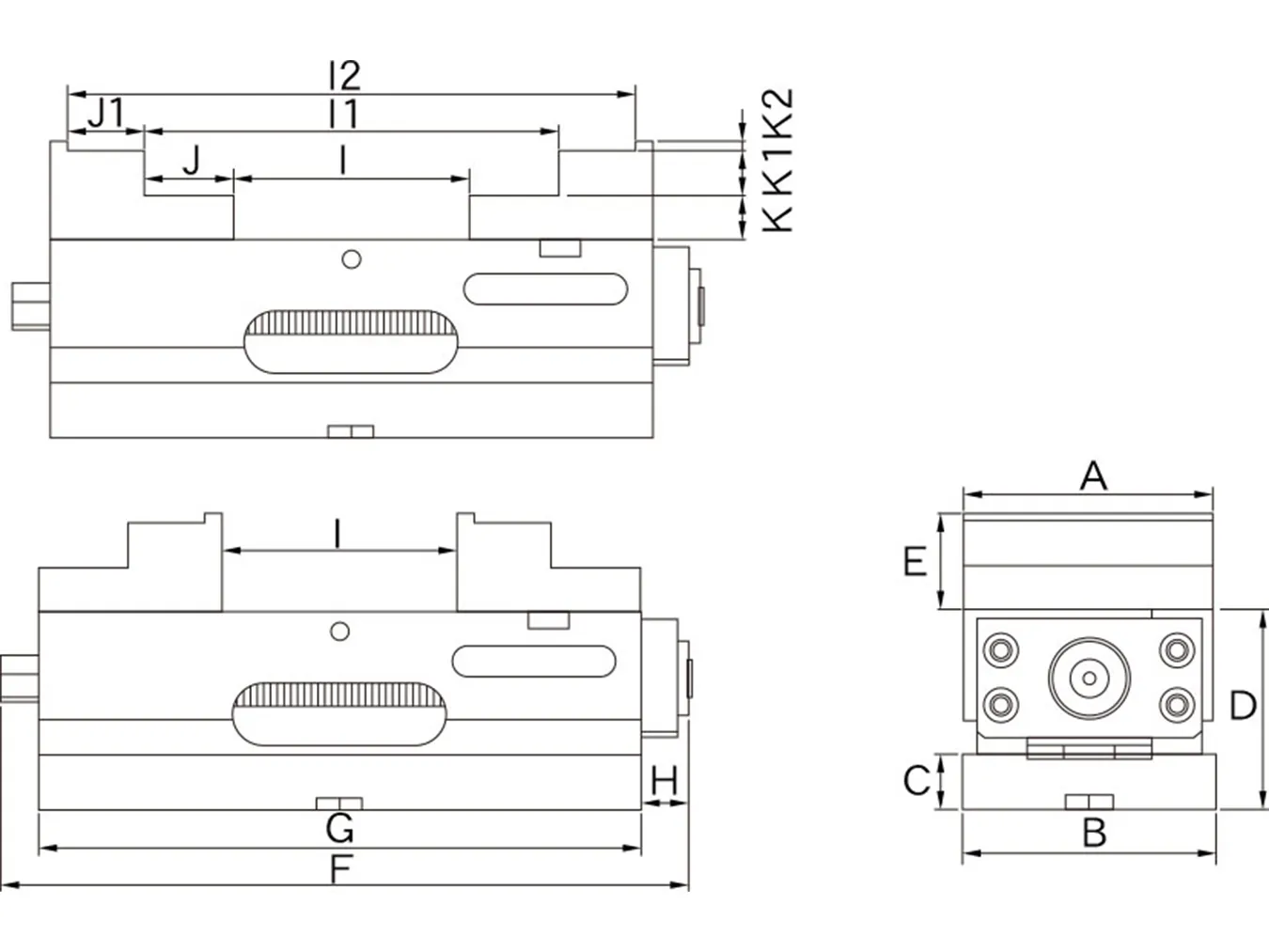

unit：mm| Product NO | A(Jaw width） | B | C | D | E | F | G | H | I（Jaw opening） | I1（Jaw opening） | I2（Jaw opening） | J | J1 | K | K1 | K2 | weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FT-SCV60 | 59 | 60 | 18 | 60 | 25 | 143 | 120 | 13 | 0-50 | 38-85 | --- | 17.5 | - | 12.5 | 12.5 | - | 4.5kg |
| FT-SCV100 | 100 | 101 | 22 | 80 | 40 | 260 | 240 | 20 | 0-90 | 70-160 | 134-222 | 35 | 31 | 18 | 18 | 4 | 17.5kg |
| FT-SCV160 | 160 | 161 | 22 | 105 | 55 | 440 | 370 | 70 | 0-200 | 86-285 | --- | 42.5 | - | 27.5 | 27.5 | - | 47.5kg |
