5-axis Self Centering Vise
Product NO: FT-SCV_1275-1278
Quote upon request
Custom orders (such as matched parallel sets or additional machining) are available upon request. As pricing differs from the standard models, please feel free to contact us for a quotation./n※Please note that additional machining may not be possible depending on the specific modification requirements. We appreciate your understanding in advance.
Specification
Features：This self-centering vice features hard serrated jaws, delivering exceptional gripping force and superior repeatability.
Material：Jaw S50C/Base FCD60
Tightening torque：15kn(When tightened to 60 N/m)
Repeating center accuracy：within ±0.01mm
Inspection Certificate: Included
Product Specifications (Variations)

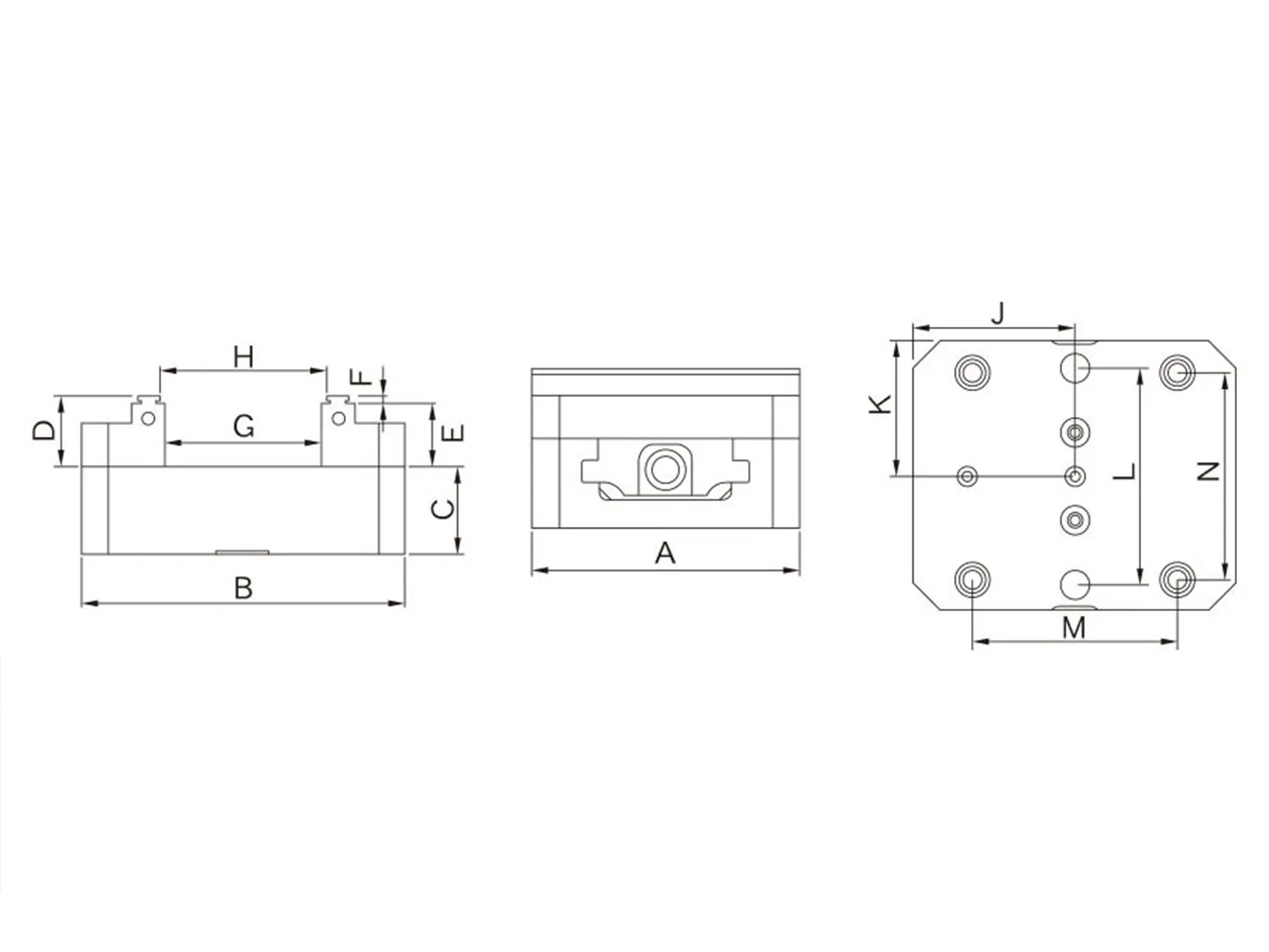

unit：mm| Product NO | A（Jaw width） | B | C | D（Jaw height） | E | F | G（Jaw opening） | H | J | K | L | M・N | weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FT-SCV1275 | 127 | 127 | 42 | 33 | 30 | 3 | 0-46 | 51 | 63.5 | 63.5 | 101 | 96 | 7kg |
| FT-SCV1276 | 127 | 153 | 42 | 33 | 30 | 3 | 0-72 | 79 | 76.5 | 63.5 | 101 | 96 | 8kg |
| FT-SCV1278 | 127 | 210 | 42 | 33 | 30 | 3 | 0-129 | 135 | 105 | 63.5 | 101 | 96 | 9kg |
| FT-SCV12710 | 127 | 255 | 42 | 333 | 30 | 3 | 0-175 | 182 | 127.5 | 63.5 | 101 | 96 | 10kg |
