Magnetic Sine Bar
Product NO: FT-SB
Price range: ¥49,000 through ¥65,000
Specification
Material：YK30(Hardened and ground)
Hardness：HRC56°～60°
Parallelism: Within 0.003 mm / 100 mm
Squareness: Within 0.005 mm / 100mm
Distance between centers accuracy: ±0.003 mm
●The magnetic sine bar enables precise setting of any desired angle by using gauge blocks selected according to trigonometric calculations.
●Gauge blocks are not included.
Product Specifications (Variations)

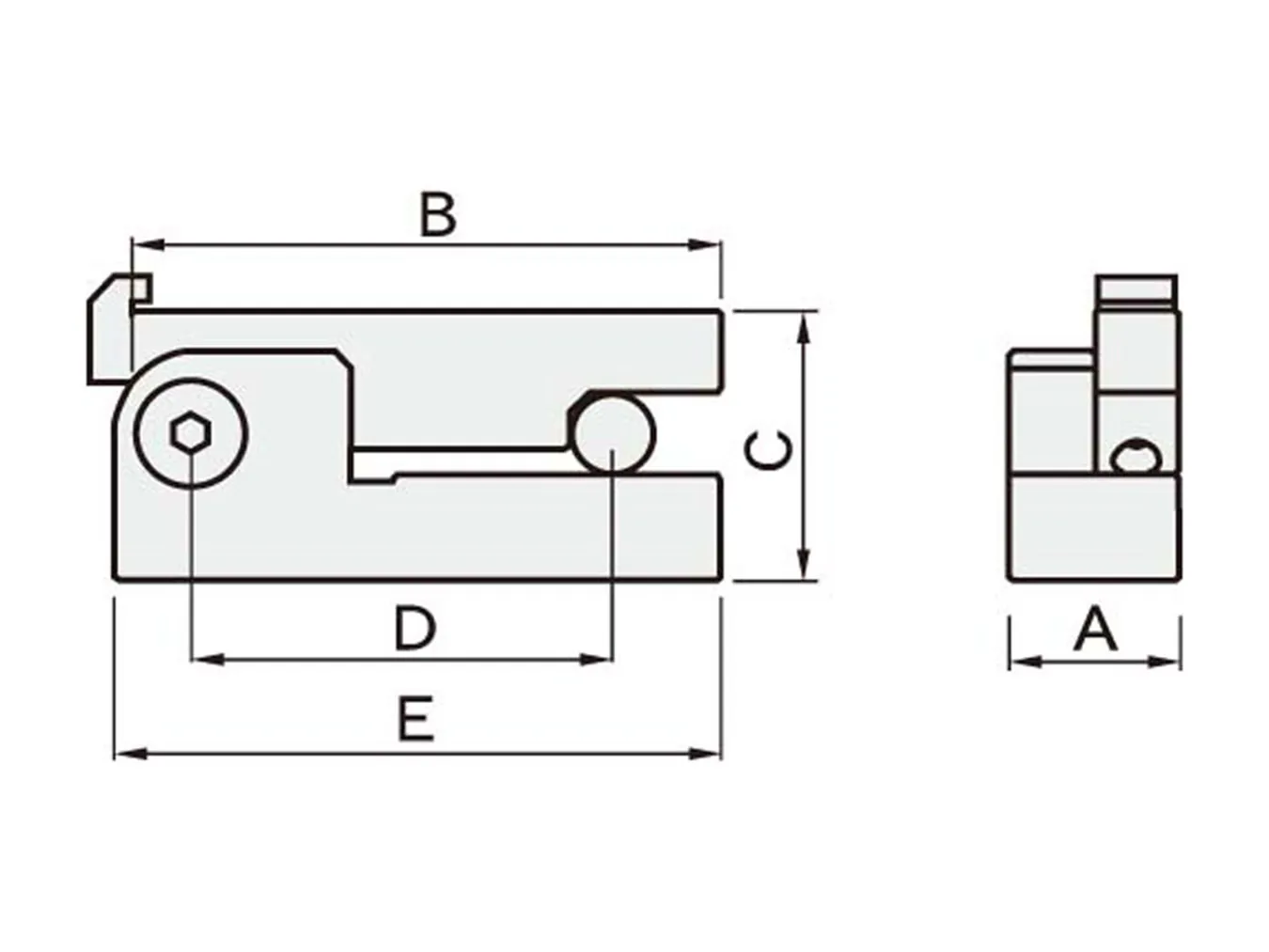

unit：mm| Product NO | A | B | C | D | E | weight（kg） |
|---|---|---|---|---|---|---|
| FT-SB50 | 20 | 70 | 33 | 50 | 72 | 0.3kg |
| FT-SB100 | 28 | 120 | 36 | 100 | 122 | 0.7kg |
