V Blocks with C Clamp
Product NO: FT-PV
Quote upon request
Specification
1 set: Includes 2 pieces
Material：SKS3
Hardness：HRC56°～60°
Squareness: Within 0.005 mm / 100mm
V-block parallelism: 0.005 mm

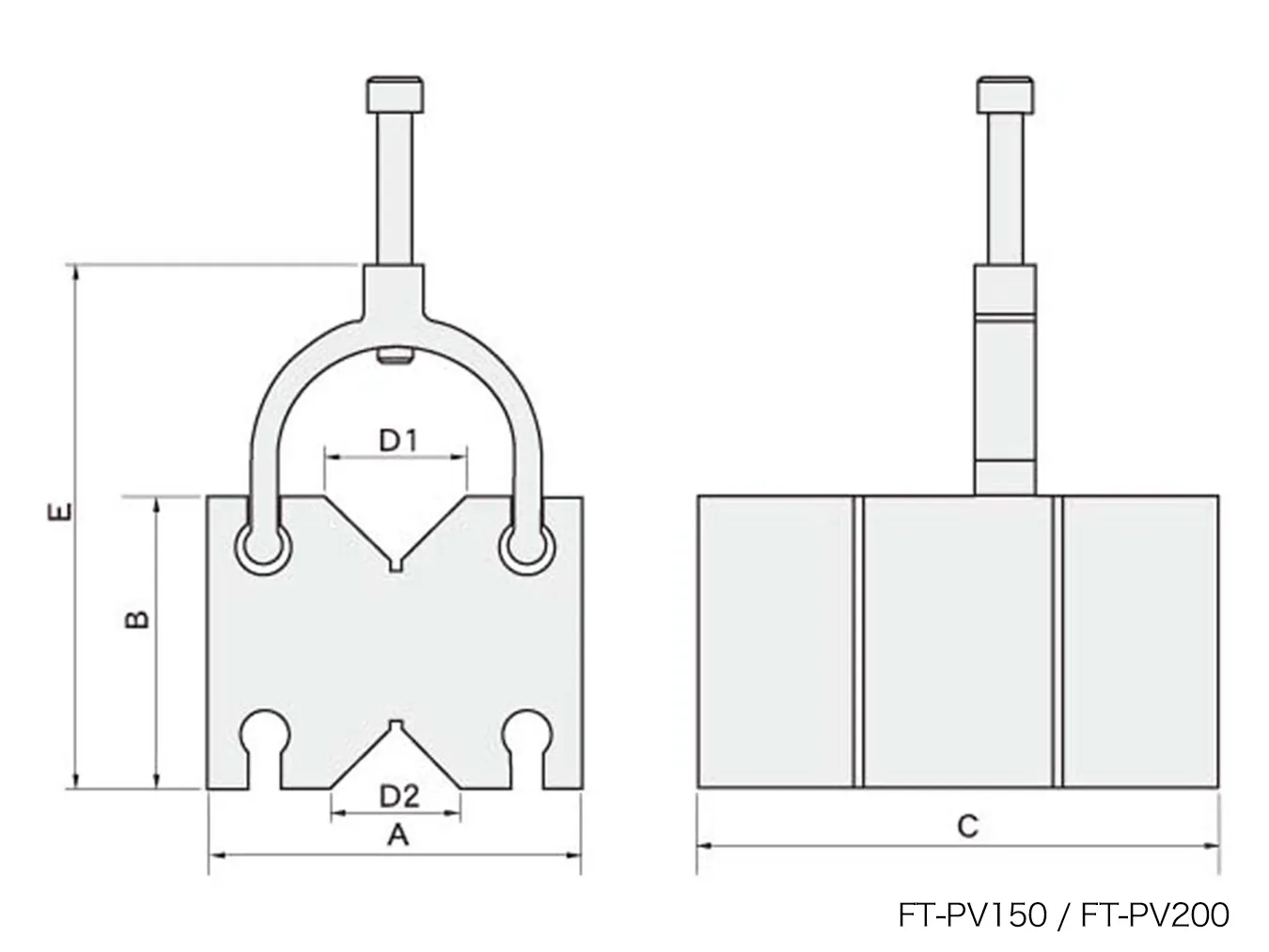

Product Specifications (Variations)
unit：mm| Product NO | Clamping range | A | B | C | D1 | D2 | E | weight（kg） |
|---|---|---|---|---|---|---|---|---|
| FT-PV150 | Ø3.5-Ø33 | 64 | 45 | 70 | 29 | 24 | 90 | 1.3 |
| FT-PV200 | Ø3.5-Ø41 | 90 | 70 | 125 | 34 | 31 | 125.5 | 5.2 |
