Adjustable Angle Plate
Product NO: FT-AP
Price range: ¥36,000 through ¥52,000
Specification
Material：S45CS45C (fully hardened and ground)
Adjustable angle 30° ~ 0° ~ 60°.
Vernier reading: 10′ (10 arc minutes)
Features: The angle can be set in 10-minute increments and locked in place using the hex screw located at the center of the V-block.
Product Specifications (Variations)

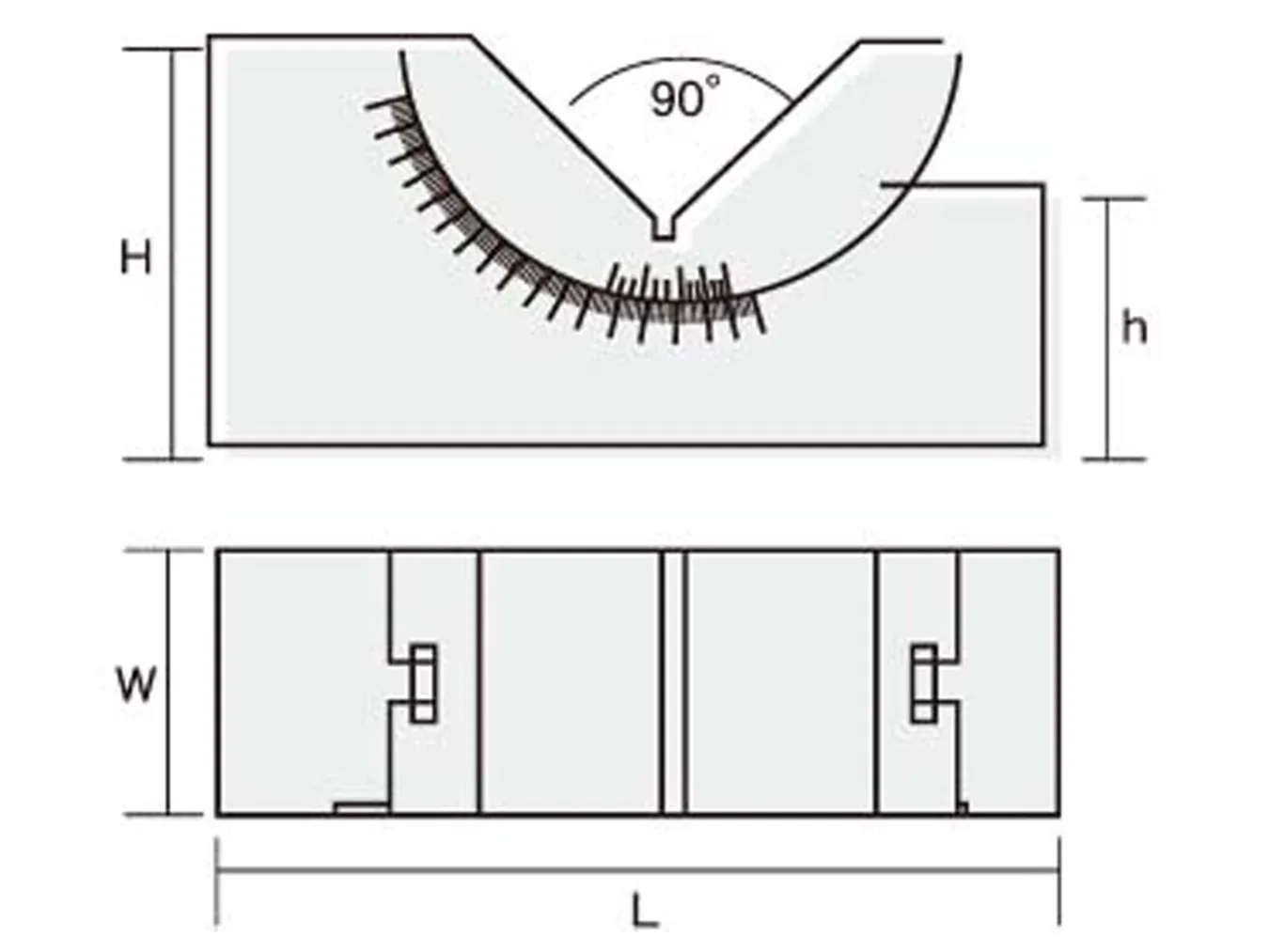

unit：mm| Product NO | L | W | H | h | weight（kg） |
|---|---|---|---|---|---|
| FT-AP0725 | 75 | 25 | 37.3 | 25 | 0.4kg |
| FT-AP1030 | 102 | 30 | 50.8 | 30 | 0.9kg |
| FT-AP1046 | 102 | 46 | 50.8 | 30 | 1.4kg |
