Precision Motor 4″ 3-Jaws Punch Former

Product NO: FT-PFHM-SC04

¥1,490,000

This is a back-order item

Specification

●A highly durable punch former constructed from stainless steel and featuring a waterproof design.
●Featuring the FT-SC04 (05) HD 3-jaw chuck, the unit allows workpieces to be clamped quickly, easily, and with exceptional accuracy.
●Equipped with precision dual bearings for exceptional stability and accuracy.
●Power supply: Single-phase 100 V
●Motor speed: 50–550 min⁻¹ (rpm)

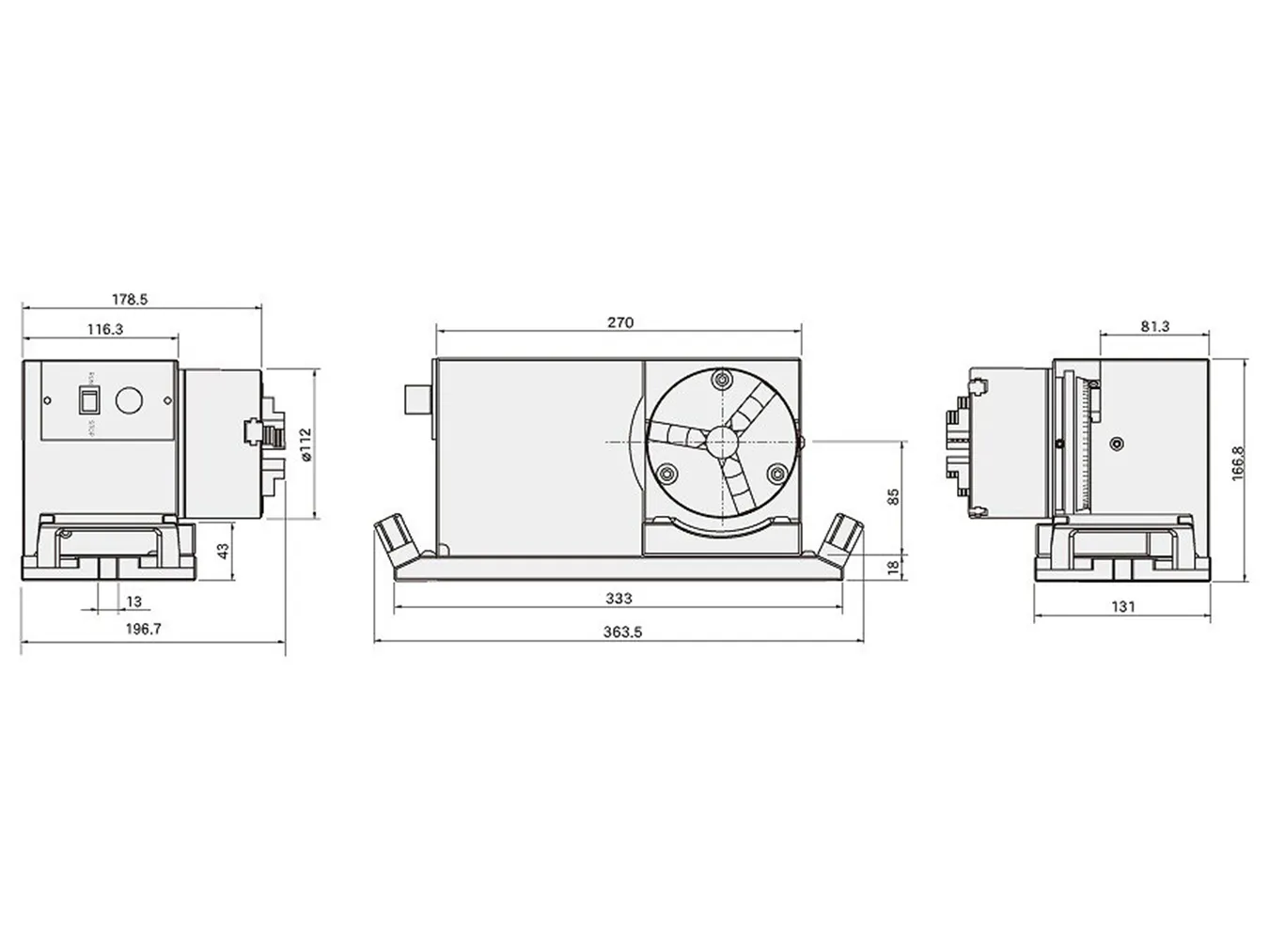

unit：mm

Product NOFT-PFHM-SC04
Chuck typeSC04
Center height85mm±0.5mm
Hole dia. of 3-Jaw ChuckØ32mm
Outer diameterGripping rangeØ3-90mm
inside diameterGripping rangeØ32-84mm
Rotational accuracy0.003mm
Repeat accuracy0.015mm
Power supplyAＣ100Ｖ
weight（kg）25kg
