Super Thin Type Permanent Magnetic Chuck
Product NO: FT-MT-W
Quote upon request
Specification
●Applications: Surface grinding machines, electrical discharge machining machines
●Features：Waterproof
Product Specifications (Variations)

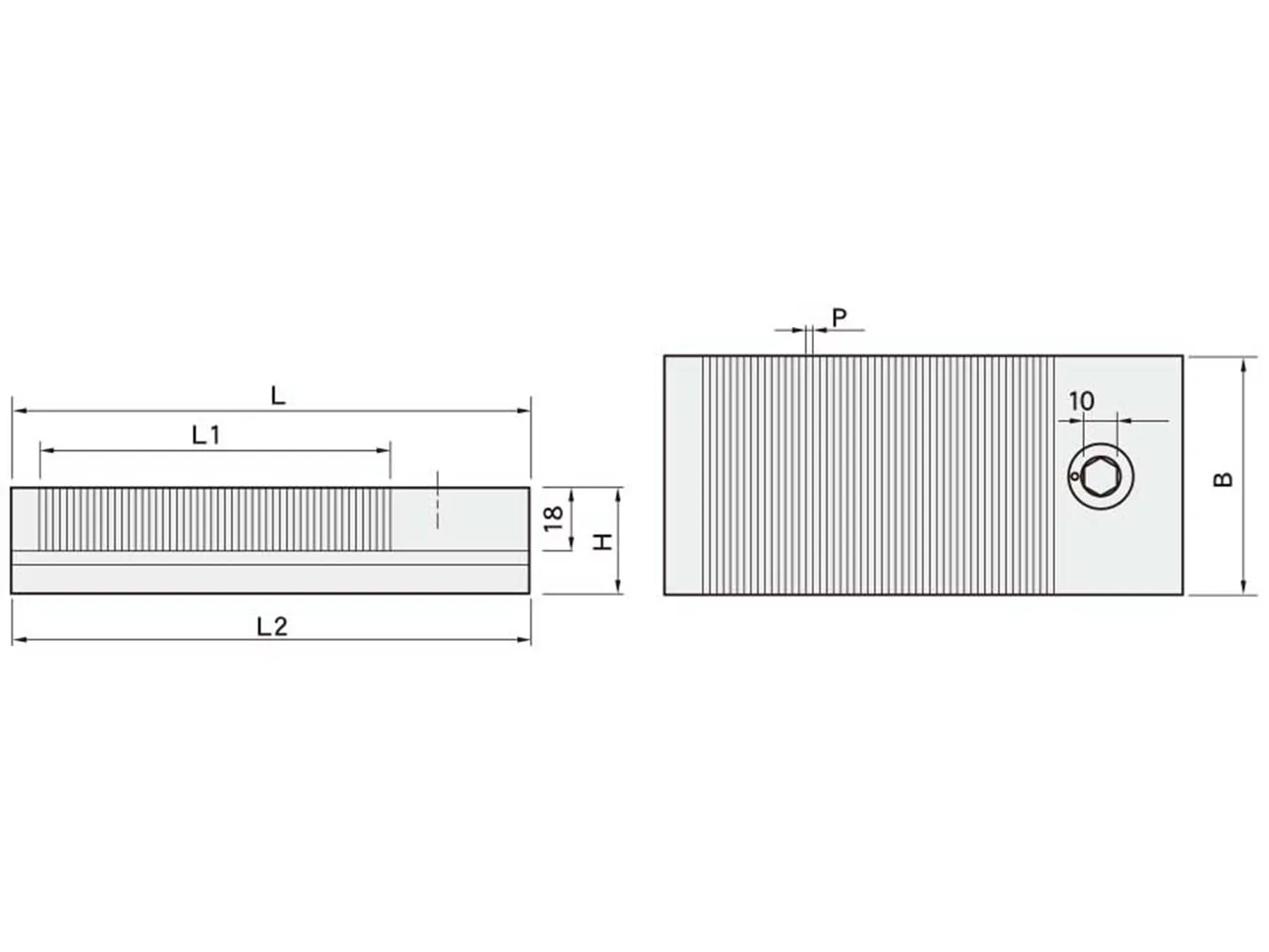

unit：mm| Product NO | Nominal Dimension | B | L | L1 | Magnetic PolePitch | L2 | H | weight（kg） |
|---|---|---|---|---|---|---|---|---|
| FT-MT305W | 70×130 | 70 | 130 | 77 | 2（1+1） | 130 | 30 | 2.2 |
| FT-MT307W | 70×175 | 70 | 175 | 122 | 2（1+1） | 175 | 30 | 2.9 |
| FT-MT408W | 100×200 | 100 | 200 | 147 | 2（1+1） | 220 | 30 | 5.7 |
| FT-MT606W | 150×150 | 150 | 150 | 97 | 2（1+1） | 150 | 36 | 6.4 |
| FT-MT608W | 150×200 | 150 | 200 | 147 | 2（1+1） | 220 | 36 | 8.5 |
| FT-MT610W | 150×250 | 150 | 250 | 197 | 2（1+1） | 270 | 36 | 10.6 |
