FT-HT type Magnetic Induction Block
Product NO: FT-HT
Price range: ¥94,000 through ¥266,000
Specification
●Used on top of a permanent magnetic chuck to direct and concentrate the magnetic flux.
●If the thickness exceeds 25 mm, the magnetic force decreases by 20%.。
●This product itself is not magnetic and does not generate magnetic force on its own.
●Models specified with a quantity of two are sold as a matched pair (2 pcs/set).
●Additional machining possible
●Separator material: Brass.
Product Specifications (Variations)
unit：mm| Product NO | L | W | H | Magnetic PolePitch | Quantity | weight（kg） |
|---|---|---|---|---|---|---|

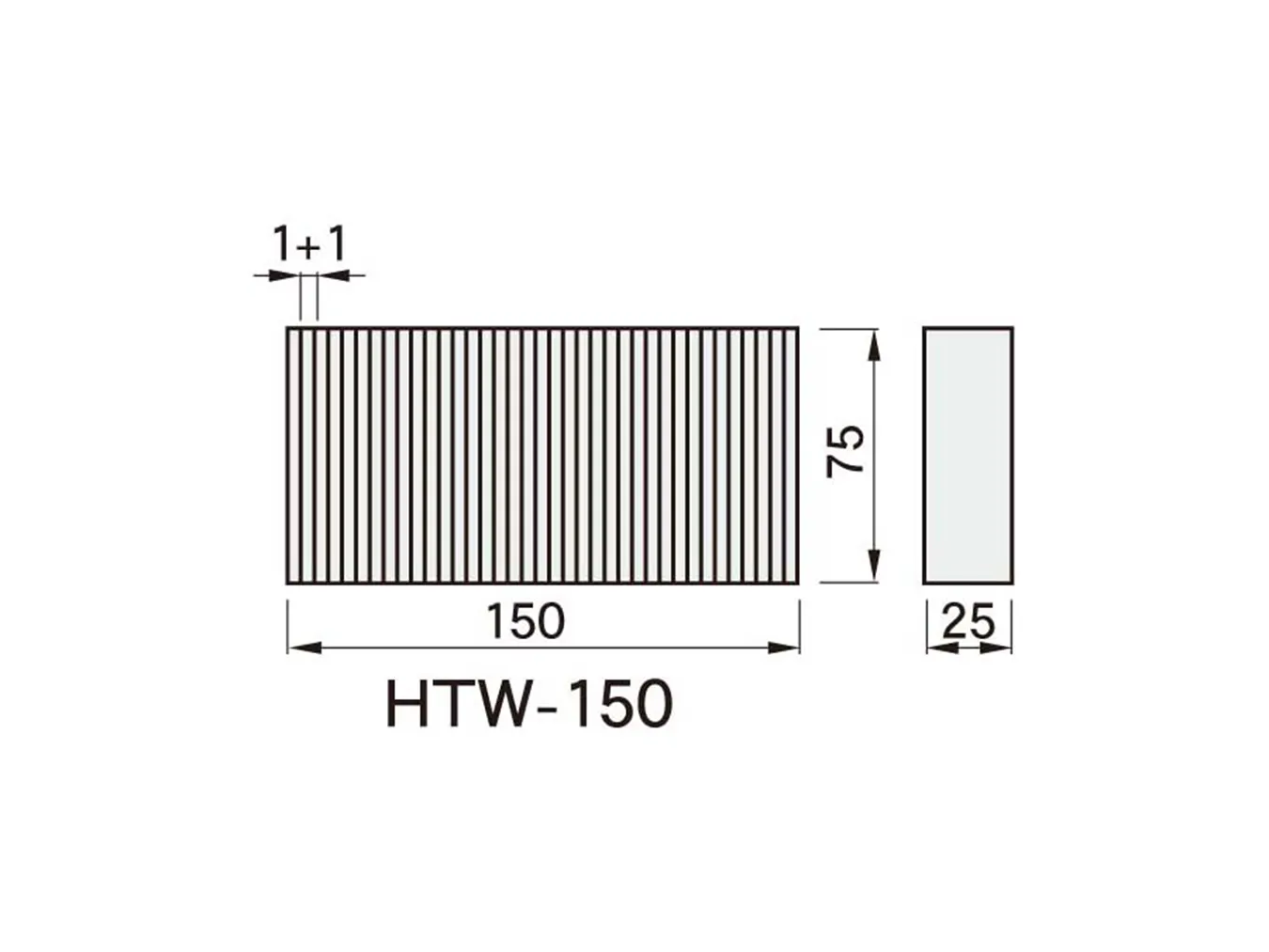

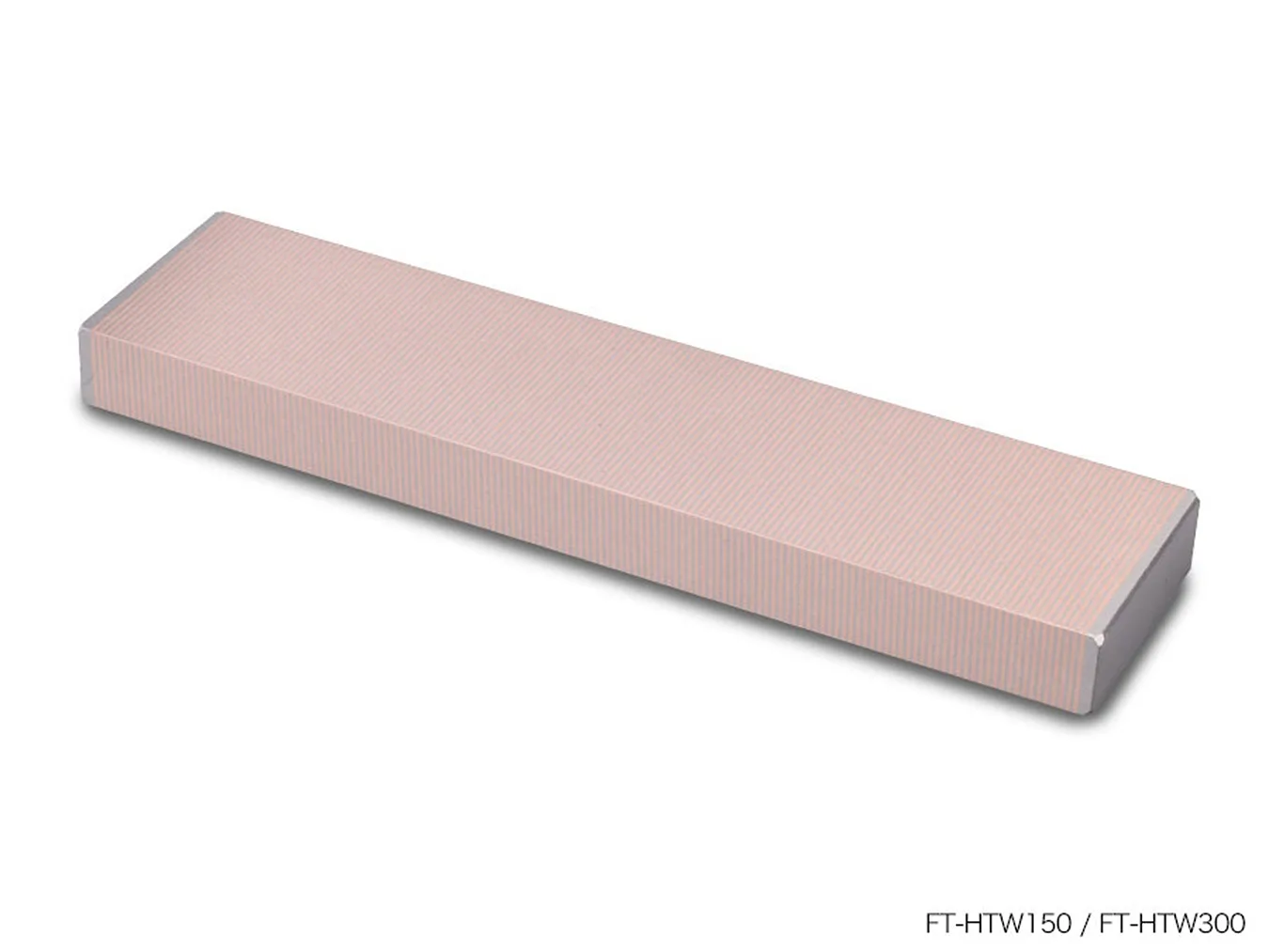

| FT-HTW-150 | 150 | 75 | 25 | 2（1+1） | 1 | 2.2 |

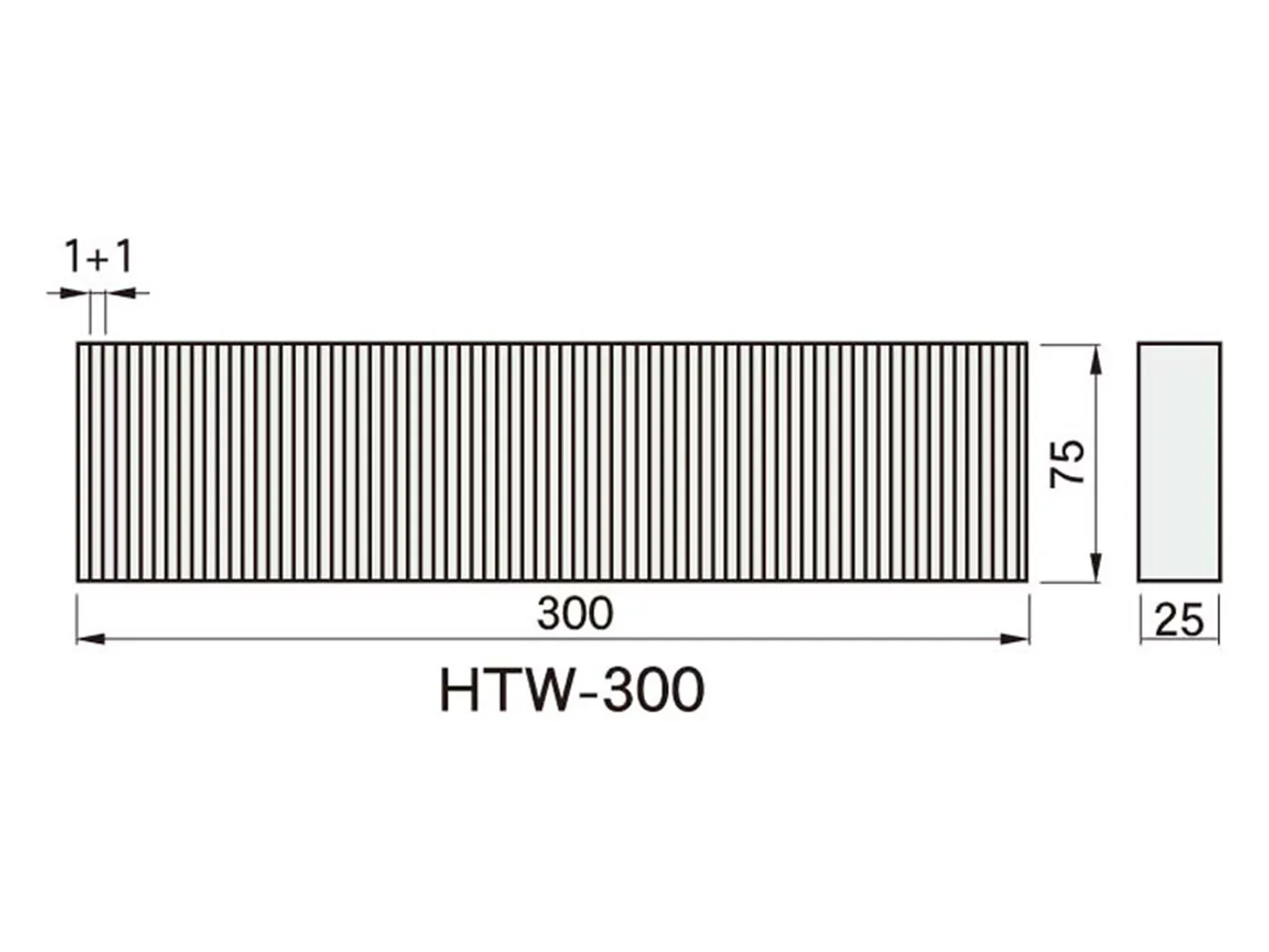

| FT-HTW-300 | 300 | 75 | 25 | 2（1+1） | 1 | 4.4 |

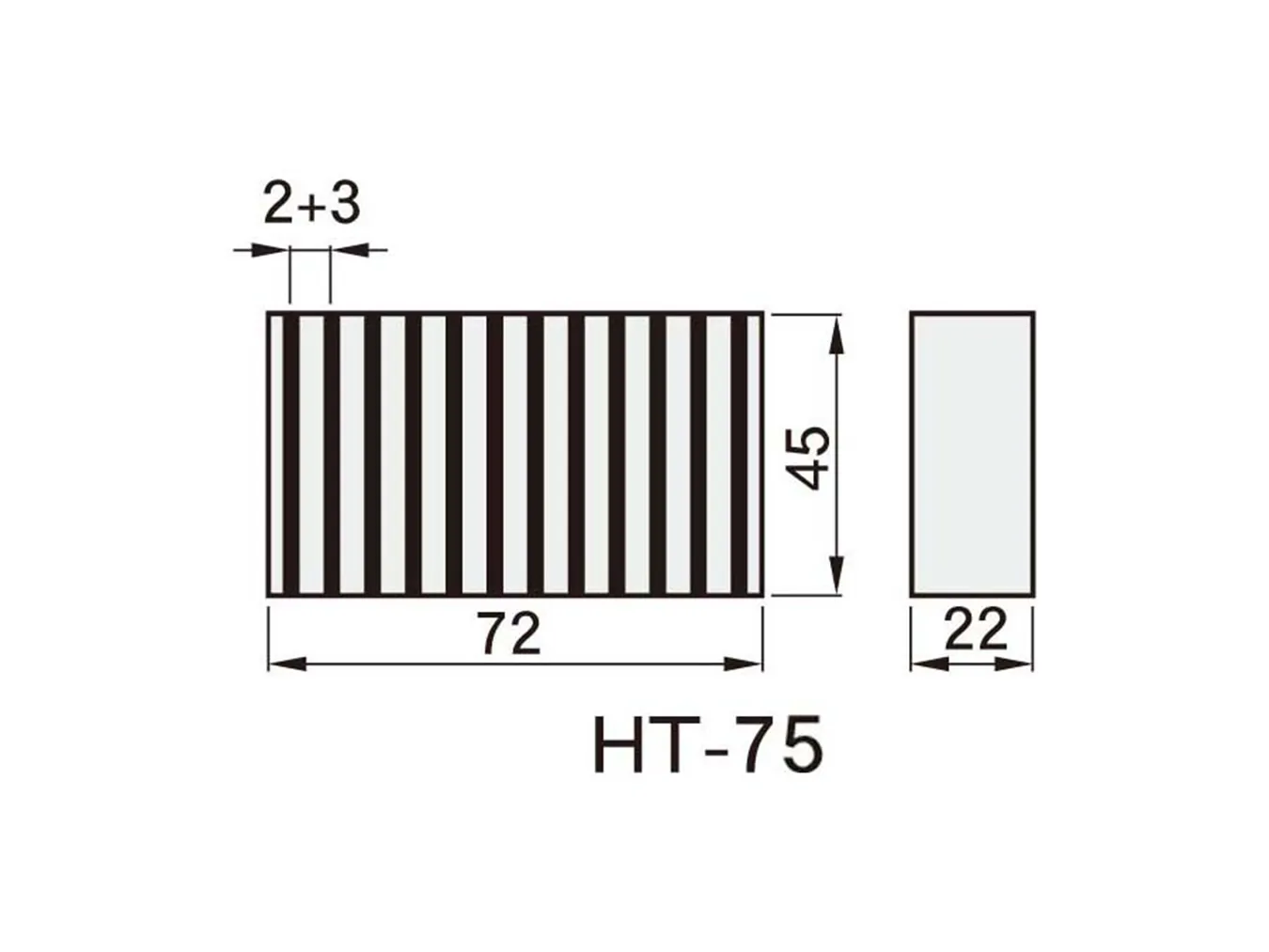

| FT-HT-75 | 72 | 45 | 22 | 5（2+3） | 2 | 1.2 |

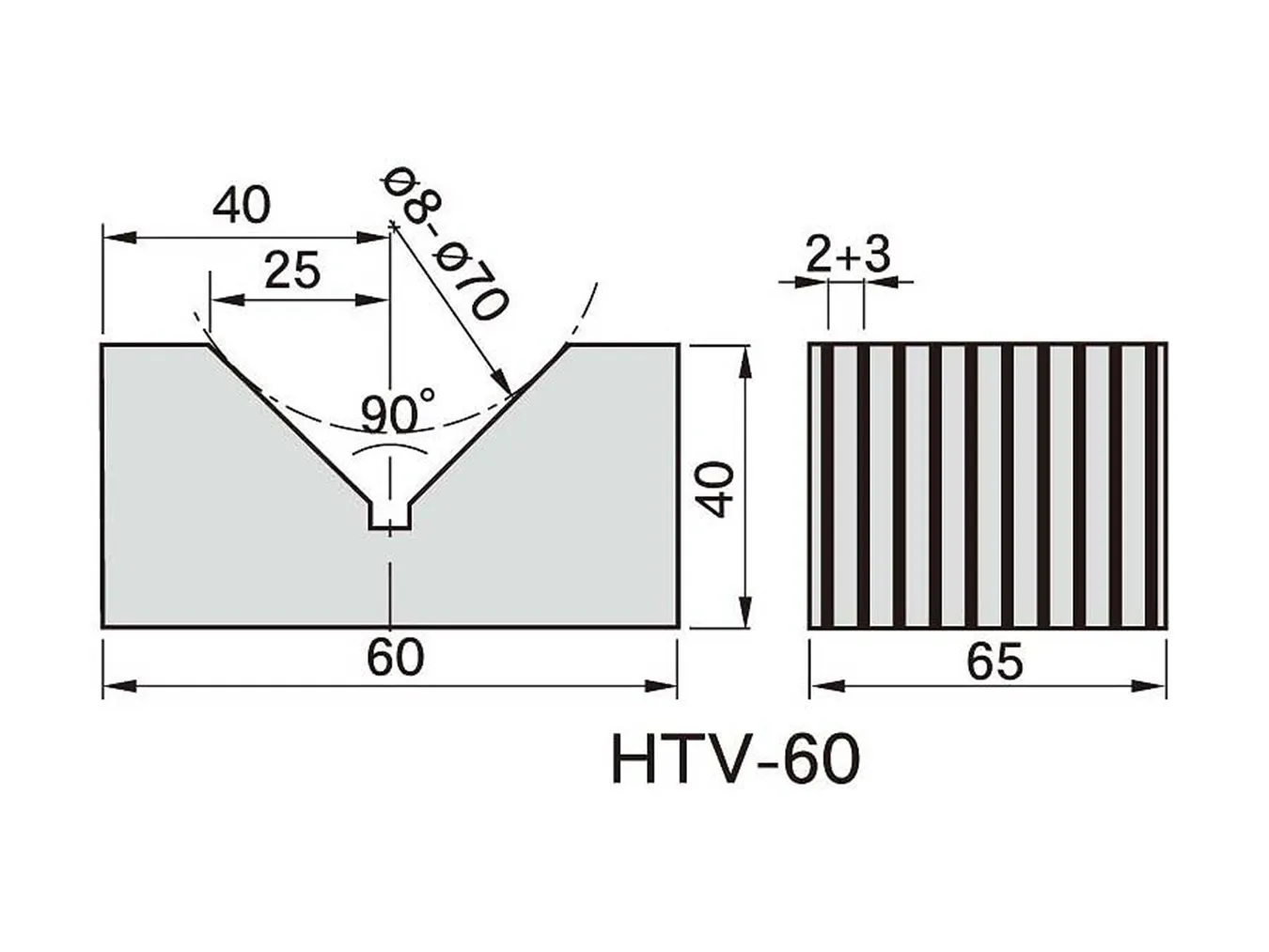

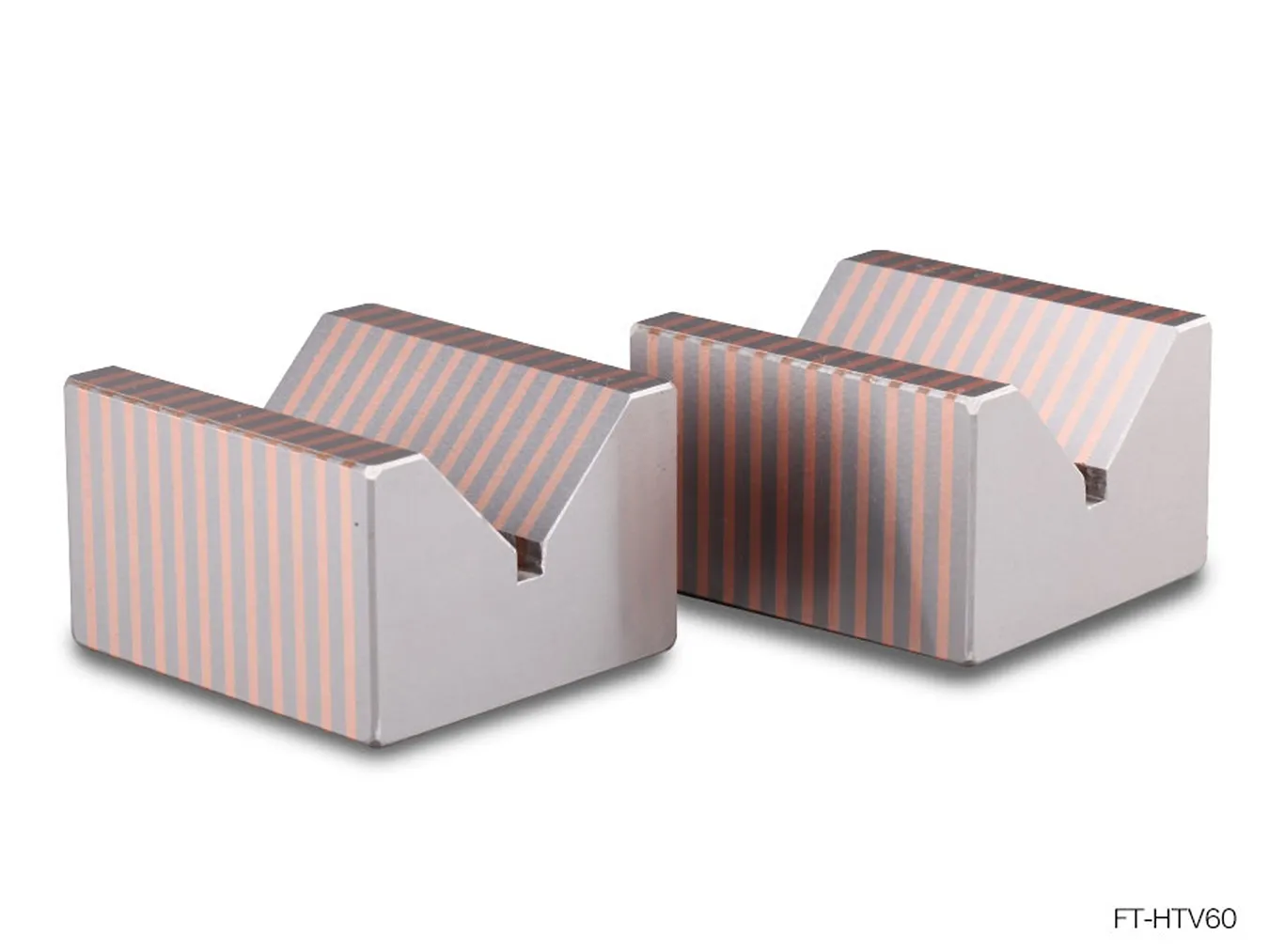

| FT-HTV-60 | 65 | 60 | 40 | 5（2+3） | 2 | 2.5 |

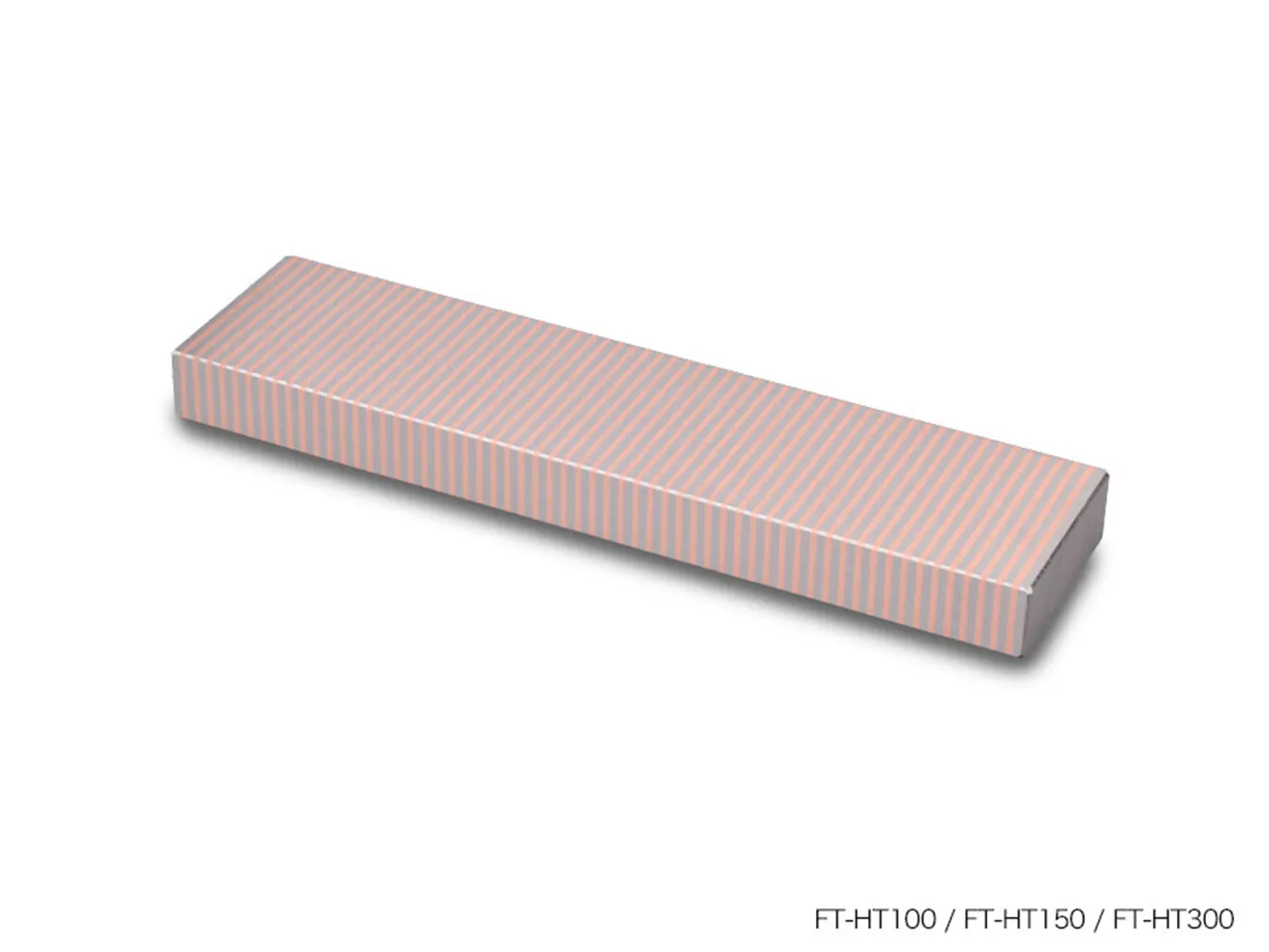

| FT-HT-100 | 100 | 50 | 25 | 5（2+3） | 2 | 2 |

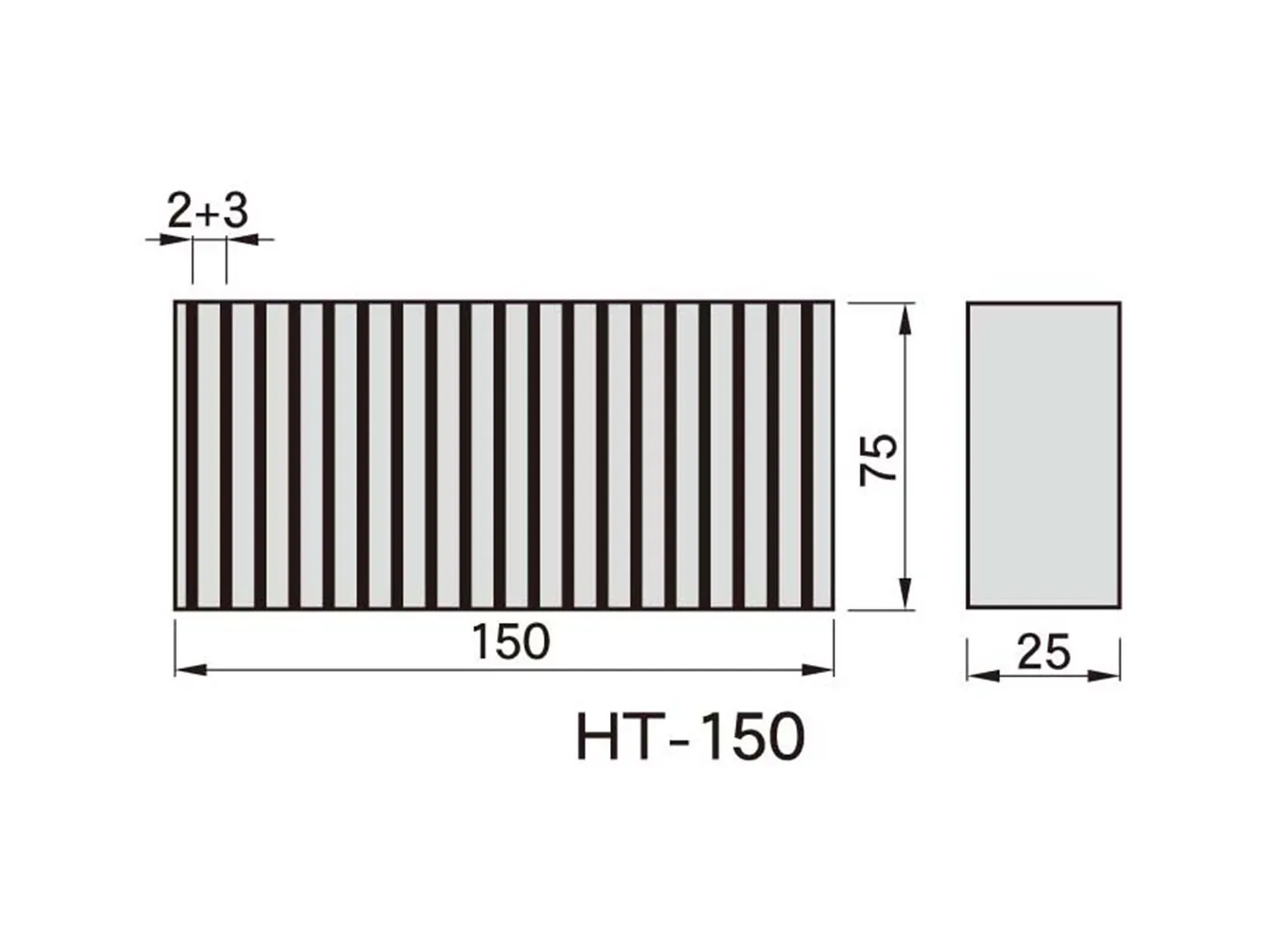

| FT-HT-150 | 150 | 75 | 25 | 5（2+3） | 1 | 2.2 |

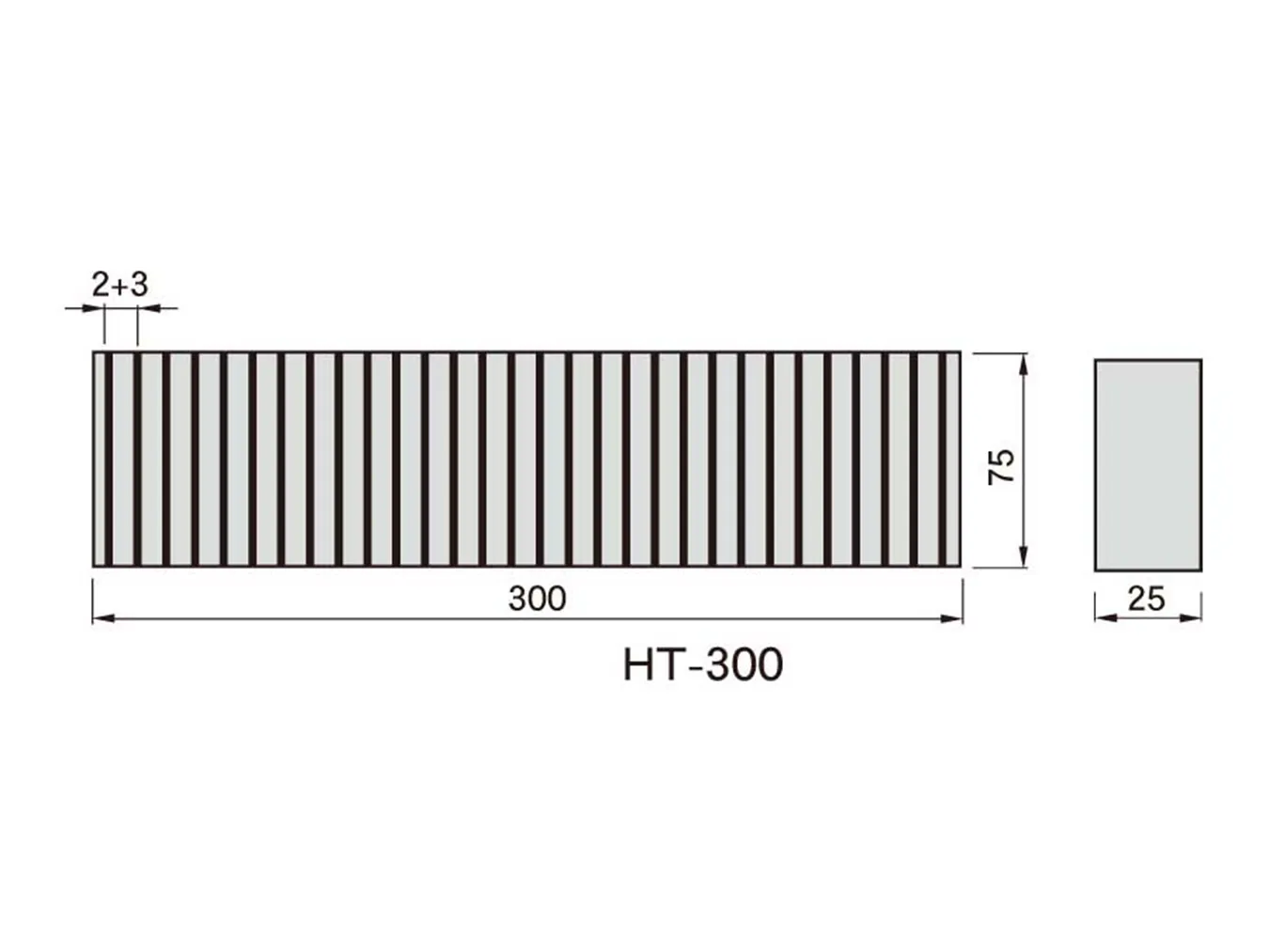

| FT-HT-300 | 300 | 75 | 25 | 5（2+3） | 1 | 4.4 |

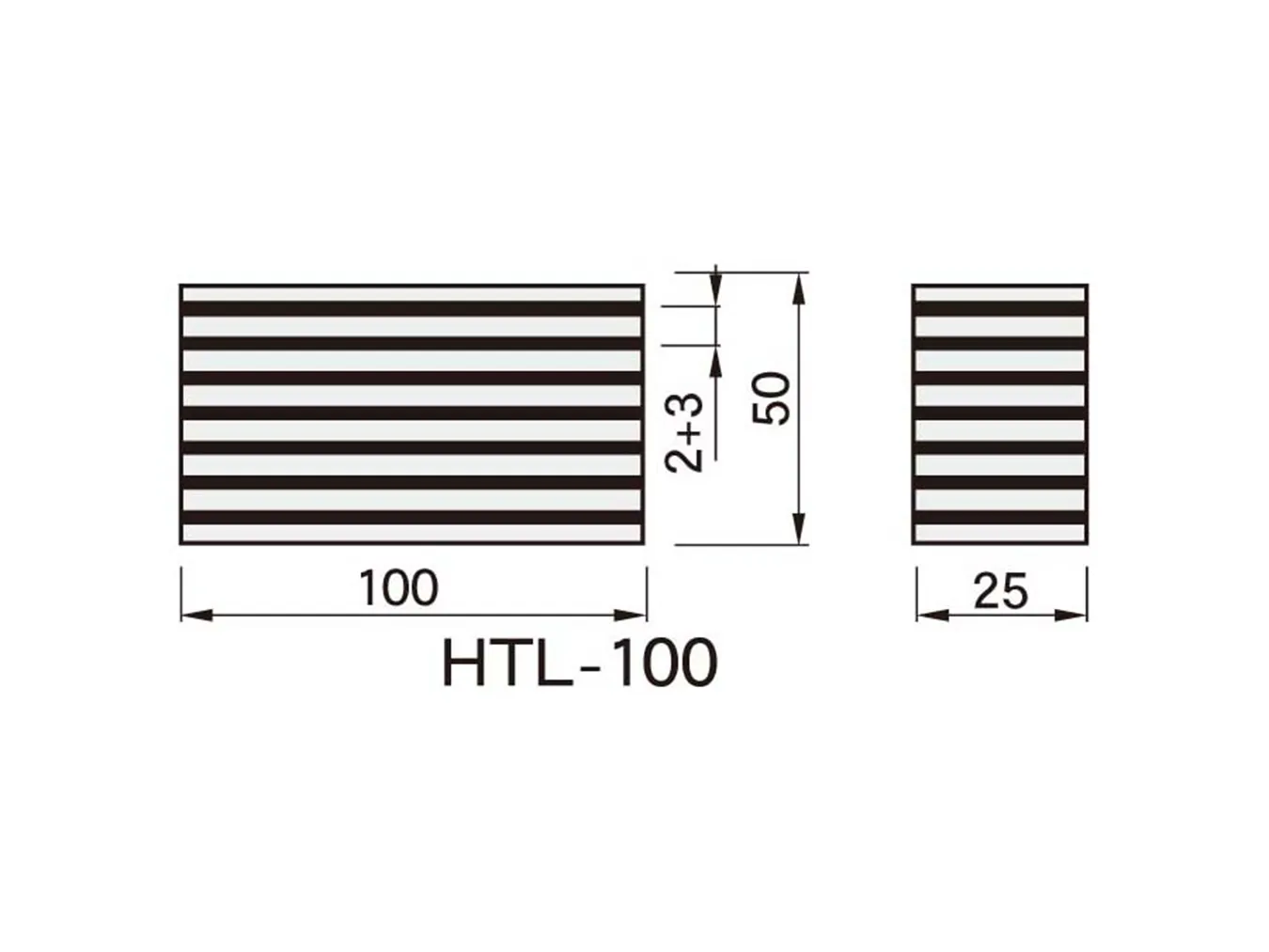

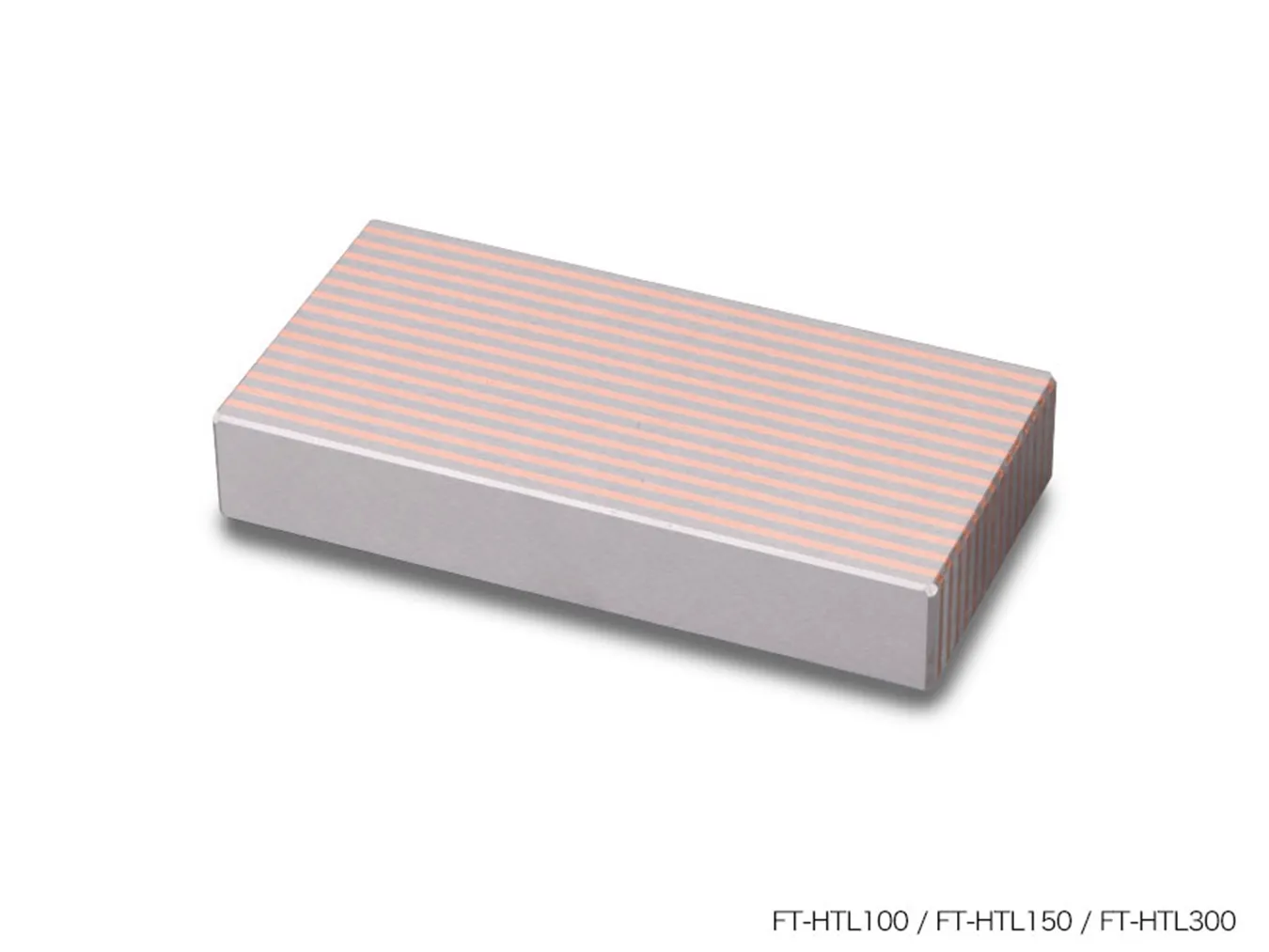

| FT-HTL-100 | 100 | 50 | 25 | 5（2+3） | 2 | 2 |

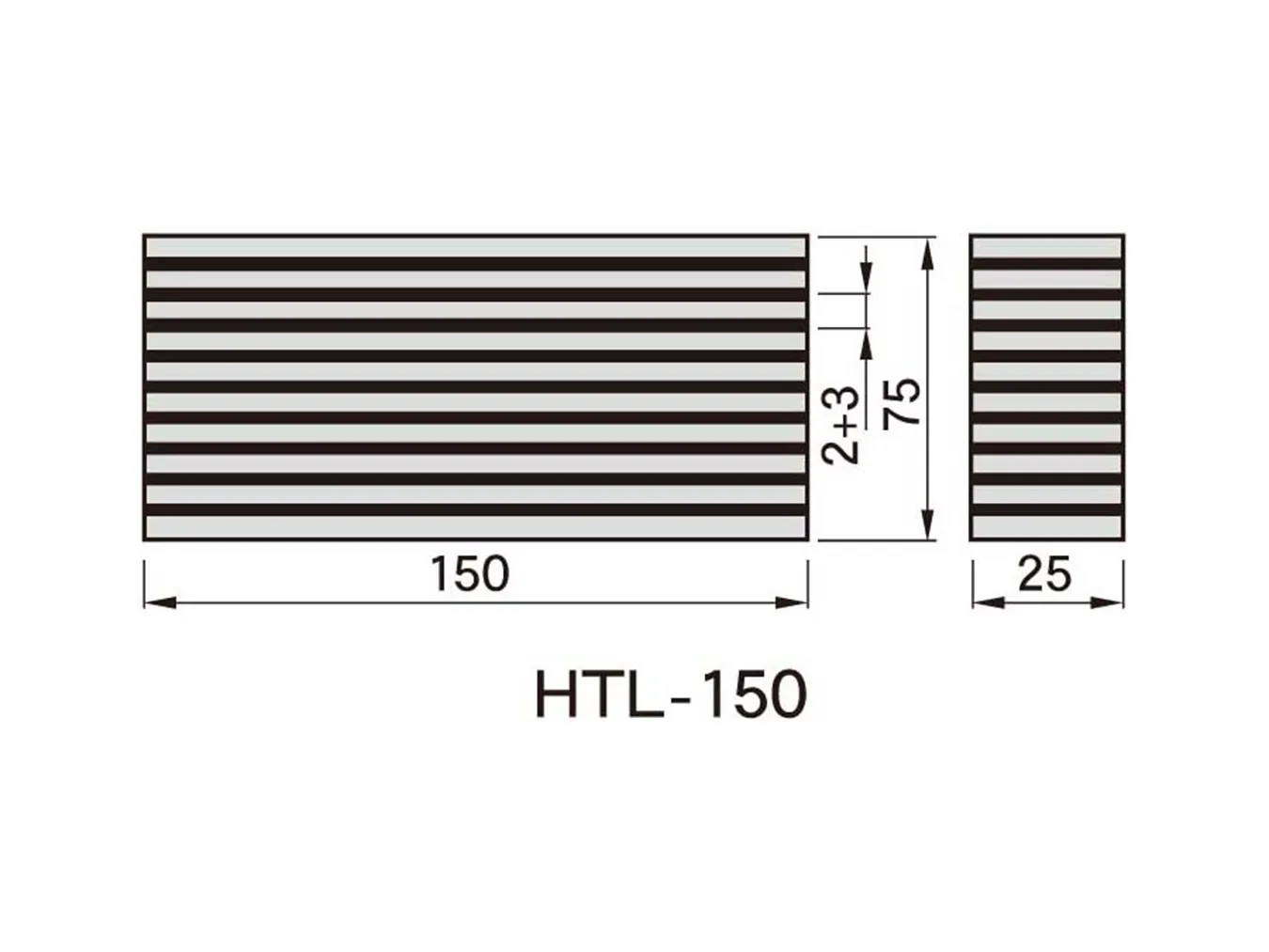

| FT-HTL-150 | 150 | 75 | 25 | 5（2+3） | 1 | 2.2 |
| FT-HTL-300 | 300 | 75 | 25 | 5（2+3） | 1 | 4.4 |
