FT-GT type Magnetic Induction Block
Product NO: FT-GT
Price range: ¥32,000 through ¥43,000
Specification
●Used on top of a permanent magnetic chuck to direct and concentrate the magnetic flux.
●This product itself is not magnetic and does not generate magnetic force on its own.
●Models specified with a quantity of two are sold as a matched pair (2 pcs/set).
●Additional machining or modification is not permitted.
●Separator material: Brass.
Product Specifications (Variations)
unit：mm| Product NO | L×W×H | Quantity | weight（kg） |
|---|---|---|---|

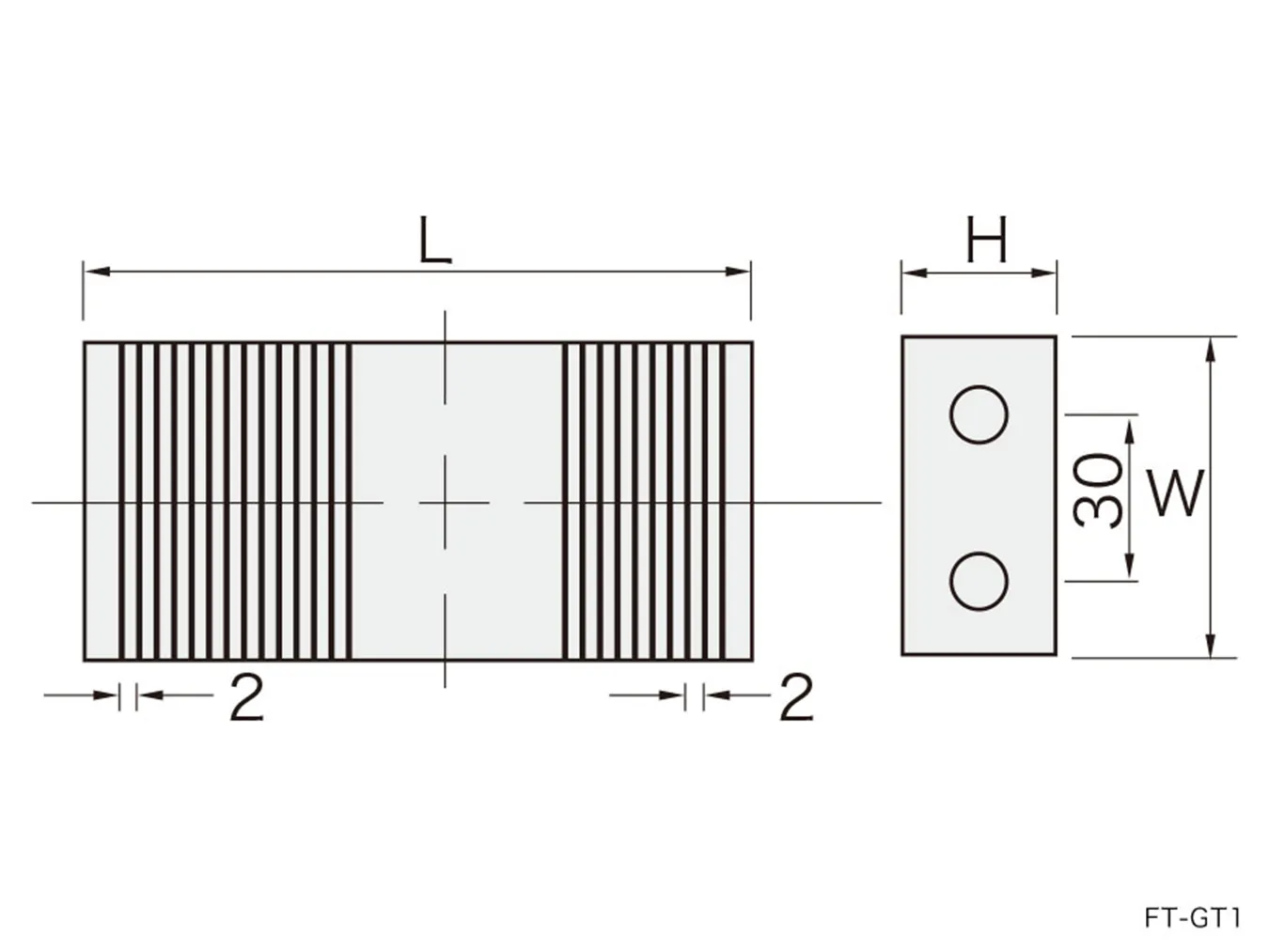

| FT-GT1 | 100×50×25 | 2 | 2 |

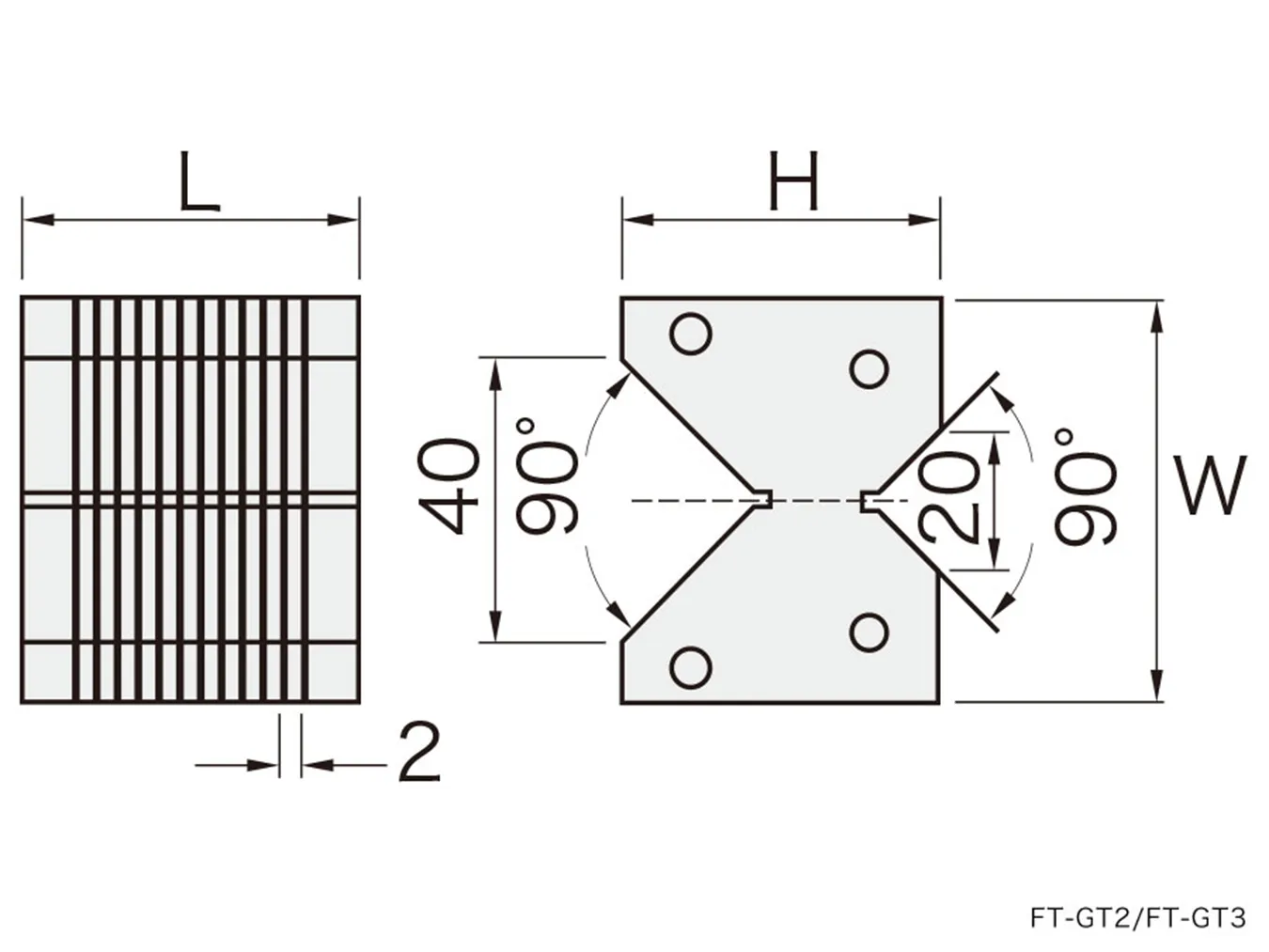

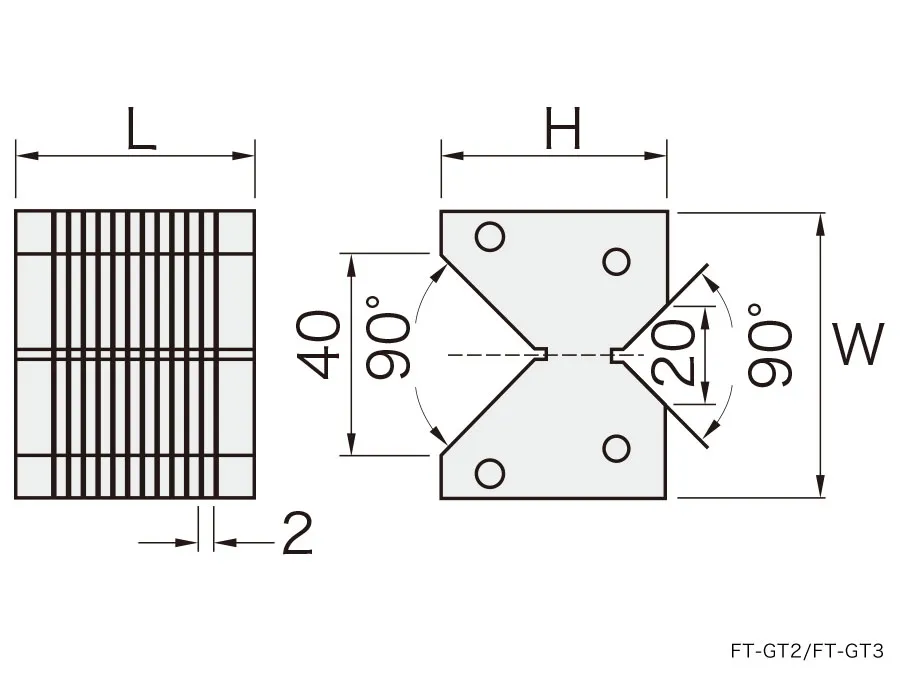

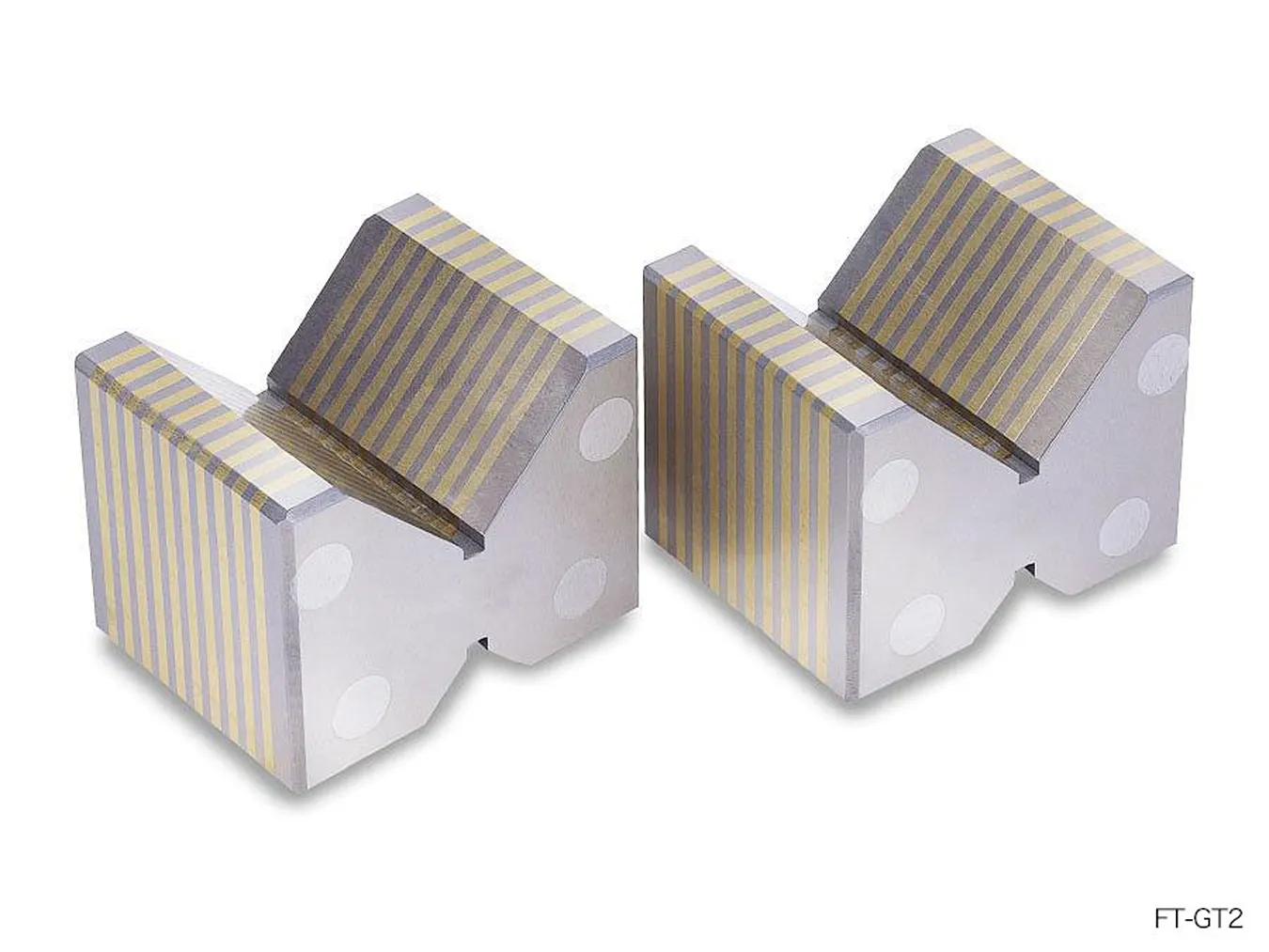

| FT-GT2 | 49×58×46 | 2 | 1.7 |

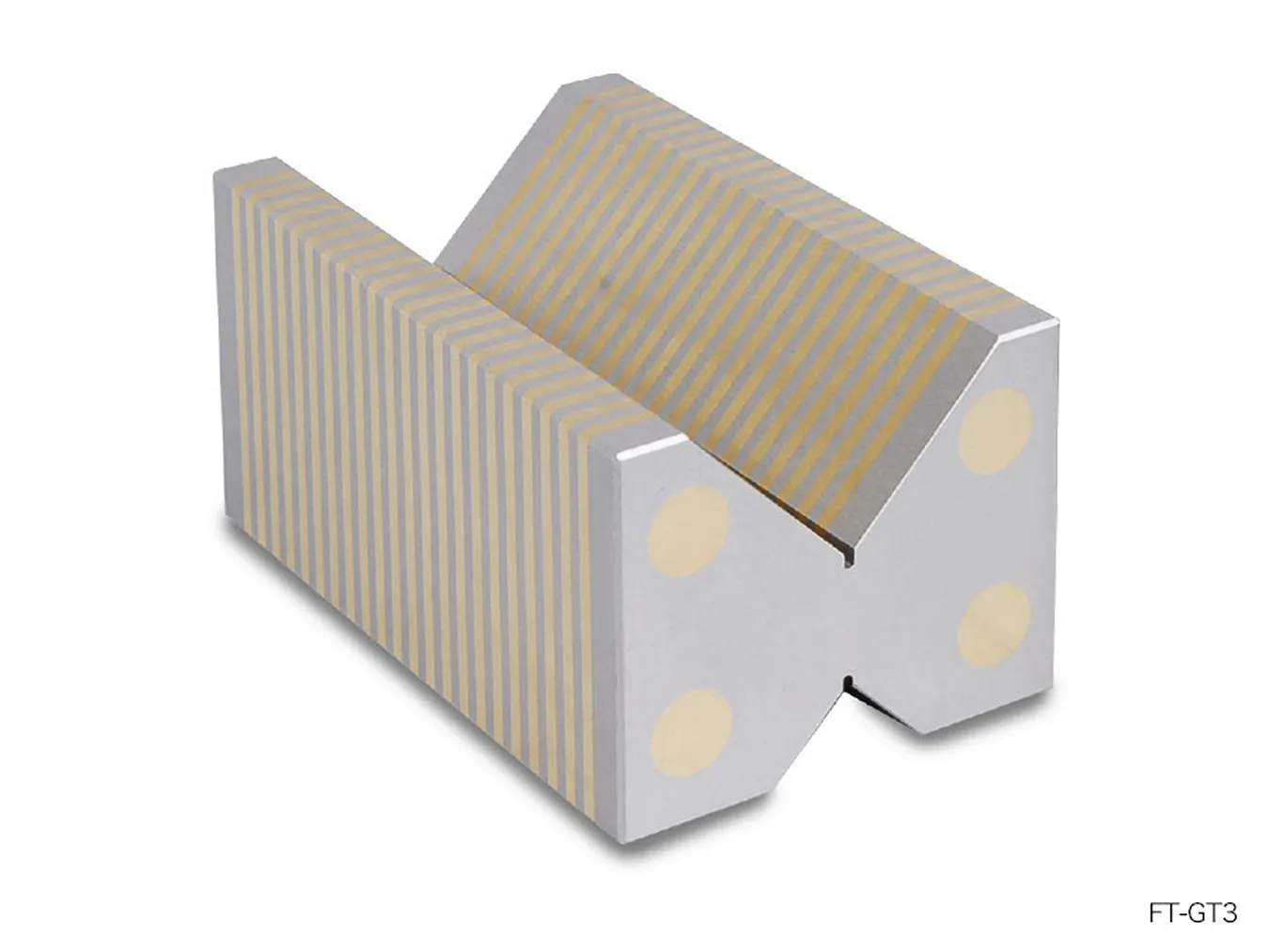

| FT-GT3 | 100×58×46 | 1 | 3.4 |
