Round Star-pole Type Permanent Magnetic Chuck
Product NO: FT-HRC-S
Quote upon request
Specification
●A star-pole permanent magnetic chuck designed for ring-shaped workpieces on lathes, vertical multi-process grinding machines, and rotary grinding machines.
●The star-pole construction is particularly well suited for holding ring-shaped workpieces such as bearings.
●Waterproof design.
●Magnetic holding force can be adjusted according to the handle rotation angle.

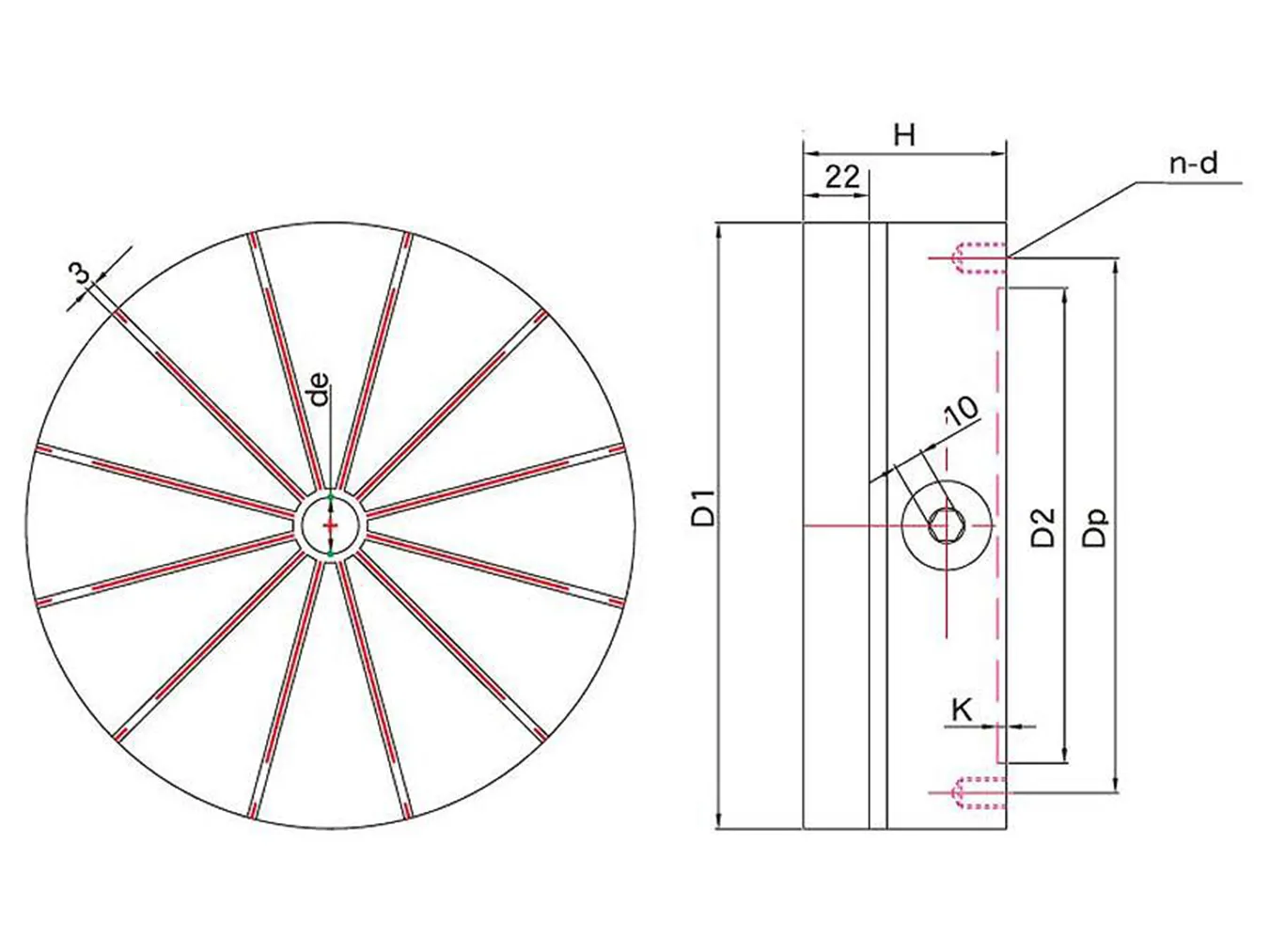

Product Specifications (Variations)
unit：mm| Product NO | Nominal Dimension | D1 | de | Magnetic PolePitch | D2 | K | n | d | Dp | HeightH | weight（kg） |
|---|---|---|---|---|---|---|---|---|---|---|---|
| FT-HRC-10S | Ø104 | 104 | 16 | 8 | 63 | 4 | M6 | 4 | 80 | 58 | 4.2 |
| FT-HRC-13S | Ø130 | 130 | 16 | 12 | 80 | 4 | M8 | 4 | 112 | 58 | 6.6 |
| FT-HRC-16S | Ø162 | 162 | 16 | 12 | 125 | 4 | M8 | 4 | 140 | 58 | 10.2 |
| FT-HRC-20S | Ø202 | 202 | 19 | 16 | 160 | 4 | M8 | 4 | 180 | 58 | 17.1 |
| FT-HRC-25S | Ø250 | 250 | 19 | 16 | 200 | 4 | M10 | 4 | 224 | 58 | 26.2 |
| FT-HRC-32S | Ø320 | 320 | 19 | 18 | 250 | 4 | M10 | 4 | 280 | 63 | 43.2 |
| FT-HRC-36S | Ø360 | 360 | 40 | 24 | 280 | 4 | M12 | 4 | 320 | 63 | 55 |
| FT-HRC-40S | Ø400 | 400 | 46 | 30 | 315 | 4 | M12 | 4 | 355 | 63 | 67 |
