Powerful Permanent Magnetic Chuck for Milling
Product NO: FT-HMT
Quote upon request
Specification
Features：
１. Fully waterproof design, suitable for use in submerged environments.
２. Models with nominal dimensions of 300 × 400 mm and larger are equipped with two ON/OFF switching controls.
３. Parallelism: ±0.005 mm / 100 mm
４. Holding force: 15 kgf/cm²
５. Equipped with high-performance neodymium magnets.
６. Magnetic force is reduced in the handle area to facilitate operation.
Applications：
1. Suitable for machining small workpieces ranging from thin sections to thick workpieces.
2. Ideal for milling applications on milling machines and machining centers.

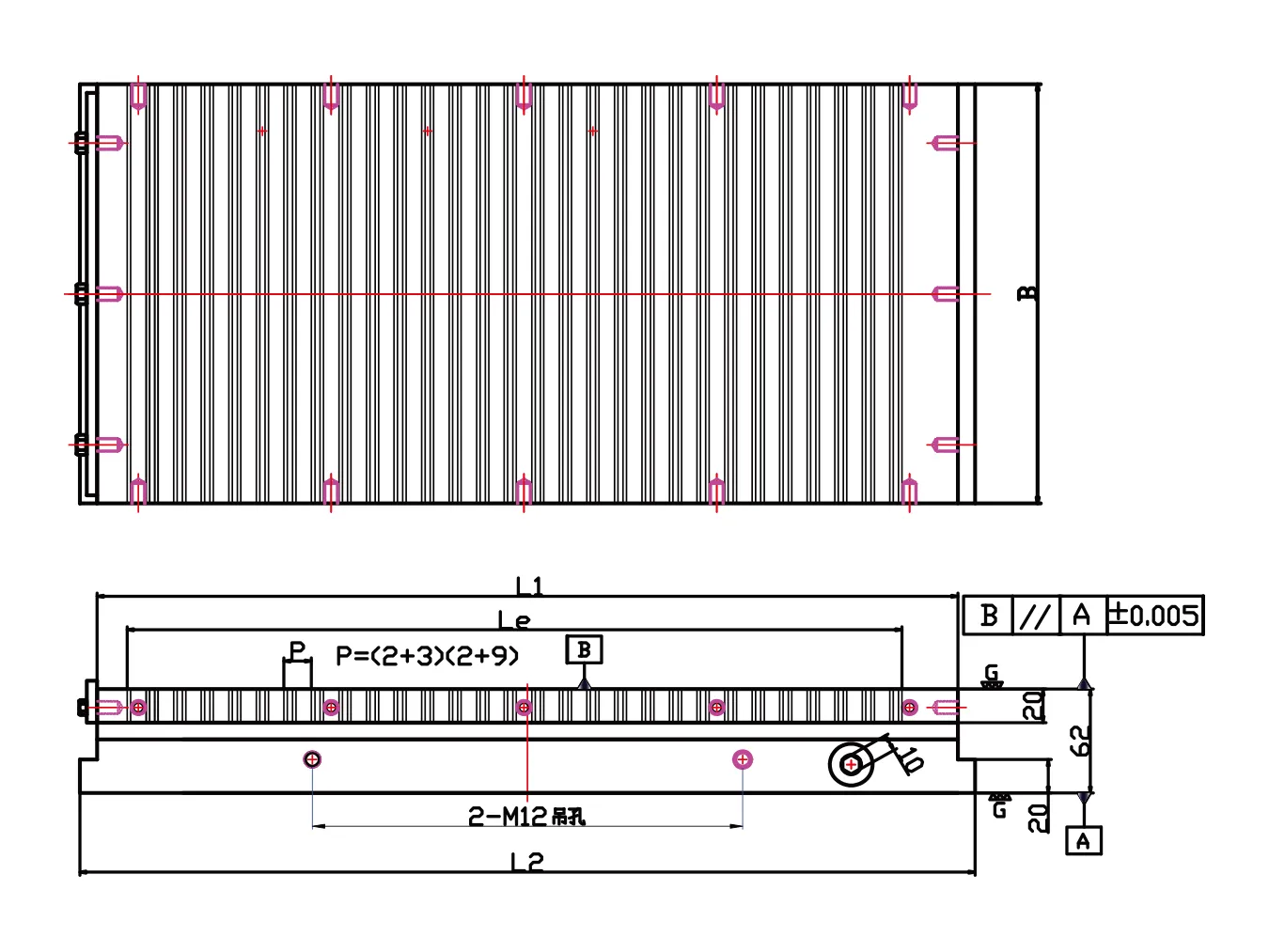

Product Specifications (Variations)
unit：mm| Product NO | Nominal Dimension | B | L1 | Le | Magnetic PolePitchP | L2 | HeightH | weight（kg） |
|---|---|---|---|---|---|---|---|---|
| FT-HMT-3030 | 300×300 | 300 | 300 | 247 | （2+3+2+9） | 320 | 62 | 43 |
| FT-HMT-3040 | 300×400 | 300 | 400 | 354 | （2+3+2+9） | 420 | 62 | 58 |
| FT-HMT-3060 | 300×600 | 300 | 600 | 551 | （2+3+2+9） | 620 | 62 | 87 |
| FT-HMT-4040 | 400×400 | 400 | 400 | 354 | （2+3+2+9） | 420 | 62 | 77 |
