Powerful Permanent Magnetic Chuck for Milling
Product NO: FT-HMT-C
Quote upon request
Specification
Features：
１. Fully waterproof design, suitable for use in submerged environments.
２. Models with nominal dimensions of 300 × 400 mm and larger are equipped with two ON/OFF switching controls.
３.Parallelism: ±0.005 mm / 100 mm
４. Holding force: 15 kgf/cm²
５.Equipped with high-performance neodymium magnets.
６.Magnetic holding force is reduced in the handle area.
Applications：
1. Milling applications on milling machines.
2. Grinding applications on surface grinding machines.

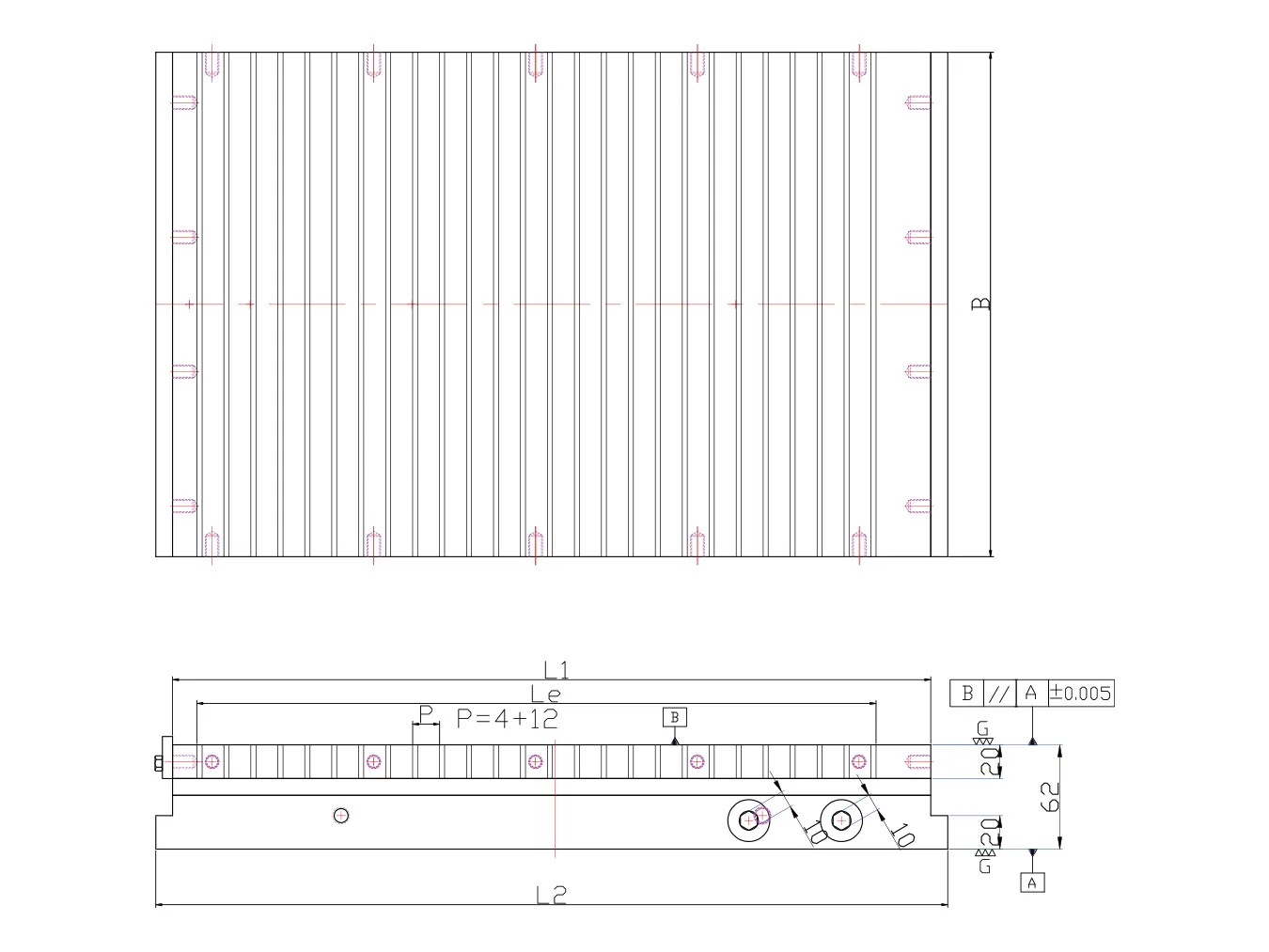

Product Specifications (Variations)
unit：mm| Product NO | Nominal Dimension | B | L1 | Le | Magnetic PolePitchP | L2 | HeightH | weight（kg） |
|---|---|---|---|---|---|---|---|---|
| FT-HMT-2020C | 200×200 | 200 | 200 | 148 | 16（4+12） | 220 | 62 | 19 |
| FT-HMT-2040C | 200×400 | 200 | 400 | 345 | 16（4+12） | 420 | 62 | 39 |
| FT-HMT-2045C | 200×450 | 200 | 450 | 402 | 16（4+12） | 470 | 62 | 43 |
| FT-HMT-2050C | 200×500 | 200 | 500 | 452 | 16（4+12） | 520 | 62 | 48 |
| FT-HMT-2525C | 250×250 | 250 | 250 | 196 | 16（4+12） | 270 | 62 | 30 |
| FT-HMT-2550C | 250×500 | 250 | 500 | 452 | 16（4+12） | 520 | 62 | 60 |
| FT-HMT-3030C | 300×300 | 300 | 300 | 260 | 16（4+12） | 320 | 62 | 43 |
| FT-HMT-3040C | 300×400 | 300 | 400 | 345 | 16（4+12） | 420 | 62 | 58 |
| FT-HMT-3050C | 300×500 | 300 | 500 | 452 | 16（4+12） | 520 | 62 | 73 |
| FT-HMT-3060C | 300×600 | 300 | 600 | 548 | 16（4+12） | 620 | 62 | 87 |
| FT-HMT-4040C | 400×400 | 400 | 400 | 345 | 16（4+12） | 420 | 62 | 77 |
| FT-HMT-4050C | 400×500 | 400 | 500 | 452 | 16（4+12） | 520 | 62 | 97 |
| FT-HMT-4060C | 400×600 | 400 | 600 | 548 | 16（4+12） | 620 | 62 | 116 |
Related products
-

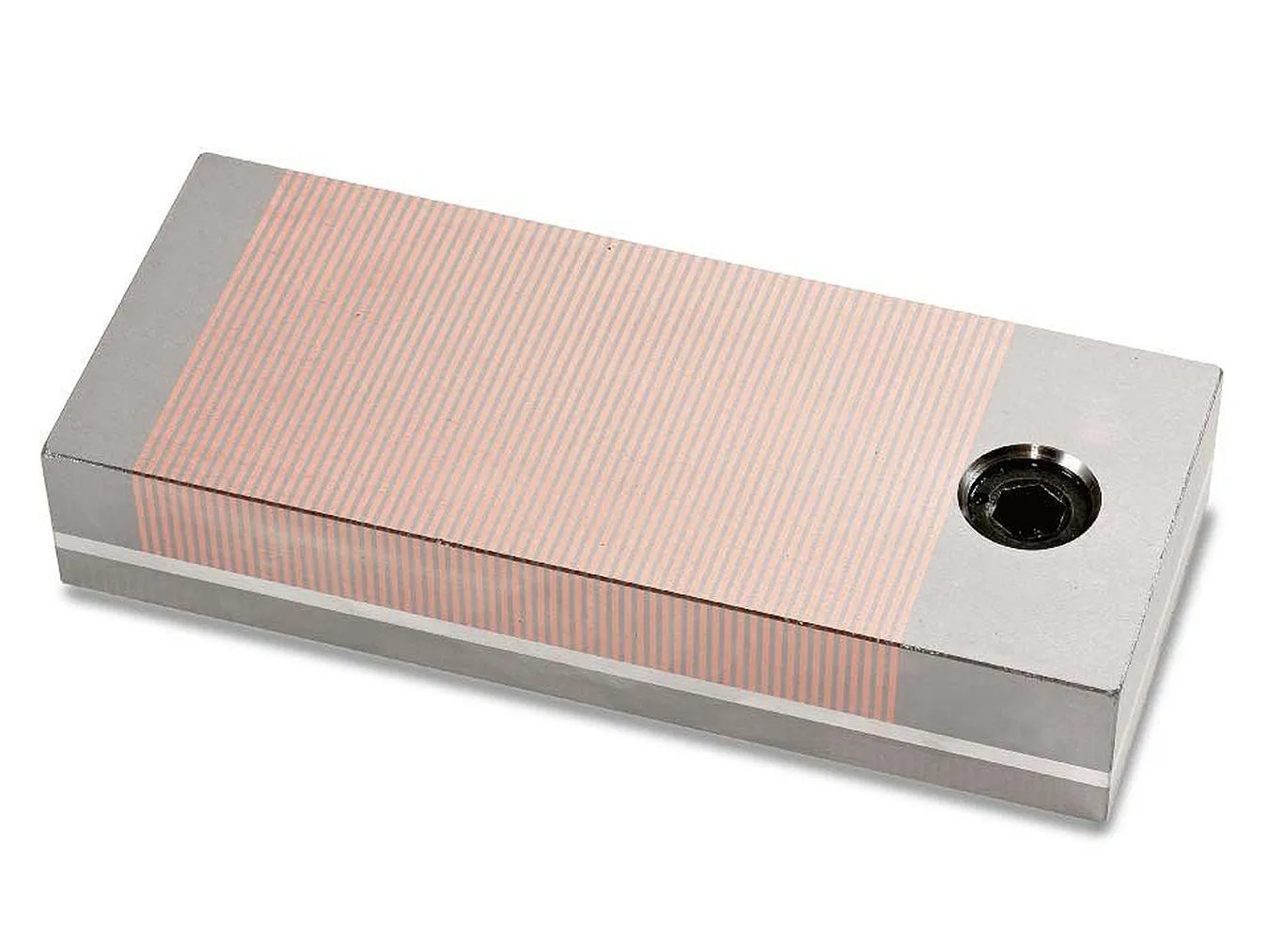

Super Thin Type Permanent Magnetic Chuck
