Powerful Permanent Magnetic Chuck for Milling
Product NO: FT-HMT-B
Quote upon request
Specification
Features：
１. Fully waterproof design, suitable for use in submerged environments.
２. Models with nominal dimensions of 300 × 400 mm and larger are equipped with two ON/OFF switching controls.
３. Holding force: 14 kgf/cm²
４. Equipped with ferrite magnets.
５. Magnetic force is reduced in the handle area to facilitate operation.
Applications：
1. Suitable for both machining and grinding operations on workpieces ranging from thin sections to thick workpieces.
Product Specifications (Variations)

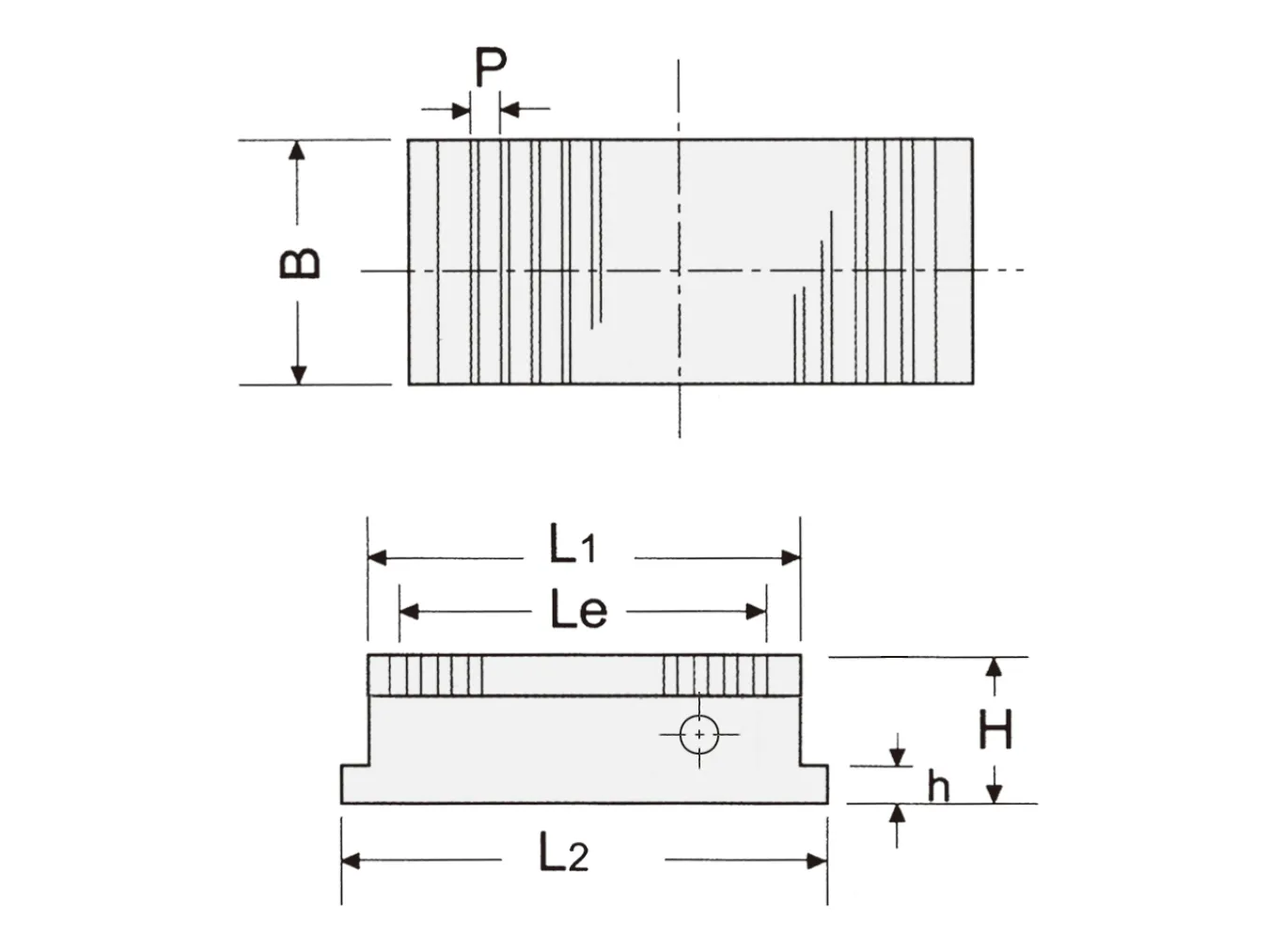

unit：mm| Product NO | Nominal Dimension | B | L1 | Le | Magnetic PolePitchP | L2 | h | HeightH | weight（kg） |
|---|---|---|---|---|---|---|---|---|---|
| FT-HMT-3060B | 300×600 | 300 | 600 | 543 | 11.2（1.6+2+1.6+6） | 620 | 20 | 75 | 88 |
| FT-HMT-4040B | 400×400 | 400 | 400 | 346 | 11.2（1.6+2+1.6+6） | 420 | 20 | 75 | 79 |
