Waveform type Electromagnetic Chuck(controller sold separately)

Product NO: FT-ELCN-A

Quote upon request

Product No

Clear

Product name

Product NO

Nominal Dimension

Price

Stock

Quantity

Waveform type Electromagnetic Chuck(controller sold separately)

FT-ELCN-2050A

220×500mm

Quote upon request

This is a back-order item

Waveform type Electromagnetic Chuck(controller sold separately)

FT-ELCN-2060A

220×600mm

Quote upon request

This is a back-order item

Waveform type Electromagnetic Chuck(controller sold separately)

FT-ELCN-2550A

260×500mm

Quote upon request

This is a back-order item

Waveform type Electromagnetic Chuck(controller sold separately)

FT-ELCN-3060A

300×600mm

Quote upon request

This is a back-order item

Waveform type Electromagnetic Chuck(controller sold separately)

FT-ELCN-4040A

420×400mm

Quote upon request

This is a back-order item

Waveform type Electromagnetic Chuck(controller sold separately)

FT-ELCN-4050A

420×500mm

Quote upon request

This is a back-order item

Waveform type Electromagnetic Chuck(controller sold separately)

FT-ELCN-4080A

420×800mm

Quote upon request

This is a back-order item

Waveform type Electromagnetic Chuck(controller sold separately)

FT-ELCN-40100A

420×1000mm

Quote upon request

This is a back-order item

Waveform type Electromagnetic Chuck(controller sold separately)

FT-ELCN-5050A

500×500mm

Quote upon request

This is a back-order item

Waveform type Electromagnetic Chuck(controller sold separately)

FT-ELCN-50100A

500×1000mm

Quote upon request

This is a back-order item

Waveform type Electromagnetic Chuck(controller sold separately)

FT-ELCN-50150A

500×1500mm

Quote upon request

This is a back-order item

Waveform type Electromagnetic Chuck(controller sold separately)

FT-ELCN-6060A

600×600mm

Quote upon request

This is a back-order item

Waveform type Electromagnetic Chuck(controller sold separately)

FT-ELCN-60100A

600×1000mm

Quote upon request

This is a back-order item

Waveform type Electromagnetic Chuck(controller sold separately)

FT-ELCN-60150A

600×1500mm

Quote upon request

This is a back-order item

Specification

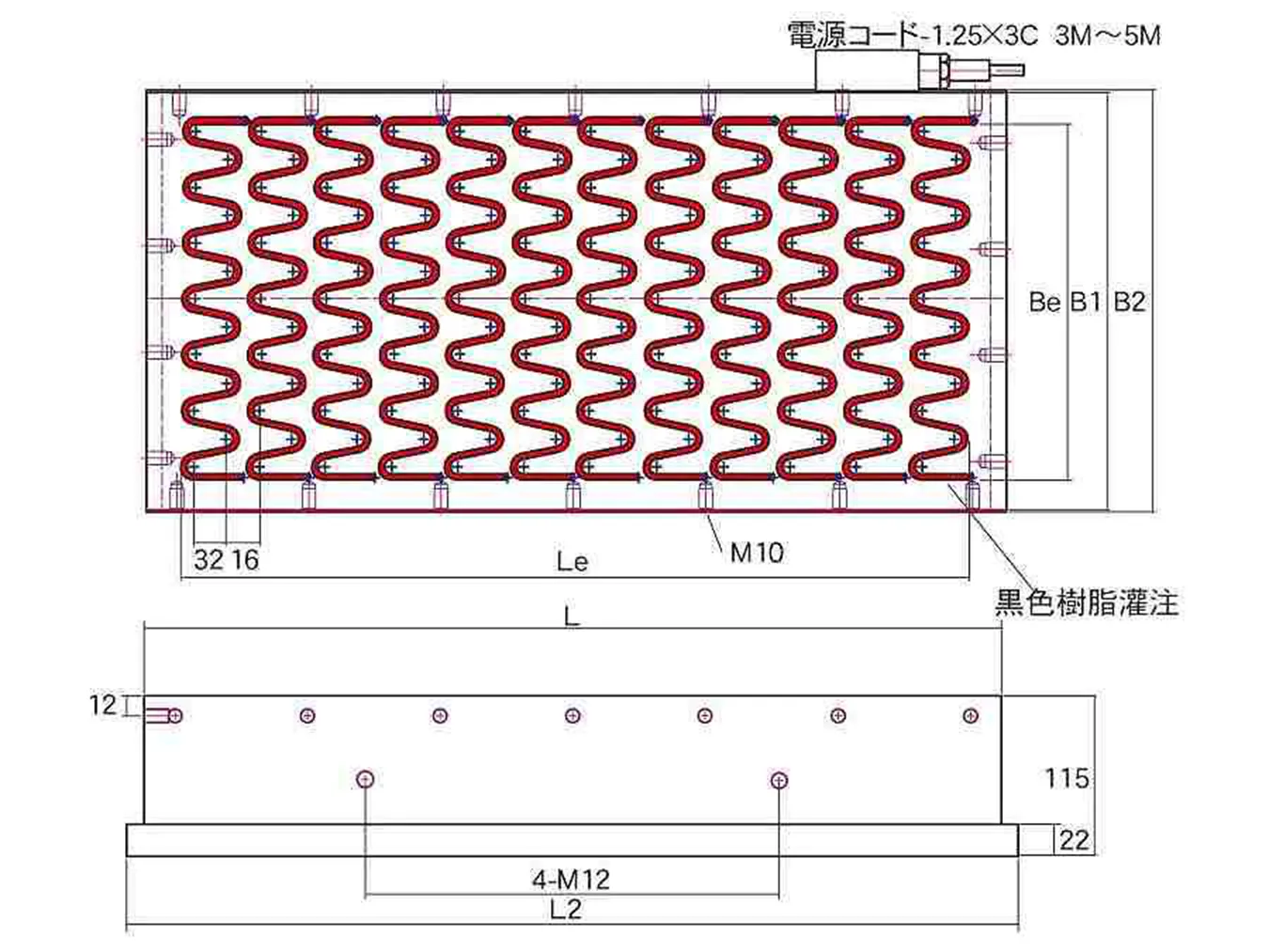

●Designed for machining thin workpieces with a thickness of 15 mm or less on machining centers and planers.
●The wave-shaped separator design equalizes magnetic flux distribution across the chuck surface.
●This new-generation magnetic chuck provides enhanced holding force through improved magnetic flux efficiency.
●Waterproof design.

Product Specifications (Variations)

unit：mm

Product NO	Nominal Dimension	B1	Be	L1	Le	B1	L2	Voltage（DCV）	current（A）	weight（kg）
FT-ELCN-2050A	220×500	220	179	500	467	224	520	90	0.91	89
FT-ELCN-2060A	220×600	220	179	600	563	224	620	90	1.14	106
FT-ELCN-2550A	260×500	260	219	500	467	264	520	90	1.2	105
FT-ELCN-3060A	300×600	300	259	600	563	304	620	90	1.7	145
FT-ELCN-4040A	420×400	420	379	400	371	424	420	90	2.3	135
FT-ELCN-4050A	420×500	420	379	500	467	424	520	90	2.6	169
FT-ELCN-4080A	420×800	420	379	800	755	424	820	90	2.8	271
FT-ELCN-40100A	420×1000	420	379	1000	947	424	1020	90	4.1	338
FT-ELCN-5050A	500×500	500	459	500	467	504	520	90	2.8	201
FT-ELCN-50100A	500×1000	500	459	1000	947	504	1020	90	5.4	403
FT-ELCN-50150A	500×1500	500	459	1500	1456	504	1520	90	8	604
FT-ELCN-6060A	600×600	600	539	600	563	604	520	90	4	290
FT-ELCN-60100A	600×1000	600	539	1000	947	604	1020	90	6.3	483
FT-ELCN-60150A	600×1500	600	539	1500	1456	604	1520	90	9.3	725
