Stainless Steel Precision Vise
Product NO: FT-DSU20-30
Price range: ¥78,000 through ¥92,000
Custom orders (such as matched parallel sets or additional machining) are available upon request. As pricing differs from the standard models, please feel free to contact us for a quotation./n※Please note that additional machining may not be possible depending on the specific modification requirements. We appreciate your understanding in advance.
Specification
Material：SUS440
Hardness：HRC48°～55°
Parallelism: Within 0.003 mm / 100 mm
Squareness: Within 0.003 mm / 100mm
Inspection Certificate: Included
Storage Case: Included
Screw rod design
Suitable for clamping small precision workpiece.
Product Specifications (Variations)

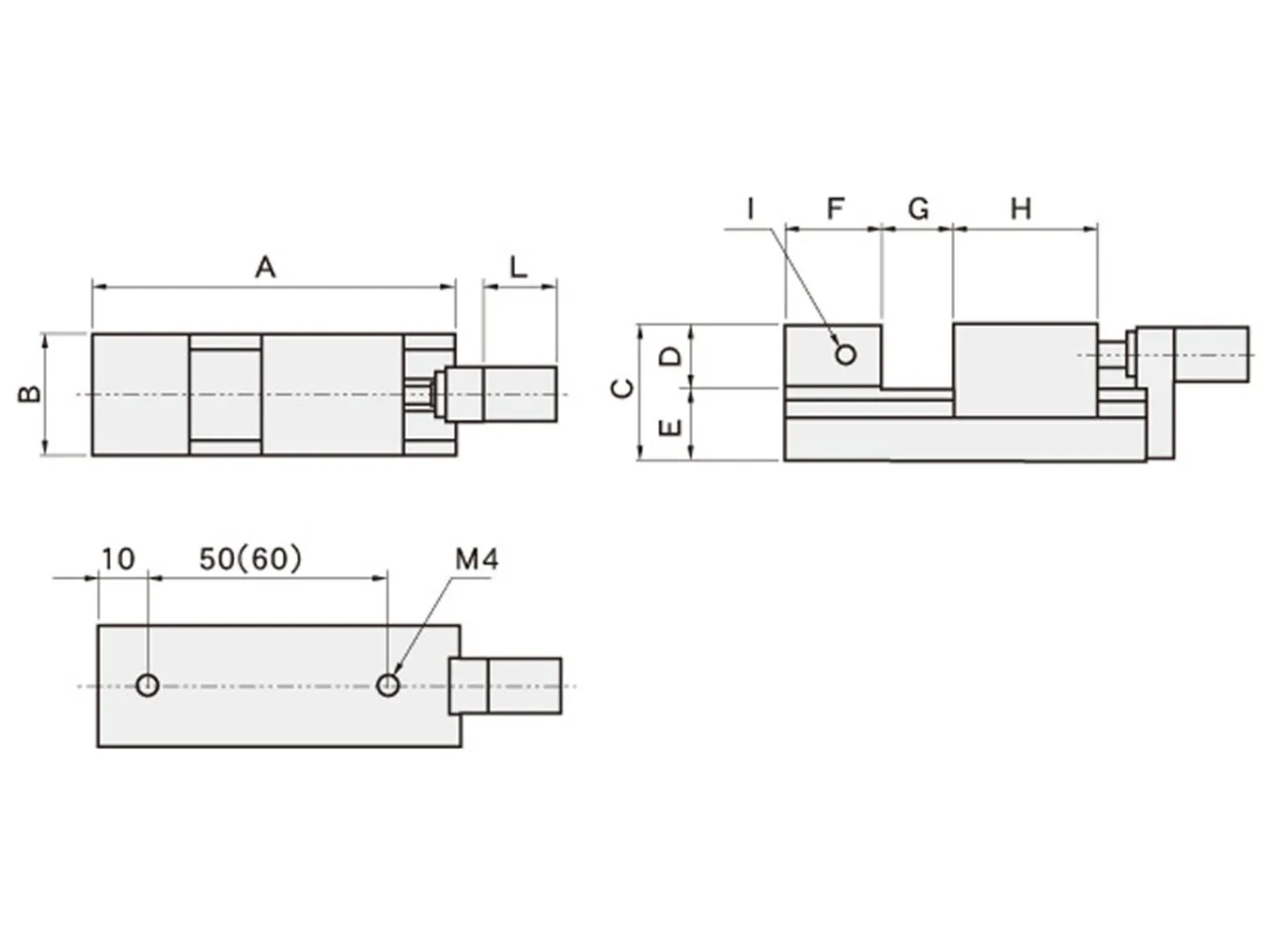

unit：mm| Product NO | A | B（Jaw width） | C | D（Jaw height） | E | F | G（Jaw opening） | H | I | L | weight |
|---|---|---|---|---|---|---|---|---|---|---|---|
| FT-DSU20 | 75 | 25 | 28 | 13 | 15 | 20 | 0-20 | 30 | M4 | 20 | 0.27kg |
| FT-DSU30 | 95 | 30 | 35 | 15 | 20 | 20 | 0-30 | 40 | M4 | 20 | 0.65kg |
