Stainless Steel Precision Vise
Product NO: FT-DSU40-50
Price range: ¥104,000 through ¥127,000
Custom orders (such as matched parallel sets or additional machining) are available upon request. As pricing differs from the standard models, please feel free to contact us for a quotation./n※Please note that additional machining may not be possible depending on the specific modification requirements. We appreciate your understanding in advance.
Specification
Material：SUS440
Hardness：HRC48°～55°
Parallelism: Within 0.003 mm / 100 mm
Squareness: Within 0.003 mm / 100mm
Inspection Certificate: Included
Storage Case: Included
Screw rod design
Suitable for clamping small precision workpiece.
Product Specifications (Variations)

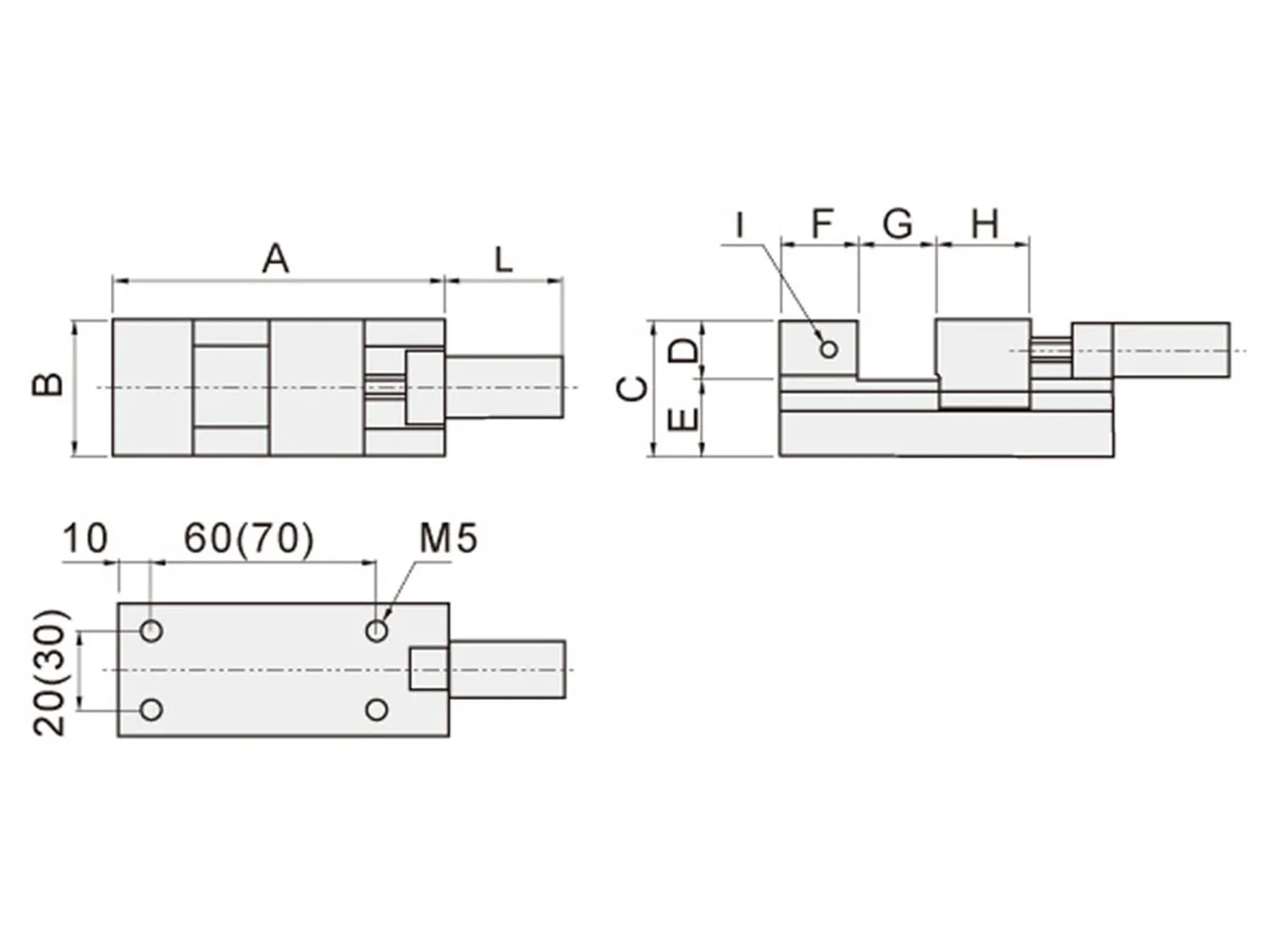

unit：mm| Product NO | A | B（Jaw width） | C | D（Jaw height） | E | F | G（Jaw opening） | H | I | L | weight |
|---|---|---|---|---|---|---|---|---|---|---|---|
| FT-DSU40 | 95 | 35 | 35 | 15 | 20 | 20 | 0-40 | 24 | M5 | 45 | 0.9kg |
| FT-DSU50 | 110 | 45 | 45 | 20 | 25 | 25 | 0-50 | 24 | M5 | 50 | 1.6kg |
Related products
-
Stainless Steel Precision Vise
Product NO：FT-VR40 -
Stainless Steel Precision Vise
Product NO：FT-VSU10 -
Stainless Steel Precision Vise

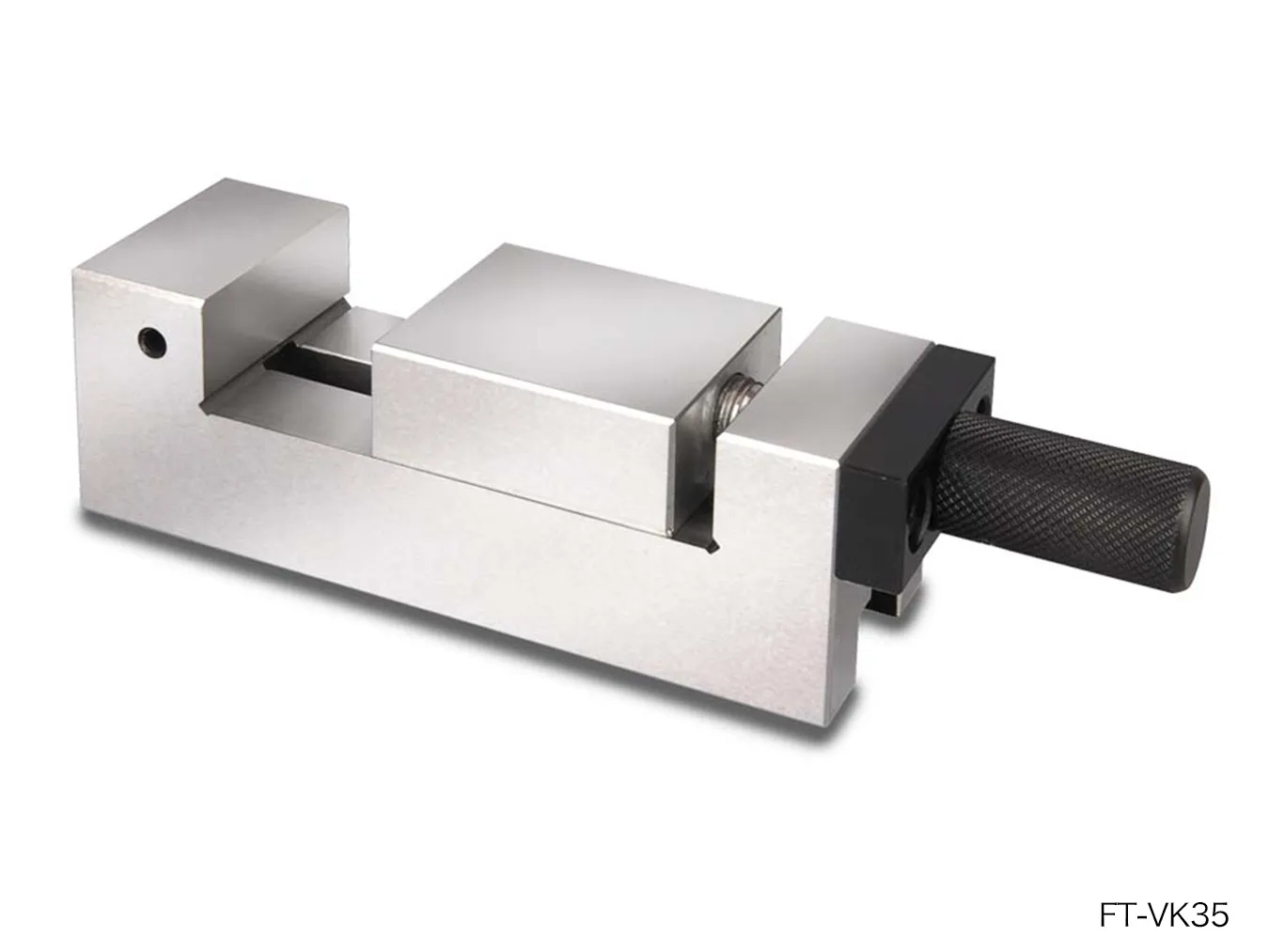

Product NO：FT-VK35
