Magnetic Square Block
Product NO: FT-BA
Price range: ¥133,000 through ¥235,000
Specification
●Magnetic holding is possible on three surfaces: the top (V-face) and both side faces.
●This product is not waterproof.
Product Specifications (Variations)

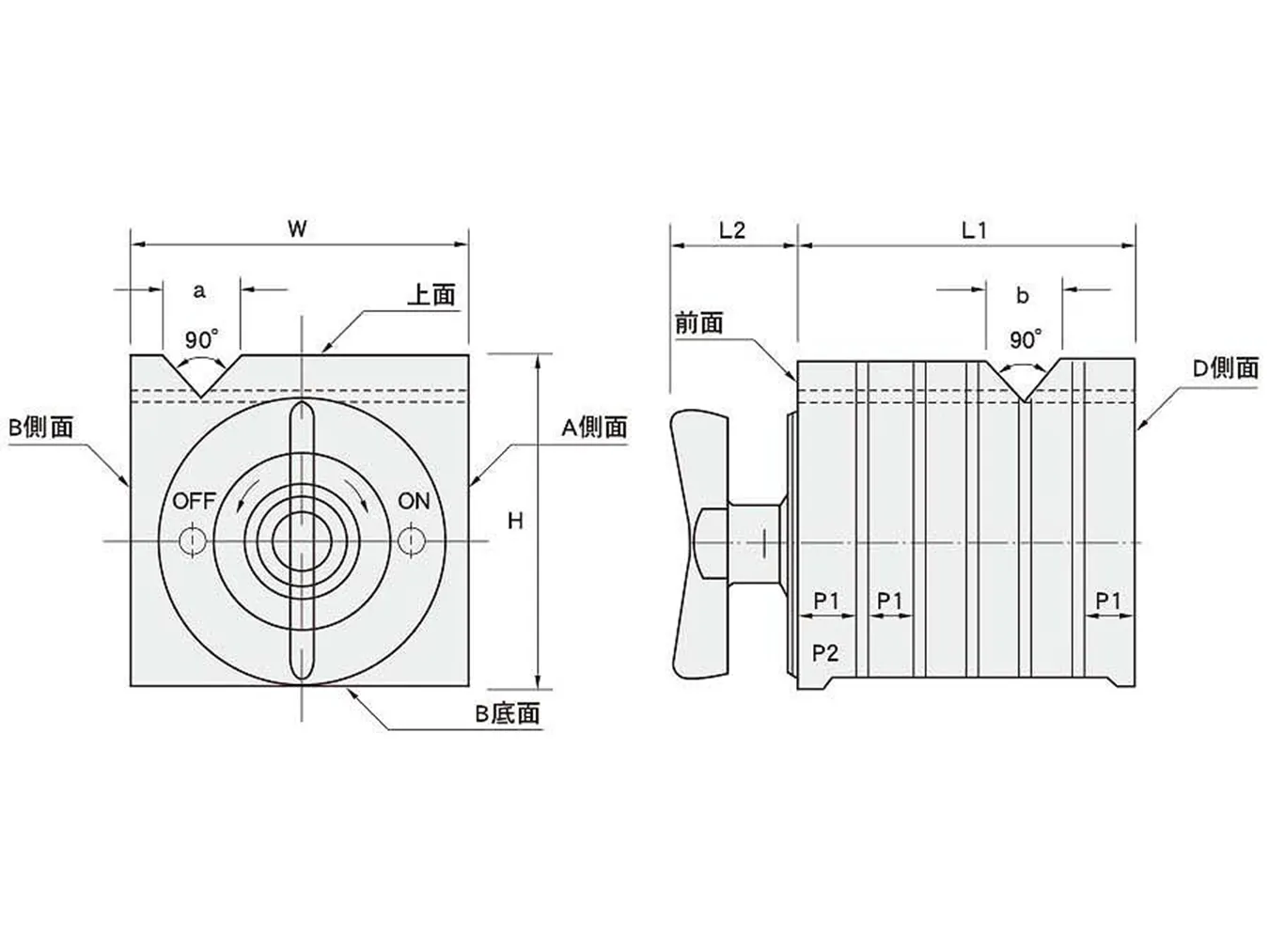

unit：mm| Product NO | V-face Clamping force | Flat-face Clamping force | W | L1 | H | L2 | P1 | P2 | P3 | a/b | weight（kg） |
|---|---|---|---|---|---|---|---|---|---|---|---|
| FT-BA1 | 250N(25kgf) | 300N(30kgf) | 100 | 100 | 100 | 43 | 17 | 4 | 12 | 26 | 6.3 |
| FT-BA2 | 350N(35kgf) | 1000N(100kgf) | 150 | 150 | 150 | 56 | 24.5 | 5 | 19 | 32 | 21.3 |
