Precision Type Hydraulic Arm
Product NO: ECE-300
Price range: ¥41,000 through ¥103,000
Specification
●Hydraulic clamping provides significantly greater locking force compared to conventional mechanical locking systems.
●Constructed from aluminum alloy for lightweight handling and ease of operation.
●Equipped with a fine-adjustment mechanism.
●Easy to maintain and repair.
Product Specifications (Variations)

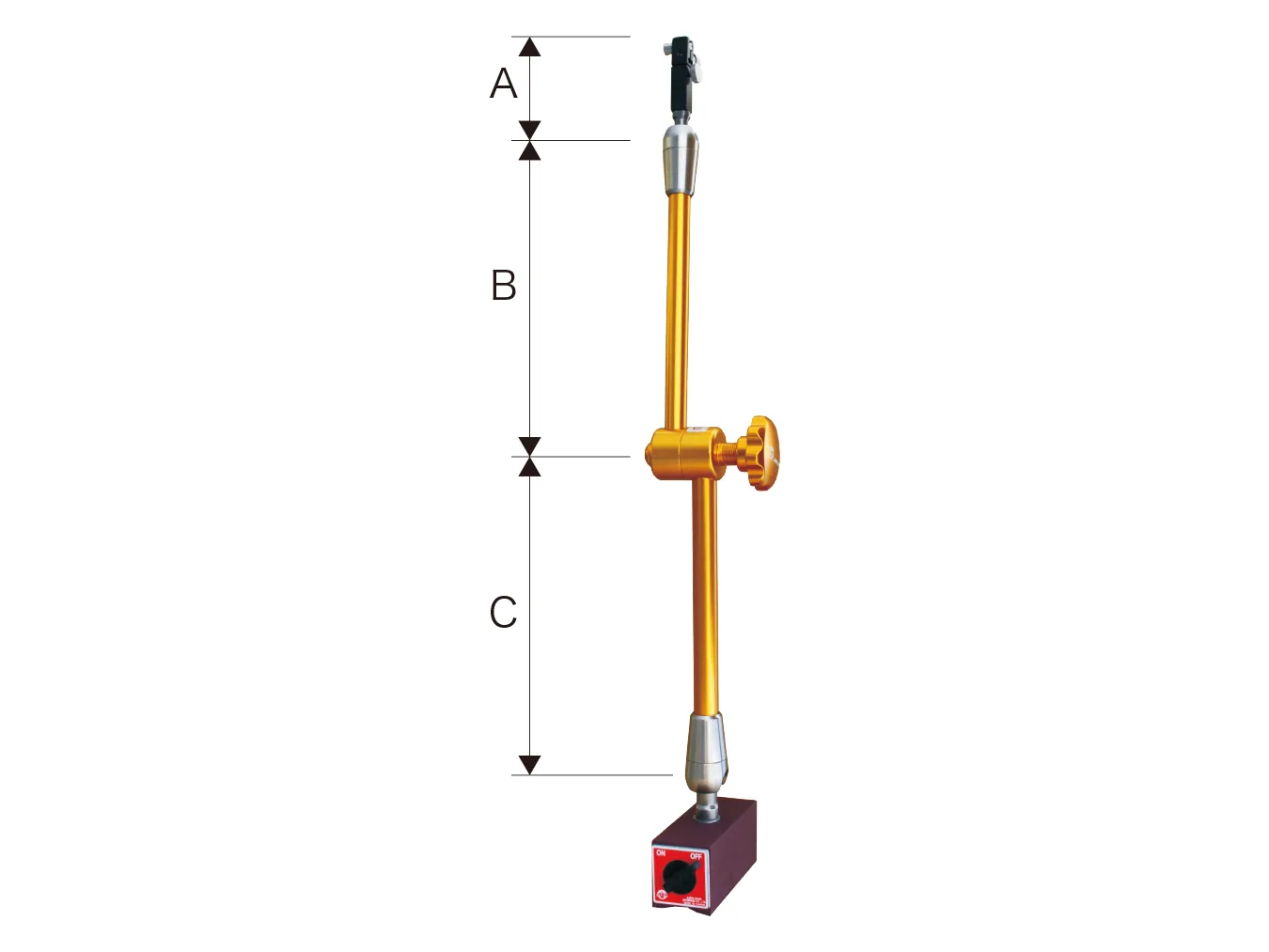

unit：mm| Product NO | mechanism | Magbetic holding power | Arm Length | A | B | C | L | W | H | Arm mounting screw | Measuring instrument mounting section | weight（kg） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ECE-300ALL | Hydraulic | 160kgf | 667mm | 75 | 272 | 272 | 120 | 50 | 55 | M8×1.25 | 8mm×with Dovetail Slide & Fine Adjustment Mechanism | 3.5kg |
| ECE-300AL | Hydraulic | 100kgf | 434mm | 72 | 170 | 170 | 80 | 50 | 55 | M8×1.25 | 8mm×with Dovetail Slide & Fine Adjustment Mechanism | 2.5kg |
| ECE-300A | Hydraulic | 100kgf | 336mm | 72 | 115 | 120 | 80 | 50 | 55 | M8×1.25 | 8mm×with Dovetail Slide & Fine Adjustment Mechanism | 2.3kg |
| ECE-300B | Hydraulic | 80kgf | 336mm | 72 | 115 | 120 | 60 | 50 | 55 | M8×1.25 | 8mm×with Dovetail Slide & Fine Adjustment Mechanism | 2.0kg |
