Leveling Clamp
Product NO: EWCR060
Quote upon request
This is a back-order item
Specification
Suitable for clamping round and cubic workpieces with dimensions up to Ø60 mm.
Clamping range：60mmまたは60×60mm
Maximum load capacity：5kg
Mounted on a fixed base, with position adjustment in the ZX and ZY planes provided by six adjustment screws.
Designed for use with a horizontal base, allowing positional adjustment in the ZX plane, ZY plane, and C-axis direction via adjustment screws.

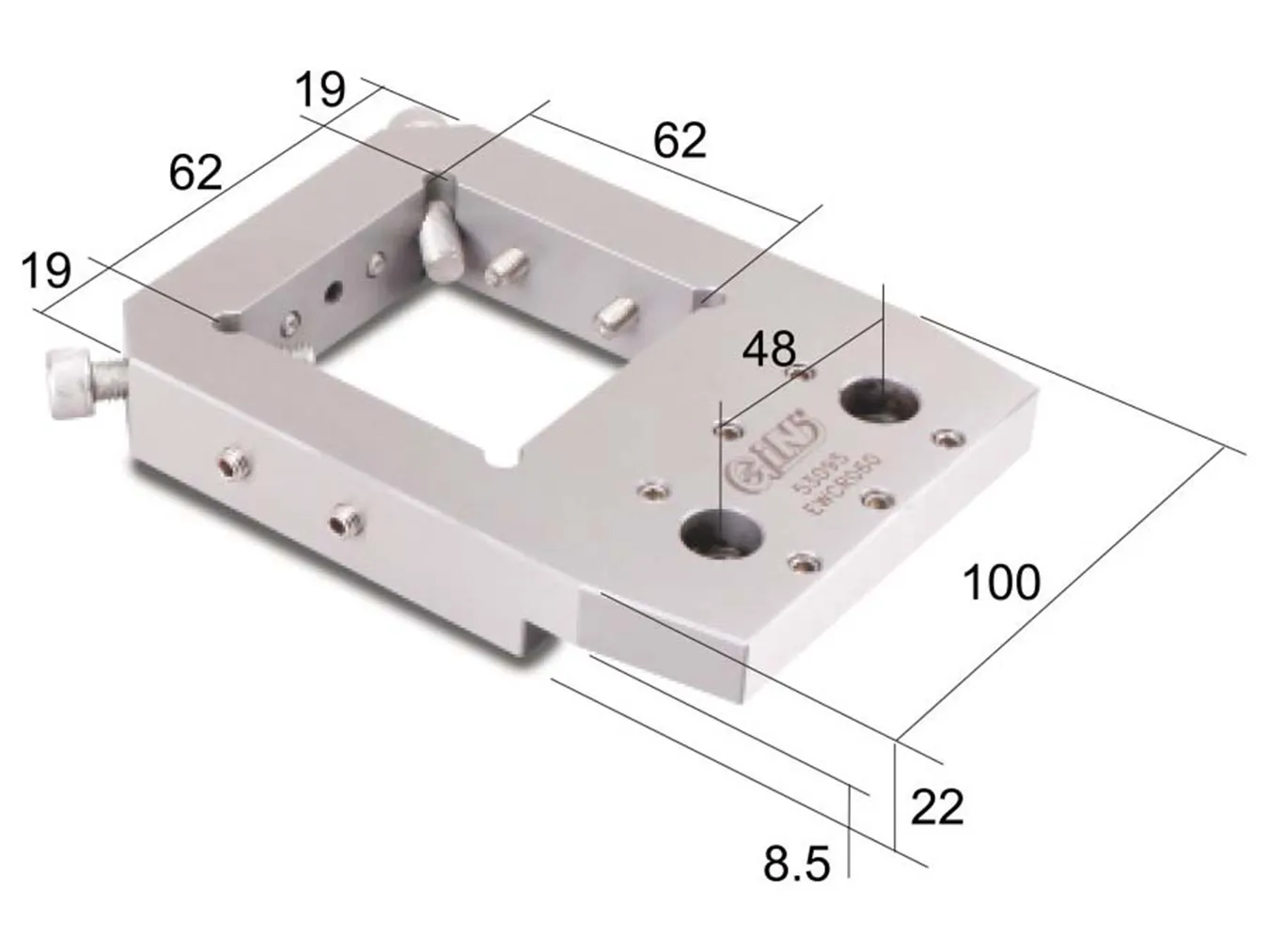

unit：mm
| Product NO | EWCR060 |
|---|---|
| weight（kg） | 1.3 |
