Leveling Base
Product NO: LBMC
Quote upon request
This is a back-order item
Specification
Standard component of the Zero-Point EWC Series.
Used as a base for Zero-Point EWC Series clamping components.
Can be mounted directly on the table of a machine tool.
Maximum load capacity: 10 kg.
Fine adjustment screws allow positional adjustment in the ZX plane, ZY plane, and C-axis direction.

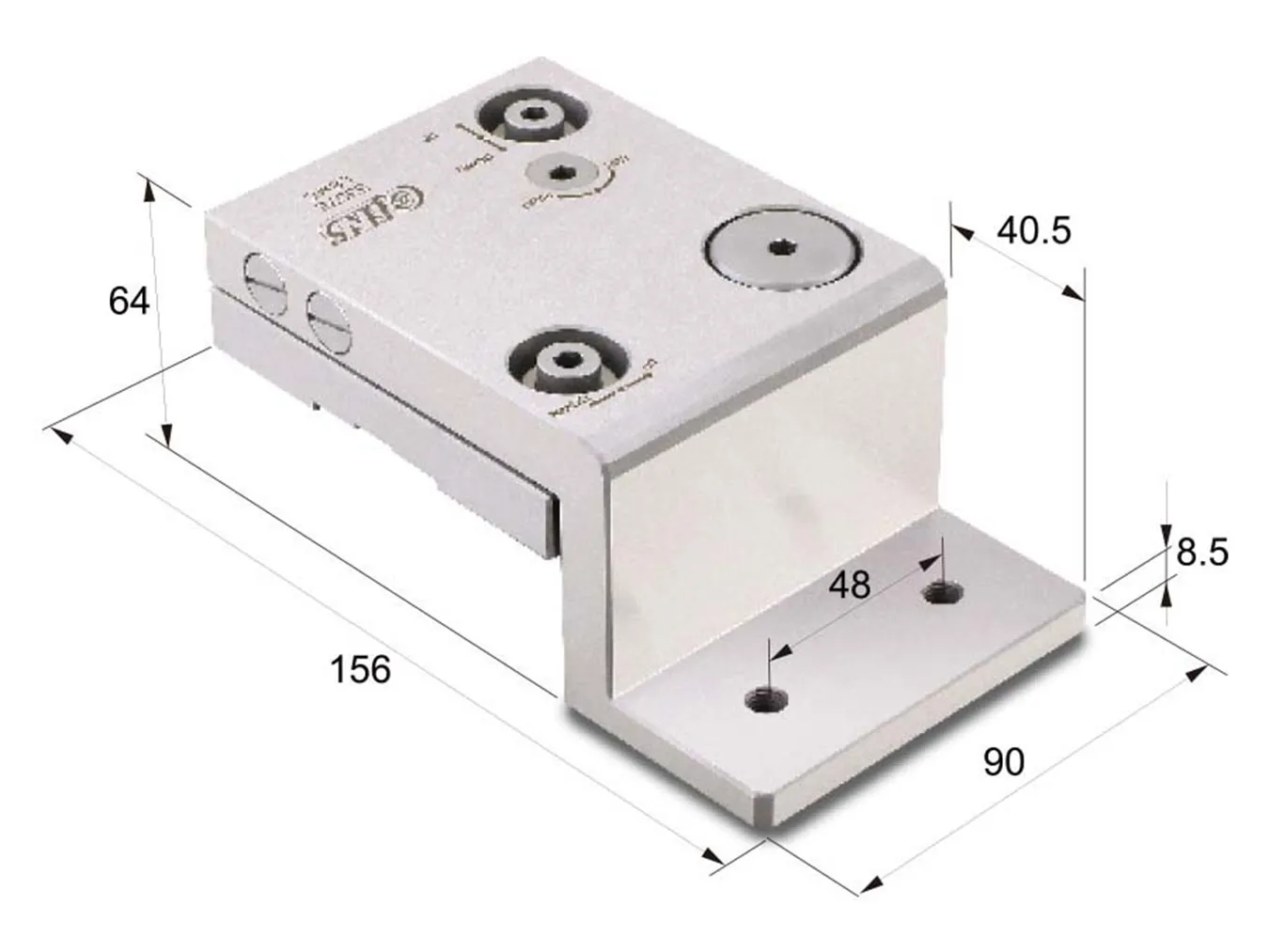

unit：mm
| Product NO | LBMC |
|---|---|
| weight（kg） | 3.5 |
