Leveling Clamp

Product NO: EWC45

Quote upon request

Product name
Product NO
Price
Stock
Quantity
Leveling Clamp

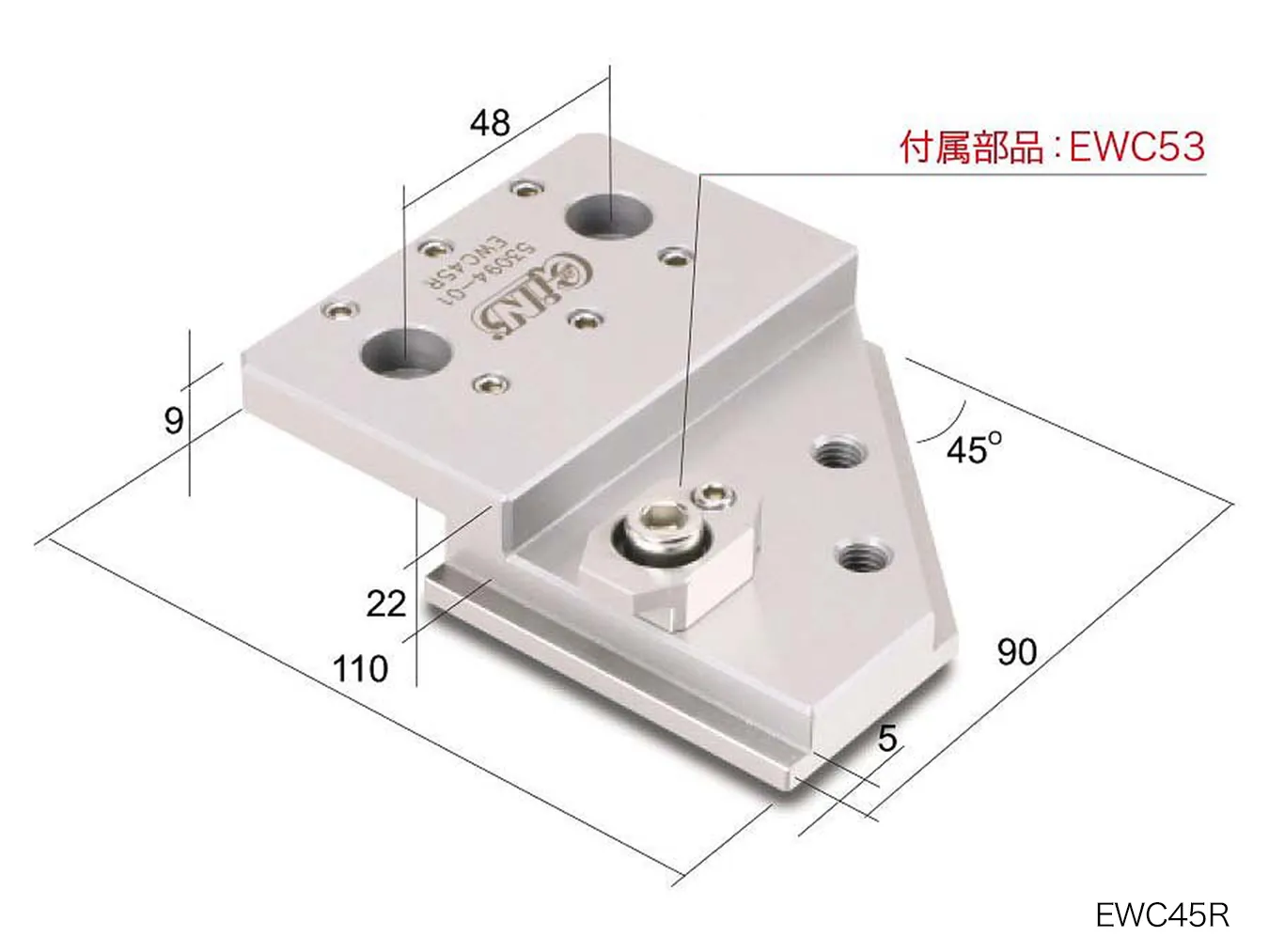

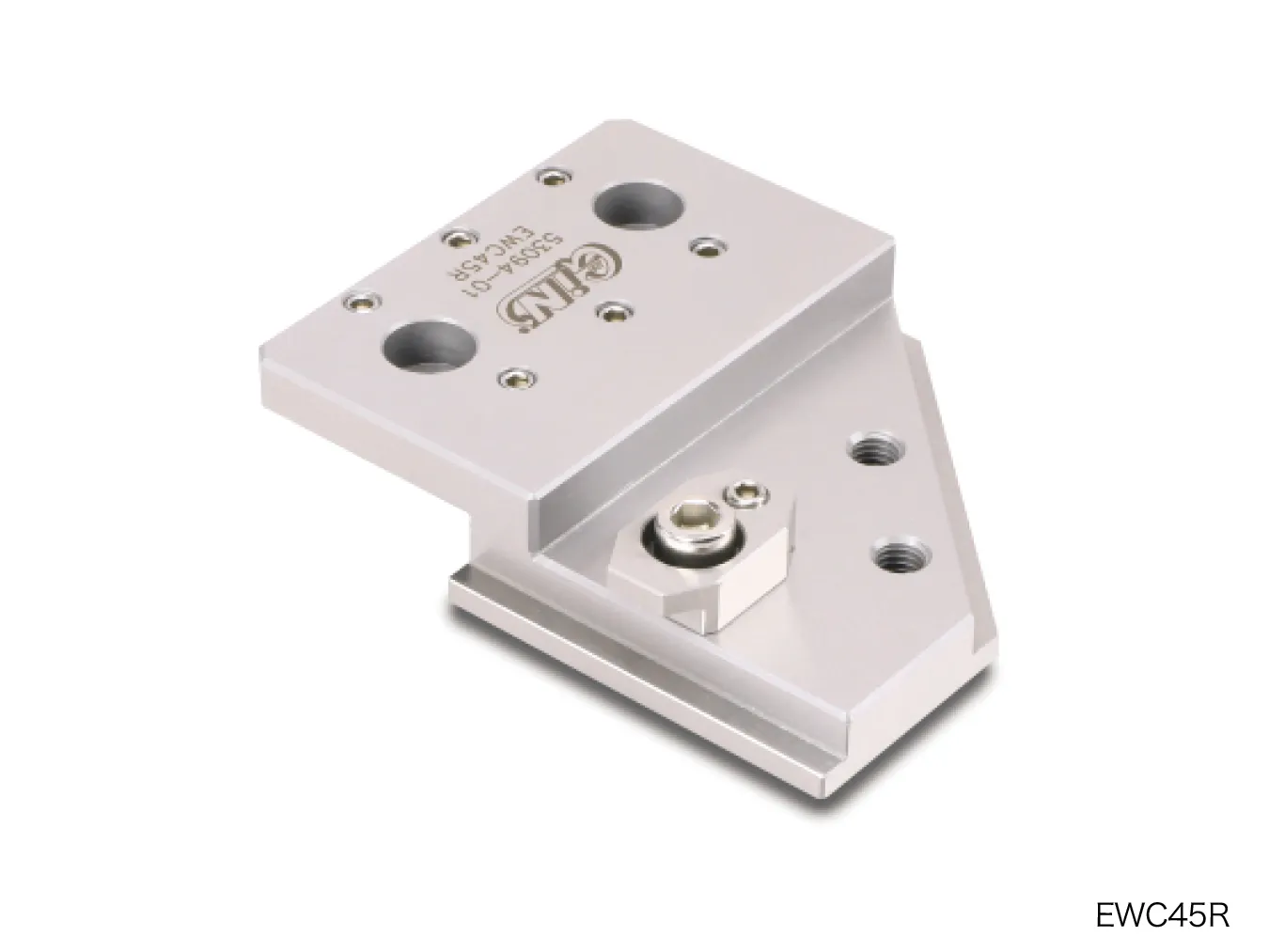

EWC45R
Quote upon request

This is a back-order item

Leveling Clamp

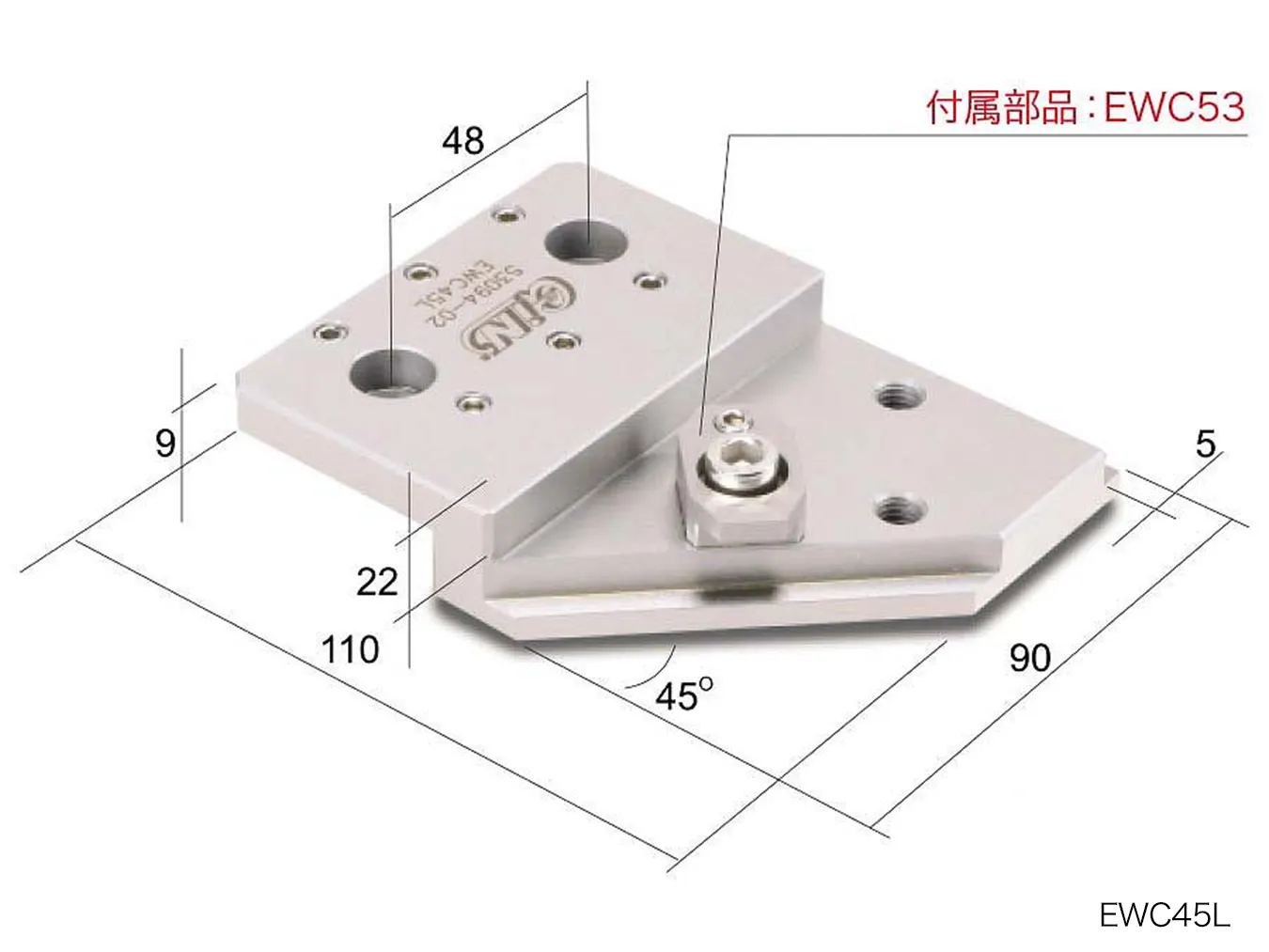

EWC45L
Quote upon request

This is a back-order item

Specification

Clamping unit with an integrated clamp, designed to be attached to one side of the workpiece.
The height of the workpiece bottom surface can be set to either Z = 0 or +5 mm.
When used together as a left and right pair, the units can securely clamp both round and square workpieces.
Maximum load：4kg
When mounted on a fixed base, adjustment in the ZX and ZY planes can be made using six adjustment screws.

Product Specifications (Variations)

unit：mm
Product NOweight（kg）
EWC45R0.6
EWC45L0.6
