Wire EDM Extensions Clamp
Product NO: WEA05
Quote upon request
This is a back-order item
Specification
Material：Stainless steel
Hardness：HRC50°～55°
Parallelism: Within 0.003 mm / 100 mm Heat treatment: Vacuum hardening
Squareness: Within 0.005 mm / 100mm
●Featuring a unique mounting-point design, the system is compatible with virtually any horizontal base and can be fixed directly to the wire EDM machine.
●Flexible configurations for different workpiece types, compatible with wire EDM machines of virtually any brand.
●Clamping range：Ø4～125mm

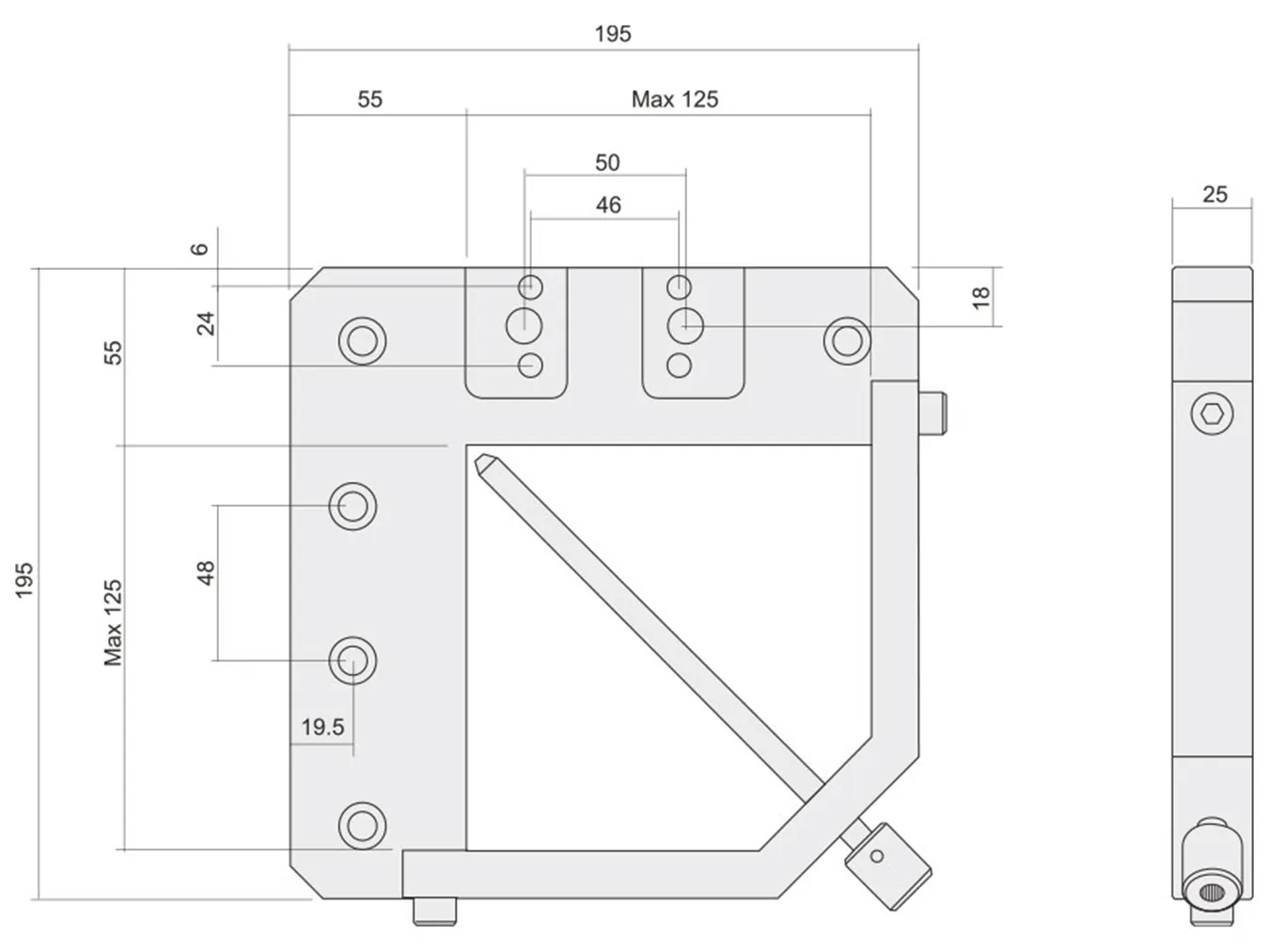

unit：mm
| Product NO | WEA05 |
|---|---|
| weight（kg） | 4 |
