Wire EDM Extension Clamp
Product NO: EWC300
Quote upon request
This is a back-order item
Specification
This is a standard component of the EWC series that clamps the workpiece from above and below.
Using one, two, or four clamp units allows for the handling of small- to medium-sized workpieces.
The height of the workpiece bottom surface is set to Z=0 or +5 mm.
Can be mounted directly on the table of a machine tool.
Maximum load capacity: 10 kg

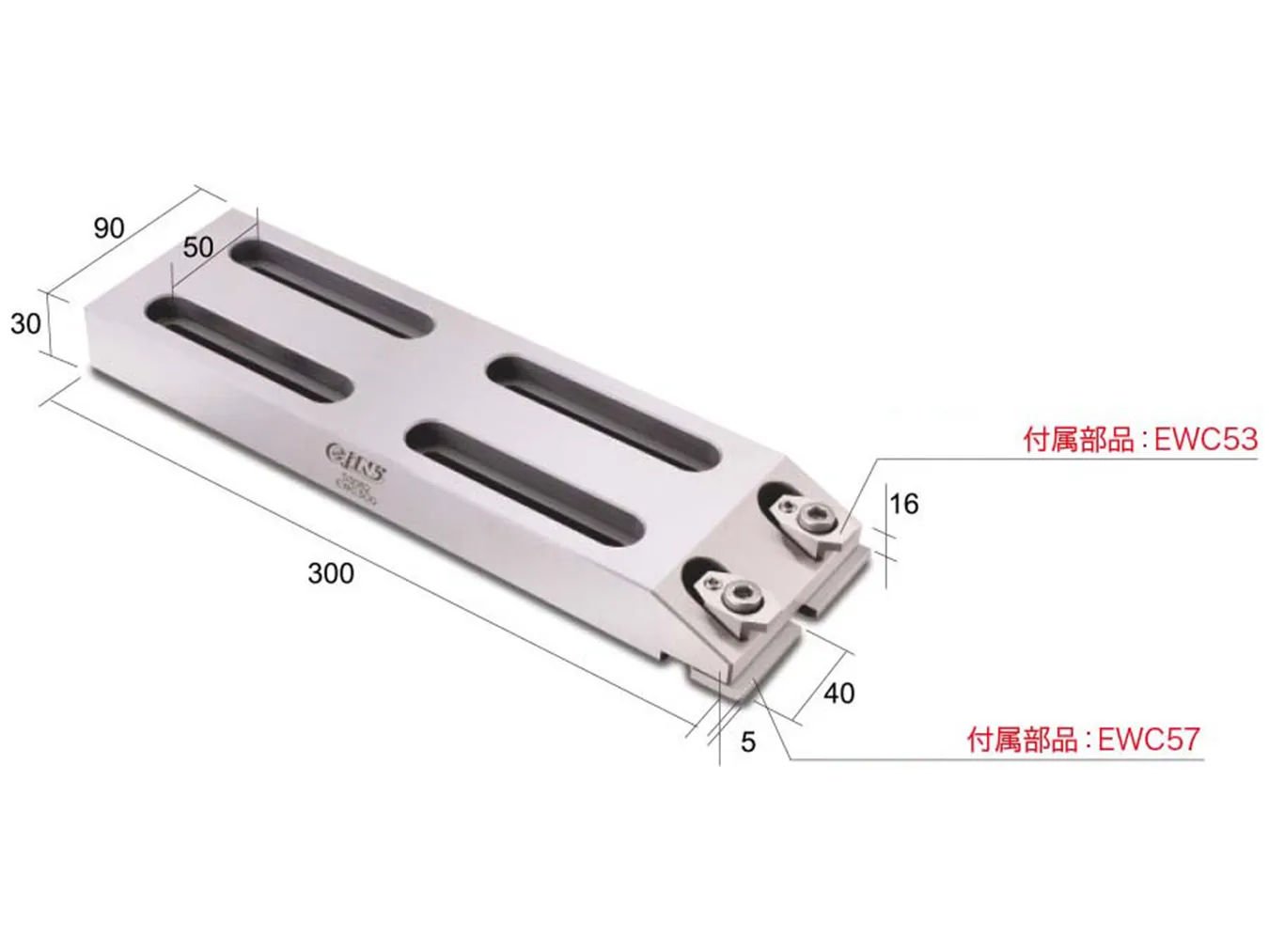

unit：mm
| Product NO | EWC300 |
|---|---|
| weight（kg） | 6 |
