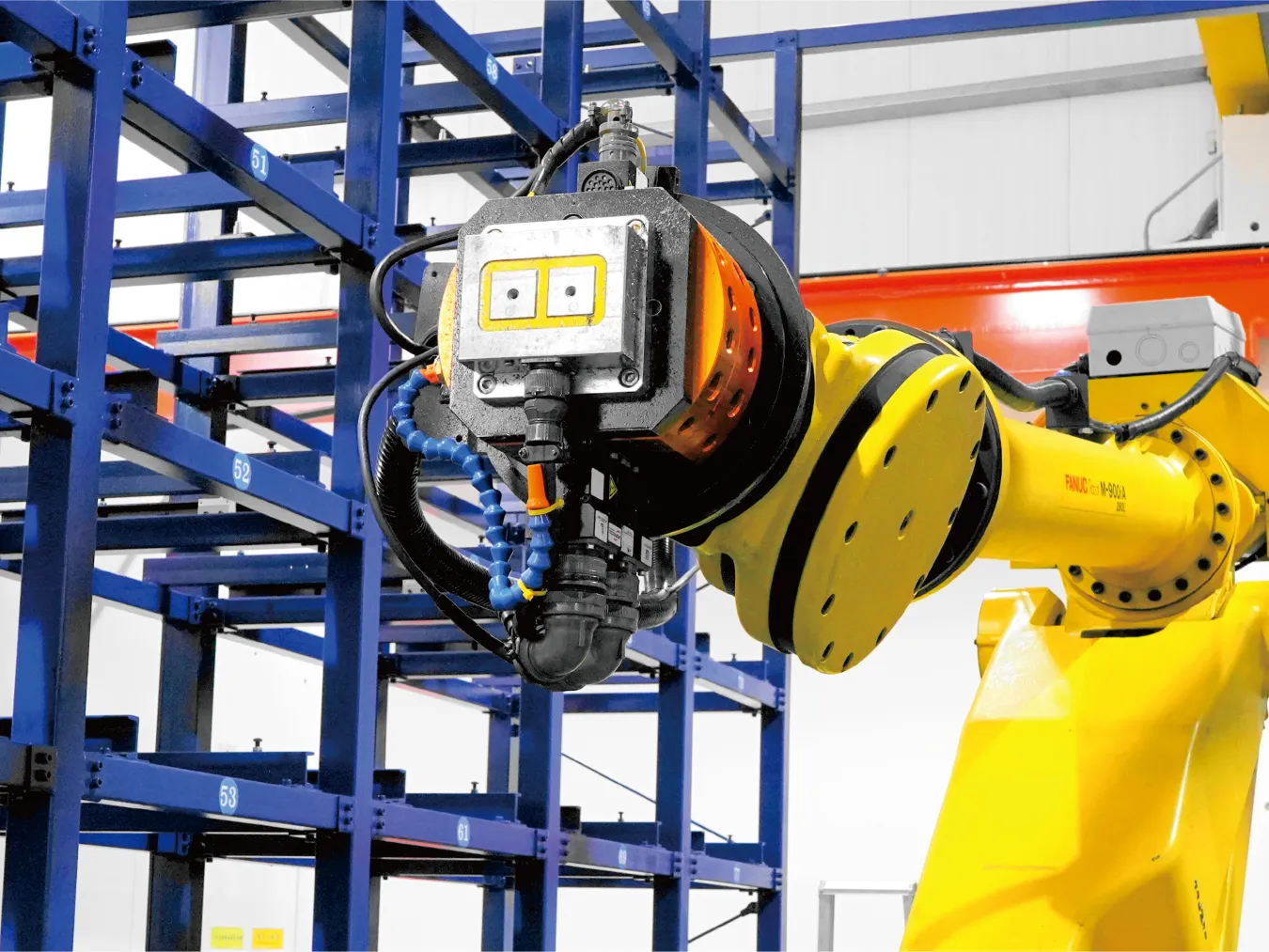

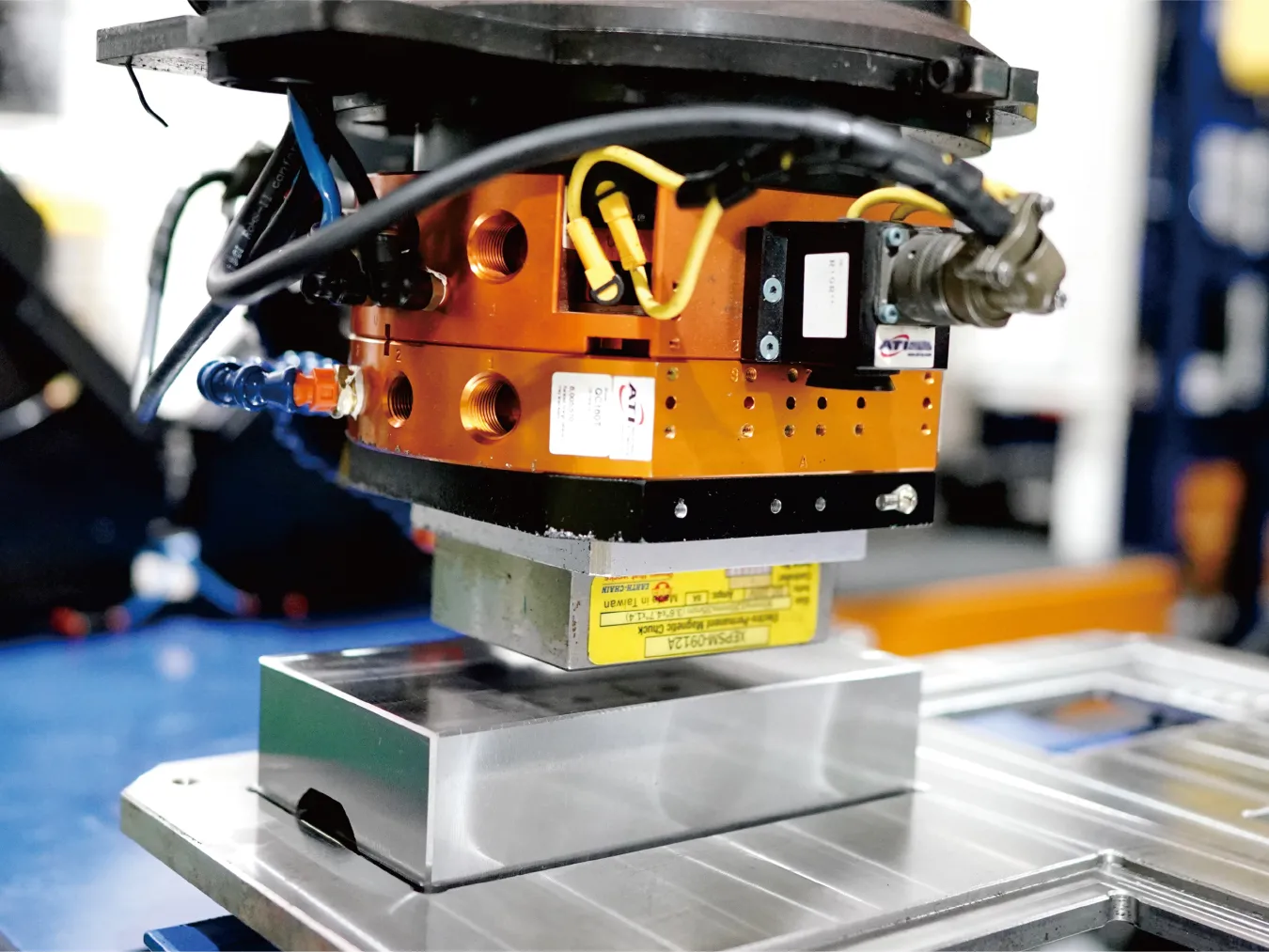

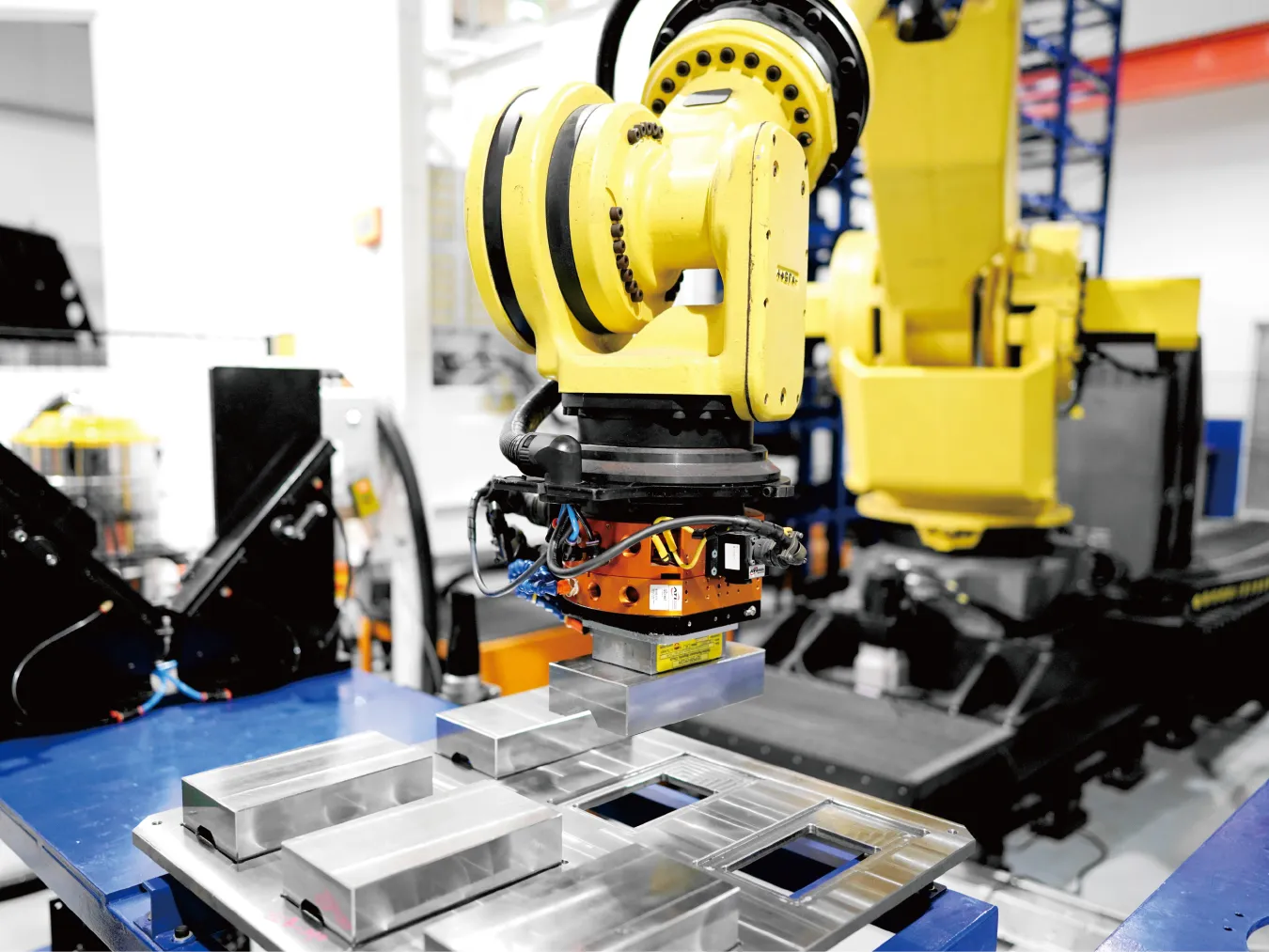

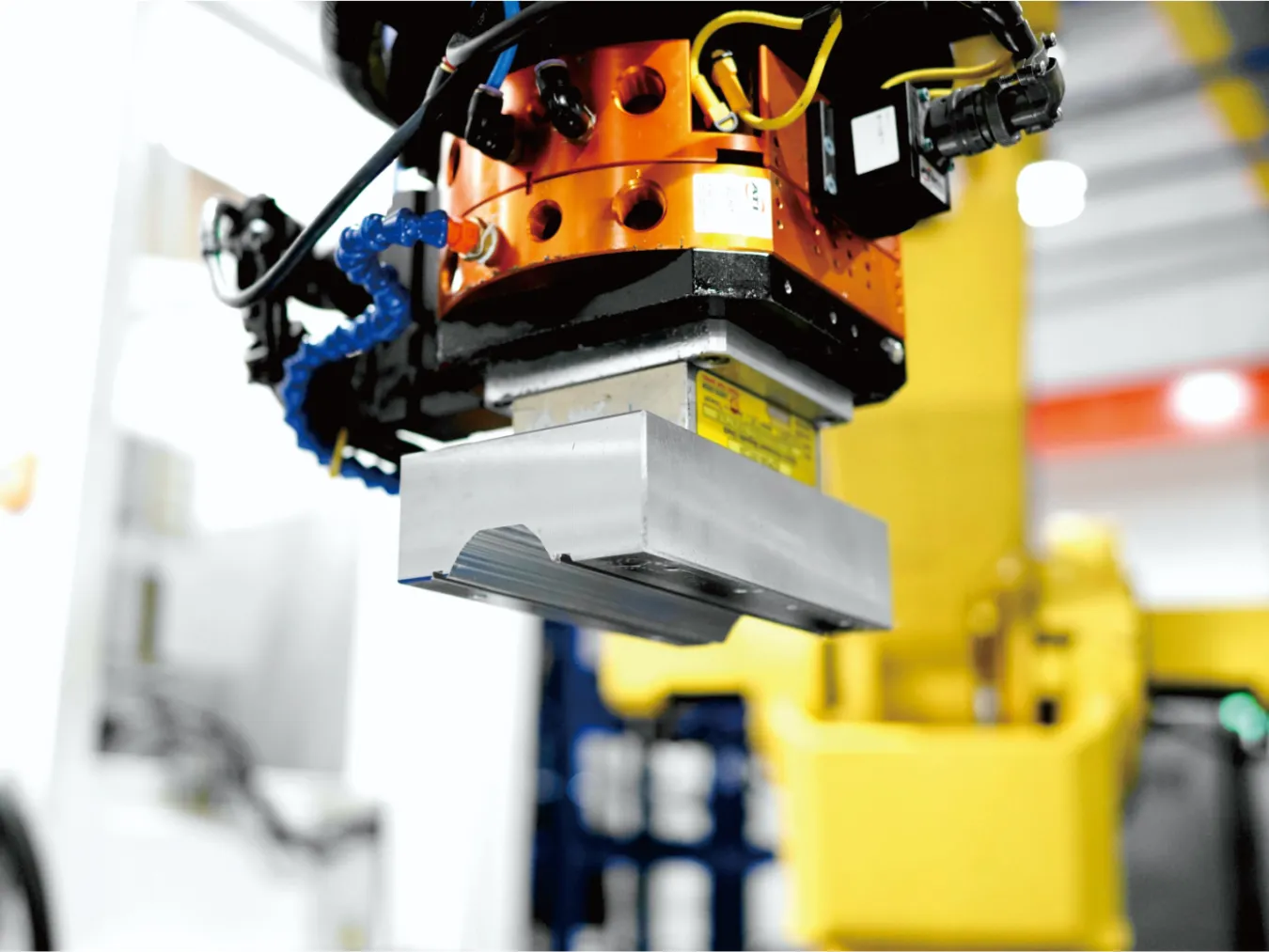

Electro-Permanent Magnetic Chuck for robot arms(1160kg)
Product NO: EPSM-1320A
¥629,000
This is a back-order item
Specification
The EPSM Series is engineered to generate a significantly stronger magnetic force than the PECM Series, delivering a maximum holding capacity of up to 1.16 tons. It is ideal for handling even larger and heavier workpieces.Proven Electro-Permanent Reliability: Just like the PECM Series, electrical power is only consumed during the brief moments of magnetization and demagnetization.Uncompromised Power-Loss Protection: The workpiece remains securely clamped even in the event of a sudden power loss, ensuring the same high level of fail-safe safety and eco-friendly efficiency.
unit：mm
| Product NO | EPSM-1320A |
|---|---|
| W | 132 |
| L | 205 |
| H | 35 |
| PitchG | 7 |
| Magnetic pole size（mm） | 35x35 |
| Number of magnetic poles | 8 |
| Clamping force | 1160kg |
| weight（kg） | 6.4kg |
| Voltage (single phase) | 200V |
| current（A） | 2.8A |
| Controller | C1M |
