Electro-Permanent Magnetic Chuck for robot arms(100kg)
¥56,000
This is a back-order item
Specification

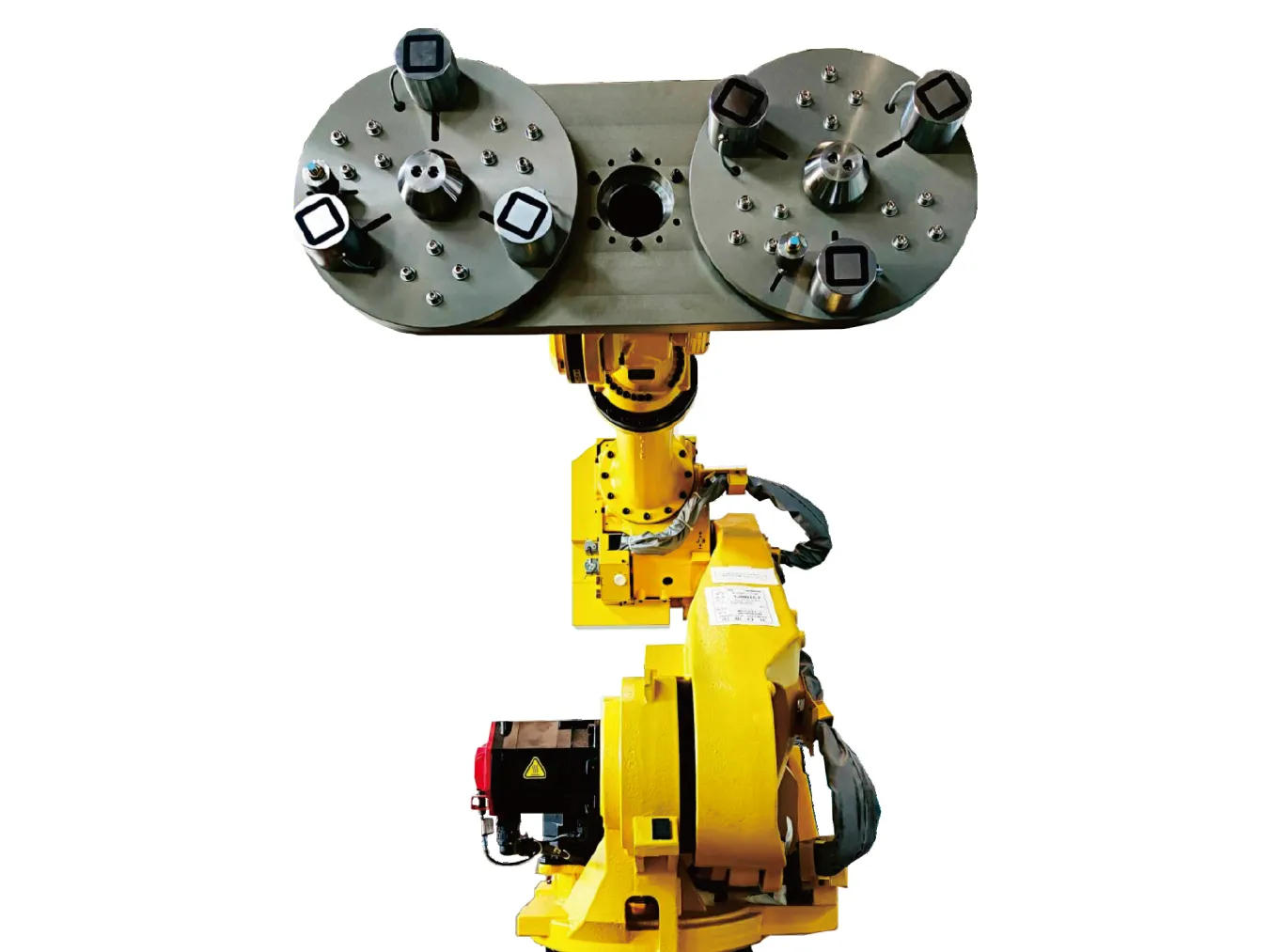

Suitable for automated production lines, including robotic arms, medical equipment, machinery, laboratory automation devices, and other automated handling and material/product transport applications.。
Electro-Permanent Magnetic Clamping: Utilizing an advanced electro-permanent system, power is only consumed during the brief moments of magnetization and demagnetization.Fail-Safe Workpiece Retention: The workpiece remains securely clamped even in the event of a sudden power loss, ensuring maximum operational safety.High-Power & Eco-Friendly: Generates an exceptionally strong holding force while delivering energy-saving efficiency and superior reliability.

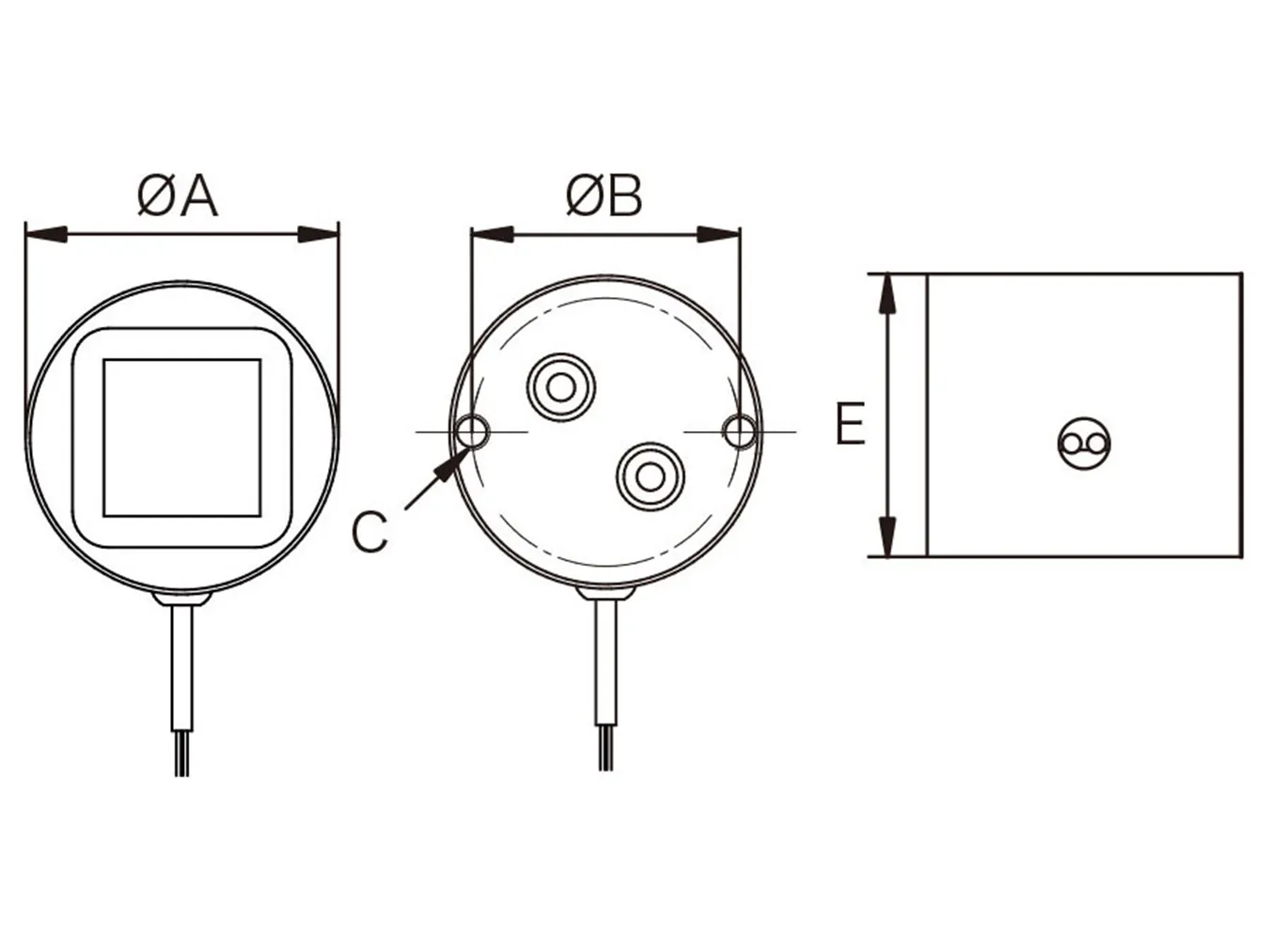

unit:mm
| Product NO | PECM-A-100 |
|---|---|
| A | 70 |
| B | 60 |
| C | M8 |
| E | 60 |
| Cable length | 500 |
| Voltage (single phase) | 24V(DC) |
| current(A) | 3 |
| weight(kg) | 1.8 |
| Clamping force(kgf) | 100kgf±5% |
