Magnetic Extension Vblock type(fixed type)

Product NO: EEPM-IBV

Price range: ¥58,100 through ¥122,100

Product name
Product NO
V angle(Number of magnetic poles)
Price
Stock
Quantity
Magnetic Extension Vblock type(fixed type)
EEPM-IB90V3
90°（3）
¥58,100

This is a back-order item

Magnetic Extension Vblock type(fixed type)

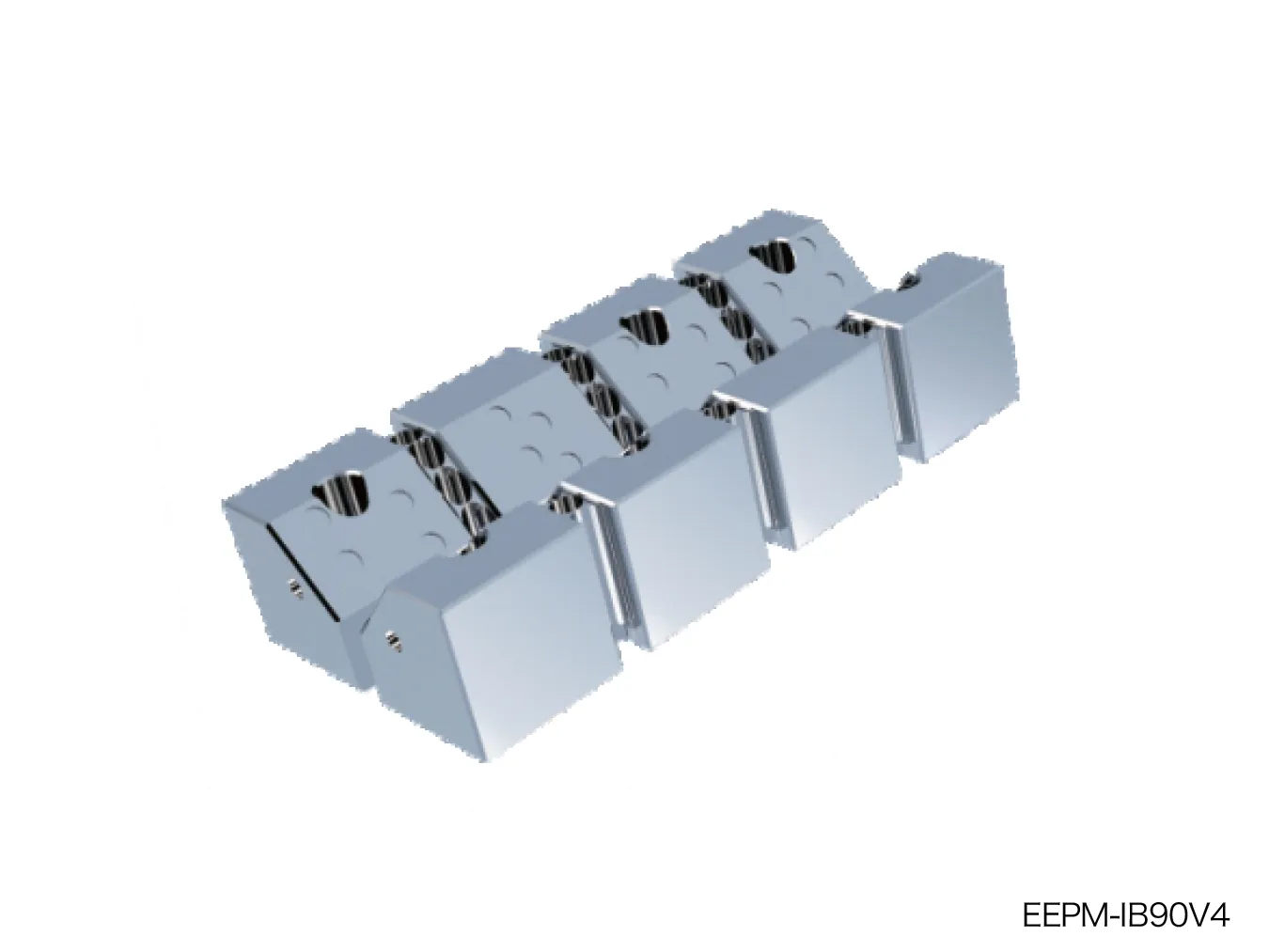

EEPM-IB90V4
90°（4）
¥73,700

This is a back-order item

Magnetic Extension Vblock type(fixed type)

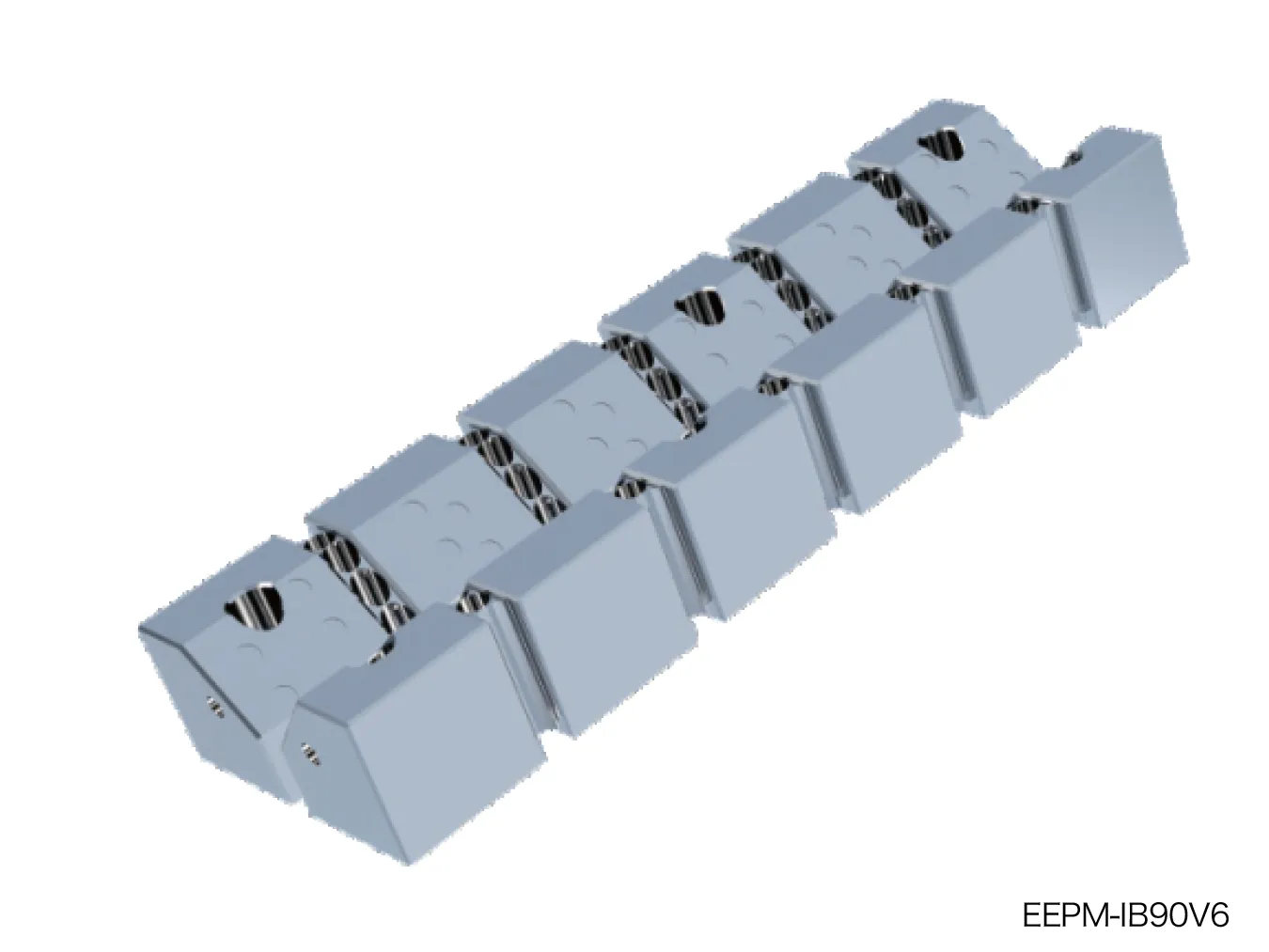

EEPM-IB90V6
90°（6）
¥108,300

This is a back-order item

Magnetic Extension Vblock type(fixed type)

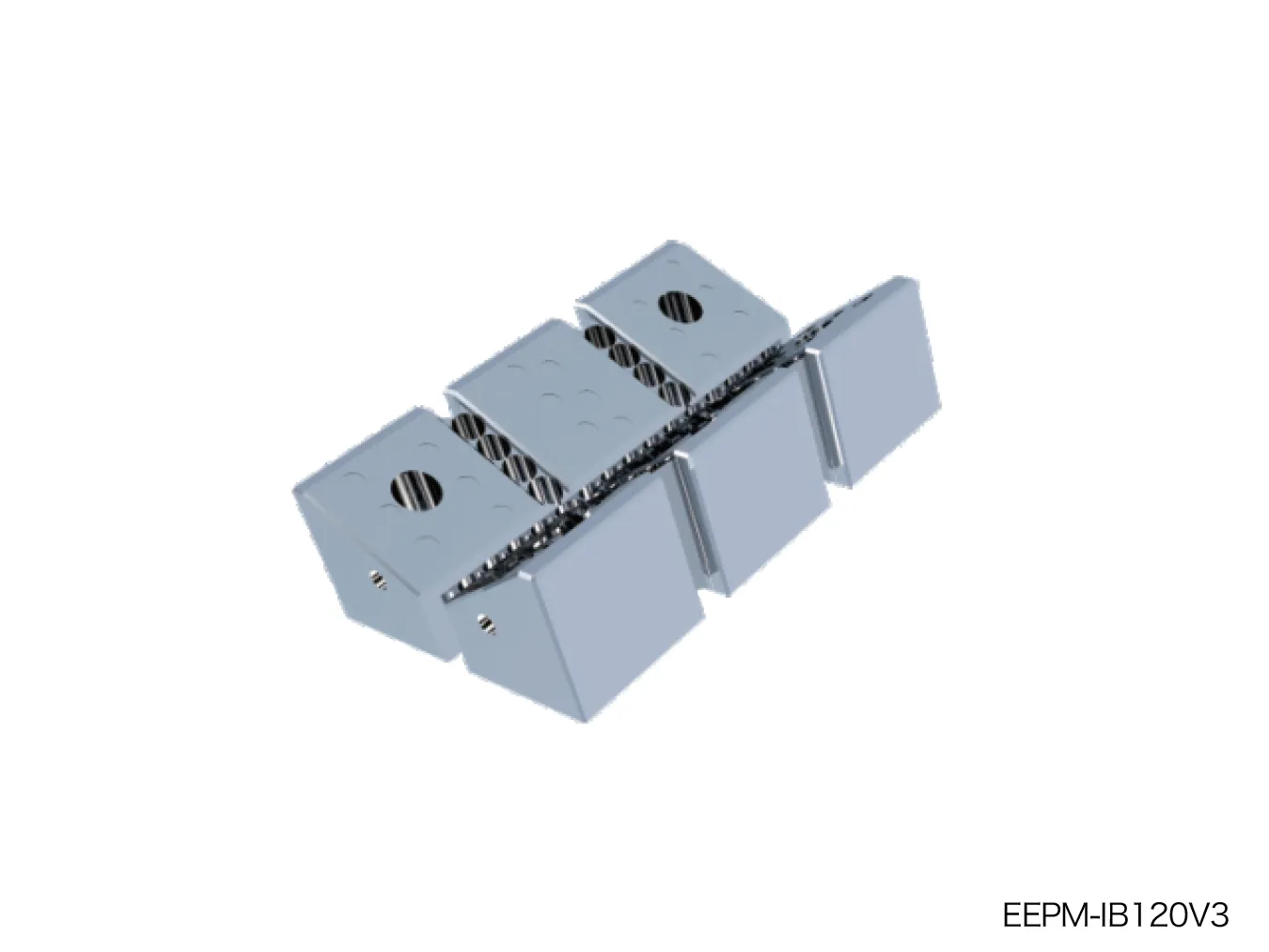

EEPM-IB120V3
120°（3）
¥64,400

This is a back-order item

Magnetic Extension Vblock type(fixed type)

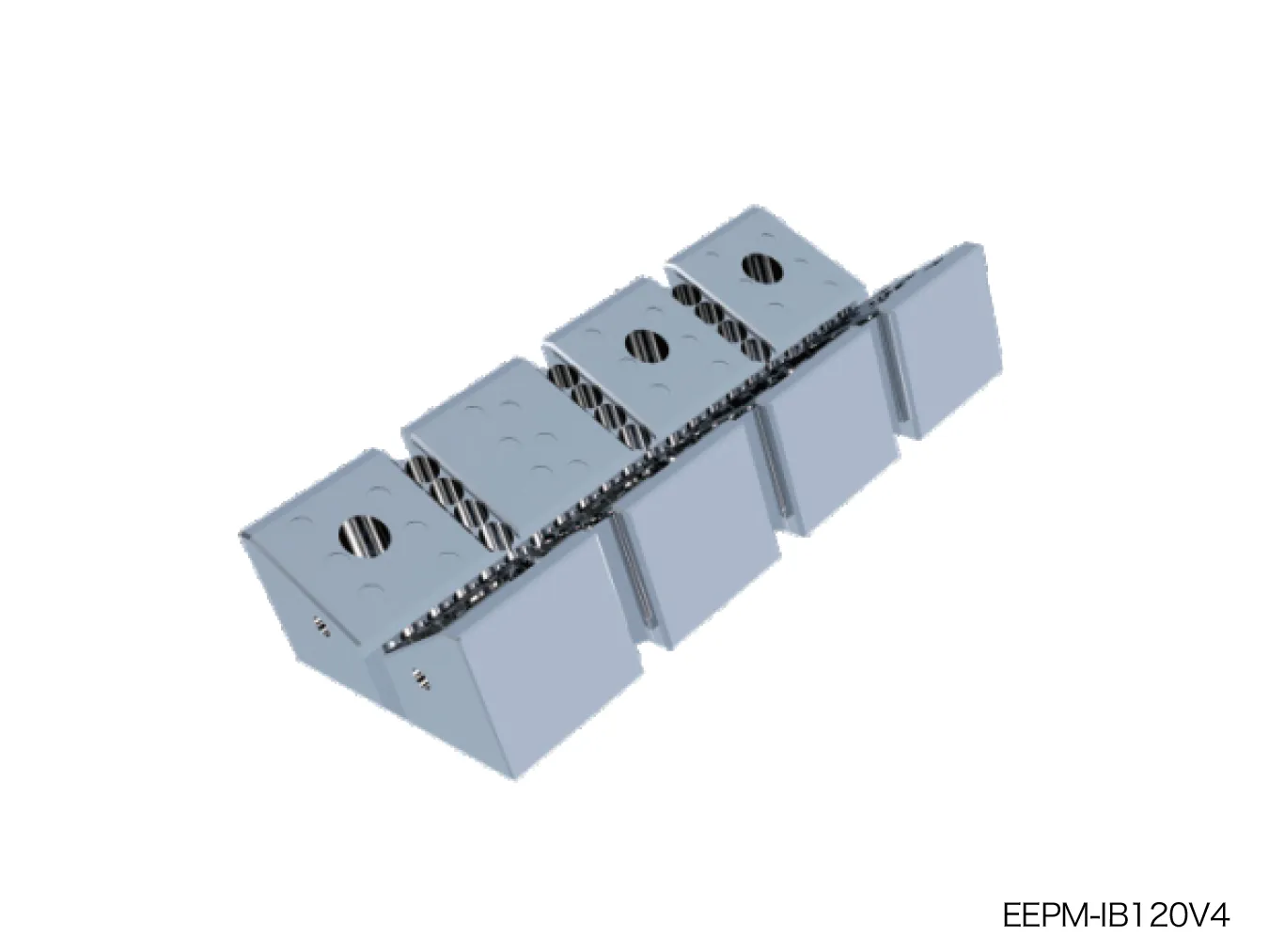

EEPM-IB120V4
120°（4）
¥83,200

This is a back-order item

Magnetic Extension Vblock type(fixed type)

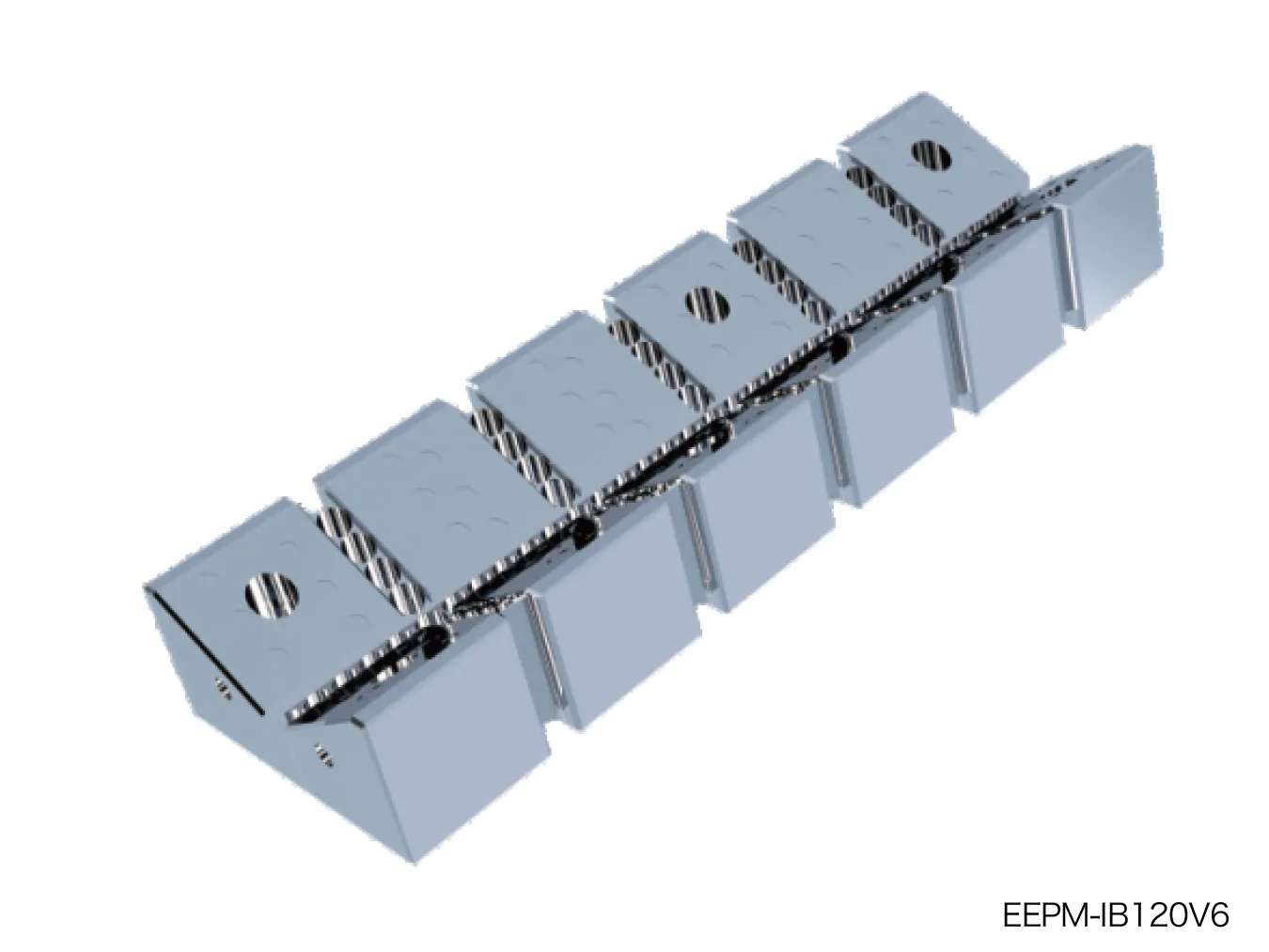

EEPM-IB120V6
120°（6）
¥122,100

This is a back-order item

Specification

●Material: Structural Steel
●Designed for clamping cylindrical and round workpieces.

Product Specifications (Variations)

unit：mm
Product NOMagnetic pole sizeNumber of magnetic polesVAngleApplicable chuck
EEPM-IB90V350 × 50390°EEPM-Bseries
EEPM-IB90V450 × 50490°EEPM-Bseries
EEPM-IB90V650 × 50690°EEPM-Bseries
EEPM-IB120V350 × 503120°EEPM-Bseries
EEPM-IB120V450 × 504120°EEPM-Bseries
EEPM-IB120V650 × 506120°EEPM-Bseries
