Magnetic Extension angle type(fixed type)
Product NO: EEPM-IBT
Price range: ¥79,900 through ¥91,000
Specification
●Material: Structural Steel
●Enables angular and tilted machining of workpieces.
Product Specifications (Variations)
unit：mm| Product NO | Magnetic pole size | Number of magnetic poles | Angle | Applicable chuck |
|---|---|---|---|---|
| EEPM-IBT30 | 50 × 50 | 4 | 30° | EEPM-Bseries |

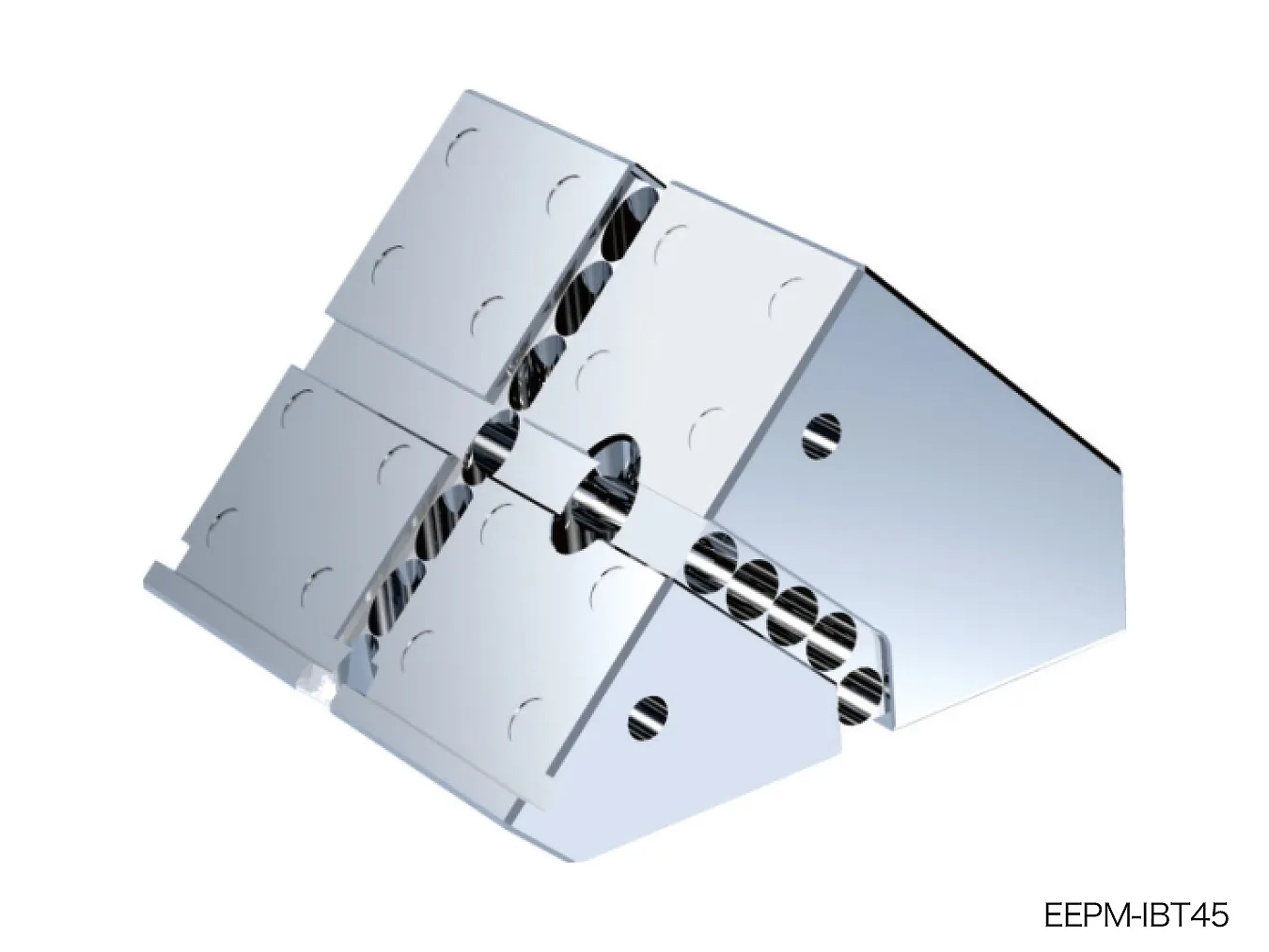

| EEPM-IBT45 | 50 × 50 | 4 | 45° | EEPM-Bseries |

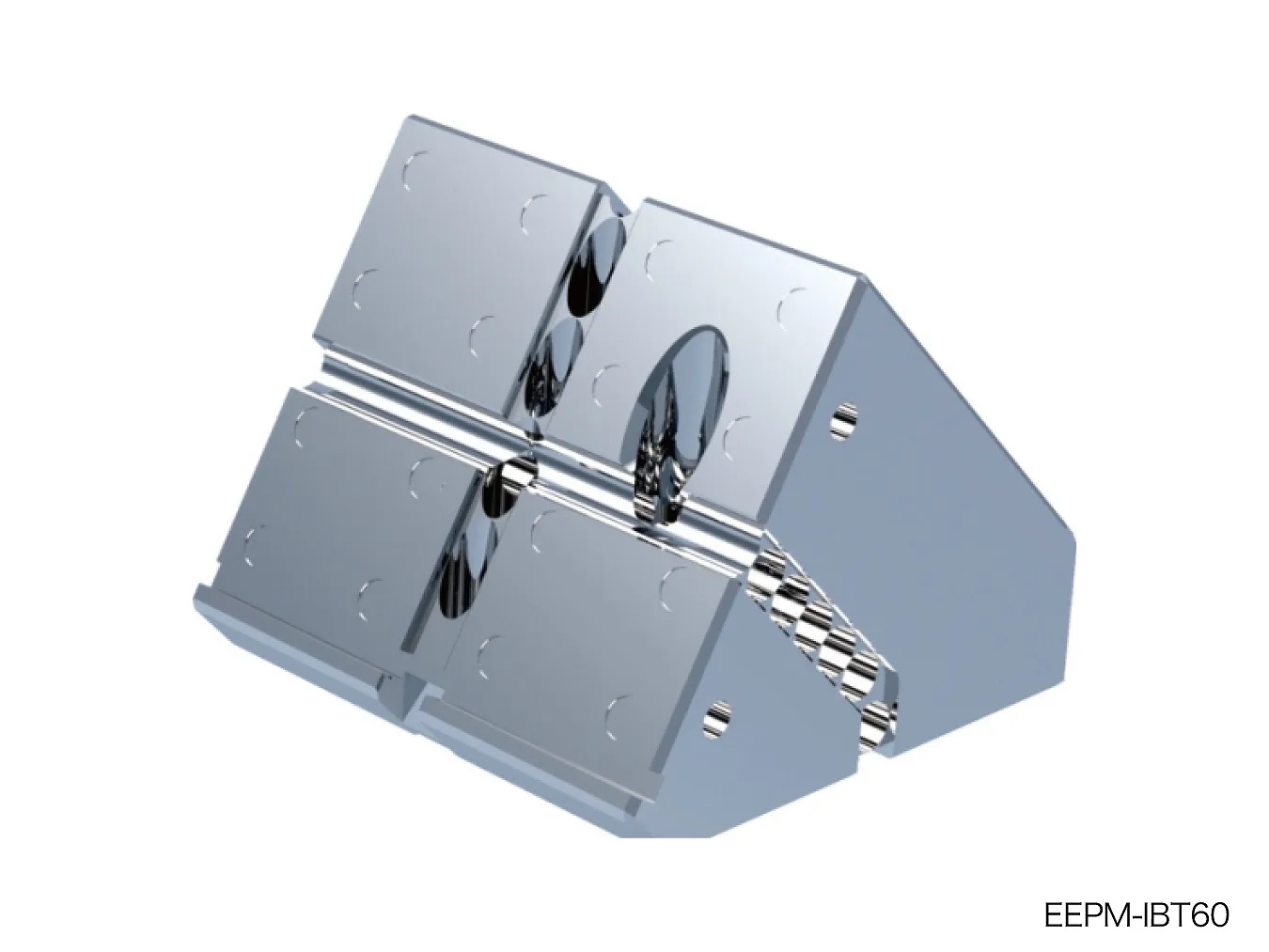

| EEPM-IBT60 | 50 × 50 | 4 | 60° | EEPM-Bseries |

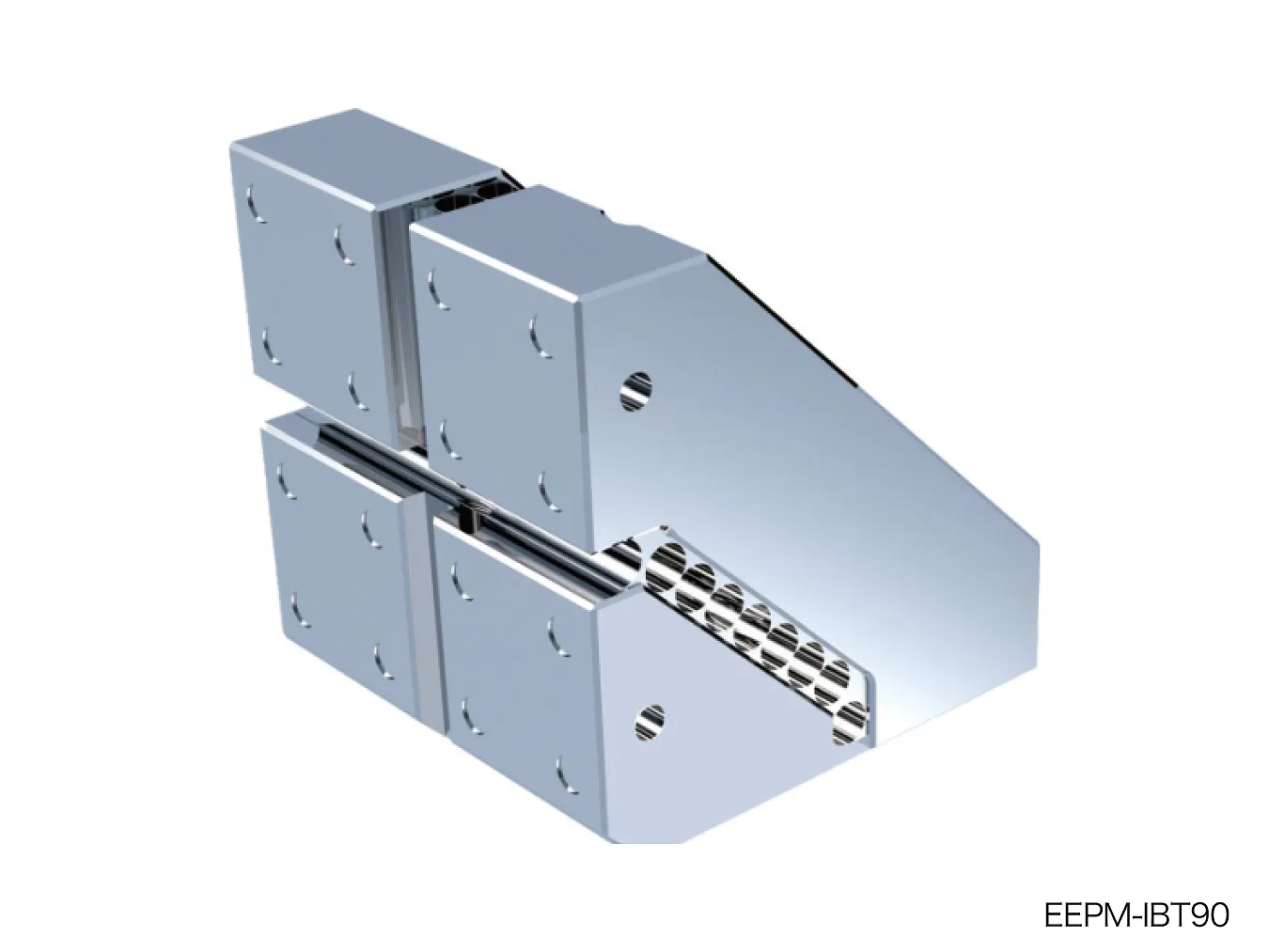

| EEPM-IBT90 | 50 × 50 | 4 | 90° | EEPM-Bseries |
