Induction Sub Plate

Name: Induction Sub Plate
Brand: Earth-Chain
SKU: EEPM-BISP
Availability: BackOrder

Product NO: EEPM-BISP

Price range: ¥143,700 through ¥1,196,000

Product No

Clear

Electro-Permanent Magnetic Chuck本体に合わせてご使用いただく商品になります。

Product name

Product NO

Compatible chuck

Price

Stock

Quantity

Induction Sub Plate

EEPM-2540BISP

EEPM-2540B

¥157,500

This is a back-order item

Induction Sub Plate

EEPM-2560BISP

EEPM-2560B

¥202,400

This is a back-order item

Induction Sub Plate

EEPM-2580BISP

EEPM-2580B

¥279,400

This is a back-order item

Induction Sub Plate

EEPM-2590BISP

EEPM-2590B

¥300,100

This is a back-order item

Induction Sub Plate

EEPM-25100BISP

EEPM-25100B

¥347,300

This is a back-order item

Induction Sub Plate

EEPM-3030BISP

EEPM-3030B

¥143,700

This is a back-order item

Induction Sub Plate

EEPM-3040BISP

EEPM-3040B

¥196,600

This is a back-order item

Induction Sub Plate

EEPM-3060BISP

EEPM-3060B

¥273,700

This is a back-order item

Induction Sub Plate

EEPM-3080BISP

EEPM-3080B

¥358,800

This is a back-order item

Induction Sub Plate

EEPM-3090BISP

EEPM-3090B

¥399,000

This is a back-order item

Induction Sub Plate

EEPM-30100BISP

EEPM-30100B

¥432,400

This is a back-order item

Induction Sub Plate

EEPM-4040BISP

EEPM-4040B

¥279,400

This is a back-order item

Induction Sub Plate

EEPM-4050BISP

EEPM-4050B

¥323,100

This is a back-order item

Induction Sub Plate

EEPM-4060BISP

EEPM-4060B

¥382,900

This is a back-order item

Induction Sub Plate

EEPM-4080BISP

EEPM-4080B

¥509,400

This is a back-order item

Induction Sub Plate

EEPM-4090BISP

EEPM-4090B

¥564,600

This is a back-order item

Induction Sub Plate

EEPM-40100BISP

EEPM-40100B

¥645,100

This is a back-order item

Induction Sub Plate

EEPM-5060BISP

EEPM-5060B

¥432,400

This is a back-order item

Induction Sub Plate

EEPM-5080BISP

EEPM-5080B

¥598,000

This is a back-order item

Induction Sub Plate

EEPM-5090BISP

EEPM-5090B

¥631,300

This is a back-order item

Induction Sub Plate

EEPM-50100BISP

EEPM-50100B

¥731,400

This is a back-order item

Induction Sub Plate

EEPM-6060BISP

EEPM-6060B

¥564,600

This is a back-order item

Induction Sub Plate

EEPM-6080BISP

EEPM-6080B

¥731,400

This is a back-order item

Induction Sub Plate

EEPM-6090BISP

EEPM-6090B

¥830,300

This is a back-order item

Induction Sub Plate

EEPM-60100BISP

EEPM-60100B

¥929,200

This is a back-order item

Induction Sub Plate

EEPM-8080BISP

EEPM-8080B

¥1,196,000

This is a back-order item

Specification

●Material: Structural Steel
●Protects the magnetic chuck surface from wear and damage.
●Enables surface precision leveling (Self-cutting/re-facing is applicable).
●Secured firmly using mounting bolts.
●Can be machined and utilized for precise workpiece positioning.

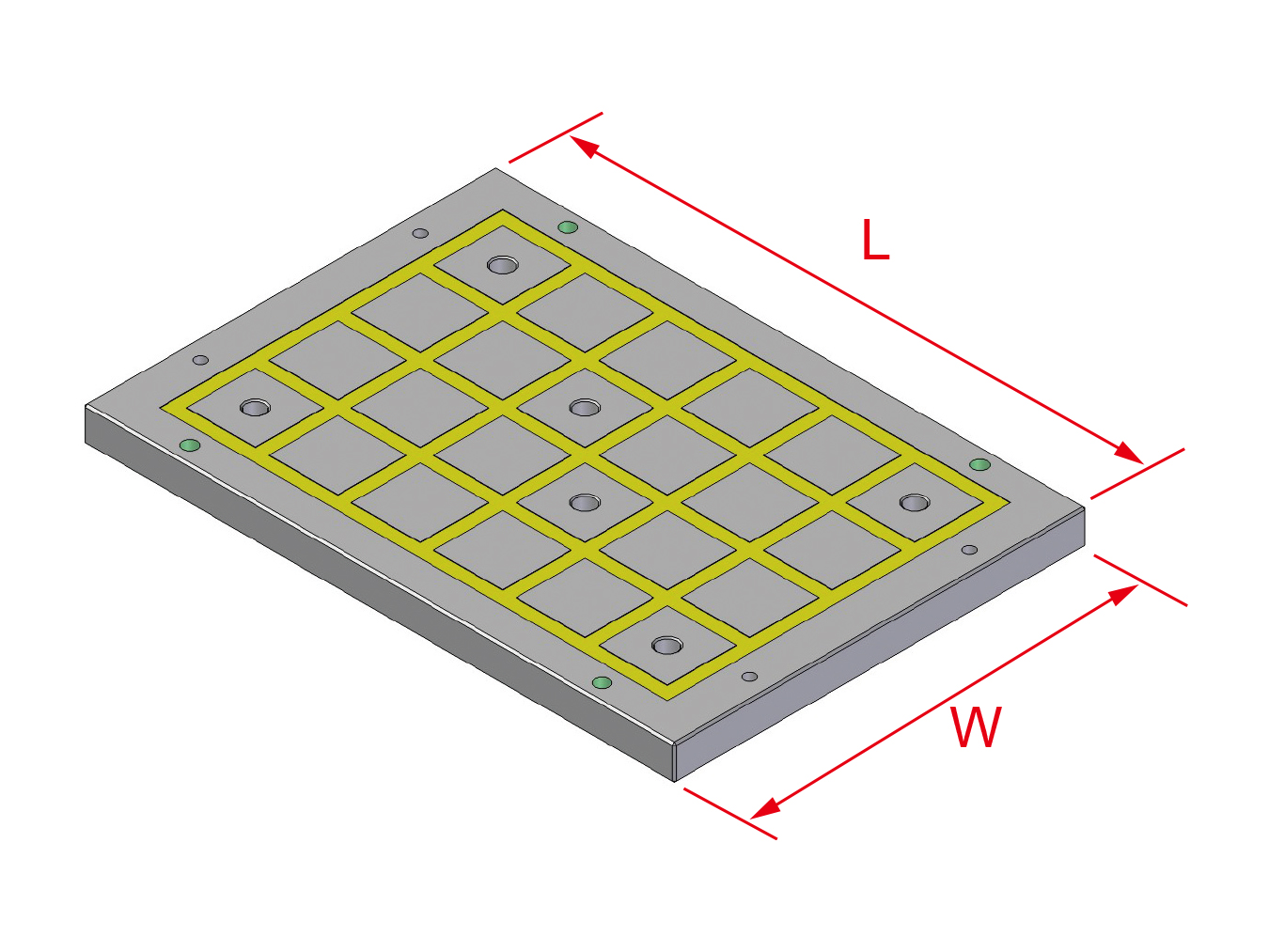

Product Specifications (Variations)

unit：mm

Product NO	W	L	Applicable chuck
EEPM-2540BISP	240	430	EEPM-2540B
EEPM-2560BISP	240	590	EEPM-2560B
EEPM-2580BISP	240	810	EEPM-2580B
EEPM-2590BISP	240	870	EEPM-2590B
EEPM-25100BISP	240	990	EEPM-25100B
EEPM-3030BISP	300	310	EEPM-3030B
EEPM-3040BISP	300	430	EEPM-3040B
EEPM-3060BISP	300	590	EEPM-3060B
EEPM-3080BISP	300	810	EEPM-3080B
EEPM-3090BISP	300	870	EEPM-3090B
EEPM-30100BISP	300	990	EEPM-30100B
EEPM-4040BISP	420	430	EEPM-4040B
EEPM-4050BISP	420	490	EEPM-4050B
EEPM-4060BISP	420	590	EEPM-4060B
EEPM-4080BISP	420	810	EEPM-4080B
EEPM-4090BISP	420	870	EEPM-4090B
EEPM-40100BISP	420	990	EEPM-40100B
EEPM-5060BISP	480	590	EEPM-5060B
EEPM-5080BISP	480	810	EEPM-5080B
EEPM-5090BISP	480	870	EEPM-5090B
EEPM-50100BISP	480	990	EEPM-50100B
EEPM-6060BISP	600	590	EEPM-6060B
EEPM-6080BISP	600	810	EEPM-6080B
EEPM-6090BISP	600	870	EEPM-6090B
EEPM-60100BISP	600	990	EEPM-60100B
EEPM-8080BISP	755	810	EEPM-8080B

Induction Sub Plate

Specification

Product Specifications (Variations)

Related products

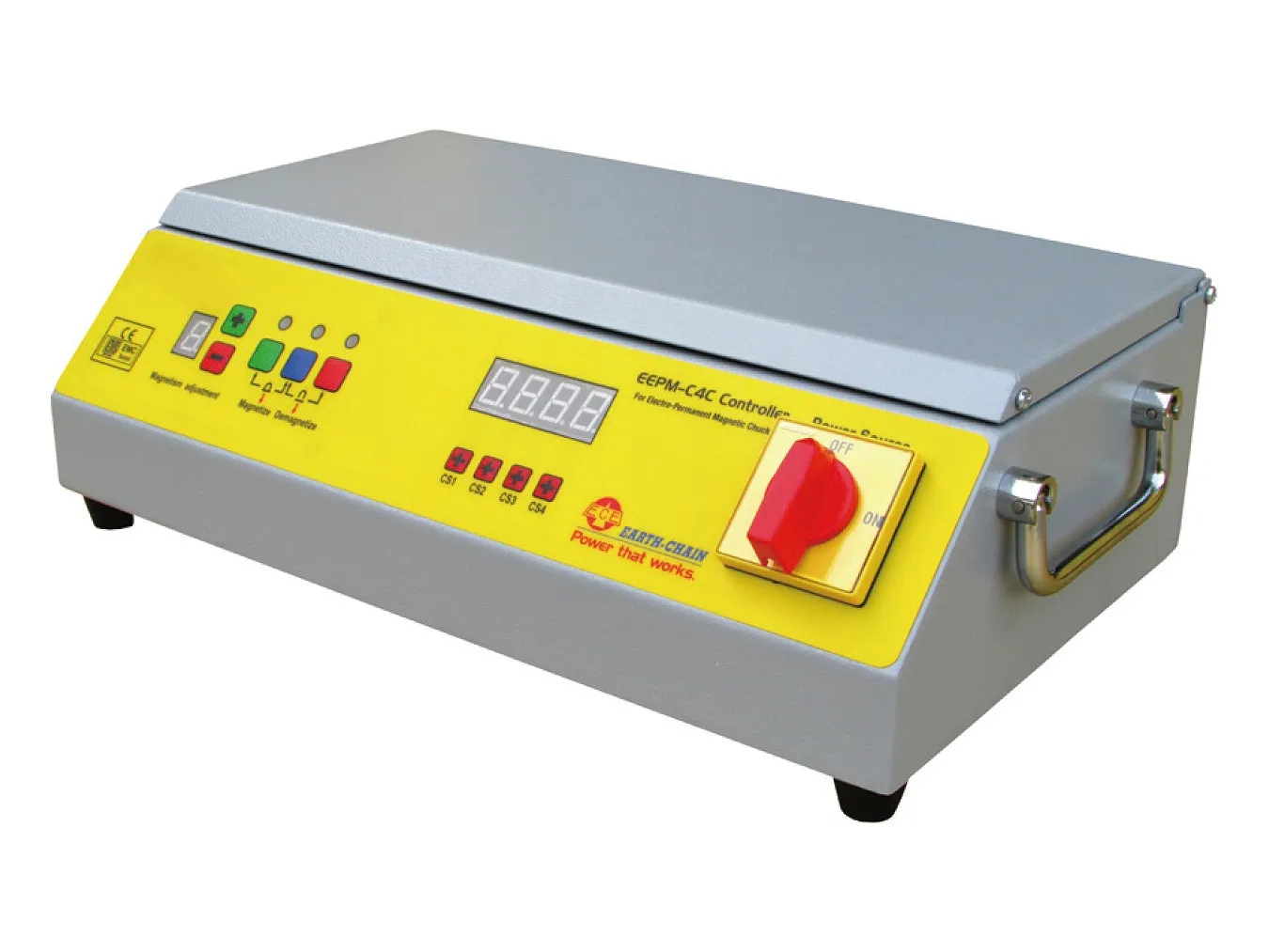

Controller for Concatenated type Electro-Permanent Magnetic Chuck

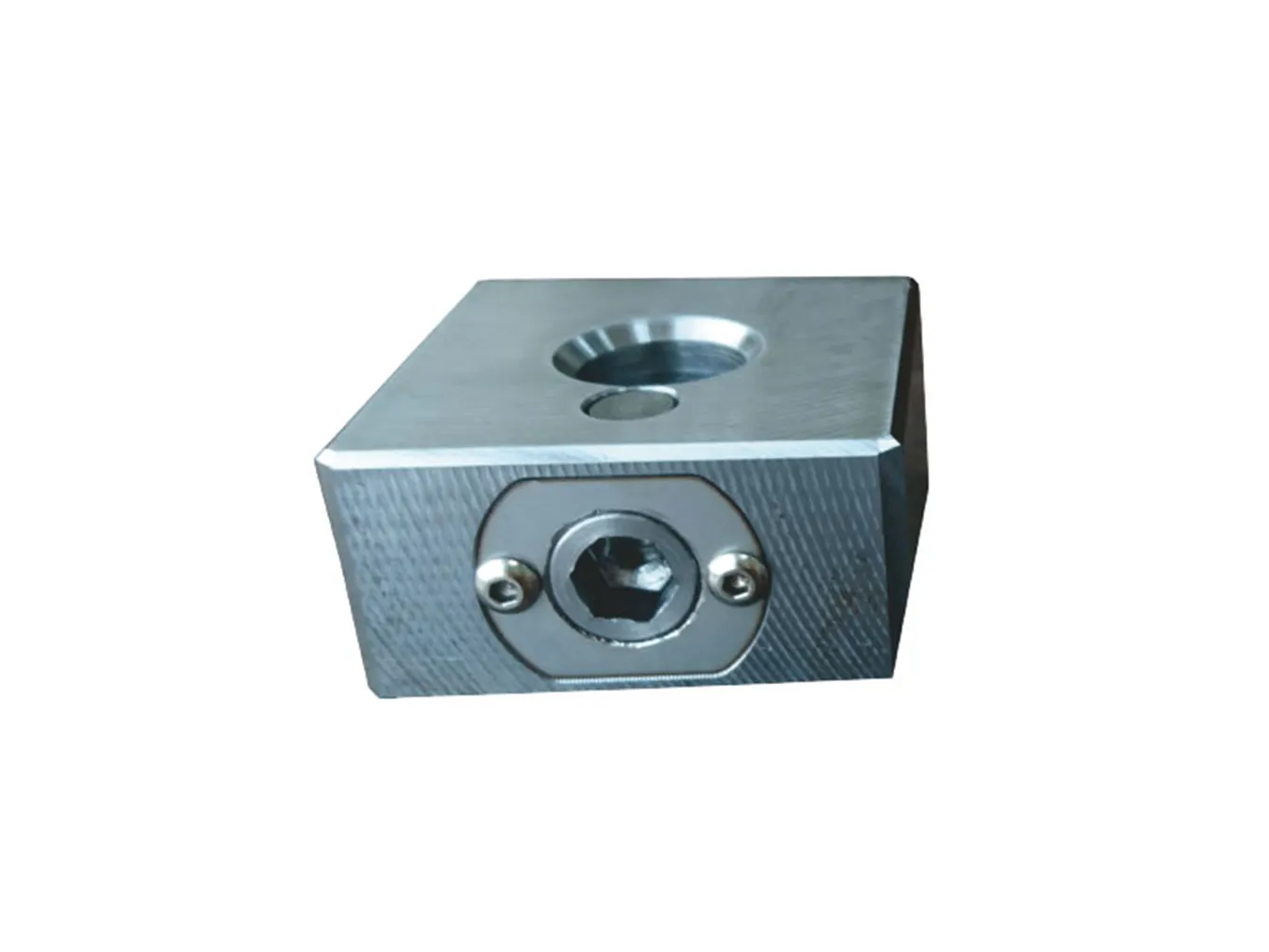

Magnetic Extension with lift function
