Magnetic Extension concatenated type(fixed type)

Product NO: EEPM-IB-A-B-D-E

Price range: ¥7,200 through ¥28,900

Product name
Product NO
Compatible chuck
Price
Stock
Quantity
Magnetic Extension concatenated type(fixed type)
EEPM-IB215A
EEPM-Aseries
¥7,200

This is a back-order item

Magnetic Extension concatenated type(fixed type)
EEPM-IB315A
EEPM-Aseries
¥11,800

This is a back-order item

Magnetic Extension concatenated type(fixed type)
EEPM-IB225B
EEPM-Bseries
¥8,400

141 in stock (can be backordered)

Magnetic Extension concatenated type(fixed type)
EEPM-IB325B
EEPM-Bseries
¥12,100

6 in stock (can be backordered)

Magnetic Extension concatenated type(fixed type)
EEPM-IB250B
EEPM-Bseries
¥10,300

21 in stock (can be backordered)

Magnetic Extension concatenated type(fixed type)
EEPM-IB350B
EEPM-Bseries
¥15,900

6 in stock (can be backordered)

Magnetic Extension concatenated type(fixed type)
EEPM-IB225D
EEPM-Dseries
¥18,100

This is a back-order item

Magnetic Extension concatenated type(fixed type)
EEPM-IB325D
EEPM-Dseries
¥28,900

This is a back-order item

Specification

●Material: Structural Steel
●Protects the magnetic chuck surface from wear and damage.
●Enables surface precision leveling (Self-cutting/re-facing is applicable).
●Secured firmly using mounting bolts.
●Prevents tool interference and damage during through-hole drilling.
●Can be machined and utilized for precise workpiece positioning.

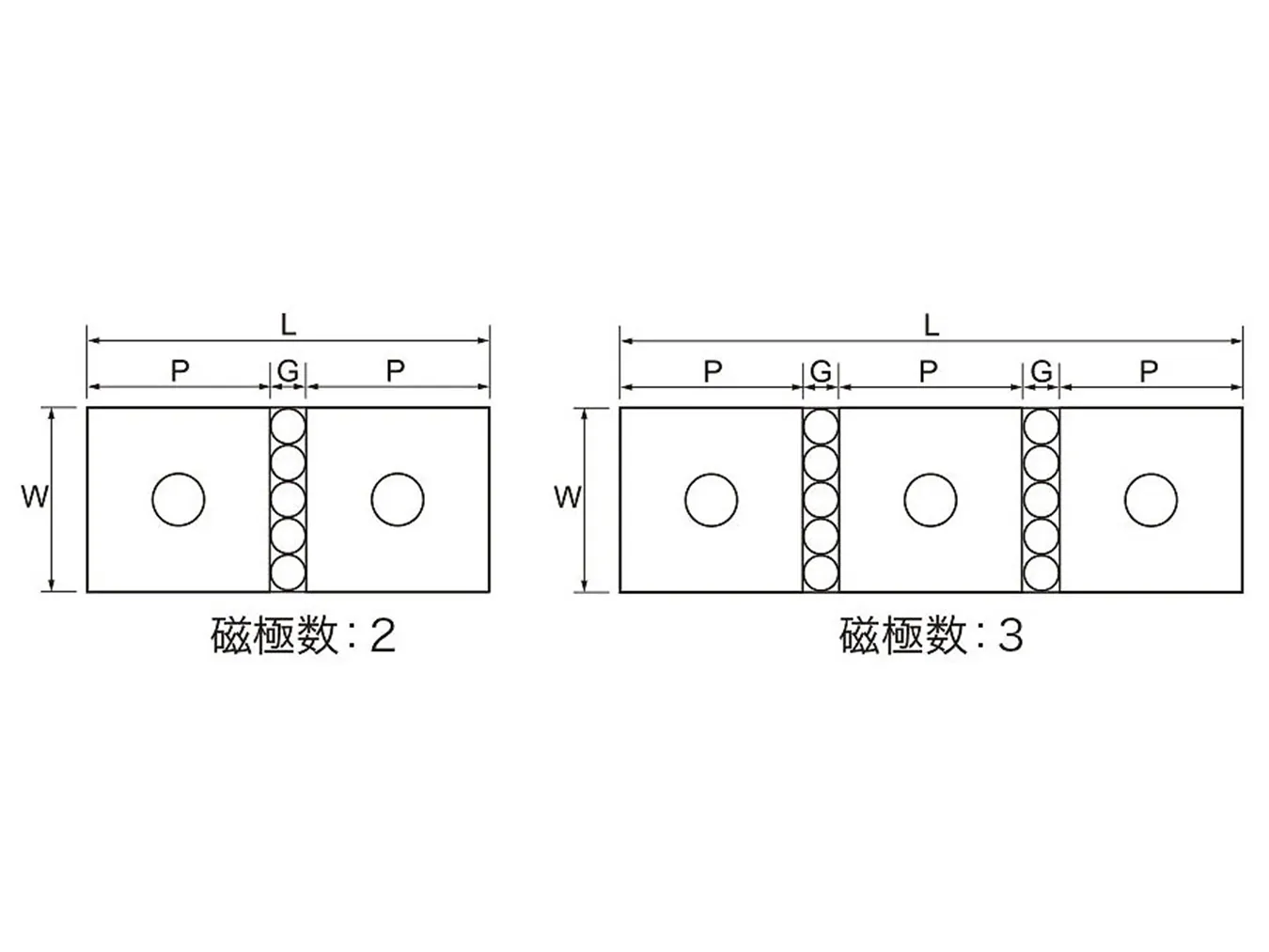

Product Specifications (Variations)

unit：mm
Product NONumber of magnetic polesWLHeightPGApplicable chuck
EEPM-IB215A2357715357EEPM-Aseries
EEPM-IB315A33511915357EEPM-Aseries
EEPM-IB225B250110255010EEPM-Bseries
EEPM-IB325B350170255010EEPM-Bseries
EEPM-IB250B250110505010EEPM-Bseries
EEPM-IB350B350170505010EEPM-Bseries
EEPM-IB225D270160257020EEPM-Dseries
EEPM-IB325D370250257020EEPM-Dseries
