Magnetic Extension
Product NO: EEPM-SPR
Price range: ¥3,100 through ¥23,000
Specification
Fixed Block
● Material: Structural Steel
● Protects the magnetic chuck surface from wear and damage.
● Enables surface precision leveling (Self-cutting/re-facing is applicable).
● Secured firmly using mounting bolts.
● Prevents tool interference and damage during through-hole drilling.
● Can be machined and utilized for precise workpiece positioning.

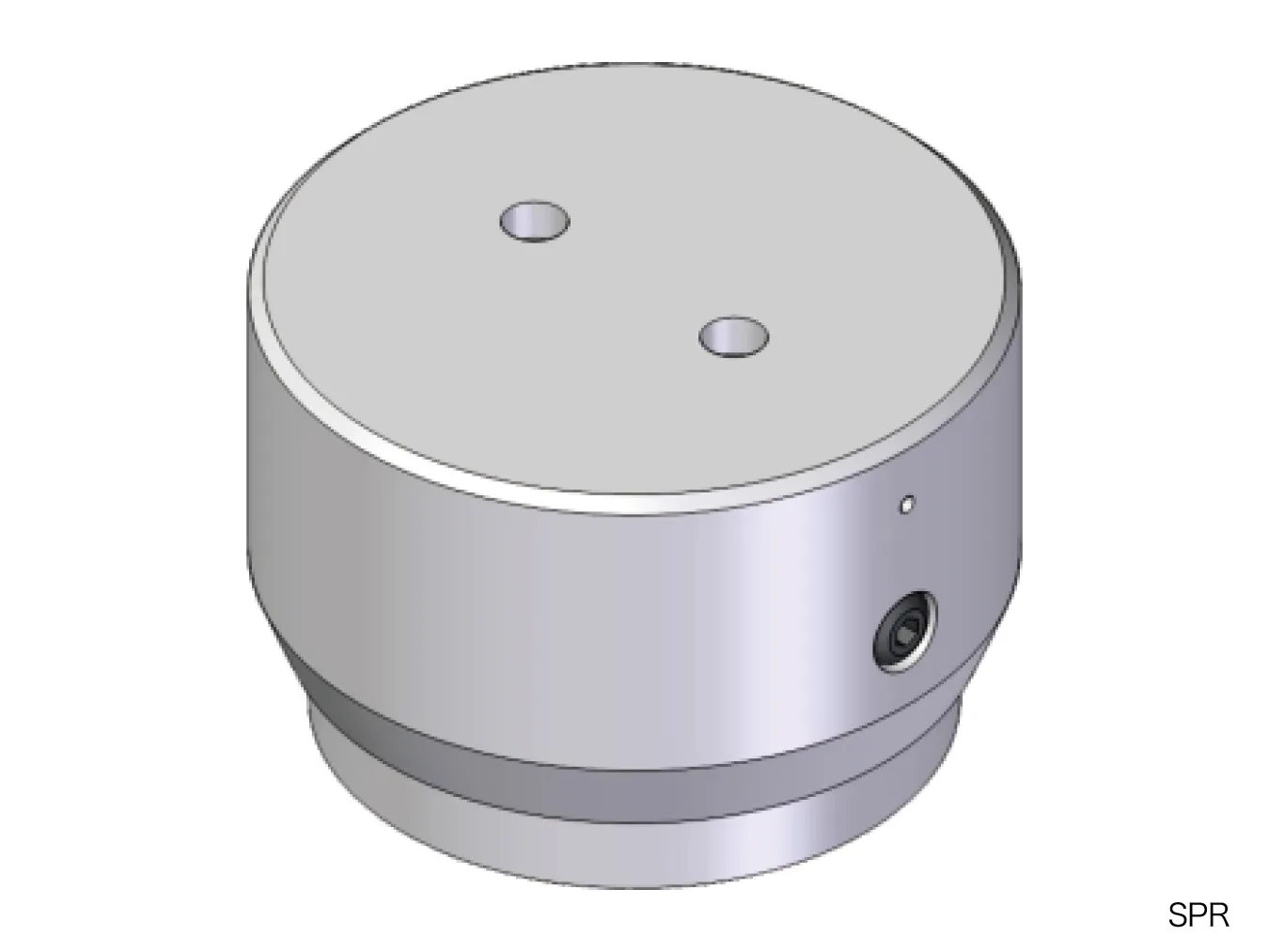

Spring Block
● Material: Structural Steel
● Designed for distortion leveling (stress relieving) of raw / black-scale workpieces.
● Mounted / adjusted using a dedicated wrench.
Product Specifications (Variations)
unit：mm| Product NO | Product name | ØD | H | Applicable chuck |
|---|---|---|---|---|
| EEPM-SPRF35 | Extension block | 37 | 23 | EEPM-Aseries |
| EEPM-SPRF50 | Extension block | 52 | 32.5 | EEPM-Bseries |
| EEPM-SPRF70 | Extension block | 72 | 42 | EEPM-Dseries |
| EEPM-SPR35 | Distortion removal block | 37 | 21～25 | EEPM-Aseries |
| EEPM-SPR50 | Distortion removal block | 52 | 30～35 | EEPM-Bseries |
| EEPM-SPR70 | Distortion removal block | 72 | 39～45 | EEPM-Dseries |
